Action visual contains data that is needed to visualize different actions on screen. More...

#include <visual.h>

Inheritance diagram for FIFE::ActionVisual:

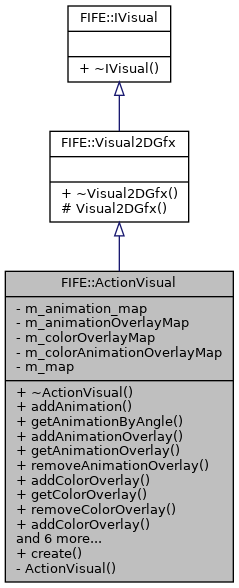

Collaboration diagram for FIFE::ActionVisual:

Public Member Functions
virtual	~ActionVisual ()
	Destructor. More...

void	addAnimation (uint32_t angle, AnimationPtr animationptr)
	Adds new animation with given angle (degrees) More...

AnimationPtr	getAnimationByAngle (int32_t angle)
	Gets index to animation closest to given angle. More...

void	addAnimationOverlay (uint32_t angle, int32_t order, AnimationPtr animationptr)
	Adds new animation overlay with given angle (degrees) and order. More...

std::map< int32_t, AnimationPtr >	getAnimationOverlay (int32_t angle)
	Gets map with animations closest to given angle. More...

void	removeAnimationOverlay (uint32_t angle, int32_t order)
	Removes animation overlay with given angle (degrees) and order. More...

void	addColorOverlay (uint32_t angle, const OverlayColors &colors)
	Adds new color overlay with given angle (degrees) and colors. More...

OverlayColors *	getColorOverlay (int32_t angle)
	Gets OverlayColors for given angle (degrees). More...

void	removeColorOverlay (int32_t angle)
	Removes color overlay with given angle (degrees). More...

void	addColorOverlay (uint32_t angle, int32_t order, const OverlayColors &colors)
	Adds new color overlay with given angle (degrees), order and colors. More...

OverlayColors *	getColorOverlay (int32_t angle, int32_t order)
	Gets OverlayColors for given angle (degrees) and order. More...

void	removeColorOverlay (int32_t angle, int32_t order)
	Removes color overlay with given angle (degrees) and order. More...

void	getActionImageAngles (std::vector< int32_t > &angles)
	Returns list of available angles for this Action. More...

void	convertToOverlays (bool color)
	Convertes animations and optional color overlay to default animation overlay. More...

bool	isAnimationOverlay ()
	Returns true if it exists a animation overlay, otherwise false. More...

bool	isColorOverlay ()
	Returns true if it exists a color overlay, otherwise false. More...

Public Member Functions inherited from FIFE::Visual2DGfx
virtual	~Visual2DGfx ()
	Destructor. More...

Public Member Functions inherited from FIFE::IVisual
virtual	~IVisual ()

Static Public Member Functions
static ActionVisual *	create (Action *action)
	Constructs and assigns it to the passed item. More...

Private Types
typedef std::map< uint32_t, AnimationPtr >	AngleAnimationMap

typedef std::map< uint32_t, std::map< int32_t, AnimationPtr > >	AngleAnimationOverlayMap

typedef std::map< uint32_t, OverlayColors >	AngleColorOverlayMap

typedef std::map< uint32_t, std::map< int32_t, OverlayColors > >	AngleColorAnimationOverlayMap

Private Member Functions
	ActionVisual ()
	Constructor. More...

Private Attributes
AngleAnimationMap	m_animation_map

AngleAnimationOverlayMap	m_animationOverlayMap

AngleColorOverlayMap	m_colorOverlayMap

AngleColorAnimationOverlayMap	m_colorAnimationOverlayMap

type_angle2id	m_map

Additional Inherited Members
Protected Member Functions inherited from FIFE::Visual2DGfx
	Visual2DGfx ()
	Constructor. More...

Detailed Description

Action visual contains data that is needed to visualize different actions on screen.

Definition at line 212 of file visual.h.

Member Typedef Documentation

◆ AngleAnimationMap

typedef std::map<uint32_t, AnimationPtr> FIFE::ActionVisual::AngleAnimationMap

private

Definition at line 296 of file visual.h.

◆ AngleAnimationOverlayMap

typedef std::map<uint32_t, std::map<int32_t, AnimationPtr> > FIFE::ActionVisual::AngleAnimationOverlayMap

private

Definition at line 299 of file visual.h.

◆ AngleColorAnimationOverlayMap

typedef std::map<uint32_t, std::map<int32_t, OverlayColors> > FIFE::ActionVisual::AngleColorAnimationOverlayMap

private

Definition at line 305 of file visual.h.

◆ AngleColorOverlayMap

typedef std::map<uint32_t, OverlayColors> FIFE::ActionVisual::AngleColorOverlayMap

private

Definition at line 302 of file visual.h.

Constructor & Destructor Documentation

◆ ~ActionVisual()

FIFE::ActionVisual::~ActionVisual ( )

virtual

Destructor.

Definition at line 237 of file visual.cpp.

◆ ActionVisual()

FIFE::ActionVisual::ActionVisual ( )

private

Constructor.

Definition at line 225 of file visual.cpp.

Referenced by create().

Here is the caller graph for this function:

Member Function Documentation

◆ addAnimation()

void FIFE::ActionVisual::addAnimation	(	uint32_t	angle,
		AnimationPtr	animationptr
	)

Adds new animation with given angle (degrees)

Definition at line 240 of file visual.cpp.

References m_animation_map, and m_map.

Referenced by FIFE::ObjectLoader::load().

Here is the caller graph for this function:

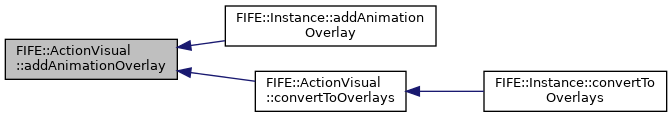

◆ addAnimationOverlay()

void FIFE::ActionVisual::addAnimationOverlay	(	uint32_t	angle,
		int32_t	order,
		AnimationPtr	animationptr
	)

Adds new animation overlay with given angle (degrees) and order.

Definition at line 250 of file visual.cpp.

References m_animationOverlayMap, and m_map.

Referenced by FIFE::Instance::addAnimationOverlay(), and convertToOverlays().

Here is the caller graph for this function:

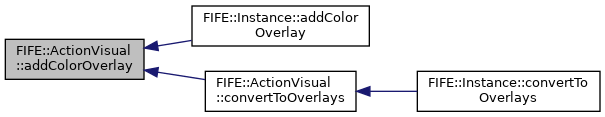

◆ addColorOverlay() [1/2]

void FIFE::ActionVisual::addColorOverlay	(	uint32_t	angle,
		const OverlayColors &	colors
	)

Adds new color overlay with given angle (degrees) and colors.

Note: Works only for single animations not for AnimationOverlays. (order is missing)

Definition at line 275 of file visual.cpp.

References FIFE::OverlayColors::changeColor(), FIFE::OverlayColors::getColorOverlayAnimation(), FIFE::OverlayColors::getColors(), m_colorOverlayMap, m_map, and FIFE::OverlayColors::setColorOverlayAnimation().

Referenced by FIFE::Instance::addColorOverlay(), and convertToOverlays().

Here is the caller graph for this function:

◆ addColorOverlay() [2/2]

void FIFE::ActionVisual::addColorOverlay	(	uint32_t	angle,
		int32_t	order,
		const OverlayColors &	colors
	)

Adds new color overlay with given angle (degrees), order and colors.

Note: Works only for AnimationOverlays.

Definition at line 312 of file visual.cpp.

References FIFE::OverlayColors::changeColor(), FIFE::OverlayColors::getColorOverlayAnimation(), FIFE::OverlayColors::getColors(), m_colorAnimationOverlayMap, m_map, and FIFE::OverlayColors::setColorOverlayAnimation().

◆ convertToOverlays()

void FIFE::ActionVisual::convertToOverlays ( bool color )

Convertes animations and optional color overlay to default animation overlay.

The default order value for both is 0. The old data remain, so if you remove the animation overlay the old plain animations and colors be used again.

Definition at line 369 of file visual.cpp.

References addAnimationOverlay(), addColorOverlay(), getAnimationByAngle(), getColorOverlay(), m_colorOverlayMap, and m_map.

Referenced by FIFE::Instance::convertToOverlays().

Here is the caller graph for this function:

◆ create()

ActionVisual * FIFE::ActionVisual::create ( Action * action )

static

Constructs and assigns it to the passed item.

Definition at line 228 of file visual.cpp.

References ActionVisual(), FIFE::Action::adoptVisual(), and FIFE::Action::getVisual().

Referenced by FIFE::ObjectLoader::load().

Here is the caller graph for this function:

◆ getActionImageAngles()

void FIFE::ActionVisual::getActionImageAngles ( std::vector< int32_t > & angles )

Returns list of available angles for this Action.

Definition at line 360 of file visual.cpp.

References m_map.

◆ getAnimationByAngle()

AnimationPtr FIFE::ActionVisual::getAnimationByAngle ( int32_t angle )

Gets index to animation closest to given angle.

Returns: animation index, -1 if no animations available

Definition at line 245 of file visual.cpp.

References FIFE::getIndexByAngle(), m_animation_map, and m_map.

Referenced by convertToOverlays().

Here is the caller graph for this function:

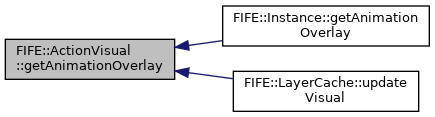

◆ getAnimationOverlay()

std::map< int32_t, AnimationPtr > FIFE::ActionVisual::getAnimationOverlay ( int32_t angle )

Gets map with animations closest to given angle.

Returns: animation map

Definition at line 256 of file visual.cpp.

References FIFE::getIndexByAngle(), m_animationOverlayMap, and m_map.

Referenced by FIFE::Instance::getAnimationOverlay(), and FIFE::LayerCache::updateVisual().

Here is the caller graph for this function:

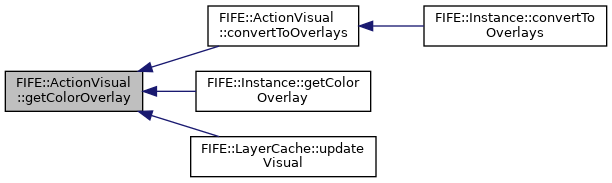

◆ getColorOverlay() [1/2]

OverlayColors * FIFE::ActionVisual::getColorOverlay ( int32_t angle )

Gets OverlayColors for given angle (degrees).

Returns: pointer to OverlayColors or Null

Definition at line 291 of file visual.cpp.

References FIFE::getIndexByAngle(), m_colorOverlayMap, and m_map.

Referenced by convertToOverlays(), FIFE::Instance::getColorOverlay(), and FIFE::LayerCache::updateVisual().

Here is the caller graph for this function:

◆ getColorOverlay() [2/2]

OverlayColors * FIFE::ActionVisual::getColorOverlay	(	int32_t	angle,
		int32_t	order
	)

Gets OverlayColors for given angle (degrees) and order.

Returns: pointer to OverlayColors or Null

Definition at line 329 of file visual.cpp.

References FIFE::getIndexByAngle(), m_colorAnimationOverlayMap, and m_map.

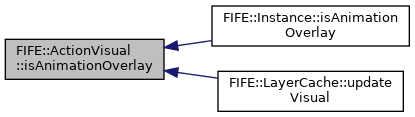

◆ isAnimationOverlay()

bool FIFE::ActionVisual::isAnimationOverlay ( )

inline

Returns true if it exists a animation overlay, otherwise false.

Definition at line 284 of file visual.h.

Referenced by FIFE::Instance::isAnimationOverlay(), and FIFE::LayerCache::updateVisual().

Here is the caller graph for this function:

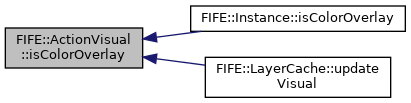

◆ isColorOverlay()

bool FIFE::ActionVisual::isColorOverlay ( )

inline

Returns true if it exists a color overlay, otherwise false.

Definition at line 288 of file visual.h.

Referenced by FIFE::Instance::isColorOverlay(), and FIFE::LayerCache::updateVisual().

Here is the caller graph for this function:

◆ removeAnimationOverlay()

void FIFE::ActionVisual::removeAnimationOverlay	(	uint32_t	angle,
		int32_t	order
	)

Removes animation overlay with given angle (degrees) and order.

Definition at line 261 of file visual.cpp.

References FIFE::getIndexByAngle(), m_animationOverlayMap, and m_map.

Referenced by FIFE::Instance::removeAnimationOverlay().

Here is the caller graph for this function:

◆ removeColorOverlay() [1/2]

void FIFE::ActionVisual::removeColorOverlay ( int32_t angle )

Removes color overlay with given angle (degrees).

Definition at line 303 of file visual.cpp.

References FIFE::getIndexByAngle(), m_colorOverlayMap, and m_map.

Referenced by FIFE::Instance::removeColorOverlay().

Here is the caller graph for this function:

◆ removeColorOverlay() [2/2]

void FIFE::ActionVisual::removeColorOverlay	(	int32_t	angle,
		int32_t	order
	)

Removes color overlay with given angle (degrees) and order.

Definition at line 345 of file visual.cpp.

References FIFE::getIndexByAngle(), m_colorAnimationOverlayMap, and m_map.

Member Data Documentation

◆ m_animation_map

AngleAnimationMap FIFE::ActionVisual::m_animation_map

private

Definition at line 297 of file visual.h.

Referenced by addAnimation(), and getAnimationByAngle().

◆ m_animationOverlayMap

AngleAnimationOverlayMap FIFE::ActionVisual::m_animationOverlayMap

private

Definition at line 300 of file visual.h.

Referenced by addAnimationOverlay(), getAnimationOverlay(), and removeAnimationOverlay().

◆ m_colorAnimationOverlayMap

AngleColorAnimationOverlayMap FIFE::ActionVisual::m_colorAnimationOverlayMap

private

Definition at line 306 of file visual.h.

Referenced by addColorOverlay(), getColorOverlay(), and removeColorOverlay().

◆ m_colorOverlayMap

AngleColorOverlayMap FIFE::ActionVisual::m_colorOverlayMap

private

Definition at line 303 of file visual.h.

Referenced by addColorOverlay(), convertToOverlays(), getColorOverlay(), and removeColorOverlay().

◆ m_map

type_angle2id FIFE::ActionVisual::m_map

private

Definition at line 308 of file visual.h.

Referenced by addAnimation(), addAnimationOverlay(), addColorOverlay(), convertToOverlays(), getActionImageAngles(), getAnimationByAngle(), getAnimationOverlay(), getColorOverlay(), removeAnimationOverlay(), and removeColorOverlay().

The documentation for this class was generated from the following files:

engine/core/view/visual.h
engine/core/view/visual.cpp

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ AngleAnimationMap

◆ AngleAnimationOverlayMap

◆ AngleColorAnimationOverlayMap

◆ AngleColorOverlayMap

Constructor & Destructor Documentation

◆ ~ActionVisual()

◆ ActionVisual()

Member Function Documentation

◆ addAnimation()

◆ addAnimationOverlay()

◆ addColorOverlay() [1/2]

◆ addColorOverlay() [2/2]

◆ convertToOverlays()

◆ create()

◆ getActionImageAngles()

◆ getAnimationByAngle()

◆ getAnimationOverlay()

◆ getColorOverlay() [1/2]

◆ getColorOverlay() [2/2]

◆ isAnimationOverlay()

◆ isColorOverlay()

◆ removeAnimationOverlay()

◆ removeColorOverlay() [1/2]

◆ removeColorOverlay() [2/2]

Member Data Documentation

◆ m_animation_map

◆ m_animationOverlayMap

◆ m_colorAnimationOverlayMap

◆ m_colorOverlayMap

◆ m_map
