#include <animation.h>

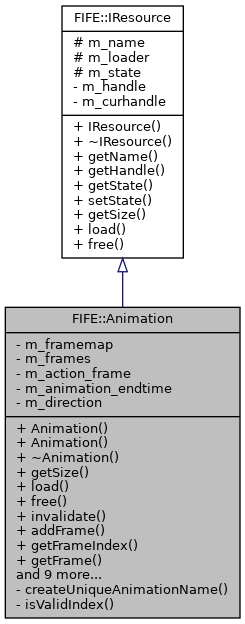

Inheritance diagram for FIFE::Animation:

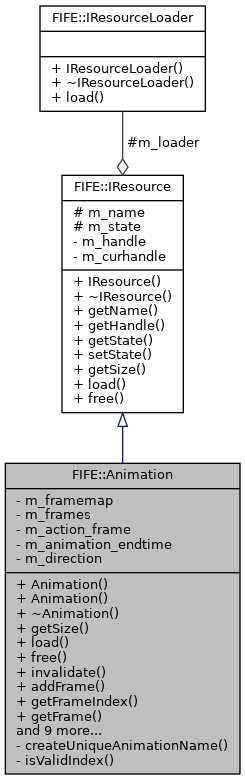

Collaboration diagram for FIFE::Animation:

Classes
struct	FrameInfo
	Contains information about one animation frame (duration + frame index + frame pointer) More...

Public Member Functions
	Animation (IResourceLoader *loader=0)
	Constructor. More...

	Animation (const std::string &name, IResourceLoader *loader=0)

	~Animation ()
	Destructor. More...

virtual size_t	getSize ()

virtual void	load ()

virtual void	free ()

void	invalidate ()

void	addFrame (ImagePtr image, uint32_t duration)
	Adds new frame into animation Frames must be added starting from first frame. More...

int32_t	getFrameIndex (uint32_t timestamp)
	Get the frame index that matches given timestamp. More...

ImagePtr	getFrame (int32_t index)
	Gets the frame iamge that matches the given index. More...

ImagePtr	getFrameByTimestamp (uint32_t timestamp)
	Gets the frame image that matches the given timestamp. More...

std::vector< ImagePtr >	getFrames ()
	Gets all frame images. More...

int32_t	getFrameDuration (int32_t index) const
	Gets the frame duration for given (indexed) frame. More...

uint32_t	getFrameCount () const
	Get the number of frames. More...

void	setActionFrame (int32_t num)
	Sets the action frame. More...

int32_t	getActionFrame () const
	Gets the action frame. More...

void	setDirection (uint32_t direction)
	Animation direction tells how this animation is associated with movement when played starting from frame 0 E.g. More...

uint32_t	getDirection () const
	Gets the animation direction. More...

uint32_t	getDuration () const
	Gets the total duration for the whole animation. More...

Public Member Functions inherited from FIFE::IResource
	IResource (const std::string &name, IResourceLoader *loader=0)

virtual	~IResource ()

virtual const std::string &	getName ()

ResourceHandle	getHandle ()

virtual ResourceState	getState ()

virtual void	setState (const ResourceState &state)

Private Member Functions
std::string	createUniqueAnimationName ()

bool	isValidIndex (int32_t index) const
	Checks for animation frame index overflows. More...

Private Attributes
std::map< uint32_t, FrameInfo >	m_framemap

std::vector< FrameInfo >	m_frames

int32_t	m_action_frame

int32_t	m_animation_endtime

uint32_t	m_direction

Additional Inherited Members
Public Types inherited from FIFE::IResource
enum	ResourceState { RES_INVALID = 0, RES_NOT_LOADED, RES_LOADED }

Protected Attributes inherited from FIFE::IResource
std::string	m_name

IResourceLoader *	m_loader

ResourceState	m_state

Detailed Description

Animation.

A container of Images describing an animation. Animation itself does not take care of animating the images. Instead it contains images having associated timestamps. It is the responsibility of the animation user to query frames based on current timestamp and show returned images on screen.

Definition at line 53 of file animation.h.

Constructor & Destructor Documentation

◆ Animation() [1/2]

FIFE::Animation::Animation ( IResourceLoader * loader = 0 )

Constructor.

Definition at line 40 of file animation.cpp.

◆ Animation() [2/2]

FIFE::Animation::Animation	(	const std::string &	name,
		IResourceLoader *	loader = `0`
	)

Definition at line 47 of file animation.cpp.

◆ ~Animation()

FIFE::Animation::~Animation ( )

Destructor.

Decreases the reference count of all referred images.

Definition at line 54 of file animation.cpp.

Member Function Documentation

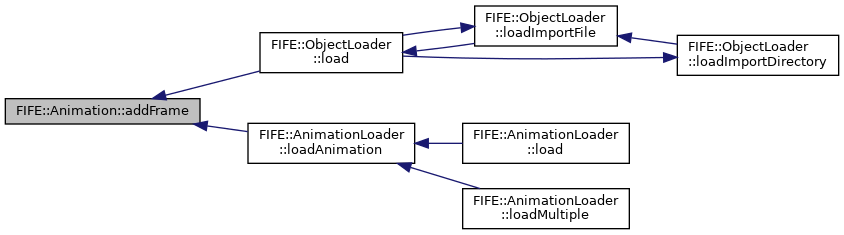

◆ addFrame()

void FIFE::Animation::addFrame	(	ImagePtr	image,
		uint32_t	duration
	)

Adds new frame into animation Frames must be added starting from first frame.

Increases the reference count of the given image.

Parameters

image	Pointer to Image. Does not transfer the ownership
duration	Duration for given frame in the animation

Definition at line 104 of file animation.cpp.

References FIFE::Animation::FrameInfo::duration, FIFE::Animation::FrameInfo::image, FIFE::Animation::FrameInfo::index, m_animation_endtime, m_framemap, and m_frames.

Referenced by FIFE::ObjectLoader::load(), and FIFE::AnimationLoader::loadAnimation().

Here is the caller graph for this function:

◆ createUniqueAnimationName()

std::string FIFE::Animation::createUniqueAnimationName ( )

private

Definition at line 90 of file animation.cpp.

◆ free()

void FIFE::Animation::free ( )

virtual

Implements FIFE::IResource.

Definition at line 73 of file animation.cpp.

References m_frames, FIFE::IResource::m_state, and FIFE::IResource::RES_NOT_LOADED.

Referenced by invalidate().

Here is the caller graph for this function:

◆ getActionFrame()

int32_t FIFE::Animation::getActionFrame ( ) const

inline

Gets the action frame.

See also: setActionFrame

Definition at line 119 of file animation.h.

References m_action_frame, and setDirection().

Referenced by FIFE::LayerCache::updateVisual().

Here is the caller graph for this function:

◆ getDirection()

uint32_t FIFE::Animation::getDirection ( ) const

inline

Gets the animation direction.

See also: setDirection

Returns: direction for this animation

Definition at line 134 of file animation.h.

References m_direction.

Referenced by FIFE::ObjectLoader::load().

Here is the caller graph for this function:

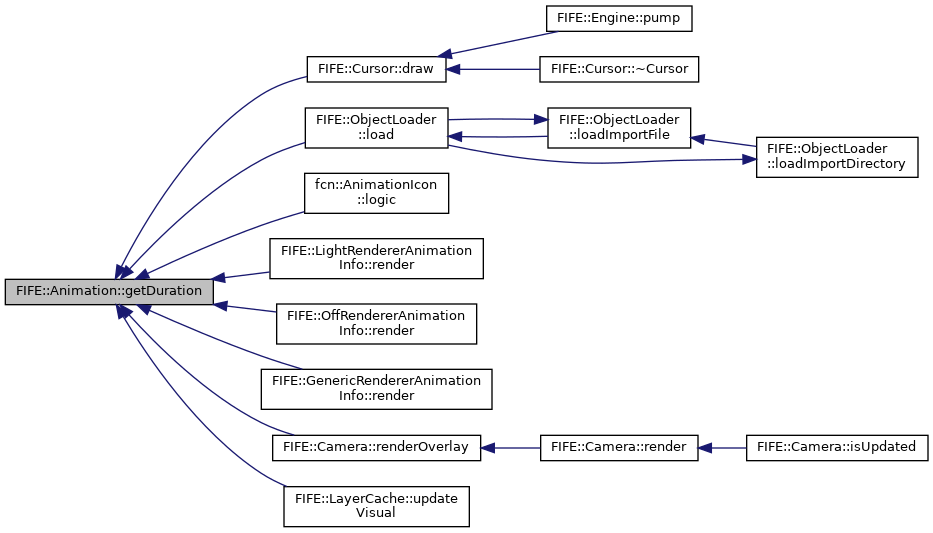

◆ getDuration()

uint32_t FIFE::Animation::getDuration ( ) const

inline

Gets the total duration for the whole animation.

Definition at line 138 of file animation.h.

References m_animation_endtime.

Referenced by FIFE::Cursor::draw(), FIFE::ObjectLoader::load(), fcn::AnimationIcon::logic(), FIFE::LightRendererAnimationInfo::render(), FIFE::OffRendererAnimationInfo::render(), FIFE::GenericRendererAnimationInfo::render(), FIFE::Camera::renderOverlay(), and FIFE::LayerCache::updateVisual().

Here is the caller graph for this function:

◆ getFrame()

ImagePtr FIFE::Animation::getFrame ( int32_t index )

Gets the frame iamge that matches the given index.

If no matches found, returns an invalid ImagePtr

Definition at line 139 of file animation.cpp.

References FIFE::IResource::getState(), isValidIndex(), FIFE::Image::load(), m_frames, and FIFE::IResource::RES_NOT_LOADED.

Referenced by fcn::AnimationIcon::AnimationIcon(), fcn::AnimationIcon::logic(), fcn::AnimationIcon::setAnimation(), and fcn::AnimationIcon::stop().

Here is the caller graph for this function:

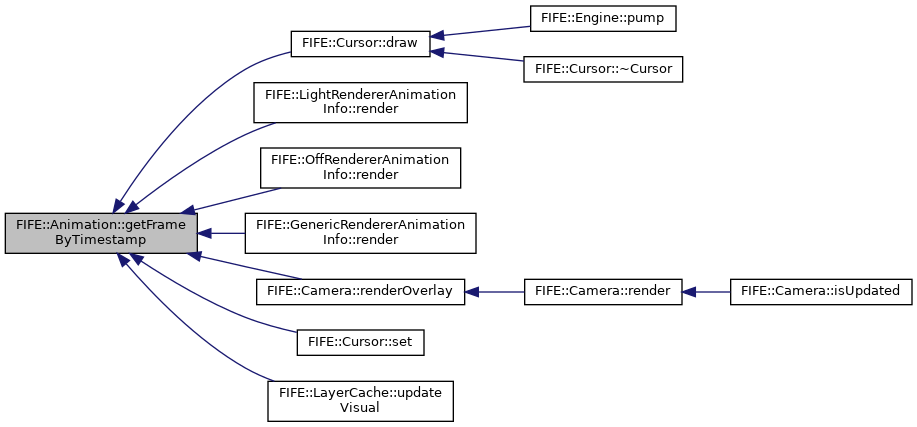

◆ getFrameByTimestamp()

ImagePtr FIFE::Animation::getFrameByTimestamp ( uint32_t timestamp )

Gets the frame image that matches the given timestamp.

Definition at line 150 of file animation.cpp.

References FIFE::IResource::getState(), FIFE::Image::load(), m_animation_endtime, m_framemap, and FIFE::IResource::RES_NOT_LOADED.

Referenced by FIFE::Cursor::draw(), FIFE::LightRendererAnimationInfo::render(), FIFE::OffRendererAnimationInfo::render(), FIFE::GenericRendererAnimationInfo::render(), FIFE::Camera::renderOverlay(), FIFE::Cursor::set(), and FIFE::LayerCache::updateVisual().

Here is the caller graph for this function:

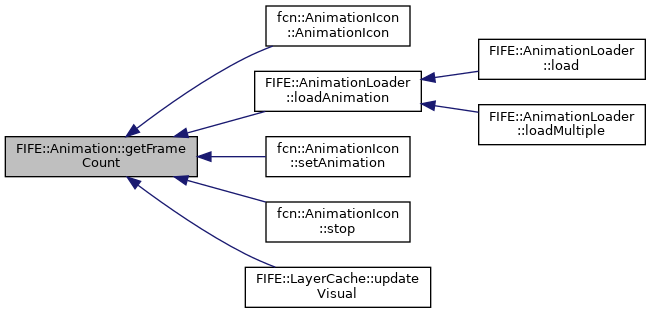

◆ getFrameCount()

uint32_t FIFE::Animation::getFrameCount ( ) const

Get the number of frames.

Definition at line 178 of file animation.cpp.

References m_frames.

Referenced by fcn::AnimationIcon::AnimationIcon(), FIFE::AnimationLoader::loadAnimation(), fcn::AnimationIcon::setAnimation(), fcn::AnimationIcon::stop(), and FIFE::LayerCache::updateVisual().

Here is the caller graph for this function:

◆ getFrameDuration()

int32_t FIFE::Animation::getFrameDuration ( int32_t index ) const

Gets the frame duration for given (indexed) frame.

Returns negative value in case of incorrect index

Definition at line 171 of file animation.cpp.

References isValidIndex(), and m_frames.

◆ getFrameIndex()

int32_t FIFE::Animation::getFrameIndex ( uint32_t timestamp )

Get the frame index that matches given timestamp.

In case there is no exact match, correct frame is calculated. E.g. if there are frames for timestamps 50 and 100 and frame for 75 is asked, frame associated with value 50 is given back. In case the timestamp is past the sequence, negative value is returned

See also: addFrame

Definition at line 124 of file animation.cpp.

References m_animation_endtime, and m_framemap.

Referenced by fcn::AnimationIcon::logic(), and FIFE::LayerCache::updateVisual().

Here is the caller graph for this function:

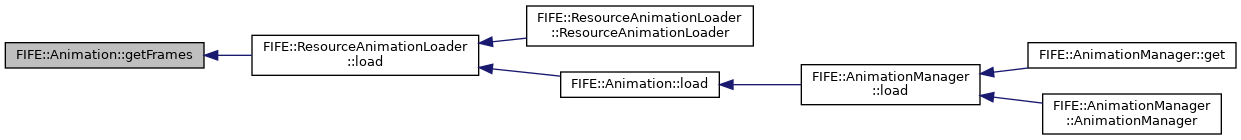

◆ getFrames()

std::vector< ImagePtr > FIFE::Animation::getFrames ( )

Gets all frame images.

Definition at line 163 of file animation.cpp.

References m_frames.

Referenced by FIFE::ResourceAnimationLoader::load().

Here is the caller graph for this function:

◆ getSize()

size_t FIFE::Animation::getSize ( )

virtual

Implements FIFE::IResource.

Definition at line 59 of file animation.cpp.

◆ invalidate()

void FIFE::Animation::invalidate ( )

Definition at line 81 of file animation.cpp.

References free(), m_action_frame, m_animation_endtime, m_direction, m_framemap, and m_frames.

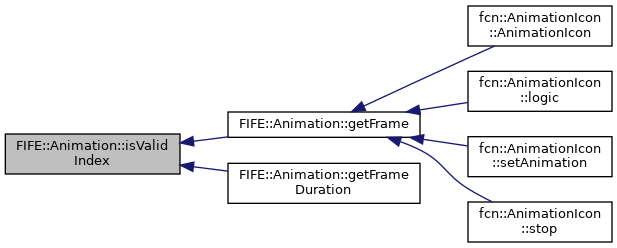

◆ isValidIndex()

bool FIFE::Animation::isValidIndex ( int32_t index ) const

private

Checks for animation frame index overflows.

Definition at line 134 of file animation.cpp.

References m_frames.

Referenced by getFrame(), and getFrameDuration().

Here is the caller graph for this function:

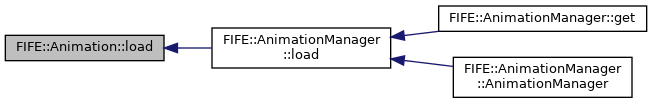

◆ load()

void FIFE::Animation::load ( )

virtual

Implements FIFE::IResource.

Definition at line 63 of file animation.cpp.

References FIFE::ResourceAnimationLoader::load(), FIFE::IResourceLoader::load(), FIFE::IResource::m_loader, FIFE::IResource::m_state, and FIFE::IResource::RES_LOADED.

Referenced by FIFE::AnimationManager::load().

Here is the caller graph for this function:

◆ setActionFrame()

void FIFE::Animation::setActionFrame ( int32_t num )

inline

Sets the action frame.

Action frame is the frame when the related action actually happens. E.g. in case of punch animation, action frame is the frame when punch hits the target. In case there is no associated action frame, value is negative

Parameters

num	index of the action frame.

Definition at line 114 of file animation.h.

References m_action_frame.

Referenced by FIFE::ObjectLoader::load(), and FIFE::AnimationLoader::loadAnimation().

Here is the caller graph for this function:

◆ setDirection()

void FIFE::Animation::setDirection ( uint32_t direction )

Animation direction tells how this animation is associated with movement when played starting from frame 0 E.g.

in walking animation there should be direction assigned so that engine can choose the correct animation when characters are moved around the map area

Parameters

direction direction to set

Definition at line 182 of file animation.cpp.

References m_direction.

Referenced by getActionFrame(), and FIFE::AnimationLoader::loadAnimation().

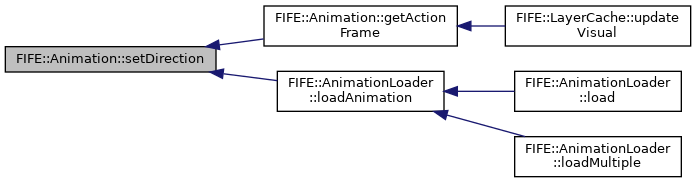

Here is the caller graph for this function:

Member Data Documentation

◆ m_action_frame

int32_t FIFE::Animation::m_action_frame

private

Definition at line 160 of file animation.h.

Referenced by getActionFrame(), invalidate(), and setActionFrame().

◆ m_animation_endtime

int32_t FIFE::Animation::m_animation_endtime

private

Definition at line 162 of file animation.h.

Referenced by addFrame(), getDuration(), getFrameByTimestamp(), getFrameIndex(), and invalidate().

◆ m_direction

uint32_t FIFE::Animation::m_direction

private

Definition at line 164 of file animation.h.

Referenced by getDirection(), invalidate(), and setDirection().

◆ m_framemap

std::map<uint32_t, FrameInfo> FIFE::Animation::m_framemap

private

Definition at line 156 of file animation.h.

Referenced by addFrame(), getFrameByTimestamp(), getFrameIndex(), and invalidate().

◆ m_frames

std::vector<FrameInfo> FIFE::Animation::m_frames

private

Definition at line 158 of file animation.h.

Referenced by addFrame(), free(), getFrame(), getFrameCount(), getFrameDuration(), getFrames(), invalidate(), and isValidIndex().

The documentation for this class was generated from the following files:

engine/core/video/animation.h
engine/core/video/animation.cpp
