A CellCache is an abstract depiction of one or a few layers and contains additional information, such as different cost and speed and so on. More...

#include <cellcache.h>

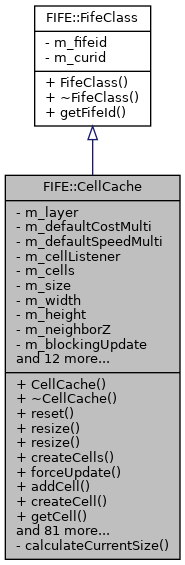

Inheritance diagram for FIFE::CellCache:

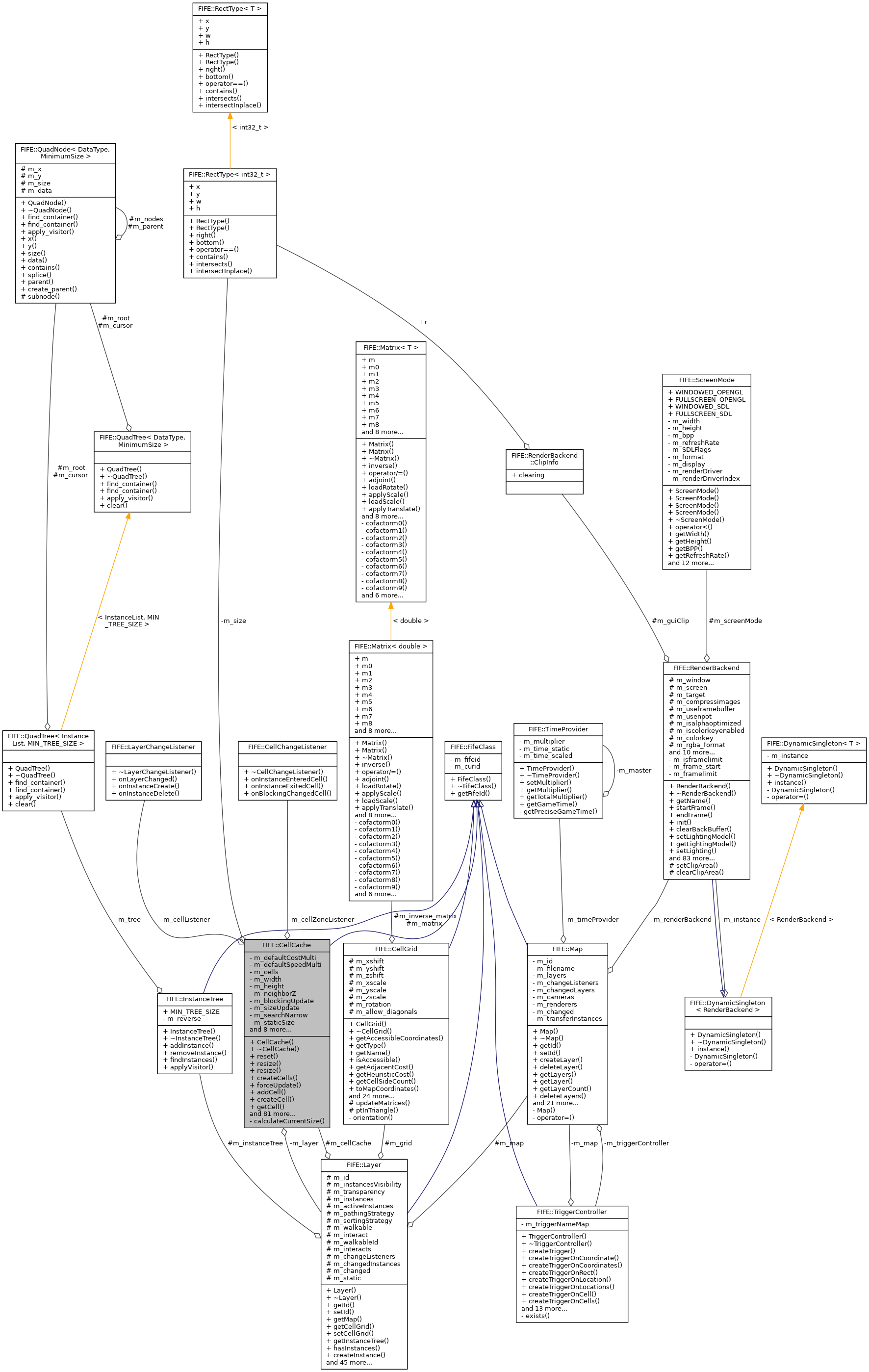

Collaboration diagram for FIFE::CellCache:

Public Member Functions
	CellCache (Layer *layer)
	Constructor. More...

	~CellCache ()
	Destructor. More...

void	reset ()
	Resets the CellCache. More...

void	resize ()
	Checks the layer size and if the size is different with current size then the cache size is adjusted. More...

void	resize (const Rect &rec)
	Checks the given size and if the size is different with current size then the cache is adjusted. More...

void	createCells ()
	Creates cells for this CellCache based on the size of the assigned layer. More...

void	forceUpdate ()
	Updates all cells. More...

void	addCell (Cell *cell)
	Adds cell to this CellCache. More...

Cell *	createCell (const ModelCoordinate &mc)
	Creates cell on this CellCache. More...

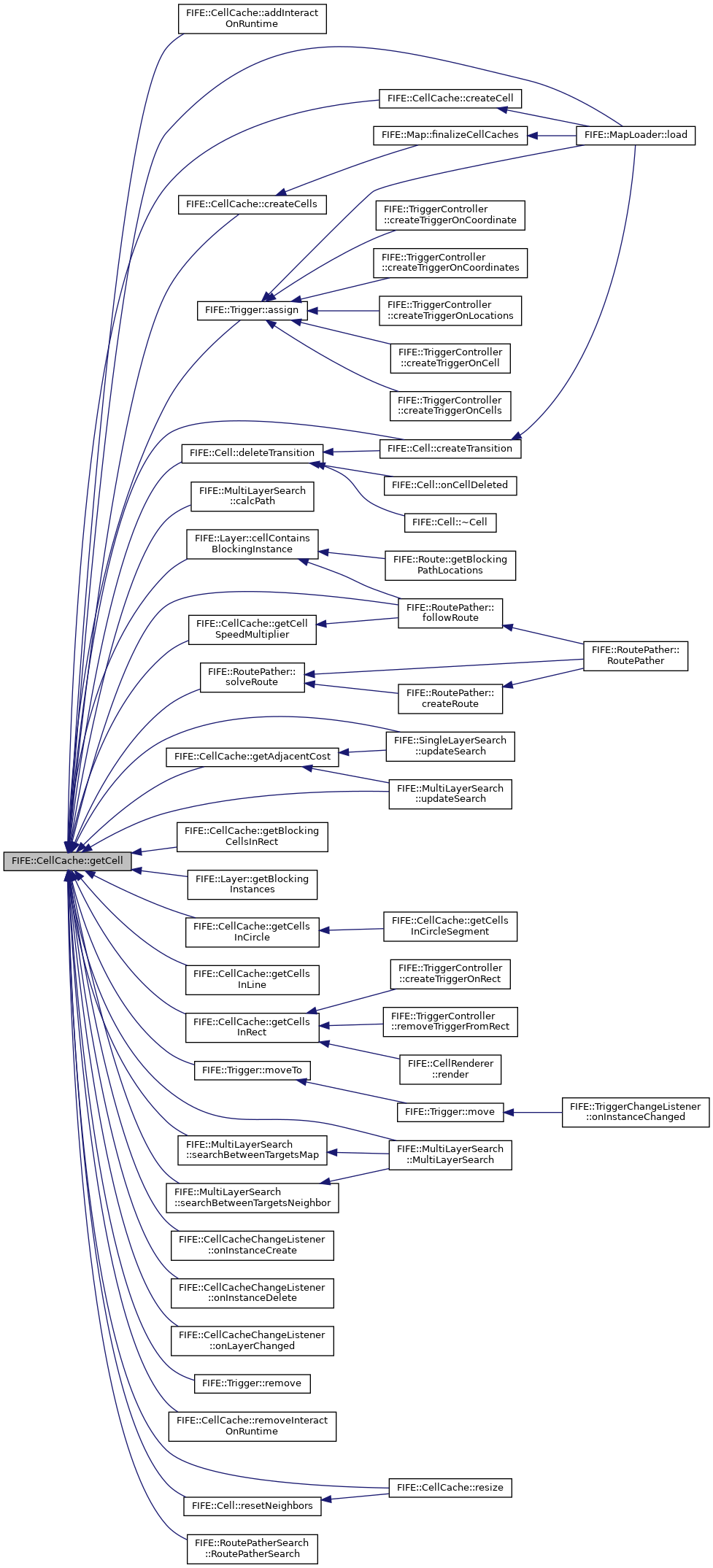

Cell *	getCell (const ModelCoordinate &mc)
	Returns cell on this coordinate. More...

const std::vector< std::vector< Cell * > > &	getCells ()
	Returns all cells of this CellCache. More...

void	removeCell (Cell *cell)
	Removes cell from CellCache. More...

void	addInteractOnRuntime (Layer *interact)
	Adds a interact layer to the CellCache on runtime and sets all needed layer properties. More...

void	removeInteractOnRuntime (Layer *interact)
	Removes a interact layer from the CellCache on runtime and sets all needed layer properties. More...

LayerChangeListener *	getCellCacheChangeListener ()
	Returns change listener. More...

Layer *	getLayer ()
	Returns layer. More...

const Rect &	getSize ()
	Returns CellCache size. More...

void	setSize (const Rect &rec)
	Sets CellCache size. More...

uint32_t	getWidth ()
	Returns width of the CellCache. More...

uint32_t	getHeight ()
	Returns height of the CellCache. More...

bool	isInCellCache (const Location &location) const
	Checks whether the location is in CellCache range. More...

int32_t	convertCoordToInt (const ModelCoordinate &coord) const
	Convertes coordinate to unique identifier. More...

ModelCoordinate	convertIntToCoord (const int32_t cell) const
	Convertes unique identifier to coordinate. More...

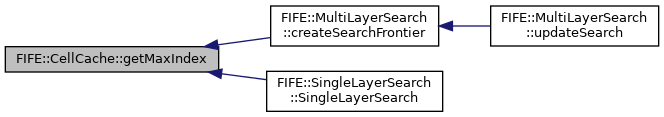

int32_t	getMaxIndex () const
	Returns the number of cells on this CellCache. More...

void	setMaxNeighborZ (int32_t z)
	Sets maximal z range for neighbors. More...

int32_t	getMaxNeighborZ ()
	Gets maximal z range for neighbors. More...

std::vector< Cell * >	getCellsInLine (const ModelCoordinate &pt1, const ModelCoordinate &pt2, bool blocker=false)
	Returns all cells in the line. More...

std::vector< Cell * >	getCellsInRect (const Rect &rec)
	Returns all cells in the rect. More...

std::vector< Cell * >	getBlockingCellsInRect (const Rect &rec)
	Returns all blocking cells in the rect. More...

std::vector< Cell * >	getCellsInCircle (const ModelCoordinate &center, uint16_t radius)
	Returns all cells in the circle. More...

std::vector< Cell * >	getCellsInCircleSegment (const ModelCoordinate &center, uint16_t radius, int32_t sangle, int32_t eangle)
	Returns all cells in the circle segment. More...

void	registerCost (const std::string &costId, double cost)
	Adds a cost with the given id and value. More...

void	unregisterCost (const std::string &costId)
	Removes a cost with the given id. More...

double	getCost (const std::string &costId)
	Returns the cost value for the given id. More...

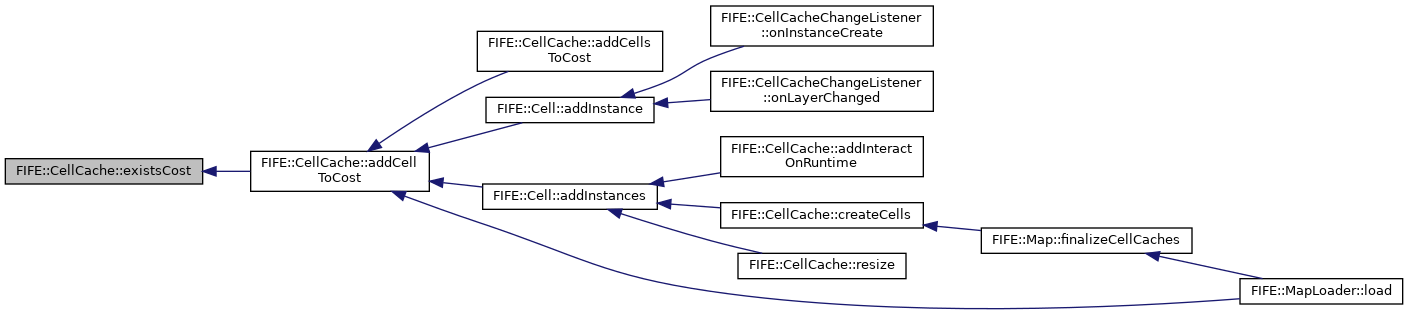

bool	existsCost (const std::string &costId)
	Returns if the cost for the given id exists. More...

std::list< std::string >	getCosts ()
	Returns all registered cost ids. More...

void	unregisterAllCosts ()
	Removes all costs. More...

void	addCellToCost (const std::string &costId, Cell *cell)
	Assigns a cell to a cost identifier. More...

void	addCellsToCost (const std::string &costId, const std::vector< Cell *> &cells)
	Assigns cells to a cost identifier. More...

void	removeCellFromCost (Cell *cell)
	Removes a cell from costs. More...

void	removeCellFromCost (const std::string &costId, Cell *cell)
	Removes a cell from a cost identifier. More...

void	removeCellsFromCost (const std::string &costId, const std::vector< Cell *> &cells)
	Removes cells from a cost identifier. More...

std::vector< Cell * >	getCostCells (const std::string &costId)
	Returns cells for a cost identifier. More...

std::vector< std::string >	getCellCosts (Cell *cell)
	Returns cost identifiers for cell. More...

bool	existsCostForCell (const std::string &costId, Cell *cell)
	Gets if cell is assigned to cost identifier. More...

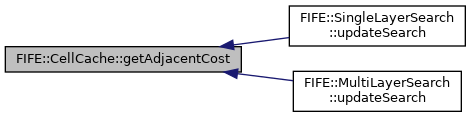

double	getAdjacentCost (const ModelCoordinate &adjacent, const ModelCoordinate &next)
	Returns cost for movement between these two adjacent coordinates. More...

double	getAdjacentCost (const ModelCoordinate &adjacent, const ModelCoordinate &next, const std::string &costId)
	Returns cost for movement between these two adjacent coordinates. More...

bool	getCellSpeedMultiplier (const ModelCoordinate &cell, double &multiplier)
	Returns speed value from cell. More...

void	setDefaultCostMultiplier (double multi)
	Sets default cost for this CellCache. More...

double	getDefaultCostMultiplier ()
	Gets default cost for this CellCache. More...

void	setDefaultSpeedMultiplier (double multi)
	Sets default speed for this CellCache. More...

double	getDefaultSpeedMultiplier ()
	Gets default speed for this CellCache. More...

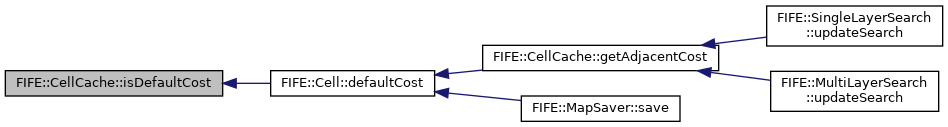

bool	isDefaultCost (Cell *cell)
	Gets if cell uses default cost multiplier. More...

void	setCostMultiplier (Cell *cell, double multi)
	Sets cost multiplier for the cell. More...

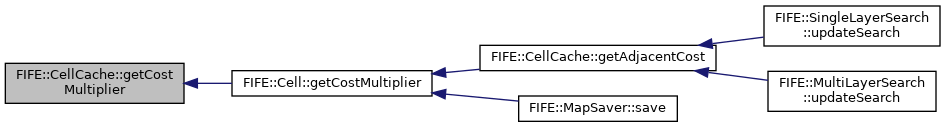

double	getCostMultiplier (Cell *cell)
	Returns cost multiplier for the cell. More...

void	resetCostMultiplier (Cell *cell)
	Resets the cost multiplier for the cell. More...

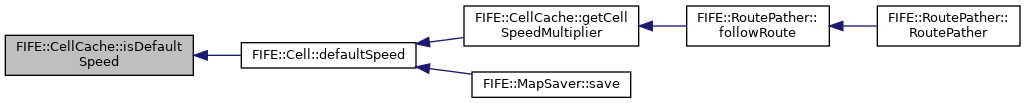

bool	isDefaultSpeed (Cell *cell)
	Gets if cell uses default speed multiplier. More...

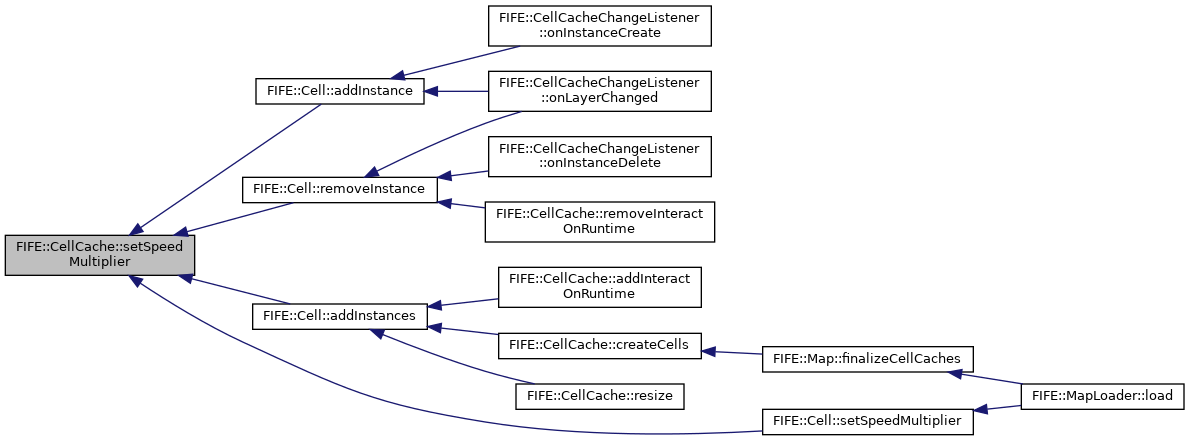

void	setSpeedMultiplier (Cell *cell, double multi)
	Sets speed multiplier for the cell. More...

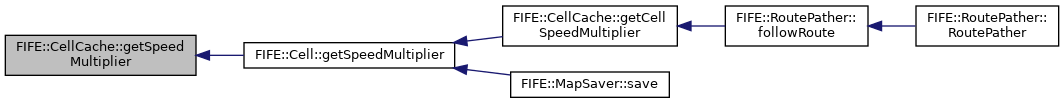

double	getSpeedMultiplier (Cell *cell)
	Returns speed multiplier for the cell. More...

void	resetSpeedMultiplier (Cell *cell)
	Resets the speed multiplier for the cell. More...

void	addTransition (Cell *cell)
	Adds a cell as transition. More...

void	removeTransition (Cell *cell)
	Removes a cell as transition. More...

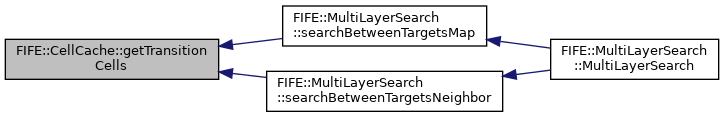

std::vector< Cell * >	getTransitionCells (Layer *layer=NULL)
	Returns transistion cells of this CellCache. More...

const std::vector< Zone * > &	getZones ()
	Returns zones of this CellCache. More...

Zone *	getZone (uint32_t id)
	Gets zone by identifier. More...

Zone *	createZone ()
	Creates zone. More...

void	removeZone (Zone *zone)
	Removes zone. More...

void	splitZone (Cell *cell)
	Splits zone on the cell. More...

void	mergeZones (Zone zone1, Zone zone2)
	Merges two zones to one. More...

void	addNarrowCell (Cell *cell)
	Adds cell to narrow cells. More...

const std::set< Cell * > &	getNarrowCells ()
	Returns narrow cells. More...

void	removeNarrowCell (Cell *cell)
	Removes cell from narrow cells. More...

void	resetNarrowCells ()
	Resets narrow cells. More...

bool	isSearchNarrowCells ()
	Gets if narrow cells should be searched automatic. More...

void	setSearchNarrowCells (bool search)
	Sets if narrow cells should be searched automatic. More...

void	addCellToArea (const std::string &id, Cell *cell)
	Adds a cell to a specific area group. More...

void	addCellsToArea (const std::string &id, const std::vector< Cell *> &cells)
	Adds few cell to a specific area group. More...

void	removeCellFromArea (Cell *cell)
	Removes the cell from all areas. More...

void	removeCellFromArea (const std::string &id, Cell *cell)
	Removes the cell from a area. More...

void	removeCellsFromArea (const std::string &id, const std::vector< Cell *> &cells)
	Removes few cells from a area. More...

void	removeArea (const std::string &id)
	Removes a area. More...

bool	existsArea (const std::string &id)
	Checks whether the area exists. More...

std::vector< std::string >	getAreas ()
	Returns all area ids. More...

std::vector< std::string >	getCellAreas (Cell *cell)
	Returns all areas of a cell. More...

std::vector< Cell * >	getAreaCells (const std::string &id)
	Returns all cells of an area. More...

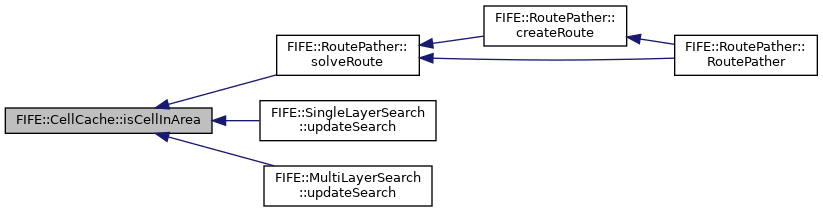

bool	isCellInArea (const std::string &id, Cell *cell)
	Returns true if cell is part of the area, otherwise false. More...

void	setStaticSize (bool staticSize)
	Sets the cache size to static so that automatic resize is disabled. More...

bool	isStaticSize ()
	Returns if the cache size is static. More...

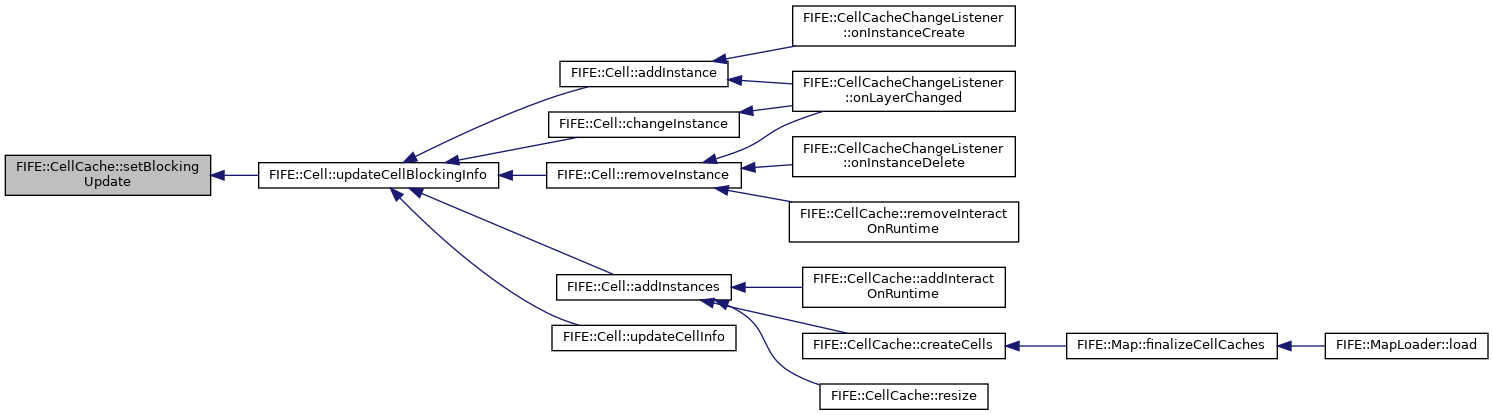

void	setBlockingUpdate (bool update)

void	setSizeUpdate (bool update)

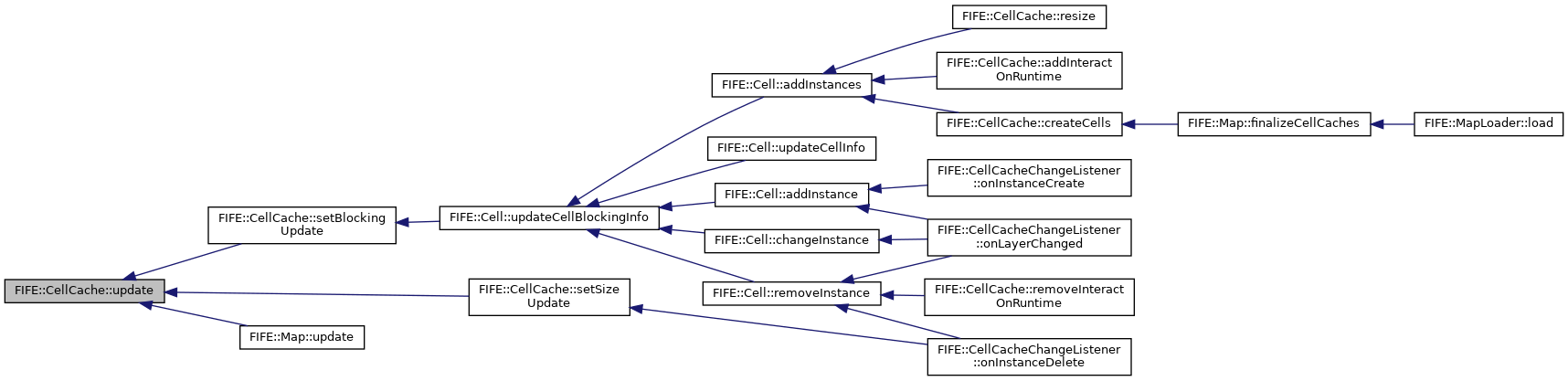

void	update ()

Public Member Functions inherited from FIFE::FifeClass
	FifeClass ()

virtual	~FifeClass ()

fifeid_t	getFifeId ()
	Gets unique id of this instance inside the engine. More...

Private Types
typedef std::multimap< std::string, Cell * >	StringCellMultimap

typedef StringCellMultimap::iterator	StringCellIterator

typedef std::pair< StringCellIterator, StringCellIterator >	StringCellPair

Private Member Functions

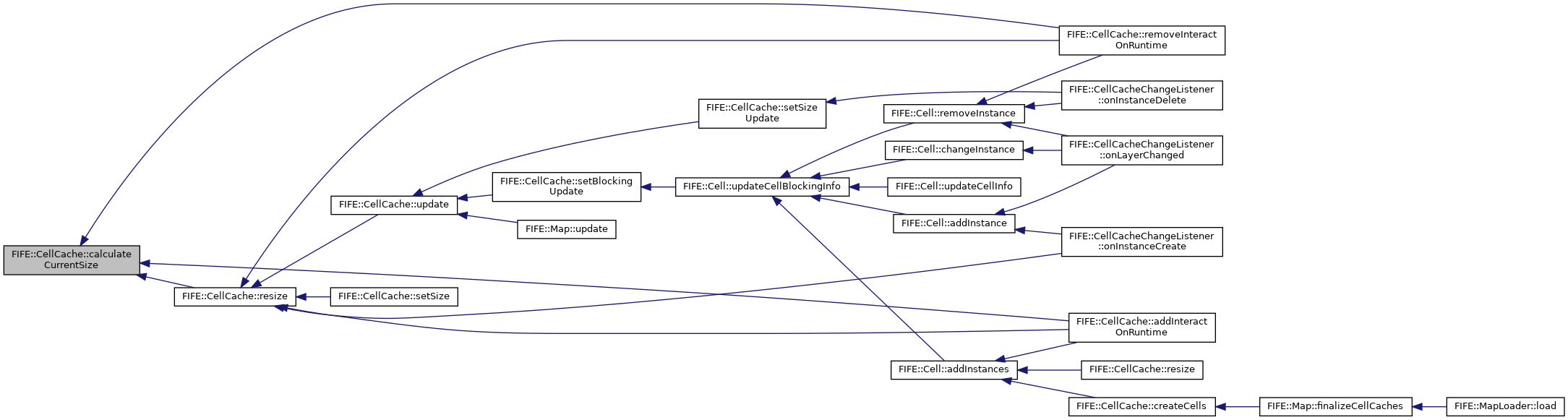

Rect	calculateCurrentSize ()
	Returns the current size. More...

Private Attributes
Layer *	m_layer
	walkable layer More...

double	m_defaultCostMulti
	default cost More...

double	m_defaultSpeedMulti
	default speed More...

LayerChangeListener *	m_cellListener
	change listener More...

std::vector< std::vector< Cell * > >	m_cells

Rect	m_size
	Rect holds the min and max size x = min.x, w = max.x, y = min.y, h = max.y. More...

uint32_t	m_width
	cache width More...

uint32_t	m_height
	cache height More...

int32_t	m_neighborZ
	max z value for neighbors More...

bool	m_blockingUpdate
	indicates blocking update More...

bool	m_sizeUpdate
	indicates size update More...

bool	m_searchNarrow
	is automatic seach enabled More...

bool	m_staticSize
	is automatic size update enabled/disabled More...

std::vector< Cell * >	m_transitions
	cells with transitions More...

std::vector< Zone * >	m_zones
	zones More...

std::set< Cell * >	m_narrowCells
	special cells which are monitored (zone split and merge) More...

StringCellMultimap	m_cellAreas
	areas with assigned cells More...

CellChangeListener *	m_cellZoneListener
	listener for zones More...

std::map< std::string, double >	m_costsTable
	holds cost table More...

StringCellMultimap	m_costsToCells
	holds cells for each cost More...

std::map< Cell *, double >	m_costMultipliers
	holds default cost multiplier, only if it is not default(1.0) More...

std::map< Cell *, double >	m_speedMultipliers
	holds default speed multiplier, only if it is not default(1.0) More...

Detailed Description

A CellCache is an abstract depiction of one or a few layers and contains additional information, such as different cost and speed and so on.

Definition at line 111 of file cellcache.h.

Member Typedef Documentation

◆ StringCellIterator

typedef StringCellMultimap::iterator FIFE::CellCache::StringCellIterator

private

Definition at line 611 of file cellcache.h.

◆ StringCellMultimap

typedef std::multimap<std::string, Cell*> FIFE::CellCache::StringCellMultimap

private

Definition at line 610 of file cellcache.h.

◆ StringCellPair

typedef std::pair<StringCellIterator, StringCellIterator> FIFE::CellCache::StringCellPair

private

Definition at line 612 of file cellcache.h.

Constructor & Destructor Documentation

◆ CellCache()

FIFE::CellCache::CellCache ( Layer * layer )

Constructor.

Parameters

layer A pointer to the associated layer.

Definition at line 371 of file cellcache.cpp.

References ABS, FIFE::Layer::addChangeListener(), FIFE::Layer::getInteractLayers(), FIFE::Layer::getMinMaxCoordinates(), FIFE::RectType< T >::h, m_cellListener, m_cells, m_cellZoneListener, m_height, m_layer, m_size, m_width, FIFE::RectType< T >::w, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

◆ ~CellCache()

FIFE::CellCache::~CellCache ( )

Destructor.

Definition at line 417 of file cellcache.cpp.

References FIFE::Layer::getInteractLayers(), m_cellListener, m_cellZoneListener, m_layer, FIFE::Layer::removeChangeListener(), and reset().

Member Function Documentation

◆ addCell()

void FIFE::CellCache::addCell ( Cell * cell )

Adds cell to this CellCache.

Parameters

cell	A pointer to cell which should be added.

Definition at line 690 of file cellcache.cpp.

References FIFE::Cell::getLayerCoordinates(), m_cells, m_size, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

◆ addCellsToArea()

void FIFE::CellCache::addCellsToArea	(	const std::string &	id,
		const std::vector< Cell *> &	cells
	)

Adds few cell to a specific area group.

With an area you can group cells without the need of checking the underlying instances or similar.

Parameters

id	A const reference to string that contains the area id.
cells	A const reference to vector which contains the cells.

Definition at line 1409 of file cellcache.cpp.

References addCellToArea().

◆ addCellsToCost()

void FIFE::CellCache::addCellsToCost	(	const std::string &	costId,
		const std::vector< Cell *> &	cells
	)

Assigns cells to a cost identifier.

Parameters

costId	A const reference to the cost identifier.
cells	A const reference to a vector which contains the cells.

Definition at line 1043 of file cellcache.cpp.

References addCellToCost().

◆ addCellToArea()

void FIFE::CellCache::addCellToArea	(	const std::string &	id,
		Cell *	cell
	)

Adds a cell to a specific area group.

With an area you can group cells without the need of checking the underlying instances or similar.

Parameters

id	A const reference to string that contains the area id.
cell	A pointer to the cell which should be added.

Definition at line 1405 of file cellcache.cpp.

References m_cellAreas.

Referenced by addCellsToArea(), FIFE::Cell::addInstance(), FIFE::Cell::addInstances(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

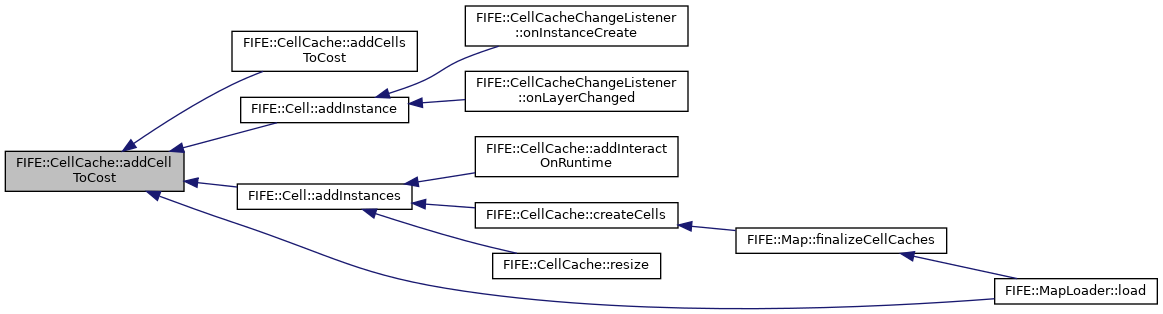

◆ addCellToCost()

void FIFE::CellCache::addCellToCost	(	const std::string &	costId,
		Cell *	cell
	)

Assigns a cell to a cost identifier.

Parameters

costId	A const reference to the cost identifier.
cell	A pointer to the cell.

Definition at line 1030 of file cellcache.cpp.

References existsCost(), and m_costsToCells.

Referenced by addCellsToCost(), FIFE::Cell::addInstance(), FIFE::Cell::addInstances(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ addInteractOnRuntime()

void FIFE::CellCache::addInteractOnRuntime ( Layer * interact )

Adds a interact layer to the CellCache on runtime and sets all needed layer properties.

Parameters

interact A pointer to the interact layer.

Definition at line 737 of file cellcache.cpp.

References FIFE::Layer::addChangeListener(), FIFE::Cell::addInstances(), FIFE::Layer::addInteractLayer(), calculateCurrentSize(), FIFE::InstanceTree::findInstances(), getCell(), FIFE::Layer::getCellGrid(), FIFE::Layer::getId(), FIFE::Layer::getInstanceTree(), FIFE::RectType< T >::h, FIFE::intPt2doublePt(), m_cellListener, m_height, m_layer, m_size, m_width, resize(), FIFE::Layer::setInteract(), FIFE::CellGrid::toLayerCoordinates(), FIFE::CellGrid::toMapCoordinates(), FIFE::RectType< T >::w, FIFE::RectType< T >::x, and FIFE::RectType< T >::y.

◆ addNarrowCell()

void FIFE::CellCache::addNarrowCell ( Cell * cell )

Adds cell to narrow cells.

Narrow cells are observed. On blocking change, the underlying zones are merged or splitted.

Parameters

cell	A pointer to the cell.

Definition at line 1370 of file cellcache.cpp.

References FIFE::Cell::addChangeListener(), m_cellZoneListener, and m_narrowCells.

Referenced by createCells(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ addTransition()

void FIFE::CellCache::addTransition ( Cell * cell )

Adds a cell as transition.

Parameters

cell	A pointer to transition cell.

Definition at line 1229 of file cellcache.cpp.

References m_transitions.

Referenced by FIFE::Cell::createTransition().

Here is the caller graph for this function:

◆ calculateCurrentSize()

Rect FIFE::CellCache::calculateCurrentSize ( )

private

Returns the current size.

Returns: A rect that contains the min, max coordinates.

Definition at line 1502 of file cellcache.cpp.

References FIFE::Layer::getInteractLayers(), FIFE::Layer::getMinMaxCoordinates(), FIFE::RectType< T >::h, m_layer, FIFE::RectType< T >::w, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

Referenced by addInteractOnRuntime(), removeInteractOnRuntime(), and resize().

Here is the caller graph for this function:

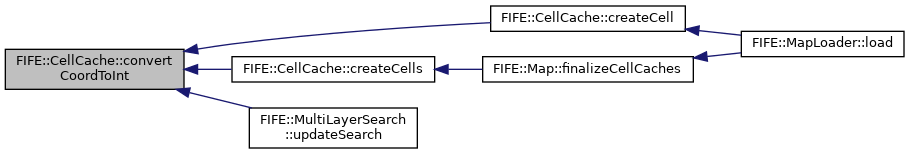

◆ convertCoordToInt()

int32_t FIFE::CellCache::convertCoordToInt ( const ModelCoordinate & coord ) const

Convertes coordinate to unique identifier.

Parameters

coord A const reference to ModelCoordinate which should be converted.

Returns: A integer, the cell identifier.

Definition at line 833 of file cellcache.cpp.

References m_size, m_width, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

Referenced by createCell(), createCells(), and FIFE::MultiLayerSearch::updateSearch().

Here is the caller graph for this function:

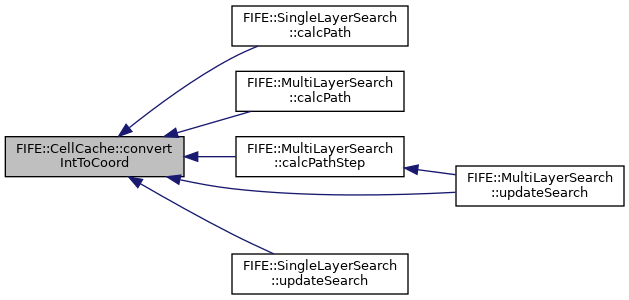

◆ convertIntToCoord()

ModelCoordinate FIFE::CellCache::convertIntToCoord ( const int32_t cell ) const

Convertes unique identifier to coordinate.

Parameters

cell	A const reference to the integer id which should be converted.

Returns: A ModelCoordinate, contain the cell coordinate.

Definition at line 838 of file cellcache.cpp.

References m_size, m_width, FIFE::RectType< T >::x, and FIFE::RectType< T >::y.

Referenced by FIFE::SingleLayerSearch::calcPath(), FIFE::MultiLayerSearch::calcPath(), FIFE::MultiLayerSearch::calcPathStep(), FIFE::SingleLayerSearch::updateSearch(), and FIFE::MultiLayerSearch::updateSearch().

Here is the caller graph for this function:

◆ createCell()

Cell * FIFE::CellCache::createCell ( const ModelCoordinate & mc )

Creates cell on this CellCache.

Parameters

mc	A const reference to ModelCoordinate where the cell should be created.

Returns: A pointer to the new cell.

Definition at line 695 of file cellcache.cpp.

References convertCoordToInt(), getCell(), m_cells, m_layer, m_size, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

Referenced by FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ createCells()

void FIFE::CellCache::createCells ( )

Creates cells for this CellCache based on the size of the assigned layer.

Definition at line 584 of file cellcache.cpp.

References FIFE::Zone::addCell(), FIFE::Cell::addInstances(), addNarrowCell(), convertCoordToInt(), createZone(), FIFE::CTYPE_CELL_BLOCKER, FIFE::CTYPE_STATIC_BLOCKER, FIFE::InstanceTree::findInstances(), FIFE::CellGrid::getAccessibleCoordinates(), getCell(), FIFE::Layer::getCellGrid(), FIFE::Cell::getCellType(), FIFE::Layer::getInstanceTree(), FIFE::Layer::getInteractLayers(), FIFE::Cell::getNeighbors(), FIFE::Cell::getZone(), FIFE::intPt2doublePt(), FIFE::Cell::isInserted(), m_cells, m_height, m_layer, m_searchNarrow, m_size, m_width, FIFE::Cell::setInserted(), FIFE::CellGrid::toMapCoordinates(), FIFE::RectType< T >::x, and FIFE::RectType< T >::y.

Referenced by FIFE::Map::finalizeCellCaches().

Here is the caller graph for this function:

◆ createZone()

Zone * FIFE::CellCache::createZone ( )

Creates zone.

Returns: A pointer to the new zone.

Definition at line 1260 of file cellcache.cpp.

References m_zones.

Referenced by createCells(), and splitZone().

Here is the caller graph for this function:

◆ existsArea()

bool FIFE::CellCache::existsArea ( const std::string & id )

Checks whether the area exists.

Parameters

id	A const reference to string that contains the area id.

Returns: A boolean, true if the area id exists, otherwise false.

Definition at line 1449 of file cellcache.cpp.

References m_cellAreas.

◆ existsCost()

bool FIFE::CellCache::existsCost ( const std::string & costId )

Returns if the cost for the given id exists.

Returns: True if cost id could be found otherwise false.

Definition at line 1008 of file cellcache.cpp.

References m_costsTable.

Referenced by addCellToCost().

Here is the caller graph for this function:

◆ existsCostForCell()

bool FIFE::CellCache::existsCostForCell	(	const std::string &	costId,
		Cell *	cell
	)

Gets if cell is assigned to cost identifier.

Parameters

costId	A const reference to the cost identifier.
cell	A pointer to the cell.

Returns: A boolean, true if the cell is assigned to the cost identifier, otherwise false.

Definition at line 1100 of file cellcache.cpp.

References m_costsToCells.

Referenced by getAdjacentCost(), and FIFE::MapSaver::save().

Here is the caller graph for this function:

◆ forceUpdate()

void FIFE::CellCache::forceUpdate ( )

Updates all cells.

Definition at line 680 of file cellcache.cpp.

References m_cells.

Referenced by FIFE::Map::finalizeCellCaches().

Here is the caller graph for this function:

◆ getAdjacentCost() [1/2]

double FIFE::CellCache::getAdjacentCost	(	const ModelCoordinate &	adjacent,
		const ModelCoordinate &	next
	)

Returns cost for movement between these two adjacent coordinates.

Parameters

adjacent	A const reference to the start ModelCoordinate.
next	A const reference to the end ModelCoordinate.

Returns: A double which represents the cost.

Definition at line 1111 of file cellcache.cpp.

References FIFE::Cell::defaultCost(), FIFE::CellGrid::getAdjacentCost(), getCell(), FIFE::Layer::getCellGrid(), FIFE::Cell::getCostMultiplier(), m_defaultCostMulti, and m_layer.

Referenced by FIFE::SingleLayerSearch::updateSearch(), and FIFE::MultiLayerSearch::updateSearch().

Here is the caller graph for this function:

◆ getAdjacentCost() [2/2]

double FIFE::CellCache::getAdjacentCost	(	const ModelCoordinate &	adjacent,
		const ModelCoordinate &	next,
		const std::string &	costId
	)

Returns cost for movement between these two adjacent coordinates.

Parameters

adjacent	A const reference to the start ModelCoordinate.
next	A const reference to the end ModelCoordinate.
costId	A const reference to the string that contain a cost identifier.

Returns: A double which represents the cost.

Definition at line 1124 of file cellcache.cpp.

References FIFE::Cell::defaultCost(), existsCostForCell(), FIFE::CellGrid::getAdjacentCost(), getCell(), FIFE::Layer::getCellGrid(), getCost(), FIFE::Cell::getCostMultiplier(), m_defaultCostMulti, and m_layer.

◆ getAreaCells()

std::vector< Cell * > FIFE::CellCache::getAreaCells ( const std::string & id )

Returns all cells of an area.

Parameters

id	A const reference to string that contains the area id.

Returns: A vector that contains the cells from the area.

Definition at line 1481 of file cellcache.cpp.

References m_cellAreas.

◆ getAreas()

std::vector< std::string > FIFE::CellCache::getAreas ( )

Returns all area ids.

Returns: A vector that contains the area ids.

Definition at line 1457 of file cellcache.cpp.

References m_cellAreas.

◆ getBlockingCellsInRect()

std::vector< Cell * > FIFE::CellCache::getBlockingCellsInRect ( const Rect & rec )

Returns all blocking cells in the rect.

Parameters

rec	A const reference to the Rect which specifies the size.

Returns: A vector that contain the cells.

Definition at line 891 of file cellcache.cpp.

References FIFE::CTYPE_NO_BLOCKER, getCell(), FIFE::Cell::getCellType(), FIFE::RectType< T >::h, FIFE::RectType< T >::w, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

◆ getCell()

Cell * FIFE::CellCache::getCell ( const ModelCoordinate & mc )

Returns cell on this coordinate.

Parameters

mc	A const reference to ModelCoordinate where the cell should be.

Returns: A pointer to the cell or NULL if there is no.

Definition at line 704 of file cellcache.cpp.

References m_cells, m_height, m_size, m_width, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

Referenced by addInteractOnRuntime(), FIFE::Trigger::assign(), FIFE::MultiLayerSearch::calcPath(), FIFE::Layer::cellContainsBlockingInstance(), createCell(), createCells(), FIFE::Cell::createTransition(), FIFE::Cell::deleteTransition(), FIFE::RoutePather::followRoute(), getAdjacentCost(), getBlockingCellsInRect(), FIFE::Layer::getBlockingInstances(), getCellsInCircle(), getCellsInLine(), getCellsInRect(), getCellSpeedMultiplier(), FIFE::MapLoader::load(), FIFE::Trigger::moveTo(), FIFE::MultiLayerSearch::MultiLayerSearch(), FIFE::CellCacheChangeListener::onInstanceCreate(), FIFE::CellCacheChangeListener::onInstanceDelete(), FIFE::CellCacheChangeListener::onLayerChanged(), FIFE::Trigger::remove(), removeInteractOnRuntime(), FIFE::Cell::resetNeighbors(), resize(), FIFE::RoutePatherSearch::RoutePatherSearch(), FIFE::MultiLayerSearch::searchBetweenTargetsMap(), FIFE::MultiLayerSearch::searchBetweenTargetsNeighbor(), FIFE::RoutePather::solveRoute(), FIFE::SingleLayerSearch::updateSearch(), and FIFE::MultiLayerSearch::updateSearch().

Here is the caller graph for this function:

◆ getCellAreas()

std::vector< std::string > FIFE::CellCache::getCellAreas ( Cell * cell )

Returns all areas of a cell.

Parameters

cell	A pointer to the cell.

Returns: A vector that contains the area ids.

Definition at line 1470 of file cellcache.cpp.

References m_cellAreas.

Referenced by FIFE::MapSaver::save().

Here is the caller graph for this function:

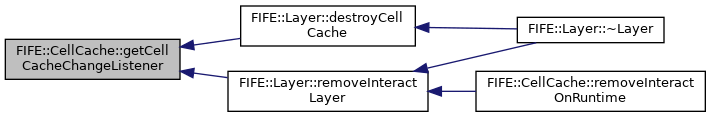

◆ getCellCacheChangeListener()

LayerChangeListener * FIFE::CellCache::getCellCacheChangeListener ( )

Returns change listener.

Returns: A pointer to the change listener.

Definition at line 796 of file cellcache.cpp.

References m_cellListener.

Referenced by FIFE::Layer::destroyCellCache(), and FIFE::Layer::removeInteractLayer().

Here is the caller graph for this function:

◆ getCellCosts()

std::vector< std::string > FIFE::CellCache::getCellCosts ( Cell * cell )

Returns cost identifiers for cell.

Parameters

cell	A pointer to the cell.

Returns: A vector which contains the cost ids.

Definition at line 1089 of file cellcache.cpp.

References m_costsToCells.

Referenced by FIFE::CellRenderer::render().

Here is the caller graph for this function:

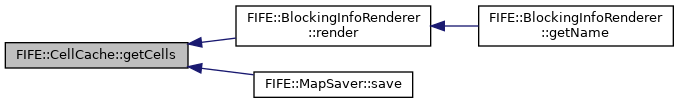

◆ getCells()

const std::vector< std::vector< Cell * > > & FIFE::CellCache::getCells ( )

Returns all cells of this CellCache.

Returns: A const reference to a two dimensional vector which contain all cells.

Definition at line 715 of file cellcache.cpp.

References m_cells.

Referenced by FIFE::BlockingInfoRenderer::render(), and FIFE::MapSaver::save().

Here is the caller graph for this function:

◆ getCellsInCircle()

std::vector< Cell * > FIFE::CellCache::getCellsInCircle	(	const ModelCoordinate &	center,
		uint16_t	radius
	)

Returns all cells in the circle.

Parameters

center	A const reference to the ModelCoordinate where the center of the circle is.
radius	A unsigned integer, radius of the circle.

Returns: A vector that contain the cells.

Definition at line 909 of file cellcache.cpp.

References utf8::distance(), getCell(), FIFE::PointType3D< T >::x, and FIFE::PointType3D< T >::y.

Referenced by getCellsInCircleSegment().

Here is the caller graph for this function:

◆ getCellsInCircleSegment()

std::vector< Cell * > FIFE::CellCache::getCellsInCircleSegment	(	const ModelCoordinate &	center,
		uint16_t	radius,
		int32_t	sangle,
		int32_t	eangle
	)

Returns all cells in the circle segment.

Parameters

center	A const reference to the ModelCoordinate where the center of the circle is.
radius	A unsigned integer, radius of the circle.
sangle	A interger, start angle of the segment.
eangle	A interger, end angle of the segment.

Returns: A vector that contain the cells.

Definition at line 961 of file cellcache.cpp.

References FIFE::getAngleBetween(), getCellsInCircle(), FIFE::intPt2doublePt(), FIFE::PointType3D< T >::x, and FIFE::PointType3D< T >::y.

◆ getCellsInLine()

std::vector< Cell * > FIFE::CellCache::getCellsInLine	(	const ModelCoordinate &	pt1,
		const ModelCoordinate &	pt2,
		bool	blocker = `false`
	)

Returns all cells in the line.

Parameters

pt1	A const reference to the ModelCoordinate where the line begin.
pt2	A const reference to the ModelCoordinate where the line end.
blocker	A boolean, true stops when a blocker is found, false ignored blocker.

Returns: A vector that contain the cells.

Definition at line 856 of file cellcache.cpp.

References FIFE::CTYPE_NO_BLOCKER, getCell(), FIFE::Layer::getCellGrid(), FIFE::Cell::getCellType(), FIFE::CellGrid::getCoordinatesInLine(), and m_layer.

◆ getCellsInRect()

std::vector< Cell * > FIFE::CellCache::getCellsInRect ( const Rect & rec )

Returns all cells in the rect.

Parameters

rec	A const reference to the Rect which specifies the size.

Returns: A vector that contain the cells.

Definition at line 873 of file cellcache.cpp.

References getCell(), FIFE::RectType< T >::h, FIFE::RectType< T >::w, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

Referenced by FIFE::TriggerController::createTriggerOnRect(), FIFE::TriggerController::removeTriggerFromRect(), and FIFE::CellRenderer::render().

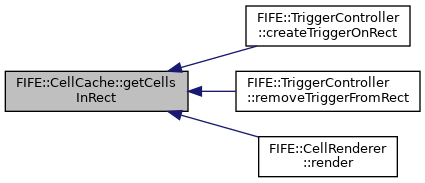

Here is the caller graph for this function:

◆ getCellSpeedMultiplier()

bool FIFE::CellCache::getCellSpeedMultiplier	(	const ModelCoordinate &	cell,
		double &	multiplier
	)

Returns speed value from cell.

Parameters

cell	A const reference to the cell ModelCoordinate.
multiplier	A reference to a double which receives the speed value.

Returns: A boolean, true if on next cell use special speed, otherwise false.

Definition at line 1141 of file cellcache.cpp.

References FIFE::Cell::defaultSpeed(), getCell(), FIFE::Cell::getSpeedMultiplier(), and m_defaultSpeedMulti.

Referenced by FIFE::RoutePather::followRoute().

Here is the caller graph for this function:

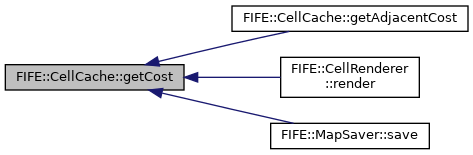

◆ getCost()

double FIFE::CellCache::getCost ( const std::string & costId )

Returns the cost value for the given id.

Parameters

costId A const reference to a string that refs to the cost id.

Returns: cost value as a double, if cost id can not be found 1.0 is returned.

Definition at line 1000 of file cellcache.cpp.

References m_costsTable.

Referenced by getAdjacentCost(), FIFE::CellRenderer::render(), and FIFE::MapSaver::save().

Here is the caller graph for this function:

◆ getCostCells()

std::vector< Cell * > FIFE::CellCache::getCostCells ( const std::string & costId )

Returns cells for a cost identifier.

Parameters

costId A const reference to the cost identifier.

Returns: A vector which contains the cells.

Definition at line 1079 of file cellcache.cpp.

References m_costsToCells.

◆ getCostMultiplier()

double FIFE::CellCache::getCostMultiplier ( Cell * cell )

Returns cost multiplier for the cell.

Parameters

cell	A pointer to the cell.

Returns: A double, the cost multiplier. 1.0 is default.

Definition at line 1186 of file cellcache.cpp.

References m_costMultipliers.

Referenced by FIFE::Cell::getCostMultiplier().

Here is the caller graph for this function:

◆ getCosts()

std::list< std::string > FIFE::CellCache::getCosts ( )

Returns all registered cost ids.

Returns: A list that contains the cost ids.

Definition at line 1016 of file cellcache.cpp.

References m_costsTable.

Referenced by FIFE::MapSaver::save().

Here is the caller graph for this function:

◆ getDefaultCostMultiplier()

double FIFE::CellCache::getDefaultCostMultiplier ( )

Gets default cost for this CellCache.

Returns: A double, the cost.

Definition at line 1157 of file cellcache.cpp.

References m_defaultCostMulti.

Referenced by FIFE::MapSaver::save().

Here is the caller graph for this function:

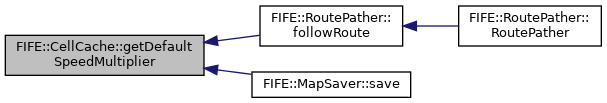

◆ getDefaultSpeedMultiplier()

double FIFE::CellCache::getDefaultSpeedMultiplier ( )

Gets default speed for this CellCache.

Returns: A double, the speed.

Definition at line 1165 of file cellcache.cpp.

References m_defaultSpeedMulti.

Referenced by FIFE::RoutePather::followRoute(), and FIFE::MapSaver::save().

Here is the caller graph for this function:

◆ getHeight()

uint32_t FIFE::CellCache::getHeight ( )

Returns height of the CellCache.

Returns: A unsigned integer that is the height.

Definition at line 816 of file cellcache.cpp.

References m_height.

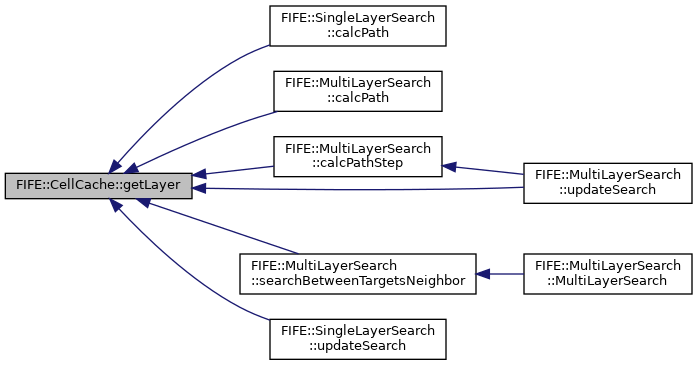

◆ getLayer()

Layer * FIFE::CellCache::getLayer ( )

Returns layer.

Returns: A pointer to the layer this CellCache is based on.

Definition at line 800 of file cellcache.cpp.

References m_layer.

Referenced by FIFE::SingleLayerSearch::calcPath(), FIFE::MultiLayerSearch::calcPath(), FIFE::MultiLayerSearch::calcPathStep(), FIFE::MultiLayerSearch::searchBetweenTargetsNeighbor(), FIFE::SingleLayerSearch::updateSearch(), and FIFE::MultiLayerSearch::updateSearch().

Here is the caller graph for this function:

◆ getMaxIndex()

int32_t FIFE::CellCache::getMaxIndex ( ) const

Returns the number of cells on this CellCache.

Returns: A integer value, the number of cells.

Definition at line 843 of file cellcache.cpp.

References m_height, and m_width.

Referenced by FIFE::MultiLayerSearch::createSearchFrontier(), and FIFE::SingleLayerSearch::SingleLayerSearch().

Here is the caller graph for this function:

◆ getMaxNeighborZ()

int32_t FIFE::CellCache::getMaxNeighborZ ( )

Gets maximal z range for neighbors.

By default disabled with the value -1.

Returns: The maximal z range as int.

Definition at line 852 of file cellcache.cpp.

References m_neighborZ.

◆ getNarrowCells()

const std::set< Cell * > & FIFE::CellCache::getNarrowCells ( )

Returns narrow cells.

Returns: A const reference to a set which contains the cells.

Definition at line 1377 of file cellcache.cpp.

References m_narrowCells.

Referenced by FIFE::MapSaver::save().

Here is the caller graph for this function:

◆ getSize()

const Rect & FIFE::CellCache::getSize ( )

Returns CellCache size.

Returns: A const reference to rect that contain the min and max coordinates.

Definition at line 804 of file cellcache.cpp.

References m_size.

◆ getSpeedMultiplier()

double FIFE::CellCache::getSpeedMultiplier ( Cell * cell )

Returns speed multiplier for the cell.

Parameters

cell	A pointer to the cell.

Returns: A double, the speed multiplier. 1.0 is default.

Definition at line 1216 of file cellcache.cpp.

References m_speedMultipliers.

Referenced by FIFE::Cell::getSpeedMultiplier().

Here is the caller graph for this function:

◆ getTransitionCells()

std::vector< Cell * > FIFE::CellCache::getTransitionCells ( Layer * layer = NULL )

Returns transistion cells of this CellCache.

Parameters

layer A pointer to the layer which should be the target of the transition. If NULL all transistions be returned.

Returns: A vector which contains the transition cells.

Definition at line 1243 of file cellcache.cpp.

References FIFE::TransitionInfo::m_layer, and m_transitions.

Referenced by FIFE::MultiLayerSearch::searchBetweenTargetsMap(), and FIFE::MultiLayerSearch::searchBetweenTargetsNeighbor().

Here is the caller graph for this function:

◆ getWidth()

uint32_t FIFE::CellCache::getWidth ( )

Returns width of the CellCache.

Returns: A unsigned integer that is the width.

Definition at line 812 of file cellcache.cpp.

References m_width.

◆ getZone()

Zone * FIFE::CellCache::getZone ( uint32_t id )

Gets zone by identifier.

Parameters

id	A unsigned integer which is used as zone identifier,

Returns: A pointer to the zone.

Definition at line 1286 of file cellcache.cpp.

References m_zones.

◆ getZones()

const std::vector< Zone * > & FIFE::CellCache::getZones ( )

Returns zones of this CellCache.

Returns: A vector which contains the zones.

Definition at line 1282 of file cellcache.cpp.

References m_zones.

Referenced by FIFE::MultiLayerSearch::searchBetweenTargetsMap().

Here is the caller graph for this function:

◆ isCellInArea()

bool FIFE::CellCache::isCellInArea	(	const std::string &	id,
		Cell *	cell
	)

Returns true if cell is part of the area, otherwise false.

Parameters

id	A const reference to string that contains the area id.
cell	A pointer to the cell which is used for the check.

Returns: A boolean, true if the cell is part of the area, otherwise false.

Definition at line 1491 of file cellcache.cpp.

References m_cellAreas.

Referenced by FIFE::RoutePather::solveRoute(), FIFE::SingleLayerSearch::updateSearch(), and FIFE::MultiLayerSearch::updateSearch().

Here is the caller graph for this function:

◆ isDefaultCost()

bool FIFE::CellCache::isDefaultCost ( Cell * cell )

Gets if cell uses default cost multiplier.

Parameters

cell	A pointer to the cell.

Returns: A boolean, true if the cell uses default cost multiplier, otherwise false.

Definition at line 1169 of file cellcache.cpp.

References m_costMultipliers.

Referenced by FIFE::Cell::defaultCost().

Here is the caller graph for this function:

◆ isDefaultSpeed()

bool FIFE::CellCache::isDefaultSpeed ( Cell * cell )

Gets if cell uses default speed multiplier.

Parameters

cell	A pointer to the cell.

Returns: A boolean, true if the cell uses default speed multiplier, otherwise false.

Definition at line 1199 of file cellcache.cpp.

References m_speedMultipliers.

Referenced by FIFE::Cell::defaultSpeed().

Here is the caller graph for this function:

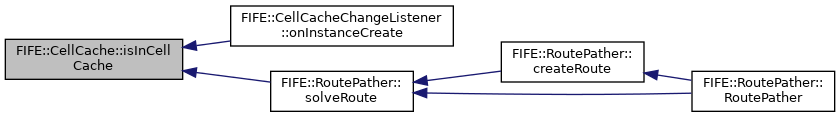

◆ isInCellCache()

bool FIFE::CellCache::isInCellCache ( const Location & location ) const

Checks whether the location is in CellCache range.

Parameters

location A const reference to location which should be checked.

Returns: A boolean, true if the location is in range, otherwise false.

Definition at line 820 of file cellcache.cpp.

References FIFE::Location::getLayer(), FIFE::Location::getLayerCoordinates(), m_height, m_layer, m_size, m_width, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

Referenced by FIFE::CellCacheChangeListener::onInstanceCreate(), and FIFE::RoutePather::solveRoute().

Here is the caller graph for this function:

◆ isSearchNarrowCells()

bool FIFE::CellCache::isSearchNarrowCells ( )

Gets if narrow cells should be searched automatic.

Note that narrow cells will only saved if this is disabled.

Returns: A boolean, if true the automatic search is enabled, otherwise false.

Definition at line 1397 of file cellcache.cpp.

References m_searchNarrow.

Referenced by FIFE::MapSaver::save().

Here is the caller graph for this function:

◆ isStaticSize()

bool FIFE::CellCache::isStaticSize ( )

Returns if the cache size is static.

Returns: A boolean, true if the cache size is static, otherwise false.

Definition at line 1527 of file cellcache.cpp.

References m_staticSize.

◆ mergeZones()

void FIFE::CellCache::mergeZones	(	Zone *	zone1,
		Zone *	zone2
	)

Merges two zones to one.

Parameters

zone1	A pointer to the first zone.
zone2	A pointer to the second zone.

Definition at line 1356 of file cellcache.cpp.

References FIFE::Zone::getCellCount(), FIFE::Zone::mergeZone(), and removeZone().

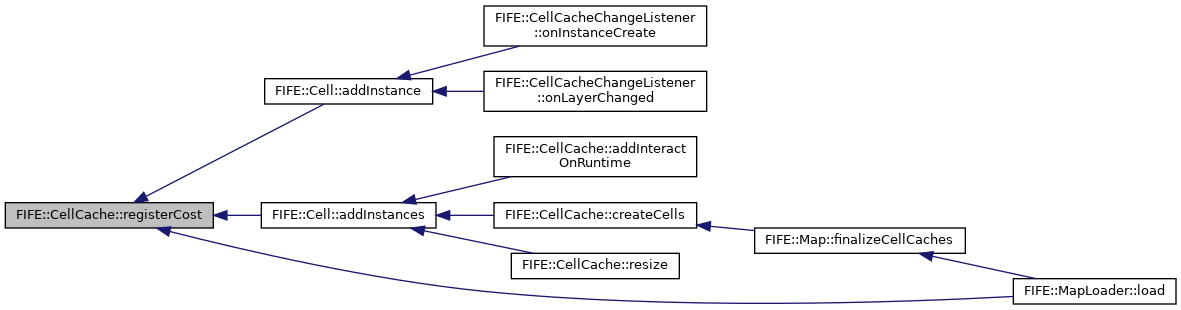

◆ registerCost()

void FIFE::CellCache::registerCost	(	const std::string &	costId,
		double	cost
	)

Adds a cost with the given id and value.

Parameters

costId	A const reference to a string that refs to the cost id.
cost	A double that contains the cost value. Used as multiplier for default cost.

Definition at line 983 of file cellcache.cpp.

References m_costsTable.

Referenced by FIFE::Cell::addInstance(), FIFE::Cell::addInstances(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ removeArea()

void FIFE::CellCache::removeArea ( const std::string & id )

Removes a area.

Parameters

id	A const reference to string that contains the area id.

Definition at line 1445 of file cellcache.cpp.

References m_cellAreas.

◆ removeCell()

void FIFE::CellCache::removeCell ( Cell * cell )

Removes cell from CellCache.

Removes cell from cost table, special cost and speed, futhermore from areas and narrows.

Parameters

cell	A pointer to the cell.

Definition at line 719 of file cellcache.cpp.

References m_cellAreas, m_costMultipliers, m_costsToCells, m_narrowCells, m_speedMultipliers, removeCellFromArea(), removeCellFromCost(), removeNarrowCell(), resetCostMultiplier(), and resetSpeedMultiplier().

Referenced by FIFE::Cell::~Cell().

Here is the caller graph for this function:

◆ removeCellFromArea() [1/2]

void FIFE::CellCache::removeCellFromArea ( Cell * cell )

Removes the cell from all areas.

Parameters

cell	A pointer to the cell which should be removed.

Definition at line 1416 of file cellcache.cpp.

References m_cellAreas.

Referenced by removeCell(), removeCellsFromArea(), and FIFE::Cell::removeInstance().

Here is the caller graph for this function:

◆ removeCellFromArea() [2/2]

void FIFE::CellCache::removeCellFromArea	(	const std::string &	id,
		Cell *	cell
	)

Removes the cell from a area.

Parameters

id	A const reference to string that contains the area id.
cell	A pointer to the cell which should be removed.

Definition at line 1427 of file cellcache.cpp.

References m_cellAreas.

◆ removeCellFromCost() [1/2]

void FIFE::CellCache::removeCellFromCost ( Cell * cell )

Removes a cell from costs.

Parameters

cell	A pointer to the cell.

Definition at line 1050 of file cellcache.cpp.

References m_costsToCells.

Referenced by removeCell(), removeCellsFromCost(), and FIFE::Cell::removeInstance().

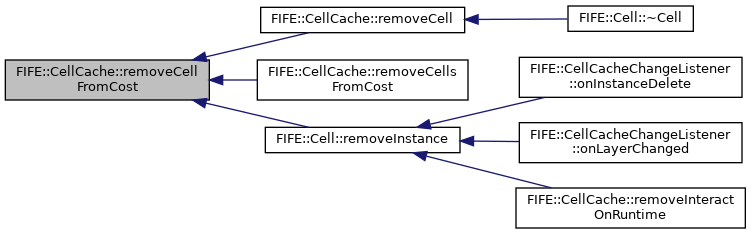

Here is the caller graph for this function:

◆ removeCellFromCost() [2/2]

void FIFE::CellCache::removeCellFromCost	(	const std::string &	costId,
		Cell *	cell
	)

Removes a cell from a cost identifier.

Parameters

costId	A const reference to the cost identifier.
cell	A pointer to the cell.

Definition at line 1061 of file cellcache.cpp.

References m_costsToCells.

◆ removeCellsFromArea()

void FIFE::CellCache::removeCellsFromArea	(	const std::string &	id,
		const std::vector< Cell *> &	cells
	)

Removes few cells from a area.

Parameters

id	A const reference to string that contains the area id.
cells	A const reference to vector which contains the cells.

Definition at line 1438 of file cellcache.cpp.

References removeCellFromArea().

◆ removeCellsFromCost()

void FIFE::CellCache::removeCellsFromCost	(	const std::string &	costId,
		const std::vector< Cell *> &	cells
	)

Removes cells from a cost identifier.

Parameters

costId	A const reference to the cost identifier.
cells	A const reference to a vector which contains the cells.

Definition at line 1072 of file cellcache.cpp.

References removeCellFromCost().

◆ removeInteractOnRuntime()

void FIFE::CellCache::removeInteractOnRuntime ( Layer * interact )

Removes a interact layer from the CellCache on runtime and sets all needed layer properties.

Parameters

interact A pointer to the interact layer.

Definition at line 766 of file cellcache.cpp.

References calculateCurrentSize(), FIFE::InstanceTree::findInstances(), getCell(), FIFE::Layer::getCellGrid(), FIFE::Layer::getInstanceTree(), FIFE::RectType< T >::h, FIFE::intPt2doublePt(), m_height, m_layer, m_size, m_width, FIFE::Cell::removeInstance(), FIFE::Layer::removeInteractLayer(), resize(), FIFE::Layer::setInteract(), FIFE::CellGrid::toLayerCoordinates(), FIFE::CellGrid::toMapCoordinates(), FIFE::RectType< T >::w, FIFE::RectType< T >::x, and FIFE::RectType< T >::y.

◆ removeNarrowCell()

void FIFE::CellCache::removeNarrowCell ( Cell * cell )

Removes cell from narrow cells.

Parameters

cell	A pointer to the cell.

Definition at line 1381 of file cellcache.cpp.

References m_cellZoneListener, and m_narrowCells.

Referenced by removeCell().

Here is the caller graph for this function:

◆ removeTransition()

void FIFE::CellCache::removeTransition ( Cell * cell )

Removes a cell as transition.

Parameters

cell	A pointer to transition cell.

Definition at line 1233 of file cellcache.cpp.

References m_transitions.

Referenced by FIFE::Cell::deleteTransition().

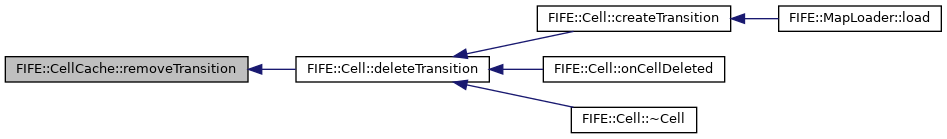

Here is the caller graph for this function:

◆ removeZone()

void FIFE::CellCache::removeZone ( Zone * zone )

Removes zone.

Parameters

zone	A pointer to the zone which should be removed.

Definition at line 1303 of file cellcache.cpp.

References m_zones.

Referenced by mergeZones(), and splitZone().

Here is the caller graph for this function:

◆ reset()

void FIFE::CellCache::reset ( )

Resets the CellCache.

Definition at line 434 of file cellcache.cpp.

References FIFE::RectType< T >::h, m_cellAreas, m_cells, m_costMultipliers, m_costsTable, m_costsToCells, m_defaultCostMulti, m_defaultSpeedMulti, m_height, m_narrowCells, m_size, m_speedMultipliers, m_width, m_zones, FIFE::RectType< T >::w, FIFE::RectType< T >::x, and FIFE::RectType< T >::y.

Referenced by ~CellCache().

Here is the caller graph for this function:

◆ resetCostMultiplier()

void FIFE::CellCache::resetCostMultiplier ( Cell * cell )

Resets the cost multiplier for the cell.

Parameters

cell	A pointer to the cell.

Definition at line 1195 of file cellcache.cpp.

References m_costMultipliers.

Referenced by removeCell(), and FIFE::Cell::resetCostMultiplier().

Here is the caller graph for this function:

◆ resetNarrowCells()

void FIFE::CellCache::resetNarrowCells ( )

Resets narrow cells.

Definition at line 1389 of file cellcache.cpp.

References m_cellZoneListener, and m_narrowCells.

◆ resetSpeedMultiplier()

void FIFE::CellCache::resetSpeedMultiplier ( Cell * cell )

Resets the speed multiplier for the cell.

Parameters

cell	A pointer to the cell.

Definition at line 1225 of file cellcache.cpp.

References m_speedMultipliers.

Referenced by removeCell(), FIFE::Cell::removeInstance(), and FIFE::Cell::resetSpeedMultiplier().

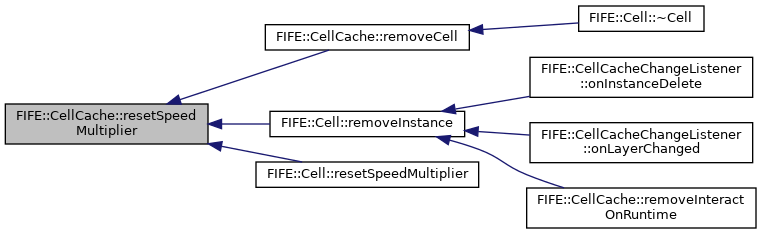

Here is the caller graph for this function:

◆ resize() [1/2]

void FIFE::CellCache::resize ( )

Checks the layer size and if the size is different with current size then the cache size is adjusted.

Definition at line 473 of file cellcache.cpp.

References calculateCurrentSize(), and m_staticSize.

Referenced by addInteractOnRuntime(), FIFE::CellCacheChangeListener::onInstanceCreate(), removeInteractOnRuntime(), setSize(), and update().

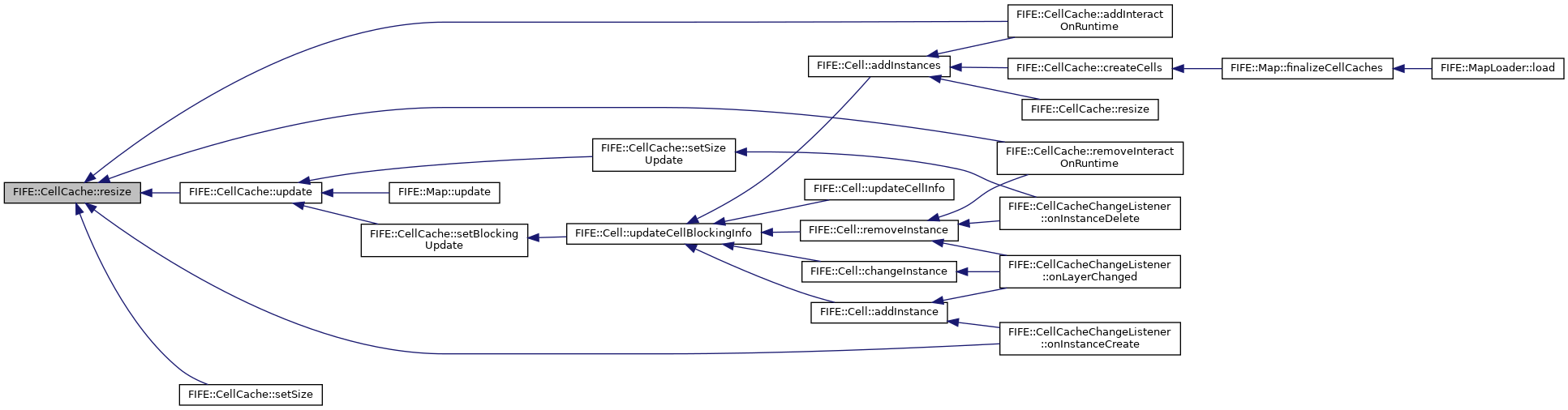

Here is the caller graph for this function:

◆ resize() [2/2]

void FIFE::CellCache::resize ( const Rect & rec )

Checks the given size and if the size is different with current size then the cache is adjusted.

Parameters

rec	A rect that contains the new size in layer coordinates.

Definition at line 482 of file cellcache.cpp.

References ABS, FIFE::Cell::addInstances(), FIFE::InstanceTree::findInstances(), FIFE::CellGrid::getAccessibleCoordinates(), getCell(), FIFE::Layer::getCellGrid(), FIFE::Layer::getInstanceTree(), FIFE::Layer::getInteractLayers(), FIFE::Cell::getLayerCoordinates(), FIFE::RectType< T >::h, FIFE::intPt2doublePt(), m_cells, m_height, m_layer, m_neighborZ, m_size, m_width, FIFE::Cell::resetNeighbors(), FIFE::Cell::setCellId(), FIFE::CellGrid::toMapCoordinates(), FIFE::RectType< T >::w, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, FIFE::PointType3D< T >::y, and FIFE::PointType3D< T >::z.

◆ setBlockingUpdate()

void FIFE::CellCache::setBlockingUpdate ( bool update )

Definition at line 1531 of file cellcache.cpp.

References m_blockingUpdate, and update().

Referenced by FIFE::Cell::updateCellBlockingInfo().

Here is the caller graph for this function:

◆ setCostMultiplier()

void FIFE::CellCache::setCostMultiplier	(	Cell *	cell,
		double	multi
	)

Sets cost multiplier for the cell.

Parameters

cell	A pointer to the cell.
multi	A double, the cost multiplier.

Definition at line 1177 of file cellcache.cpp.

References m_costMultipliers.

Referenced by FIFE::Cell::setCostMultiplier().

Here is the caller graph for this function:

◆ setDefaultCostMultiplier()

void FIFE::CellCache::setDefaultCostMultiplier ( double multi )

Sets default cost for this CellCache.

Parameters

multi A double, the cost.

Definition at line 1153 of file cellcache.cpp.

References m_defaultCostMulti.

Referenced by FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ setDefaultSpeedMultiplier()

void FIFE::CellCache::setDefaultSpeedMultiplier ( double multi )

Sets default speed for this CellCache.

Parameters

multi A double, the speed.

Definition at line 1161 of file cellcache.cpp.

References m_defaultSpeedMulti.

Referenced by FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ setMaxNeighborZ()

void FIFE::CellCache::setMaxNeighborZ ( int32_t z )

Sets maximal z range for neighbors.

Parameters

z	The maximal z range as int.

Definition at line 848 of file cellcache.cpp.

References m_neighborZ.

◆ setSearchNarrowCells()

void FIFE::CellCache::setSearchNarrowCells ( bool search )

Sets if narrow cells should be searched automatic.

Parameters

search A boolean, if true the automatic search is enabled, otherwise false.

Definition at line 1401 of file cellcache.cpp.

References m_searchNarrow.

Referenced by FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ setSize()

void FIFE::CellCache::setSize ( const Rect & rec )

Sets CellCache size.

Parameters

rec	A const reference to a rect that contain new min, max coordinates. rec.x = min.x, rec.w = max.x, rec.y = min.y, rec.h = max.y

Definition at line 808 of file cellcache.cpp.

References resize().

◆ setSizeUpdate()

void FIFE::CellCache::setSizeUpdate ( bool update )

Definition at line 1535 of file cellcache.cpp.

References m_sizeUpdate, and update().

Referenced by FIFE::CellCacheChangeListener::onInstanceDelete().

Here is the caller graph for this function:

◆ setSpeedMultiplier()

void FIFE::CellCache::setSpeedMultiplier	(	Cell *	cell,
		double	multi
	)

Sets speed multiplier for the cell.

Parameters

cell	A pointer to the cell.
multi	A double, the speed multiplier.

Definition at line 1207 of file cellcache.cpp.

References m_speedMultipliers.

Referenced by FIFE::Cell::addInstance(), FIFE::Cell::addInstances(), FIFE::Cell::removeInstance(), and FIFE::Cell::setSpeedMultiplier().

Here is the caller graph for this function:

◆ setStaticSize()

void FIFE::CellCache::setStaticSize ( bool staticSize )

Sets the cache size to static so that automatic resize is disabled.

Parameters

staticSize A boolean, true if the cache size is static, otherwise false.

Definition at line 1523 of file cellcache.cpp.

References m_staticSize.

◆ splitZone()

void FIFE::CellCache::splitZone ( Cell * cell )

Splits zone on the cell.

Parameters

cell	A pointer to the cell where the zone should be splited.

Definition at line 1313 of file cellcache.cpp.

References FIFE::Zone::addCell(), createZone(), FIFE::CTYPE_CELL_BLOCKER, FIFE::CTYPE_STATIC_BLOCKER, FIFE::Zone::getCellCount(), FIFE::Cell::getCellType(), FIFE::Cell::getNeighbors(), FIFE::Cell::getZone(), FIFE::Cell::isInserted(), FIFE::Cell::isZoneProtected(), FIFE::Zone::removeCell(), removeZone(), and FIFE::Cell::setInserted().

◆ unregisterAllCosts()

void FIFE::CellCache::unregisterAllCosts ( )

Removes all costs.

Definition at line 1025 of file cellcache.cpp.

References m_costsTable, and m_costsToCells.

◆ unregisterCost()

void FIFE::CellCache::unregisterCost ( const std::string & costId )

Removes a cost with the given id.

Parameters

costId A const reference to a string that refs to the cost id.

Definition at line 992 of file cellcache.cpp.

References m_costsTable, and m_costsToCells.

◆ update()

void FIFE::CellCache::update ( )

Definition at line 1539 of file cellcache.cpp.

References m_blockingUpdate, m_sizeUpdate, and resize().

Referenced by setBlockingUpdate(), setSizeUpdate(), and FIFE::Map::update().

Here is the caller graph for this function:

Member Data Documentation

◆ m_blockingUpdate

bool FIFE::CellCache::m_blockingUpdate

private

indicates blocking update

Definition at line 648 of file cellcache.h.

Referenced by setBlockingUpdate(), and update().

◆ m_cellAreas

StringCellMultimap FIFE::CellCache::m_cellAreas

private

areas with assigned cells

Definition at line 669 of file cellcache.h.

Referenced by addCellToArea(), existsArea(), getAreaCells(), getAreas(), getCellAreas(), isCellInArea(), removeArea(), removeCell(), removeCellFromArea(), and reset().

◆ m_cellListener

LayerChangeListener* FIFE::CellCache::m_cellListener

private

change listener

Definition at line 629 of file cellcache.h.

Referenced by addInteractOnRuntime(), CellCache(), getCellCacheChangeListener(), and ~CellCache().

◆ m_cells

std::vector<std::vector<Cell*> > FIFE::CellCache::m_cells

private

Definition at line 632 of file cellcache.h.

Referenced by addCell(), CellCache(), createCell(), createCells(), forceUpdate(), getCell(), getCells(), reset(), and resize().

◆ m_cellZoneListener

CellChangeListener* FIFE::CellCache::m_cellZoneListener

private

listener for zones

Definition at line 672 of file cellcache.h.

Referenced by addNarrowCell(), CellCache(), removeNarrowCell(), resetNarrowCells(), and ~CellCache().

◆ m_costMultipliers

std::map<Cell*, double> FIFE::CellCache::m_costMultipliers

private

holds default cost multiplier, only if it is not default(1.0)

Definition at line 681 of file cellcache.h.

Referenced by getCostMultiplier(), isDefaultCost(), removeCell(), reset(), resetCostMultiplier(), and setCostMultiplier().

◆ m_costsTable

std::map<std::string, double> FIFE::CellCache::m_costsTable

private

holds cost table

Definition at line 675 of file cellcache.h.

Referenced by existsCost(), getCost(), getCosts(), registerCost(), reset(), unregisterAllCosts(), and unregisterCost().

◆ m_costsToCells

StringCellMultimap FIFE::CellCache::m_costsToCells

private

holds cells for each cost

Definition at line 678 of file cellcache.h.

Referenced by addCellToCost(), existsCostForCell(), getCellCosts(), getCostCells(), removeCell(), removeCellFromCost(), reset(), unregisterAllCosts(), and unregisterCost().

◆ m_defaultCostMulti

double FIFE::CellCache::m_defaultCostMulti

private

default cost

Definition at line 623 of file cellcache.h.

Referenced by getAdjacentCost(), getDefaultCostMultiplier(), reset(), and setDefaultCostMultiplier().

◆ m_defaultSpeedMulti

double FIFE::CellCache::m_defaultSpeedMulti

private

default speed

Definition at line 626 of file cellcache.h.

Referenced by getCellSpeedMultiplier(), getDefaultSpeedMultiplier(), reset(), and setDefaultSpeedMultiplier().

◆ m_height

uint32_t FIFE::CellCache::m_height

private

cache height

Definition at line 642 of file cellcache.h.

Referenced by addInteractOnRuntime(), CellCache(), createCells(), getCell(), getHeight(), getMaxIndex(), isInCellCache(), removeInteractOnRuntime(), reset(), and resize().

◆ m_layer

Layer* FIFE::CellCache::m_layer

private

walkable layer

Definition at line 620 of file cellcache.h.

Referenced by addInteractOnRuntime(), calculateCurrentSize(), CellCache(), createCell(), createCells(), getAdjacentCost(), getCellsInLine(), getLayer(), isInCellCache(), removeInteractOnRuntime(), resize(), and ~CellCache().

◆ m_narrowCells

std::set<Cell*> FIFE::CellCache::m_narrowCells

private

special cells which are monitored (zone split and merge)

Definition at line 666 of file cellcache.h.

Referenced by addNarrowCell(), getNarrowCells(), removeCell(), removeNarrowCell(), reset(), and resetNarrowCells().

◆ m_neighborZ

int32_t FIFE::CellCache::m_neighborZ

private

max z value for neighbors

Definition at line 645 of file cellcache.h.

Referenced by getMaxNeighborZ(), resize(), and setMaxNeighborZ().

◆ m_searchNarrow

bool FIFE::CellCache::m_searchNarrow

private

is automatic seach enabled

Definition at line 654 of file cellcache.h.

Referenced by createCells(), isSearchNarrowCells(), and setSearchNarrowCells().

◆ m_size

Rect FIFE::CellCache::m_size

private

Rect holds the min and max size x = min.x, w = max.x, y = min.y, h = max.y.

Definition at line 636 of file cellcache.h.

Referenced by addCell(), addInteractOnRuntime(), CellCache(), convertCoordToInt(), convertIntToCoord(), createCell(), createCells(), getCell(), getSize(), isInCellCache(), removeInteractOnRuntime(), reset(), and resize().

◆ m_sizeUpdate

bool FIFE::CellCache::m_sizeUpdate

private

indicates size update

Definition at line 651 of file cellcache.h.

Referenced by setSizeUpdate(), and update().

◆ m_speedMultipliers

std::map<Cell*, double> FIFE::CellCache::m_speedMultipliers

private

holds default speed multiplier, only if it is not default(1.0)

Definition at line 684 of file cellcache.h.

Referenced by getSpeedMultiplier(), isDefaultSpeed(), removeCell(), reset(), resetSpeedMultiplier(), and setSpeedMultiplier().

◆ m_staticSize

bool FIFE::CellCache::m_staticSize

private

is automatic size update enabled/disabled

Definition at line 657 of file cellcache.h.

Referenced by isStaticSize(), resize(), and setStaticSize().

◆ m_transitions

std::vector<Cell*> FIFE::CellCache::m_transitions

private

cells with transitions

Definition at line 660 of file cellcache.h.

Referenced by addTransition(), getTransitionCells(), and removeTransition().

◆ m_width

uint32_t FIFE::CellCache::m_width

private

cache width

Definition at line 639 of file cellcache.h.

Referenced by addInteractOnRuntime(), CellCache(), convertCoordToInt(), convertIntToCoord(), createCells(), getCell(), getMaxIndex(), getWidth(), isInCellCache(), removeInteractOnRuntime(), reset(), and resize().

◆ m_zones

std::vector<Zone*> FIFE::CellCache::m_zones

private

zones

Definition at line 663 of file cellcache.h.

Referenced by createZone(), getZone(), getZones(), removeZone(), and reset().

The documentation for this class was generated from the following files:

engine/core/model/structures/cellcache.h
engine/core/model/structures/cellcache.cpp

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ StringCellIterator

◆ StringCellMultimap

◆ StringCellPair

Constructor & Destructor Documentation

◆ CellCache()

◆ ~CellCache()

Member Function Documentation

◆ addCell()

◆ addCellsToArea()

◆ addCellsToCost()

◆ addCellToArea()

◆ addCellToCost()

◆ addInteractOnRuntime()

◆ addNarrowCell()

◆ addTransition()

◆ calculateCurrentSize()

◆ convertCoordToInt()

◆ convertIntToCoord()

◆ createCell()

◆ createCells()

◆ createZone()

◆ existsArea()

◆ existsCost()

◆ existsCostForCell()

◆ forceUpdate()

◆ getAdjacentCost() [1/2]

◆ getAdjacentCost() [2/2]

◆ getAreaCells()

◆ getAreas()

◆ getBlockingCellsInRect()

◆ getCell()

◆ getCellAreas()

◆ getCellCacheChangeListener()

◆ getCellCosts()

◆ getCells()

◆ getCellsInCircle()

◆ getCellsInCircleSegment()

◆ getCellsInLine()

◆ getCellsInRect()

◆ getCellSpeedMultiplier()

◆ getCost()

◆ getCostCells()

◆ getCostMultiplier()

◆ getCosts()

◆ getDefaultCostMultiplier()

◆ getDefaultSpeedMultiplier()

◆ getHeight()

◆ getLayer()

◆ getMaxIndex()

◆ getMaxNeighborZ()

◆ getNarrowCells()

◆ getSize()

◆ getSpeedMultiplier()

◆ getTransitionCells()

◆ getWidth()

◆ getZone()

◆ getZones()

◆ isCellInArea()

◆ isDefaultCost()

◆ isDefaultSpeed()

◆ isInCellCache()

◆ isSearchNarrowCells()

◆ isStaticSize()

◆ mergeZones()

◆ registerCost()

◆ removeArea()

◆ removeCell()

◆ removeCellFromArea() [1/2]

◆ removeCellFromArea() [2/2]

◆ removeCellFromCost() [1/2]

◆ removeCellFromCost() [2/2]

◆ removeCellsFromArea()

◆ removeCellsFromCost()

◆ removeInteractOnRuntime()
