The chorus effect essentially replays the input audio accompanied by another slightly delayed version of the signal, creating a �doubling� effect. More...

#include <soundeffect.h>

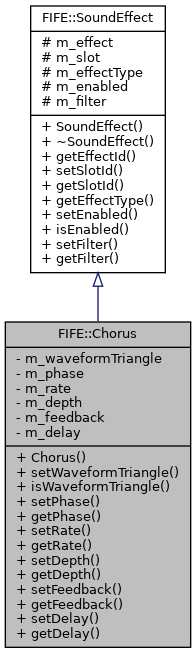

Inheritance diagram for FIFE::Chorus:

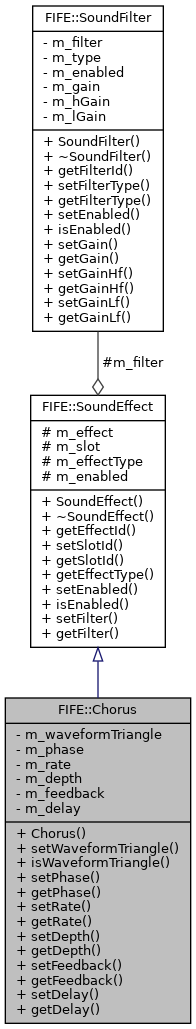

Collaboration diagram for FIFE::Chorus:

Public Member Functions
	Chorus ()
	Constructor. More...

void	setWaveformTriangle (bool value)
	Sets the waveform to triangle or sinus. More...

bool	isWaveformTriangle () const
	Return if wavefrom is triangle. More...

void	setPhase (int32_t value)
	Sets the phase, difference between the left and right LFO�s. More...

int32_t	getPhase () const
	Return the phase. More...

void	setRate (float value)
	Sets the rate, the modulation rate of the LFO that controls the delay time of the delayed signals. More...

float	getRate () const
	Return the rate. More...

void	setDepth (float value)
	Sets the depth, the amount by which the delay time is modulated by the LFO. More...

float	getDepth () const
	Return the depth. More...

void	setFeedback (float value)
	Sets the feedback, the amount of processed signal that is fed back to the input of the chorus effect. More...

float	getFeedback () const
	Return feedback. More...

void	setDelay (float value)
	Sets the delay, the average amount of time the sample is delayed before it is played back. More...

float	getDelay () const
	Return delay. More...

Public Member Functions inherited from FIFE::SoundEffect
	SoundEffect ()
	Constructor. More...

virtual	~SoundEffect ()
	Destructor. More...

ALuint	getEffectId () const
	Return the OpenAL effect handle. More...

void	setSlotId (ALuint slot)
	Sets the OpenAL auxiliary slot handle. More...

ALuint	getSlotId ()
	Return the OpenAL auxiliary slot handle. More...

SoundEffectType	getEffectType () const
	Return sound effect type. More...

void	setEnabled (bool enabled)
	Enables or disables the effect. More...

bool	isEnabled () const
	Return true if the effect is enabled, false otherwise. More...

void	setFilter (SoundFilter *filter)
	Sets the additional sound filter. More...

SoundFilter *	getFilter ()
	Return sound filter or NULL. More...

Private Attributes
bool	m_waveformTriangle

int32_t	m_phase

float	m_rate

float	m_depth

float	m_feedback

float	m_delay

Additional Inherited Members
Protected Attributes inherited from FIFE::SoundEffect
ALuint	m_effect
	Effect object id. More...

ALuint	m_slot
	Effect slot id;. More...

SoundEffectType	m_effectType
	Sound effect type. More...

bool	m_enabled
	Effect enabled. More...

SoundFilter *	m_filter
	Additional filter effect. More...

Detailed Description

The chorus effect essentially replays the input audio accompanied by another slightly delayed version of the signal, creating a �doubling� effect.

Definition at line 256 of file soundeffect.h.

Constructor & Destructor Documentation

◆ Chorus()

FIFE::Chorus::Chorus ( )

Constructor.

Definition at line 253 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, FIFE::SoundEffect::m_effectType, and FIFE::SE_EFFECT_CHORUS.

Member Function Documentation

◆ getDelay()

float FIFE::Chorus::getDelay ( ) const

Return delay.

Definition at line 328 of file soundeffect.cpp.

References m_delay.

◆ getDepth()

float FIFE::Chorus::getDepth ( ) const

Return the depth.

Definition at line 306 of file soundeffect.cpp.

References m_depth.

◆ getFeedback()

float FIFE::Chorus::getFeedback ( ) const

Return feedback.

Definition at line 317 of file soundeffect.cpp.

References m_feedback.

◆ getPhase()

int32_t FIFE::Chorus::getPhase ( ) const

Return the phase.

Definition at line 284 of file soundeffect.cpp.

References m_phase.

◆ getRate()

float FIFE::Chorus::getRate ( ) const

Return the rate.

Definition at line 295 of file soundeffect.cpp.

References m_rate.

◆ isWaveformTriangle()

bool FIFE::Chorus::isWaveformTriangle ( ) const

Return if wavefrom is triangle.

Definition at line 273 of file soundeffect.cpp.

References m_waveformTriangle.

◆ setDelay()

void FIFE::Chorus::setDelay ( float value )

Sets the delay, the average amount of time the sample is delayed before it is played back.

Parameters

value Range 0.0 to 0.016, default 0.016.

Definition at line 321 of file soundeffect.cpp.

References FIFE::alEffectf, m_delay, and FIFE::SoundEffect::m_effect.

◆ setDepth()

void FIFE::Chorus::setDepth ( float value )

Sets the depth, the amount by which the delay time is modulated by the LFO.

Parameters

value Range 0.0 to 1.0, default 0.1.

Definition at line 299 of file soundeffect.cpp.

References FIFE::alEffectf, m_depth, and FIFE::SoundEffect::m_effect.

◆ setFeedback()

void FIFE::Chorus::setFeedback ( float value )

Sets the feedback, the amount of processed signal that is fed back to the input of the chorus effect.

Parameters

value Range -1.0 to 1.0, default 0.25.

Definition at line 310 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_feedback.

◆ setPhase()

void FIFE::Chorus::setPhase ( int32_t value )

Sets the phase, difference between the left and right LFO�s.

Parameters

value Range -180 to 180, default 90.

Definition at line 277 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_phase.

◆ setRate()

void FIFE::Chorus::setRate ( float value )

Sets the rate, the modulation rate of the LFO that controls the delay time of the delayed signals.

Parameters

value Range 0.0 to 10.0, default 1.1.

Definition at line 288 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_rate.

◆ setWaveformTriangle()

void FIFE::Chorus::setWaveformTriangle ( bool value )

Sets the waveform to triangle or sinus.

Controls delay time of delayed signals.

Parameters

value True for triangle, false for sinus. Default is true.

Definition at line 264 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_waveformTriangle.

Member Data Documentation

◆ m_delay

float FIFE::Chorus::m_delay

private

Definition at line 325 of file soundeffect.h.

Referenced by getDelay(), and setDelay().

◆ m_depth

float FIFE::Chorus::m_depth

private

Definition at line 323 of file soundeffect.h.

Referenced by getDepth(), and setDepth().

◆ m_feedback

float FIFE::Chorus::m_feedback

private

Definition at line 324 of file soundeffect.h.

Referenced by getFeedback(), and setFeedback().

◆ m_phase

int32_t FIFE::Chorus::m_phase

private

Definition at line 321 of file soundeffect.h.

Referenced by getPhase(), and setPhase().

◆ m_rate

float FIFE::Chorus::m_rate

private

Definition at line 322 of file soundeffect.h.

Referenced by getRate(), and setRate().

◆ m_waveformTriangle

bool FIFE::Chorus::m_waveformTriangle

private

Definition at line 320 of file soundeffect.h.

Referenced by isWaveformTriangle(), and setWaveformTriangle().

The documentation for this class was generated from the following files:

engine/core/audio/effects/soundeffect.h
engine/core/audio/effects/soundeffect.cpp
