#include <devicecaps.h>

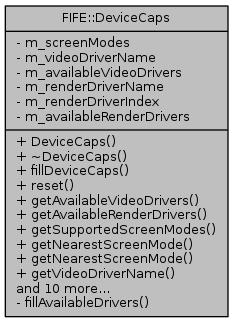

Collaboration diagram for FIFE::DeviceCaps:

Public Member Functions
	DeviceCaps ()
	Constructor. More...

	~DeviceCaps ()
	Destructor. More...

void	fillDeviceCaps ()
	Should be called AFTER SDL_Init() has been called. More...

void	reset ()
	Clears all information gathered for the device. More...

std::vector< std::string >	getAvailableVideoDrivers () const
	Gets the available video drivers for your operating system. More...

std::vector< std::string >	getAvailableRenderDrivers () const
	Gets the available render drivers for your operating system. More...

std::vector< ScreenMode >	getSupportedScreenModes () const
	Returns a vector containing screen modes. More...

ScreenMode	getNearestScreenMode (uint16_t width, uint16_t height, uint16_t bpp, const std::string &renderer, bool fs) const
	Gets the nearest valid screen mode based on the arguments passed. More...

ScreenMode	getNearestScreenMode (uint16_t width, uint16_t height, uint16_t bpp, const std::string &renderer, bool fs, uint16_t refresh, uint8_t display=0) const
	Gets the nearest valid screen mode based on the arguments passed. More...

std::string	getVideoDriverName () const
	Returns the name of the current video driver. More...

void	setVideoDriverName (const std::string &driver)
	Sets the name of the video driver. More...

std::string	getRenderDriverName () const
	Returns the name of the current render driver or an empty string to initialize the first one supporting the requested flags. More...

void	setRenderDriverName (const std::string &driver)
	Sets the name of the render driver. More...

uint8_t	getDisplayCount () const
	Returns the number of displays. More...

std::string	getDisplayName (uint8_t display=0) const
	Returns the display name for the given display index. More...

uint32_t	getDesktopFormat (uint8_t display=0) const
	Returns the SDL_PixelFormatEnum of the desktop for the given display index. More...

int32_t	getDesktopRefreshRate (uint8_t display=0) const
	Returns the refresh rate in Hz of the desktop for the given display index. More...

int32_t	getDesktopWidth (uint8_t display=0) const
	Returns the width of the desktop resolution for the given display index. More...

int32_t	getDesktopHeight (uint8_t display=0) const
	Returns the height of the desktop resolution for the given display index. More...

Rect	getDisplayBounds (uint8_t display=0) const
	Returns the bounding points for the given display index. More...

Private Member Functions
void	fillAvailableDrivers ()
	Called in the constructor. More...

Private Attributes
std::vector< ScreenMode >	m_screenModes

std::string	m_videoDriverName

std::vector< std::string >	m_availableVideoDrivers

std::string	m_renderDriverName

int8_t	m_renderDriverIndex

std::vector< std::string >	m_availableRenderDrivers

Detailed Description

Definition at line 147 of file devicecaps.h.

Constructor & Destructor Documentation

◆ DeviceCaps()

FIFE::DeviceCaps::DeviceCaps ( )

Constructor.

Definition at line 106 of file devicecaps.cpp.

◆ ~DeviceCaps()

FIFE::DeviceCaps::~DeviceCaps ( )

Destructor.

Definition at line 112 of file devicecaps.cpp.

Member Function Documentation

◆ fillAvailableDrivers()

void FIFE::DeviceCaps::fillAvailableDrivers ( )

private

Called in the constructor.

No need for anyone to call this

Definition at line 123 of file devicecaps.cpp.

References m_availableRenderDrivers, m_availableVideoDrivers, and m_videoDriverName.

Referenced by fillDeviceCaps(), and reset().

Here is the caller graph for this function:

◆ fillDeviceCaps()

void FIFE::DeviceCaps::fillDeviceCaps ( )

Should be called AFTER SDL_Init() has been called.

Definition at line 144 of file devicecaps.cpp.

References fillAvailableDrivers(), FIFE::ScreenMode::FULLSCREEN_OPENGL, FIFE::ScreenMode::FULLSCREEN_SDL, m_renderDriverIndex, m_renderDriverName, m_screenModes, FIFE::ScreenMode::setDisplay(), FIFE::ScreenMode::setFormat(), FIFE::ScreenMode::setRenderDriverIndex(), FIFE::ScreenMode::setRenderDriverName(), FIFE::ScreenMode::WINDOWED_OPENGL, and FIFE::ScreenMode::WINDOWED_SDL.

Referenced by FIFE::Engine::init(), and setRenderDriverName().

Here is the caller graph for this function:

◆ getAvailableRenderDrivers()

std::vector<std::string> FIFE::DeviceCaps::getAvailableRenderDrivers ( ) const

inline

Gets the available render drivers for your operating system.

Definition at line 171 of file devicecaps.h.

Referenced by FIFE::Engine::init().

Here is the caller graph for this function:

◆ getAvailableVideoDrivers()

std::vector<std::string> FIFE::DeviceCaps::getAvailableVideoDrivers ( ) const

inline

Gets the available video drivers for your operating system.

Definition at line 167 of file devicecaps.h.

Referenced by FIFE::Engine::init().

Here is the caller graph for this function:

◆ getDesktopFormat()

uint32_t FIFE::DeviceCaps::getDesktopFormat ( uint8_t display = 0 ) const

Returns the SDL_PixelFormatEnum of the desktop for the given display index.

Definition at line 301 of file devicecaps.cpp.

◆ getDesktopHeight()

int32_t FIFE::DeviceCaps::getDesktopHeight ( uint8_t display = 0 ) const

Returns the height of the desktop resolution for the given display index.

Definition at line 325 of file devicecaps.cpp.

◆ getDesktopRefreshRate()

int32_t FIFE::DeviceCaps::getDesktopRefreshRate ( uint8_t display = 0 ) const

Returns the refresh rate in Hz of the desktop for the given display index.

Definition at line 309 of file devicecaps.cpp.

◆ getDesktopWidth()

int32_t FIFE::DeviceCaps::getDesktopWidth ( uint8_t display = 0 ) const

Returns the width of the desktop resolution for the given display index.

Definition at line 317 of file devicecaps.cpp.

◆ getDisplayBounds()

Rect FIFE::DeviceCaps::getDisplayBounds ( uint8_t display = 0 ) const

Returns the bounding points for the given display index.

Definition at line 333 of file devicecaps.cpp.

◆ getDisplayCount()

uint8_t FIFE::DeviceCaps::getDisplayCount ( ) const

Returns the number of displays.

Definition at line 287 of file devicecaps.cpp.

Referenced by getDisplayName().

Here is the caller graph for this function:

◆ getDisplayName()

std::string FIFE::DeviceCaps::getDisplayName ( uint8_t display = 0 ) const

Returns the display name for the given display index.

Definition at line 292 of file devicecaps.cpp.

References getDisplayCount().

◆ getNearestScreenMode() [1/2]

ScreenMode FIFE::DeviceCaps::getNearestScreenMode	(	uint16_t	width,
		uint16_t	height,
		uint16_t	bpp,
		const std::string &	renderer,
		bool	fs
	)		const

Gets the nearest valid screen mode based on the arguments passed.

Definition at line 211 of file devicecaps.cpp.

Referenced by FIFE::Engine::init().

Here is the caller graph for this function:

◆ getNearestScreenMode() [2/2]

ScreenMode FIFE::DeviceCaps::getNearestScreenMode	(	uint16_t	width,
		uint16_t	height,
		uint16_t	bpp,
		const std::string &	renderer,
		bool	fs,
		uint16_t	refresh,
		uint8_t	display = `0`
	)		const

Gets the nearest valid screen mode based on the arguments passed.

Definition at line 216 of file devicecaps.cpp.

References m_renderDriverIndex, m_renderDriverName, FIFE::ScreenMode::setDisplay(), FIFE::ScreenMode::setFormat(), FIFE::ScreenMode::setRenderDriverIndex(), and FIFE::ScreenMode::setRenderDriverName().

◆ getRenderDriverName()

std::string FIFE::DeviceCaps::getRenderDriverName ( ) const

inline

Returns the name of the current render driver or an empty string to initialize the first one supporting the requested flags.

Definition at line 196 of file devicecaps.h.

References FIFE::ScreenMode::setRenderDriverName().

◆ getSupportedScreenModes()

std::vector<ScreenMode> FIFE::DeviceCaps::getSupportedScreenModes ( ) const

inline

Returns a vector containing screen modes.

Definition at line 175 of file devicecaps.h.

◆ getVideoDriverName()

std::string FIFE::DeviceCaps::getVideoDriverName ( ) const

inline

Returns the name of the current video driver.

Definition at line 187 of file devicecaps.h.

◆ reset()

void FIFE::DeviceCaps::reset ( )

Clears all information gathered for the device.

Definition at line 115 of file devicecaps.cpp.

References fillAvailableDrivers(), m_renderDriverIndex, m_renderDriverName, and m_screenModes.

◆ setRenderDriverName()

void FIFE::DeviceCaps::setRenderDriverName ( const std::string & driver )

Sets the name of the render driver.

Definition at line 265 of file devicecaps.cpp.

References fillDeviceCaps(), m_availableRenderDrivers, m_renderDriverIndex, and m_renderDriverName.

Referenced by FIFE::Engine::init().

Here is the caller graph for this function:

◆ setVideoDriverName()

void FIFE::DeviceCaps::setVideoDriverName ( const std::string & driver )

inline

Sets the name of the video driver.

Definition at line 191 of file devicecaps.h.

Referenced by FIFE::Engine::init().

Here is the caller graph for this function:

Member Data Documentation

◆ m_availableRenderDrivers

std::vector<std::string> FIFE::DeviceCaps::m_availableRenderDrivers

private

Definition at line 237 of file devicecaps.h.

Referenced by fillAvailableDrivers(), and setRenderDriverName().

◆ m_availableVideoDrivers

std::vector<std::string> FIFE::DeviceCaps::m_availableVideoDrivers

private

Definition at line 233 of file devicecaps.h.

Referenced by fillAvailableDrivers().

◆ m_renderDriverIndex

int8_t FIFE::DeviceCaps::m_renderDriverIndex

private

Definition at line 236 of file devicecaps.h.

Referenced by fillDeviceCaps(), getNearestScreenMode(), reset(), and setRenderDriverName().

◆ m_renderDriverName

std::string FIFE::DeviceCaps::m_renderDriverName

private

Definition at line 235 of file devicecaps.h.

Referenced by fillDeviceCaps(), getNearestScreenMode(), reset(), and setRenderDriverName().

◆ m_screenModes

std::vector<ScreenMode> FIFE::DeviceCaps::m_screenModes

private

Definition at line 231 of file devicecaps.h.

Referenced by fillDeviceCaps(), and reset().

◆ m_videoDriverName

std::string FIFE::DeviceCaps::m_videoDriverName

private

Definition at line 232 of file devicecaps.h.

Referenced by fillAvailableDrivers().

The documentation for this class was generated from the following files:

engine/core/video/devicecaps.h
engine/core/video/devicecaps.cpp
