The distortion effect simulates turning up (overdriving) the gain stage on a guitar amplifier or adding a distortion pedal to an instrument’s output. More...
#include <soundeffect.h>

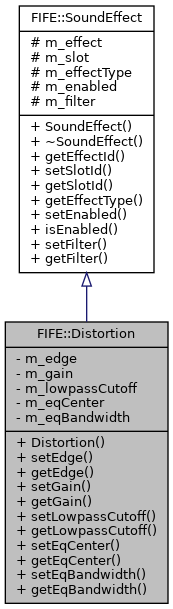

Inheritance diagram for FIFE::Distortion:

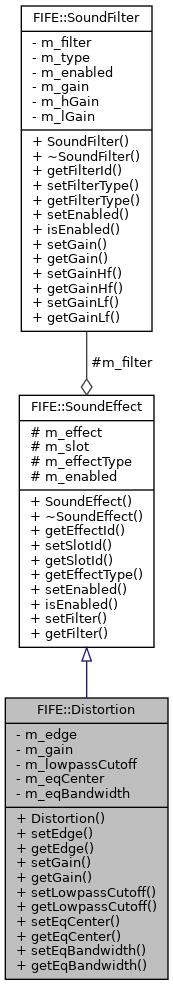

Collaboration diagram for FIFE::Distortion:
Public Member Functions | |
| Distortion () | |
| Constructor. More... | |
| void | setEdge (float value) |
| Sets edge, the shape of the distortion. More... | |
| float | getEdge () const |
| Return edge. More... | |
| void | setGain (float value) |
| Sets gain, to attenuate the distorted sound. More... | |
| float | getGain () const |
| Return gain. More... | |
| void | setLowpassCutoff (float value) |
| Sets lowpass cutoff, to limit the amount of high frequency signal feeding into the distortion effect. More... | |
| float | getLowpassCutoff () const |
| Return lowpass cutoff. More... | |
| void | setEqCenter (float value) |
| Sets EQ center, the frequency at which the post-distortion attenuation (Distortion Gain) is active. More... | |
| float | getEqCenter () const |
| Return EQ center. More... | |
| void | setEqBandwidth (float value) |
| Sets EQ bandwidth, the bandwidth of the post-distortion attenuation. More... | |
| float | getEqBandwidth () const |
| Return EQ bandwidth. More... | |
| Public Member Functions inherited from FIFE::SoundEffect | |
| SoundEffect () | |
| Constructor. More... | |
| virtual | ~SoundEffect () |
| Destructor. More... | |
| ALuint | getEffectId () const |
| Return the OpenAL effect handle. More... | |
| void | setSlotId (ALuint slot) |
| Sets the OpenAL auxiliary slot handle. More... | |
| ALuint | getSlotId () |
| Return the OpenAL auxiliary slot handle. More... | |
| SoundEffectType | getEffectType () const |
| Return sound effect type. More... | |
| void | setEnabled (bool enabled) |
| Enables or disables the effect. More... | |
| bool | isEnabled () const |
| Return true if the effect is enabled, false otherwise. More... | |
| void | setFilter (SoundFilter *filter) |
| Sets the additional sound filter. More... | |
| SoundFilter * | getFilter () |
| Return sound filter or NULL. More... | |
Private Attributes | |
| float | m_edge |
| float | m_gain |
| float | m_lowpassCutoff |
| float | m_eqCenter |
| float | m_eqBandwidth |
Additional Inherited Members | |
| Protected Attributes inherited from FIFE::SoundEffect | |
| ALuint | m_effect |
| Effect object id. More... | |
| ALuint | m_slot |
| Effect slot id;. More... | |
| SoundEffectType | m_effectType |
| Sound effect type. More... | |
| bool | m_enabled |
| Effect enabled. More... | |
| SoundFilter * | m_filter |
| Additional filter effect. More... | |
Detailed Description
The distortion effect simulates turning up (overdriving) the gain stage on a guitar amplifier or adding a distortion pedal to an instrument’s output.
Definition at line 331 of file soundeffect.h.
Constructor & Destructor Documentation
◆ Distortion()
| FIFE::Distortion::Distortion | ( | ) |
Constructor.
Definition at line 333 of file soundeffect.cpp.
References FIFE::alEffecti, FIFE::SoundEffect::m_effect, FIFE::SoundEffect::m_effectType, and FIFE::SE_EFFECT_DISTORTION.
Member Function Documentation
◆ getEdge()
| float FIFE::Distortion::getEdge | ( | ) | const |
◆ getEqBandwidth()
| float FIFE::Distortion::getEqBandwidth | ( | ) | const |
◆ getEqCenter()
| float FIFE::Distortion::getEqCenter | ( | ) | const |
◆ getGain()
| float FIFE::Distortion::getGain | ( | ) | const |
◆ getLowpassCutoff()
| float FIFE::Distortion::getLowpassCutoff | ( | ) | const |
◆ setEdge()
| void FIFE::Distortion::setEdge | ( | float | value | ) |
Sets edge, the shape of the distortion.
- Parameters
-
value Range 0.0 to 1.0, default 0.2.
Definition at line 343 of file soundeffect.cpp.
References FIFE::alEffectf, m_edge, and FIFE::SoundEffect::m_effect.
◆ setEqBandwidth()
| void FIFE::Distortion::setEqBandwidth | ( | float | value | ) |
Sets EQ bandwidth, the bandwidth of the post-distortion attenuation.
- Parameters
-
value Range 80.0 to 24000.0, default 3600.0.
Definition at line 387 of file soundeffect.cpp.
References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_eqBandwidth.
◆ setEqCenter()
| void FIFE::Distortion::setEqCenter | ( | float | value | ) |
Sets EQ center, the frequency at which the post-distortion attenuation (Distortion Gain) is active.
- Parameters
-
value Range 80.0 to 24000.0, default 3600.0.
Definition at line 376 of file soundeffect.cpp.
References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_eqCenter.
◆ setGain()
| void FIFE::Distortion::setGain | ( | float | value | ) |
Sets gain, to attenuate the distorted sound.
- Parameters
-
value Range 0.01 to 1.0, default 0.05.
Definition at line 354 of file soundeffect.cpp.
References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_gain.
◆ setLowpassCutoff()
| void FIFE::Distortion::setLowpassCutoff | ( | float | value | ) |
Sets lowpass cutoff, to limit the amount of high frequency signal feeding into the distortion effect.
- Parameters
-
value Range 80.0 to 24000.0, default 8000.0.
Definition at line 365 of file soundeffect.cpp.
References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_lowpassCutoff.
Member Data Documentation
◆ m_edge
|
private |
Definition at line 385 of file soundeffect.h.
◆ m_eqBandwidth
|
private |
Definition at line 389 of file soundeffect.h.
Referenced by getEqBandwidth(), and setEqBandwidth().
◆ m_eqCenter
|
private |
Definition at line 388 of file soundeffect.h.
Referenced by getEqCenter(), and setEqCenter().
◆ m_gain
|
private |
Definition at line 386 of file soundeffect.h.
◆ m_lowpassCutoff
|
private |
Definition at line 387 of file soundeffect.h.
Referenced by getLowpassCutoff(), and setLowpassCutoff().
The documentation for this class was generated from the following files:
- engine/core/audio/effects/soundeffect.h
- engine/core/audio/effects/soundeffect.cpp
