The EAX Reverb is similar to Reverb but supports more options. More...

#include <soundeffect.h>

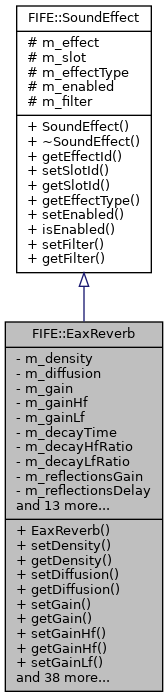

Inheritance diagram for FIFE::EaxReverb:

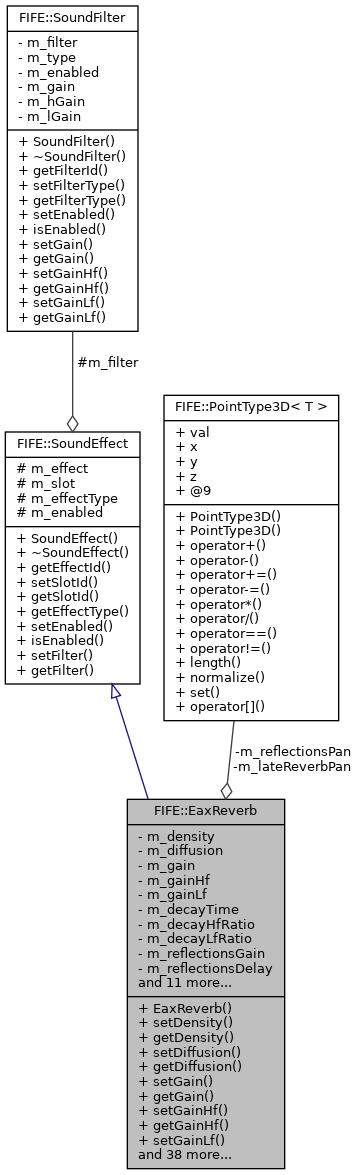

Collaboration diagram for FIFE::EaxReverb:

Public Member Functions
	EaxReverb ()
	Constructor. More...

void	setDensity (float value)
	Sets density, controls the coloration of the late reverb. More...

float	getDensity () const
	Return density value. More...

void	setDiffusion (float value)
	Sets diffusion, controls the echo density in the reverberation decay. More...

float	getDiffusion () const
	Return diffusion value. More...

void	setGain (float value)
	Sets gain, is the master volume control for the reflected sound. More...

float	getGain () const
	Return gain value. More...

void	setGainHf (float value)
	Sets gain hf, tweaks reflected sound by attenuating it at high frequencies. More...

float	getGainHf () const
	Return hf gain. More...

void	setGainLf (float value)
	Sets gain lf, tweaks reflected sound by attenuating it at low frequencies. More...

float	getGainLf () const
	Return lf gain. More...

void	setDecayTime (float value)
	The reverberation decay time. More...

float	getDecayTime () const
	Return decay time. More...

void	setDecayHfRatio (float value)
	Sets decay hf ratio, the spectral quality of the Decay Time parameter. More...

float	getDecayHfRatio () const
	Return decay hf ratio. More...

void	setDecayLfRatio (float value)
	Sets decay lf ratio, the spectral quality of the Decay Time parameter. More...

float	getDecayLfRatio () const
	Return decay lf ratio. More...

void	setReflectionsGain (float value)
	Sets reflections gain, the overall amount of initial reflections relative to the Gain property. More...

float	getReflectionsGain () const
	Return reflections gain. More...

void	setReflectionsDelay (float value)
	Sets the reflections delay, the amount of delay between the arrival time of the direct path from the source to the first reflection from the source. More...

float	getReflectionsDelay () const
	Return reflections delay. More...

void	setReflectionsPan (const AudioSpaceCoordinate &coordinate)
	Sets reflections pan, the 3D vector that controls the spatial distribution of the cluster of early reflections. More...

AudioSpaceCoordinate	getReflectionsPan () const
	Return reflections pan. More...

void	setLateReverbGain (float value)
	Sets late reverb gain, the overall amount of later reverberation relative to gain. More...

float	getLateReverbGain () const
	Return late reverb gain. More...

void	setLateReverbDelay (float value)
	Sets late reverb delay, the begin time of the late reverberation relative to the time of the initial reflection. More...

float	getLateReverbDelay () const
	Return late reverb delay. More...

void	setLateReverbPan (const AudioSpaceCoordinate &coordinate)
	Sets late reverb pan, the 3D vector that controls the spatial distribution of the late reverb. More...

AudioSpaceCoordinate	getLateReverbPan () const
	Return late reverb pan. More...

void	setEchoTime (float value)
	Sets echo time, the rate at which the cyclic echo repeats itself along the reverberation decay. More...

float	getEchoTime () const
	Return the echo time. More...

void	setEchoDepth (float value)
	Sets echo depth, the cyclic echo in the reverberation decay, which will be noticeable with transient or percussive sounds. More...

float	getEchoDepth () const
	Return echo depth. More...

void	setModulationTime (float value)
	Sets modulation time, the speed of the vibrato (rate of periodic changes in pitch). More...

float	getModulationTime () const
	Return modulation time. More...

void	setModulationDepth (float value)
	Sets modulation depth, the amount of pitch change. More...

float	getModulationDepth () const
	Return modulation depth. More...

void	setAirAbsorptionGainHf (float value)
	Sets air absorption gain hf, the distance-dependent attenuation at high frequencies caused by the propagation medium. More...

float	getAirAbsorptionGainHf () const
	Return air absorption gain hf. More...

void	setHfReference (float value)
	Sets hf reference, determine respectively the frequencies at which the high-frequency effects created by EAX Reverb properties are measured, for example Decay HF Ratio. More...

float	getHfReference () const
	Return hf reference. More...

void	setLfReference (float value)
	Sets lf reference, determine respectively the frequencies at which the low-frequency effects created by EAX Reverb properties are measured, for example Decay LF Ratio. More...

float	getLfReference () const
	Return lf reference. More...

void	setRoomRolloffFactor (float value)
	Sets room rolloff factor, similar to rolloff factor it attenuate the reflected sound (containing both reflections and reverberation) according to source-listener distance. More...

float	getRoomRolloffFactor () const
	Return room rolloff factor. More...

void	setDecayHfLimit (bool value)
	If decay hf limit is enabled, the high-frequency decay time automatically stays below a limit value that�s derived from the setting of Air Absorption HF. More...

bool	isDecayHfLimit () const
	Return if decay hf limit is enabled. More...

void	loadPreset (const EFXEAXREVERBPROPERTIES &prop)
	Load presets into the EAX reverb. More...

Public Member Functions inherited from FIFE::SoundEffect
	SoundEffect ()
	Constructor. More...

virtual	~SoundEffect ()
	Destructor. More...

ALuint	getEffectId () const
	Return the OpenAL effect handle. More...

void	setSlotId (ALuint slot)
	Sets the OpenAL auxiliary slot handle. More...

ALuint	getSlotId ()
	Return the OpenAL auxiliary slot handle. More...

SoundEffectType	getEffectType () const
	Return sound effect type. More...

void	setEnabled (bool enabled)
	Enables or disables the effect. More...

bool	isEnabled () const
	Return true if the effect is enabled, false otherwise. More...

void	setFilter (SoundFilter *filter)
	Sets the additional sound filter. More...

SoundFilter *	getFilter ()
	Return sound filter or NULL. More...

Private Attributes
float	m_density

float	m_diffusion

float	m_gain

float	m_gainHf

float	m_gainLf

float	m_decayTime

float	m_decayHfRatio

float	m_decayLfRatio

float	m_reflectionsGain

float	m_reflectionsDelay

AudioSpaceCoordinate	m_reflectionsPan

float	m_lateReverbGain

float	m_lateReverbDelay

AudioSpaceCoordinate	m_lateReverbPan

float	m_echoTime

float	m_echoDepth

float	m_modulationTime

float	m_modulationDepth

float	m_airAbsorptionGainHf

float	m_hfReference

float	m_lfReference

float	m_roomRolloffFactor

bool	m_decayHfLimit

Additional Inherited Members
Protected Attributes inherited from FIFE::SoundEffect
ALuint	m_effect
	Effect object id. More...

ALuint	m_slot
	Effect slot id;. More...

SoundEffectType	m_effectType
	Sound effect type. More...

bool	m_enabled
	Effect enabled. More...

SoundFilter *	m_filter
	Additional filter effect. More...

Detailed Description

The EAX Reverb is similar to Reverb but supports more options.

There exists already over 100 presets for it. See SoundEffectPreset.

Definition at line 922 of file soundeffect.h.

Constructor & Destructor Documentation

◆ EaxReverb()

FIFE::EaxReverb::EaxReverb ( )

Constructor.

Definition at line 933 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, FIFE::SoundEffect::m_effectType, and FIFE::SE_EFFECT_EAXREVERB.

Member Function Documentation

◆ getAirAbsorptionGainHf()

float FIFE::EaxReverb::getAirAbsorptionGainHf ( ) const

Return air absorption gain hf.

Definition at line 1179 of file soundeffect.cpp.

References m_airAbsorptionGainHf.

◆ getDecayHfRatio()

float FIFE::EaxReverb::getDecayHfRatio ( ) const

Return decay hf ratio.

Definition at line 1035 of file soundeffect.cpp.

References m_decayHfRatio.

◆ getDecayLfRatio()

float FIFE::EaxReverb::getDecayLfRatio ( ) const

Return decay lf ratio.

Definition at line 1046 of file soundeffect.cpp.

References m_decayLfRatio.

◆ getDecayTime()

float FIFE::EaxReverb::getDecayTime ( ) const

Return decay time.

Definition at line 1024 of file soundeffect.cpp.

References m_decayTime.

◆ getDensity()

float FIFE::EaxReverb::getDensity ( ) const

Return density value.

Definition at line 969 of file soundeffect.cpp.

References m_density.

◆ getDiffusion()

float FIFE::EaxReverb::getDiffusion ( ) const

Return diffusion value.

Definition at line 980 of file soundeffect.cpp.

References m_diffusion.

◆ getEchoDepth()

float FIFE::EaxReverb::getEchoDepth ( ) const

Return echo depth.

Definition at line 1146 of file soundeffect.cpp.

References m_echoDepth.

◆ getEchoTime()

float FIFE::EaxReverb::getEchoTime ( ) const

Return the echo time.

Definition at line 1135 of file soundeffect.cpp.

References m_echoTime.

◆ getGain()

float FIFE::EaxReverb::getGain ( ) const

Return gain value.

Definition at line 991 of file soundeffect.cpp.

References m_gain.

◆ getGainHf()

float FIFE::EaxReverb::getGainHf ( ) const

Return hf gain.

Definition at line 1002 of file soundeffect.cpp.

References m_gainHf.

◆ getGainLf()

float FIFE::EaxReverb::getGainLf ( ) const

Return lf gain.

Definition at line 1013 of file soundeffect.cpp.

References m_gainLf.

◆ getHfReference()

float FIFE::EaxReverb::getHfReference ( ) const

Return hf reference.

Definition at line 1190 of file soundeffect.cpp.

References m_hfReference.

◆ getLateReverbDelay()

float FIFE::EaxReverb::getLateReverbDelay ( ) const

Return late reverb delay.

Definition at line 1107 of file soundeffect.cpp.

References m_reflectionsDelay.

◆ getLateReverbGain()

float FIFE::EaxReverb::getLateReverbGain ( ) const

Return late reverb gain.

Definition at line 1096 of file soundeffect.cpp.

References m_lateReverbGain.

◆ getLateReverbPan()

AudioSpaceCoordinate FIFE::EaxReverb::getLateReverbPan ( ) const

Return late reverb pan.

Definition at line 1124 of file soundeffect.cpp.

References m_lateReverbPan.

◆ getLfReference()

float FIFE::EaxReverb::getLfReference ( ) const

Return lf reference.

Definition at line 1201 of file soundeffect.cpp.

References m_lfReference.

◆ getModulationDepth()

float FIFE::EaxReverb::getModulationDepth ( ) const

Return modulation depth.

Definition at line 1168 of file soundeffect.cpp.

References m_modulationDepth.

◆ getModulationTime()

float FIFE::EaxReverb::getModulationTime ( ) const

Return modulation time.

Definition at line 1157 of file soundeffect.cpp.

References m_modulationTime.

◆ getReflectionsDelay()

float FIFE::EaxReverb::getReflectionsDelay ( ) const

Return reflections delay.

Definition at line 1068 of file soundeffect.cpp.

References m_reflectionsDelay.

◆ getReflectionsGain()

float FIFE::EaxReverb::getReflectionsGain ( ) const

Return reflections gain.

Definition at line 1057 of file soundeffect.cpp.

References m_reflectionsGain.

◆ getReflectionsPan()

AudioSpaceCoordinate FIFE::EaxReverb::getReflectionsPan ( ) const

Return reflections pan.

Definition at line 1085 of file soundeffect.cpp.

References m_reflectionsPan.

◆ getRoomRolloffFactor()

float FIFE::EaxReverb::getRoomRolloffFactor ( ) const

Return room rolloff factor.

Definition at line 1212 of file soundeffect.cpp.

References m_roomRolloffFactor.

◆ isDecayHfLimit()

bool FIFE::EaxReverb::isDecayHfLimit ( ) const

Return if decay hf limit is enabled.

Definition at line 1221 of file soundeffect.cpp.

References m_decayHfLimit.

◆ loadPreset()

void FIFE::EaxReverb::loadPreset ( const EFXEAXREVERBPROPERTIES & prop )

Load presets into the EAX reverb.

See also: SoundEffectPreset

Definition at line 1225 of file soundeffect.cpp.

References setAirAbsorptionGainHf(), setDecayHfLimit(), setDecayHfRatio(), setDecayLfRatio(), setDecayTime(), setDensity(), setDiffusion(), setEchoDepth(), setEchoTime(), setGain(), setGainHf(), setGainLf(), setHfReference(), setLateReverbDelay(), setLateReverbGain(), setLfReference(), setModulationDepth(), setModulationTime(), setReflectionsDelay(), setReflectionsGain(), and setRoomRolloffFactor().

Referenced by FIFE::SoundEffectManager::createSoundEffectPreset().

Here is the caller graph for this function:

◆ setAirAbsorptionGainHf()

void FIFE::EaxReverb::setAirAbsorptionGainHf ( float value )

Sets air absorption gain hf, the distance-dependent attenuation at high frequencies caused by the propagation medium.

Parameters

value Range 0.892 to 1.0, default 0.994.

Definition at line 1172 of file soundeffect.cpp.

References FIFE::alEffectf, m_airAbsorptionGainHf, and FIFE::SoundEffect::m_effect.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setDecayHfLimit()

void FIFE::EaxReverb::setDecayHfLimit ( bool value )

If decay hf limit is enabled, the high-frequency decay time automatically stays below a limit value that�s derived from the setting of Air Absorption HF.

Parameters

value True or false. Default is true.

Definition at line 1216 of file soundeffect.cpp.

References FIFE::alEffecti, m_decayHfLimit, and FIFE::SoundEffect::m_effect.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setDecayHfRatio()

void FIFE::EaxReverb::setDecayHfRatio ( float value )

Sets decay hf ratio, the spectral quality of the Decay Time parameter.

It is the ratio of high-frequency decay time relative to the time set by Decay Time.

Parameters

value Range 0.1 to 2.0, default 0.83.

Definition at line 1028 of file soundeffect.cpp.

References FIFE::alEffectf, m_decayHfRatio, and FIFE::SoundEffect::m_effect.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setDecayLfRatio()

void FIFE::EaxReverb::setDecayLfRatio ( float value )

Sets decay lf ratio, the spectral quality of the Decay Time parameter.

It is the ratio of low-frequency decay time relative to the time set by Decay Time.

Parameters

value Range 0.1 to 2.0, default 1.0.

Definition at line 1039 of file soundeffect.cpp.

References FIFE::alEffectf, m_decayLfRatio, and FIFE::SoundEffect::m_effect.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setDecayTime()

void FIFE::EaxReverb::setDecayTime ( float value )

The reverberation decay time.

Parameters

value Range 0.0 to 20.0, default 1.49 seconds.

Definition at line 1017 of file soundeffect.cpp.

References FIFE::alEffectf, m_decayTime, and FIFE::SoundEffect::m_effect.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setDensity()

void FIFE::EaxReverb::setDensity ( float value )

Sets density, controls the coloration of the late reverb.

Lowering the value adds more coloration.

Parameters

value Range 0.0 to 1.0, default 1.0.

Definition at line 962 of file soundeffect.cpp.

References FIFE::alEffectf, m_density, and FIFE::SoundEffect::m_effect.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setDiffusion()

void FIFE::EaxReverb::setDiffusion ( float value )

Sets diffusion, controls the echo density in the reverberation decay.

Parameters

value Range 0.0 to 1.0, default 1.0.

Definition at line 973 of file soundeffect.cpp.

References FIFE::alEffectf, m_diffusion, and FIFE::SoundEffect::m_effect.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setEchoDepth()

void FIFE::EaxReverb::setEchoDepth ( float value )

Sets echo depth, the cyclic echo in the reverberation decay, which will be noticeable with transient or percussive sounds.

Parameters

value Range 0.0 to 1.0, defult 0.0.

Definition at line 1139 of file soundeffect.cpp.

References FIFE::alEffectf, m_echoDepth, and FIFE::SoundEffect::m_effect.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setEchoTime()

void FIFE::EaxReverb::setEchoTime ( float value )

Sets echo time, the rate at which the cyclic echo repeats itself along the reverberation decay.

Parameters

value Range 0.075 to 0.25, default 0.25.

Definition at line 1128 of file soundeffect.cpp.

References FIFE::alEffectf, m_echoTime, and FIFE::SoundEffect::m_effect.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setGain()

void FIFE::EaxReverb::setGain ( float value )

Sets gain, is the master volume control for the reflected sound.

Parameters

value Range 0.0 to 1.0, default 0.32.

Definition at line 984 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_gain.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setGainHf()

void FIFE::EaxReverb::setGainHf ( float value )

Sets gain hf, tweaks reflected sound by attenuating it at high frequencies.

Parameters

value Range 0.0 to 1.0, default 0.89.

Definition at line 995 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_gainHf.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setGainLf()

void FIFE::EaxReverb::setGainLf ( float value )

Sets gain lf, tweaks reflected sound by attenuating it at low frequencies.

Parameters

value Range 0.0 to 1.0, default 0.0.

Definition at line 1006 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_gainLf.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setHfReference()

void FIFE::EaxReverb::setHfReference ( float value )

Sets hf reference, determine respectively the frequencies at which the high-frequency effects created by EAX Reverb properties are measured, for example Decay HF Ratio.

Parameters

value Range 1000.0 to 20000.0, default 5000.0 Hz.

Definition at line 1183 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_hfReference.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setLateReverbDelay()

void FIFE::EaxReverb::setLateReverbDelay ( float value )

Sets late reverb delay, the begin time of the late reverberation relative to the time of the initial reflection.

Parameters

value Range 0.0 to 0.1, default 0.011 seconds.

Definition at line 1100 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_reflectionsDelay.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setLateReverbGain()

void FIFE::EaxReverb::setLateReverbGain ( float value )

Sets late reverb gain, the overall amount of later reverberation relative to gain.

Parameters

value Range 0.0 to 10.0, default 1.26.

Definition at line 1089 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_lateReverbGain.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setLateReverbPan()

void FIFE::EaxReverb::setLateReverbPan ( const AudioSpaceCoordinate & coordinate )

Sets late reverb pan, the 3D vector that controls the spatial distribution of the late reverb.

The direction of this vector controls the global direction of the reverb, while its magnitude controls how focused the reverb are towards this direction.

Parameters

coordinate A 3D vector with values between 0.0 and 1.0.

Definition at line 1111 of file soundeffect.cpp.

References FIFE::alEffectfv, FIFE::SoundEffect::m_effect, m_lateReverbPan, FIFE::PointType3D< T >::x, FIFE::PointType3D< T >::y, and FIFE::PointType3D< T >::z.

◆ setLfReference()

void FIFE::EaxReverb::setLfReference ( float value )

Sets lf reference, determine respectively the frequencies at which the low-frequency effects created by EAX Reverb properties are measured, for example Decay LF Ratio.

Note: Should be less than 1/10 of HF Reference.

Parameters

value Range 20.0 to 1000.0 , default 250.0 Hz.

Definition at line 1194 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_lfReference.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setModulationDepth()

void FIFE::EaxReverb::setModulationDepth ( float value )

Sets modulation depth, the amount of pitch change.

Parameters

value Range 0.0 to 1.0, default 0.0.

Definition at line 1161 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_modulationDepth.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setModulationTime()

void FIFE::EaxReverb::setModulationTime ( float value )

Sets modulation time, the speed of the vibrato (rate of periodic changes in pitch).

Parameters

value Range 0.004 to 4.0, default 0.25 seconds.

Definition at line 1150 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_modulationTime.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setReflectionsDelay()

void FIFE::EaxReverb::setReflectionsDelay ( float value )

Sets the reflections delay, the amount of delay between the arrival time of the direct path from the source to the first reflection from the source.

Parameters

value Range 0.0 to 0.3, default 0.007.

Definition at line 1061 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_reflectionsDelay.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setReflectionsGain()

void FIFE::EaxReverb::setReflectionsGain ( float value )

Sets reflections gain, the overall amount of initial reflections relative to the Gain property.

Parameters

value Range 0.0 to 3.16, default 0.05.

Definition at line 1050 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_reflectionsGain.

Referenced by loadPreset().

Here is the caller graph for this function:

◆ setReflectionsPan()

void FIFE::EaxReverb::setReflectionsPan ( const AudioSpaceCoordinate & coordinate )

Sets reflections pan, the 3D vector that controls the spatial distribution of the cluster of early reflections.

The direction of this vector controls the global direction of the reflections, while its magnitude controls how focused the reflections are towards this direction.

Parameters

coordinate A 3D vector with values between 0.0 and 1.0.

Definition at line 1072 of file soundeffect.cpp.

References FIFE::alEffectfv, FIFE::SoundEffect::m_effect, m_reflectionsPan, FIFE::PointType3D< T >::x, FIFE::PointType3D< T >::y, and FIFE::PointType3D< T >::z.

◆ setRoomRolloffFactor()

void FIFE::EaxReverb::setRoomRolloffFactor ( float value )

Sets room rolloff factor, similar to rolloff factor it attenuate the reflected sound (containing both reflections and reverberation) according to source-listener distance.

Parameters

value Range 0.0 to 10.0, default 0.0.

Definition at line 1205 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_roomRolloffFactor.

Referenced by loadPreset().

Here is the caller graph for this function:

Member Data Documentation

◆ m_airAbsorptionGainHf

float FIFE::EaxReverb::m_airAbsorptionGainHf

private

Definition at line 1179 of file soundeffect.h.

Referenced by getAirAbsorptionGainHf(), and setAirAbsorptionGainHf().

◆ m_decayHfLimit

bool FIFE::EaxReverb::m_decayHfLimit

private

Definition at line 1183 of file soundeffect.h.

Referenced by isDecayHfLimit(), and setDecayHfLimit().

◆ m_decayHfRatio

float FIFE::EaxReverb::m_decayHfRatio

private

Definition at line 1167 of file soundeffect.h.

Referenced by getDecayHfRatio(), and setDecayHfRatio().

◆ m_decayLfRatio

float FIFE::EaxReverb::m_decayLfRatio

private

Definition at line 1168 of file soundeffect.h.

Referenced by getDecayLfRatio(), and setDecayLfRatio().

◆ m_decayTime

float FIFE::EaxReverb::m_decayTime

private

Definition at line 1166 of file soundeffect.h.

Referenced by getDecayTime(), and setDecayTime().

◆ m_density

float FIFE::EaxReverb::m_density

private

Definition at line 1161 of file soundeffect.h.

Referenced by getDensity(), and setDensity().

◆ m_diffusion

float FIFE::EaxReverb::m_diffusion

private

Definition at line 1162 of file soundeffect.h.

Referenced by getDiffusion(), and setDiffusion().

◆ m_echoDepth

float FIFE::EaxReverb::m_echoDepth

private

Definition at line 1176 of file soundeffect.h.

Referenced by getEchoDepth(), and setEchoDepth().

◆ m_echoTime

float FIFE::EaxReverb::m_echoTime

private

Definition at line 1175 of file soundeffect.h.

Referenced by getEchoTime(), and setEchoTime().

◆ m_gain

float FIFE::EaxReverb::m_gain

private

Definition at line 1163 of file soundeffect.h.

Referenced by getGain(), and setGain().

◆ m_gainHf

float FIFE::EaxReverb::m_gainHf

private

Definition at line 1164 of file soundeffect.h.

Referenced by getGainHf(), and setGainHf().

◆ m_gainLf

float FIFE::EaxReverb::m_gainLf

private

Definition at line 1165 of file soundeffect.h.

Referenced by getGainLf(), and setGainLf().

◆ m_hfReference

float FIFE::EaxReverb::m_hfReference

private

Definition at line 1180 of file soundeffect.h.

Referenced by getHfReference(), and setHfReference().

◆ m_lateReverbDelay

float FIFE::EaxReverb::m_lateReverbDelay

private

Definition at line 1173 of file soundeffect.h.

◆ m_lateReverbGain

float FIFE::EaxReverb::m_lateReverbGain

private

Definition at line 1172 of file soundeffect.h.

Referenced by getLateReverbGain(), and setLateReverbGain().

◆ m_lateReverbPan

AudioSpaceCoordinate FIFE::EaxReverb::m_lateReverbPan

private

Definition at line 1174 of file soundeffect.h.

Referenced by getLateReverbPan(), and setLateReverbPan().

◆ m_lfReference

float FIFE::EaxReverb::m_lfReference

private

Definition at line 1181 of file soundeffect.h.

Referenced by getLfReference(), and setLfReference().

◆ m_modulationDepth

float FIFE::EaxReverb::m_modulationDepth

private

Definition at line 1178 of file soundeffect.h.

Referenced by getModulationDepth(), and setModulationDepth().

◆ m_modulationTime

float FIFE::EaxReverb::m_modulationTime

private

Definition at line 1177 of file soundeffect.h.

Referenced by getModulationTime(), and setModulationTime().

◆ m_reflectionsDelay

float FIFE::EaxReverb::m_reflectionsDelay

private

Definition at line 1170 of file soundeffect.h.

Referenced by getLateReverbDelay(), getReflectionsDelay(), setLateReverbDelay(), and setReflectionsDelay().

◆ m_reflectionsGain

float FIFE::EaxReverb::m_reflectionsGain

private

Definition at line 1169 of file soundeffect.h.

Referenced by getReflectionsGain(), and setReflectionsGain().

◆ m_reflectionsPan

AudioSpaceCoordinate FIFE::EaxReverb::m_reflectionsPan

private

Definition at line 1171 of file soundeffect.h.

Referenced by getReflectionsPan(), and setReflectionsPan().

◆ m_roomRolloffFactor

float FIFE::EaxReverb::m_roomRolloffFactor

private

Definition at line 1182 of file soundeffect.h.

Referenced by getRoomRolloffFactor(), and setRoomRolloffFactor().

The documentation for this class was generated from the following files:

engine/core/audio/effects/soundeffect.h
engine/core/audio/effects/soundeffect.cpp

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EaxReverb()

Member Function Documentation

◆ getAirAbsorptionGainHf()

◆ getDecayHfRatio()

◆ getDecayLfRatio()

◆ getDecayTime()

◆ getDensity()

◆ getDiffusion()

◆ getEchoDepth()

◆ getEchoTime()

◆ getGain()

◆ getGainHf()

◆ getGainLf()

◆ getHfReference()

◆ getLateReverbDelay()

◆ getLateReverbGain()

◆ getLateReverbPan()

◆ getLfReference()

◆ getModulationDepth()

◆ getModulationTime()

◆ getReflectionsDelay()

◆ getReflectionsGain()

◆ getReflectionsPan()

◆ getRoomRolloffFactor()

◆ isDecayHfLimit()

◆ loadPreset()

◆ setAirAbsorptionGainHf()

◆ setDecayHfLimit()

◆ setDecayHfRatio()

◆ setDecayLfRatio()

◆ setDecayTime()

◆ setDensity()

◆ setDiffusion()

◆ setEchoDepth()

◆ setEchoTime()

◆ setGain()

◆ setGainHf()

◆ setGainLf()

◆ setHfReference()

◆ setLateReverbDelay()

◆ setLateReverbGain()

◆ setLateReverbPan()

◆ setLfReference()

◆ setModulationDepth()

◆ setModulationTime()

◆ setReflectionsDelay()

◆ setReflectionsGain()

◆ setReflectionsPan()

◆ setRoomRolloffFactor()

Member Data Documentation

◆ m_airAbsorptionGainHf

◆ m_decayHfLimit

◆ m_decayHfRatio

◆ m_decayLfRatio

◆ m_decayTime

◆ m_density

◆ m_diffusion

◆ m_echoDepth

◆ m_echoTime

◆ m_gain

◆ m_gainHf

◆ m_gainLf

◆ m_hfReference

◆ m_lateReverbDelay

◆ m_lateReverbGain

◆ m_lateReverbPan

◆ m_lfReference

◆ m_modulationDepth

◆ m_modulationTime

◆ m_reflectionsDelay

◆ m_reflectionsGain

◆ m_reflectionsPan

◆ m_roomRolloffFactor
