The echo effect generates discrete, delayed instances of the input signal. More...
#include <soundeffect.h>

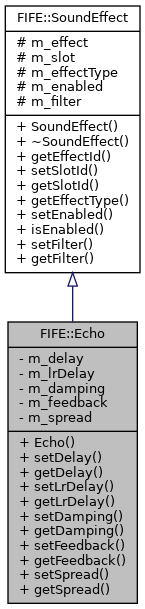

Inheritance diagram for FIFE::Echo:

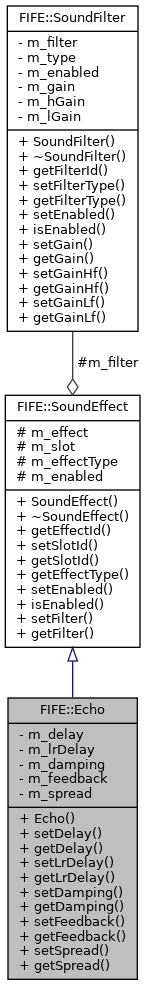

Collaboration diagram for FIFE::Echo:
Public Member Functions | |
| Echo () | |
| Constructor. More... | |
| void | setDelay (float value) |
| Sets the delay between the original sound and the first ‘tap’, or echo instance. More... | |
| float | getDelay () const |
| Return delay. More... | |
| void | setLrDelay (float value) |
| Sets the delay between the first ‘tap’ and the second ‘tap’. More... | |
| float | getLrDelay () const |
| Return LR delay. More... | |
| void | setDamping (float value) |
| Sets damping, the amount of high frequency damping applied to each echo. More... | |
| float | getDamping () const |
| Return damping. More... | |
| void | setFeedback (float value) |
| Sets feedback, the amount of feedback the output signal fed back into the input. More... | |
| float | getFeedback () const |
| Return feedback. More... | |
| void | setSpread (float value) |
| Sets spread, that defines how hard panned the individual echoes are. More... | |
| float | getSpread () const |
| Return spread. More... | |
| Public Member Functions inherited from FIFE::SoundEffect | |
| SoundEffect () | |
| Constructor. More... | |
| virtual | ~SoundEffect () |
| Destructor. More... | |
| ALuint | getEffectId () const |
| Return the OpenAL effect handle. More... | |
| void | setSlotId (ALuint slot) |
| Sets the OpenAL auxiliary slot handle. More... | |
| ALuint | getSlotId () |
| Return the OpenAL auxiliary slot handle. More... | |
| SoundEffectType | getEffectType () const |
| Return sound effect type. More... | |
| void | setEnabled (bool enabled) |
| Enables or disables the effect. More... | |
| bool | isEnabled () const |
| Return true if the effect is enabled, false otherwise. More... | |
| void | setFilter (SoundFilter *filter) |
| Sets the additional sound filter. More... | |
| SoundFilter * | getFilter () |
| Return sound filter or NULL. More... | |
Private Attributes | |
| float | m_delay |
| float | m_lrDelay |
| float | m_damping |
| float | m_feedback |
| float | m_spread |
Additional Inherited Members | |
| Protected Attributes inherited from FIFE::SoundEffect | |
| ALuint | m_effect |
| Effect object id. More... | |
| ALuint | m_slot |
| Effect slot id;. More... | |
| SoundEffectType | m_effectType |
| Sound effect type. More... | |
| bool | m_enabled |
| Effect enabled. More... | |
| SoundFilter * | m_filter |
| Additional filter effect. More... | |
Detailed Description
The echo effect generates discrete, delayed instances of the input signal.
The amount of delay and feedback is controllable.
Definition at line 395 of file soundeffect.h.
Constructor & Destructor Documentation
◆ Echo()
| FIFE::Echo::Echo | ( | ) |
Constructor.
Definition at line 399 of file soundeffect.cpp.
References FIFE::alEffecti, FIFE::SoundEffect::m_effect, FIFE::SoundEffect::m_effectType, and FIFE::SE_EFFECT_ECHO.
Member Function Documentation
◆ getDamping()
| float FIFE::Echo::getDamping | ( | ) | const |
◆ getDelay()
| float FIFE::Echo::getDelay | ( | ) | const |
◆ getFeedback()
| float FIFE::Echo::getFeedback | ( | ) | const |
◆ getLrDelay()
| float FIFE::Echo::getLrDelay | ( | ) | const |
◆ getSpread()
| float FIFE::Echo::getSpread | ( | ) | const |
◆ setDamping()
| void FIFE::Echo::setDamping | ( | float | value | ) |
Sets damping, the amount of high frequency damping applied to each echo.
- Parameters
-
value Range 0.0 to 0.99, default 0.5.
Definition at line 431 of file soundeffect.cpp.
References FIFE::alEffectf, m_damping, and FIFE::SoundEffect::m_effect.
◆ setDelay()
| void FIFE::Echo::setDelay | ( | float | value | ) |
Sets the delay between the original sound and the first ‘tap’, or echo instance.
- Parameters
-
value Range 0.0 to 0.207, default 0.1.
Definition at line 409 of file soundeffect.cpp.
References FIFE::alEffectf, m_delay, and FIFE::SoundEffect::m_effect.
◆ setFeedback()
| void FIFE::Echo::setFeedback | ( | float | value | ) |
Sets feedback, the amount of feedback the output signal fed back into the input.
- Parameters
-
value Range 0.0 to 1.0, default 0.5.
Definition at line 442 of file soundeffect.cpp.
References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_feedback.
◆ setLrDelay()
| void FIFE::Echo::setLrDelay | ( | float | value | ) |
Sets the delay between the first ‘tap’ and the second ‘tap’.
- Parameters
-
value Range 0.0 to 0.404, default 0.1.
Definition at line 420 of file soundeffect.cpp.
References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_lrDelay.
◆ setSpread()
| void FIFE::Echo::setSpread | ( | float | value | ) |
Sets spread, that defines how hard panned the individual echoes are.
- Parameters
-
value Range -1.0 to 1.0, default -1.0.
Definition at line 453 of file soundeffect.cpp.
References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_spread.
Member Data Documentation
◆ m_damping
|
private |
Definition at line 449 of file soundeffect.h.
Referenced by getDamping(), and setDamping().
◆ m_delay
|
private |
Definition at line 447 of file soundeffect.h.
Referenced by getDelay(), and setDelay().
◆ m_feedback
|
private |
Definition at line 450 of file soundeffect.h.
Referenced by getFeedback(), and setFeedback().
◆ m_lrDelay
|
private |
Definition at line 448 of file soundeffect.h.
Referenced by getLrDelay(), and setLrDelay().
◆ m_spread
|
private |
Definition at line 451 of file soundeffect.h.
Referenced by getSpread(), and setSpread().
The documentation for this class was generated from the following files:
- engine/core/audio/effects/soundeffect.h
- engine/core/audio/effects/soundeffect.cpp
