The Equalizer providing tonal control over four different adjustable frequency ranges. More...

#include <soundeffect.h>

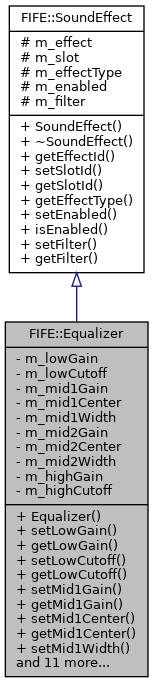

Inheritance diagram for FIFE::Equalizer:

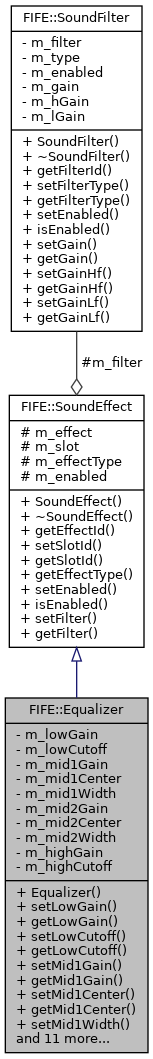

Collaboration diagram for FIFE::Equalizer:

Public Member Functions
	Equalizer ()
	Constructor. More...

void	setLowGain (float value)
	Sets low gain, the amount of cut or boost on the low frequency range. More...

float	getLowGain () const
	Return low gain. More...

void	setLowCutoff (float value)
	Sets low cutoff, the low frequency below which signal will be cut off. More...

float	getLowCutoff () const
	Return low cutoff. More...

void	setMid1Gain (float value)
	Sets mid1 gain, cut / boost signal on the �mid1� range. More...

float	getMid1Gain () const
	Return mid1 gain. More...

void	setMid1Center (float value)
	Sets mid1 center, the center frequency for the �mid1� range. More...

float	getMid1Center () const
	Return mid1 center frequency. More...

void	setMid1Width (float value)
	Sets mid1 width, the width of the �mid1� range. More...

float	getMid1Width () const
	Return mid1 width. More...

void	setMid2Gain (float value)
	Sets mid2 gain, cut / boost signal on the �mid2� range. More...

float	getMid2Gain () const
	Return mid1 gain. More...

void	setMid2Center (float value)
	Sets mid2 center, the center frequency for the �mid2� range. More...

float	getMid2Center () const
	Return mid2 center frequency. More...

void	setMid2Width (float value)
	Sets mid2 width, the width of the �mid2� range. More...

float	getMid2Width () const
	Return mid2 width. More...

void	setHighGain (float value)
	Sets high gain, cut / boost signal on the �high� range. More...

float	getHighGain () const
	Return high gain. More...

void	setHighCutoff (float value)
	Sets high cutoff, the high frequency above which signal will be cut off. More...

float	getHighCutoff () const
	Return high cutoff frequency. More...

Public Member Functions inherited from FIFE::SoundEffect
	SoundEffect ()
	Constructor. More...

virtual	~SoundEffect ()
	Destructor. More...

ALuint	getEffectId () const
	Return the OpenAL effect handle. More...

void	setSlotId (ALuint slot)
	Sets the OpenAL auxiliary slot handle. More...

ALuint	getSlotId ()
	Return the OpenAL auxiliary slot handle. More...

SoundEffectType	getEffectType () const
	Return sound effect type. More...

void	setEnabled (bool enabled)
	Enables or disables the effect. More...

bool	isEnabled () const
	Return true if the effect is enabled, false otherwise. More...

void	setFilter (SoundFilter *filter)
	Sets the additional sound filter. More...

SoundFilter *	getFilter ()
	Return sound filter or NULL. More...

Private Attributes
float	m_lowGain

float	m_lowCutoff

float	m_mid1Gain

float	m_mid1Center

float	m_mid1Width

float	m_mid2Gain

float	m_mid2Center

float	m_mid2Width

float	m_highGain

float	m_highCutoff

Additional Inherited Members
Protected Attributes inherited from FIFE::SoundEffect
ALuint	m_effect
	Effect object id. More...

ALuint	m_slot
	Effect slot id;. More...

SoundEffectType	m_effectType
	Sound effect type. More...

bool	m_enabled
	Effect enabled. More...

SoundFilter *	m_filter
	Additional filter effect. More...

Detailed Description

The Equalizer providing tonal control over four different adjustable frequency ranges.

Low, Mid1, Mid2 and High.

Definition at line 810 of file soundeffect.h.

Constructor & Destructor Documentation

◆ Equalizer()

FIFE::Equalizer::Equalizer ( )

Constructor.

Definition at line 807 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, FIFE::SoundEffect::m_effectType, and FIFE::SE_EFFECT_EQUALIZER.

Member Function Documentation

◆ getHighCutoff()

float FIFE::Equalizer::getHighCutoff ( ) const

Return high cutoff frequency.

Definition at line 928 of file soundeffect.cpp.

References m_highCutoff.

◆ getHighGain()

float FIFE::Equalizer::getHighGain ( ) const

Return high gain.

Definition at line 917 of file soundeffect.cpp.

References m_highGain.

◆ getLowCutoff()

float FIFE::Equalizer::getLowCutoff ( ) const

Return low cutoff.

Definition at line 840 of file soundeffect.cpp.

References m_lowCutoff.

◆ getLowGain()

float FIFE::Equalizer::getLowGain ( ) const

Return low gain.

Definition at line 829 of file soundeffect.cpp.

References m_lowGain.

◆ getMid1Center()

float FIFE::Equalizer::getMid1Center ( ) const

Return mid1 center frequency.

Definition at line 862 of file soundeffect.cpp.

References m_mid1Center.

◆ getMid1Gain()

float FIFE::Equalizer::getMid1Gain ( ) const

Return mid1 gain.

Definition at line 851 of file soundeffect.cpp.

References m_mid1Gain.

◆ getMid1Width()

float FIFE::Equalizer::getMid1Width ( ) const

Return mid1 width.

Definition at line 873 of file soundeffect.cpp.

References m_mid1Width.

◆ getMid2Center()

float FIFE::Equalizer::getMid2Center ( ) const

Return mid2 center frequency.

Definition at line 895 of file soundeffect.cpp.

References m_mid2Center.

◆ getMid2Gain()

float FIFE::Equalizer::getMid2Gain ( ) const

Return mid1 gain.

Definition at line 884 of file soundeffect.cpp.

References m_mid2Gain.

◆ getMid2Width()

float FIFE::Equalizer::getMid2Width ( ) const

Return mid2 width.

Definition at line 906 of file soundeffect.cpp.

References m_mid2Width.

◆ setHighCutoff()

void FIFE::Equalizer::setHighCutoff ( float value )

Sets high cutoff, the high frequency above which signal will be cut off.

Parameters

value Range 4000.0 to 16000.0, default 6000.0.

Definition at line 921 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_highCutoff.

◆ setHighGain()

void FIFE::Equalizer::setHighGain ( float value )

Sets high gain, cut / boost signal on the �high� range.

Parameters

value Range 0.126 to 7.943, default 1.0.

Definition at line 910 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_highGain.

◆ setLowCutoff()

void FIFE::Equalizer::setLowCutoff ( float value )

Sets low cutoff, the low frequency below which signal will be cut off.

Parameters

value Range 50.0 to 800.0, default 200.0.

Definition at line 833 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_lowCutoff.

◆ setLowGain()

void FIFE::Equalizer::setLowGain ( float value )

Sets low gain, the amount of cut or boost on the low frequency range.

Parameters

value Range 0.126 to 7.943, default 1.0.

Definition at line 822 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_lowGain.

◆ setMid1Center()

void FIFE::Equalizer::setMid1Center ( float value )

Sets mid1 center, the center frequency for the �mid1� range.

Parameters

value Range 200.0 to 3000.0, default 500.0.

Definition at line 855 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_mid1Center.

◆ setMid1Gain()

void FIFE::Equalizer::setMid1Gain ( float value )

Sets mid1 gain, cut / boost signal on the �mid1� range.

Parameters

value Range 0.126 to 7.943, default 1.0.

Definition at line 844 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_mid1Gain.

◆ setMid1Width()

void FIFE::Equalizer::setMid1Width ( float value )

Sets mid1 width, the width of the �mid1� range.

Parameters

value Range 0.01 to 1.0, default 1.0.

Definition at line 866 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_mid1Width.

◆ setMid2Center()

void FIFE::Equalizer::setMid2Center ( float value )

Sets mid2 center, the center frequency for the �mid2� range.

Parameters

value Range 1000.0 to 8000.0, default 3000.0.

Definition at line 888 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_mid2Center.

◆ setMid2Gain()

void FIFE::Equalizer::setMid2Gain ( float value )

Sets mid2 gain, cut / boost signal on the �mid2� range.

Parameters

value Range 0.126 to 7.943, default 1.0.

Definition at line 877 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_mid2Gain.

◆ setMid2Width()

void FIFE::Equalizer::setMid2Width ( float value )

Sets mid2 width, the width of the �mid2� range.

Parameters

value Range 0.01 to 1.0, default 1.0.

Definition at line 899 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_mid2Width.

Member Data Documentation

◆ m_highCutoff

float FIFE::Equalizer::m_highCutoff

private

Definition at line 916 of file soundeffect.h.

Referenced by getHighCutoff(), and setHighCutoff().

◆ m_highGain

float FIFE::Equalizer::m_highGain

private

Definition at line 915 of file soundeffect.h.

Referenced by getHighGain(), and setHighGain().

◆ m_lowCutoff

float FIFE::Equalizer::m_lowCutoff

private

Definition at line 908 of file soundeffect.h.

Referenced by getLowCutoff(), and setLowCutoff().

◆ m_lowGain

float FIFE::Equalizer::m_lowGain

private

Definition at line 907 of file soundeffect.h.

Referenced by getLowGain(), and setLowGain().

◆ m_mid1Center

float FIFE::Equalizer::m_mid1Center

private

Definition at line 910 of file soundeffect.h.

Referenced by getMid1Center(), and setMid1Center().

◆ m_mid1Gain

float FIFE::Equalizer::m_mid1Gain

private

Definition at line 909 of file soundeffect.h.

Referenced by getMid1Gain(), and setMid1Gain().

◆ m_mid1Width

float FIFE::Equalizer::m_mid1Width

private

Definition at line 911 of file soundeffect.h.

Referenced by getMid1Width(), and setMid1Width().

◆ m_mid2Center

float FIFE::Equalizer::m_mid2Center

private

Definition at line 913 of file soundeffect.h.

Referenced by getMid2Center(), and setMid2Center().

◆ m_mid2Gain

float FIFE::Equalizer::m_mid2Gain

private

Definition at line 912 of file soundeffect.h.

Referenced by getMid2Gain(), and setMid2Gain().

◆ m_mid2Width

float FIFE::Equalizer::m_mid2Width

private

Definition at line 914 of file soundeffect.h.

Referenced by getMid2Width(), and setMid2Width().

The documentation for this class was generated from the following files:

engine/core/audio/effects/soundeffect.h
engine/core/audio/effects/soundeffect.cpp
