The flanger effect creates a �tearing� or �whooshing� sound. More...

#include <soundeffect.h>

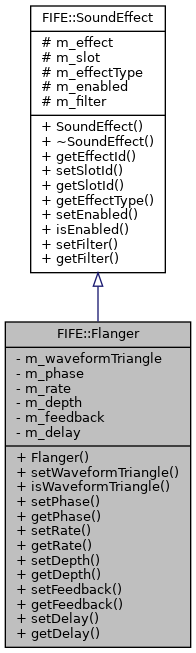

Inheritance diagram for FIFE::Flanger:

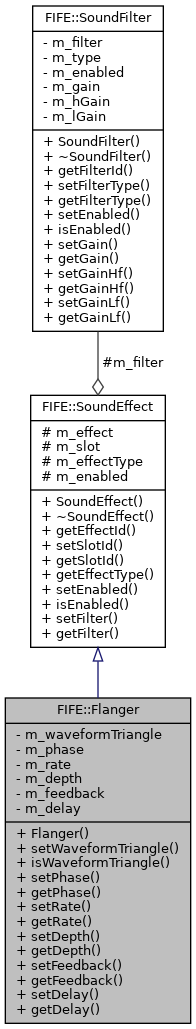

Collaboration diagram for FIFE::Flanger:

Public Member Functions
	Flanger ()
	Constructor. More...

void	setWaveformTriangle (bool value)
	Sets waveform to triangle or sinus. More...

bool	isWaveformTriangle () const
	Return if waveform is triangle or sinus. More...

void	setPhase (int32_t value)
	Sets phase, difference between the left and right LFO�s. More...

int32_t	getPhase () const
	Return phase. More...

void	setRate (float value)
	Sets rate, the number of times per second the LFO controlling the amount of delay repeats. More...

float	getRate () const
	Return rate. More...

void	setDepth (float value)
	Sets depth, the ratio by which the delay time is modulated by the LFO. More...

float	getDepth () const
	Return depth. More...

void	setFeedback (float value)
	Sets feedback, the amount of the output signal level fed back into the effect�s input. More...

float	getFeedback () const
	Return feedback. More...

void	setDelay (float value)
	Sets delay, the average amount of time the sample is delayed before it is played back. More...

float	getDelay () const
	Return delay. More...

Public Member Functions inherited from FIFE::SoundEffect
	SoundEffect ()
	Constructor. More...

virtual	~SoundEffect ()
	Destructor. More...

ALuint	getEffectId () const
	Return the OpenAL effect handle. More...

void	setSlotId (ALuint slot)
	Sets the OpenAL auxiliary slot handle. More...

ALuint	getSlotId ()
	Return the OpenAL auxiliary slot handle. More...

SoundEffectType	getEffectType () const
	Return sound effect type. More...

void	setEnabled (bool enabled)
	Enables or disables the effect. More...

bool	isEnabled () const
	Return true if the effect is enabled, false otherwise. More...

void	setFilter (SoundFilter *filter)
	Sets the additional sound filter. More...

SoundFilter *	getFilter ()
	Return sound filter or NULL. More...

Private Attributes
bool	m_waveformTriangle

int32_t	m_phase

float	m_rate

float	m_depth

float	m_feedback

float	m_delay

Additional Inherited Members
Protected Attributes inherited from FIFE::SoundEffect
ALuint	m_effect
	Effect object id. More...

ALuint	m_slot
	Effect slot id;. More...

SoundEffectType	m_effectType
	Sound effect type. More...

bool	m_enabled
	Effect enabled. More...

SoundFilter *	m_filter
	Additional filter effect. More...

Detailed Description

The flanger effect creates a �tearing� or �whooshing� sound.

Definition at line 456 of file soundeffect.h.

Constructor & Destructor Documentation

◆ Flanger()

FIFE::Flanger::Flanger ( )

Constructor.

Definition at line 465 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, FIFE::SoundEffect::m_effectType, and FIFE::SE_EFFECT_FLANGER.

Member Function Documentation

◆ getDelay()

float FIFE::Flanger::getDelay ( ) const

Return delay.

Definition at line 540 of file soundeffect.cpp.

References m_delay.

◆ getDepth()

float FIFE::Flanger::getDepth ( ) const

Return depth.

Definition at line 518 of file soundeffect.cpp.

References m_depth.

◆ getFeedback()

float FIFE::Flanger::getFeedback ( ) const

Return feedback.

Definition at line 529 of file soundeffect.cpp.

References m_feedback.

◆ getPhase()

int32_t FIFE::Flanger::getPhase ( ) const

Return phase.

Definition at line 496 of file soundeffect.cpp.

References m_phase.

◆ getRate()

float FIFE::Flanger::getRate ( ) const

Return rate.

Definition at line 507 of file soundeffect.cpp.

References m_rate.

◆ isWaveformTriangle()

bool FIFE::Flanger::isWaveformTriangle ( ) const

Return if waveform is triangle or sinus.

Definition at line 485 of file soundeffect.cpp.

References m_waveformTriangle.

◆ setDelay()

void FIFE::Flanger::setDelay ( float value )

Sets delay, the average amount of time the sample is delayed before it is played back.

Parameters

value Range 0.0 to 0.004, default 0.002.

Definition at line 533 of file soundeffect.cpp.

References FIFE::alEffectf, m_delay, and FIFE::SoundEffect::m_effect.

◆ setDepth()

void FIFE::Flanger::setDepth ( float value )

Sets depth, the ratio by which the delay time is modulated by the LFO.

Parameters

value Range 0.0 to 1.0, default 1.0.

Definition at line 511 of file soundeffect.cpp.

References FIFE::alEffectf, m_depth, and FIFE::SoundEffect::m_effect.

◆ setFeedback()

void FIFE::Flanger::setFeedback ( float value )

Sets feedback, the amount of the output signal level fed back into the effect�s input.

Parameters

value Range -1.0 to 1.0, default -0.5.

Definition at line 522 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_feedback.

◆ setPhase()

void FIFE::Flanger::setPhase ( int32_t value )

Sets phase, difference between the left and right LFO�s.

At zero degrees the two LFOs are synchronized.

Parameters

value Range -180 to 180, default 0.

Definition at line 489 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_phase.

◆ setRate()

void FIFE::Flanger::setRate ( float value )

Sets rate, the number of times per second the LFO controlling the amount of delay repeats.

Parameters

value Range 0.0 to 10.0, default 0.27.

Definition at line 500 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_rate.

◆ setWaveformTriangle()

void FIFE::Flanger::setWaveformTriangle ( bool value )

Sets waveform to triangle or sinus.

Controls the amount of the delay of the sampled signal.

Parameters

value If true triangle is used otherwise sinus, default is true.

Definition at line 476 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_waveformTriangle.

Member Data Documentation

◆ m_delay

float FIFE::Flanger::m_delay

private

Definition at line 527 of file soundeffect.h.

Referenced by getDelay(), and setDelay().

◆ m_depth

float FIFE::Flanger::m_depth

private

Definition at line 525 of file soundeffect.h.

Referenced by getDepth(), and setDepth().

◆ m_feedback

float FIFE::Flanger::m_feedback

private

Definition at line 526 of file soundeffect.h.

Referenced by getFeedback(), and setFeedback().

◆ m_phase

int32_t FIFE::Flanger::m_phase

private

Definition at line 523 of file soundeffect.h.

Referenced by getPhase(), and setPhase().

◆ m_rate

float FIFE::Flanger::m_rate

private

Definition at line 524 of file soundeffect.h.

Referenced by getRate(), and setRate().

◆ m_waveformTriangle

bool FIFE::Flanger::m_waveformTriangle

private

Definition at line 522 of file soundeffect.h.

Referenced by isWaveformTriangle(), and setWaveformTriangle().

The documentation for this class was generated from the following files:

engine/core/audio/effects/soundeffect.h
engine/core/audio/effects/soundeffect.cpp
