The frequency shifter is a single-sideband modulator, which translates all the component frequencies of the input signal by an equal amount. More...
#include <soundeffect.h>

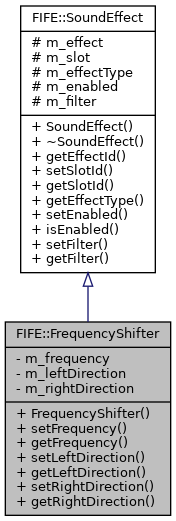

Inheritance diagram for FIFE::FrequencyShifter:

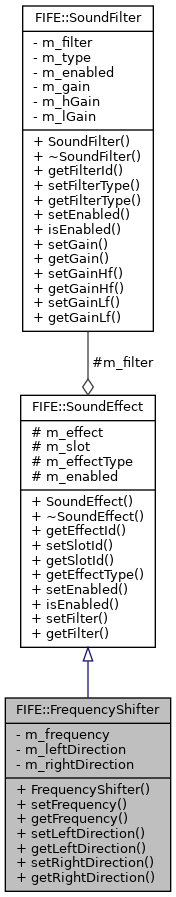

Collaboration diagram for FIFE::FrequencyShifter:
Public Member Functions | |
| FrequencyShifter () | |
| Constructor. More... | |
| void | setFrequency (float value) |
| Sets the carrier frequency. More... | |
| float | getFrequency () const |
| Return carrier frequency. More... | |
| void | setLeftDirection (uint8_t value) |
| Sets left direction, selects which internal signals are added together to produce the output. More... | |
| uint8_t | getLeftDirection () const |
| Return left direction. More... | |
| void | setRightDirection (uint8_t value) |
| Sets right direction, selects which internal signals are added together to produce the output. More... | |
| uint8_t | getRightDirection () const |
| Return left direction. More... | |
| Public Member Functions inherited from FIFE::SoundEffect | |
| SoundEffect () | |
| Constructor. More... | |
| virtual | ~SoundEffect () |
| Destructor. More... | |
| ALuint | getEffectId () const |
| Return the OpenAL effect handle. More... | |
| void | setSlotId (ALuint slot) |
| Sets the OpenAL auxiliary slot handle. More... | |
| ALuint | getSlotId () |
| Return the OpenAL auxiliary slot handle. More... | |
| SoundEffectType | getEffectType () const |
| Return sound effect type. More... | |
| void | setEnabled (bool enabled) |
| Enables or disables the effect. More... | |
| bool | isEnabled () const |
| Return true if the effect is enabled, false otherwise. More... | |
| void | setFilter (SoundFilter *filter) |
| Sets the additional sound filter. More... | |
| SoundFilter * | getFilter () |
| Return sound filter or NULL. More... | |
Private Attributes | |
| float | m_frequency |
| uint8_t | m_leftDirection |
| uint8_t | m_rightDirection |
Additional Inherited Members | |
| Protected Attributes inherited from FIFE::SoundEffect | |
| ALuint | m_effect |
| Effect object id. More... | |
| ALuint | m_slot |
| Effect slot id;. More... | |
| SoundEffectType | m_effectType |
| Sound effect type. More... | |
| bool | m_enabled |
| Effect enabled. More... | |
| SoundFilter * | m_filter |
| Additional filter effect. More... | |
Detailed Description
The frequency shifter is a single-sideband modulator, which translates all the component frequencies of the input signal by an equal amount.
Definition at line 533 of file soundeffect.h.
Constructor & Destructor Documentation
◆ FrequencyShifter()
| FIFE::FrequencyShifter::FrequencyShifter | ( | ) |
Constructor.
Definition at line 545 of file soundeffect.cpp.
References FIFE::alEffecti, FIFE::SoundEffect::m_effect, FIFE::SoundEffect::m_effectType, and FIFE::SE_EFFECT_FREQUENCY_SHIFTER.
Member Function Documentation
◆ getFrequency()
| float FIFE::FrequencyShifter::getFrequency | ( | ) | const |
◆ getLeftDirection()
| uint8_t FIFE::FrequencyShifter::getLeftDirection | ( | ) | const |
◆ getRightDirection()
| uint8_t FIFE::FrequencyShifter::getRightDirection | ( | ) | const |
◆ setFrequency()
| void FIFE::FrequencyShifter::setFrequency | ( | float | value | ) |
Sets the carrier frequency.
For carrier frequencies below the audible range, the single-sideband modulator may produce phaser, spatial effects.
- Parameters
-
value Range 0.0 to 24000.0, default 0.0.
Definition at line 553 of file soundeffect.cpp.
References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_frequency.
◆ setLeftDirection()
| void FIFE::FrequencyShifter::setLeftDirection | ( | uint8_t | value | ) |
Sets left direction, selects which internal signals are added together to produce the output.
- Parameters
-
value Range 0 to 2. 0=down, 1=up, 2=off, default 0.
Definition at line 564 of file soundeffect.cpp.
References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_leftDirection.
◆ setRightDirection()
| void FIFE::FrequencyShifter::setRightDirection | ( | uint8_t | value | ) |
Sets right direction, selects which internal signals are added together to produce the output.
- Parameters
-
value Range 0 to 2. 0=down, 1=up, 2=off, default 0.
Definition at line 575 of file soundeffect.cpp.
References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_rightDirection.
Member Data Documentation
◆ m_frequency
|
private |
Definition at line 570 of file soundeffect.h.
Referenced by getFrequency(), and setFrequency().
◆ m_leftDirection
|
private |
Definition at line 571 of file soundeffect.h.
Referenced by getLeftDirection(), and setLeftDirection().
◆ m_rightDirection
|
private |
Definition at line 572 of file soundeffect.h.
Referenced by getRightDirection(), and setRightDirection().
The documentation for this class was generated from the following files:
- engine/core/audio/effects/soundeffect.h
- engine/core/audio/effects/soundeffect.cpp
