Implements an Image using OpenGL. More...

#include <glimage.h>

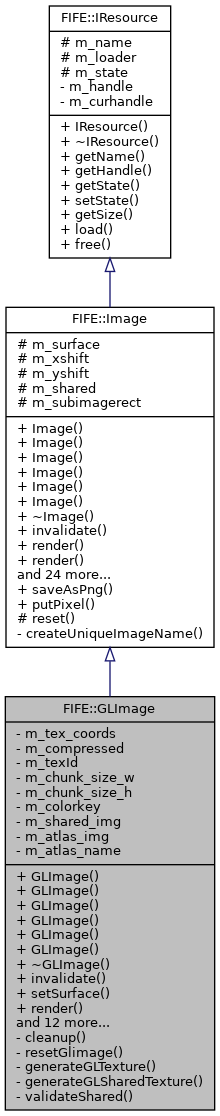

Inheritance diagram for FIFE::GLImage:

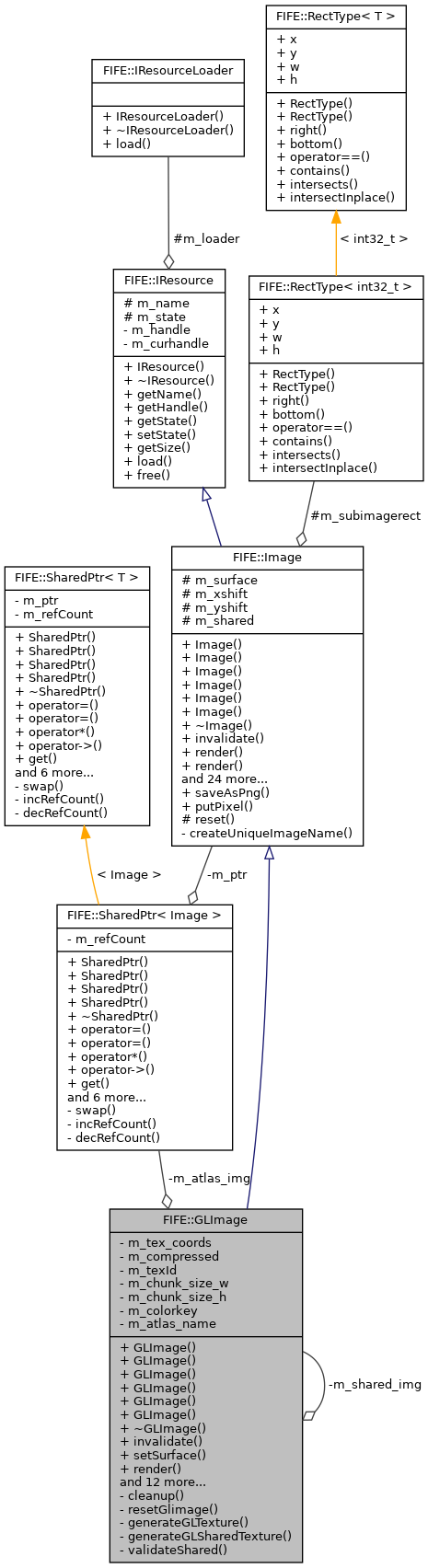

Collaboration diagram for FIFE::GLImage:

Public Member Functions
	GLImage (IResourceLoader *loader=0)

	GLImage (const std::string &name, IResourceLoader *loader=0)

	GLImage (SDL_Surface *surface)

	GLImage (const std::string &name, SDL_Surface *surface)

	GLImage (const uint8_t *data, uint32_t width, uint32_t height)

	GLImage (const std::string &name, const uint8_t *data, uint32_t width, uint32_t height)

virtual	~GLImage ()

virtual void	invalidate ()
	Invalidates the Image causing it to be reset or re-loaded. More...

virtual void	setSurface (SDL_Surface *surface)
	This frees the current suface and replaces it with the surface passed in the parameter (which can be NULL). More...

virtual void	render (const Rect &rect, uint8_t alpha=255, uint8_t const *rgb=0)
	Renders itself to the current render target (main screen or attached destination image) at the rectangle rect. More...

virtual void	render (const Rect &rect, const ImagePtr &overlay, uint8_t alpha=255, uint8_t const *rgb=0)

virtual void	renderZ (const Rect &rect, float vertexZ, uint8_t alpha=255, uint8_t const *rgb=0)

virtual void	renderZ (const Rect &rect, float vertexZ, const ImagePtr &overlay, uint8_t alpha=255, uint8_t const *rgb=0)

virtual void	useSharedImage (const ImagePtr &shared, const Rect &region)
	After this call all image data will be taken from the given image and its subregion. More...

virtual void	forceLoadInternal ()
	Forces to load the image into internal memory of GPU. More...

virtual void	copySubimage (uint32_t xoffset, uint32_t yoffset, const ImagePtr &img)
	Copies given image into this one with respect to given offsets. More...

virtual void	load ()

virtual void	free ()

GLuint	getTexId () const

const GLfloat *	getTexCoords () const

bool	isCompressed () const

void	setCompressed (bool compressed)

Public Member Functions inherited from FIFE::Image
	Image (IResourceLoader *loader=0)
	Constructor. More...

	Image (const std::string &name, IResourceLoader *loader=0)

	Image (SDL_Surface *surface)
	Constructor. More...

	Image (const std::string &name, SDL_Surface *surface)

	Image (const uint8_t *data, uint32_t width, uint32_t height)
	Constructor. More...

	Image (const std::string &name, const uint8_t *data, uint32_t width, uint32_t height)

virtual	~Image ()
	Destructor. More...

virtual void	renderZ (const Rect &rect, float vertexZ, uint8_t alpha=255, bool forceNewBatch=false, uint8_t const *rgb=0)

SDL_Surface *	detachSurface ()
	Removes underlying SDL_Surface from the image (if exists) and returns this. More...

SDL_Surface *	getSurface ()

const SDL_Surface *	getSurface () const

void	saveImage (const std::string &filename)
	Saves the image using given filename. More...

uint32_t	getWidth () const

uint32_t	getHeight () const

Rect	getArea () const

void	setXShift (int32_t xshift)

int32_t	getXShift () const

void	setYShift (int32_t yshift)

int32_t	getYShift () const

void	getPixelRGBA (int32_t x, int32_t y, uint8_t r, uint8_t g, uint8_t b, uint8_t a)

virtual size_t	getSize ()

bool	isSharedImage () const
	Returns true if this image shares data with another one. More...

const Rect &	getSubImageRect () const
	Returns area of the image it occupies in the shared image. More...

Public Member Functions inherited from FIFE::IResource
	IResource (const std::string &name, IResourceLoader *loader=0)

virtual	~IResource ()

virtual const std::string &	getName ()

ResourceHandle	getHandle ()

virtual ResourceState	getState ()

virtual void	setState (const ResourceState &state)

Private Member Functions
void	cleanup ()
	Frees allocated memory and calls resetGlImage. More...

void	resetGlimage ()
	Resets GLImage variables. More...

void	generateGLTexture ()
	Generates the GL Texture for use when rendering. More...

void	generateGLSharedTexture (const GLImage *shared, const Rect &region)

void	validateShared ()

Private Attributes
GLfloat	m_tex_coords [4]

bool	m_compressed

GLuint	m_texId
	Holds texture ids that are used to access textures in GL rendering context. More...

uint32_t	m_chunk_size_w

uint32_t	m_chunk_size_h

SDL_Color	m_colorkey

GLImage *	m_shared_img

ImagePtr	m_atlas_img

std::string	m_atlas_name

Additional Inherited Members
Public Types inherited from FIFE::IResource
enum	ResourceState { RES_INVALID = 0, RES_NOT_LOADED, RES_LOADED }

Static Public Member Functions inherited from FIFE::Image
static void	saveAsPng (const std::string &filename, const SDL_Surface &surface)
	Saves the SDL_Surface to png format. More...

static bool	putPixel (SDL_Surface *surface, int32_t x, int32_t y, uint8_t r, uint8_t g, uint8_t b, uint8_t a=255)

Protected Member Functions inherited from FIFE::Image
void	reset (SDL_Surface *surface)
	Resets the image to default values (including the x and y shift values), frees the current surface and sets the surface to the passed SDL_Surface (which can be NULL). More...

Protected Attributes inherited from FIFE::Image
SDL_Surface *	m_surface

int32_t	m_xshift

int32_t	m_yshift

bool	m_shared

Rect	m_subimagerect

Protected Attributes inherited from FIFE::IResource
std::string	m_name

IResourceLoader *	m_loader

ResourceState	m_state

Detailed Description

Implements an Image using OpenGL.

This class contains a texture handle bound to the data given to the constructor; it draws a textured Quad to the screen.

See also: Image

Note: Width and height are not limited to powers of two; non-power of two images will be converted internally, if they are not supported by the hardware (ARB_texture_non_power_of_two).

Definition at line 55 of file glimage.h.

Constructor & Destructor Documentation

◆ GLImage() [1/6]

FIFE::GLImage::GLImage ( IResourceLoader * loader = 0 )

Definition at line 40 of file glimage.cpp.

References resetGlimage().

◆ GLImage() [2/6]

FIFE::GLImage::GLImage	(	const std::string &	name,
		IResourceLoader *	loader = `0`
	)

Definition at line 48 of file glimage.cpp.

References resetGlimage().

◆ GLImage() [3/6]

FIFE::GLImage::GLImage ( SDL_Surface * surface )

Definition at line 56 of file glimage.cpp.

References resetGlimage().

◆ GLImage() [4/6]

FIFE::GLImage::GLImage	(	const std::string &	name,
		SDL_Surface *	surface
	)

Definition at line 64 of file glimage.cpp.

References resetGlimage().

◆ GLImage() [5/6]

FIFE::GLImage::GLImage	(	const uint8_t *	data,
		uint32_t	width,
		uint32_t	height
	)

Definition at line 72 of file glimage.cpp.

References FIFE::Image::m_surface, and resetGlimage().

◆ GLImage() [6/6]

FIFE::GLImage::GLImage	(	const std::string &	name,
		const uint8_t *	data,
		uint32_t	width,
		uint32_t	height
	)

Definition at line 81 of file glimage.cpp.

References FIFE::Image::m_surface, and resetGlimage().

◆ ~GLImage()

FIFE::GLImage::~GLImage ( )

virtual

Definition at line 90 of file glimage.cpp.

References cleanup().

Member Function Documentation

◆ cleanup()

void FIFE::GLImage::cleanup ( )

private

Frees allocated memory and calls resetGlImage.

Definition at line 112 of file glimage.cpp.

References m_compressed, FIFE::Image::m_shared, m_tex_coords, and m_texId.

Referenced by resetGlimage(), and ~GLImage().

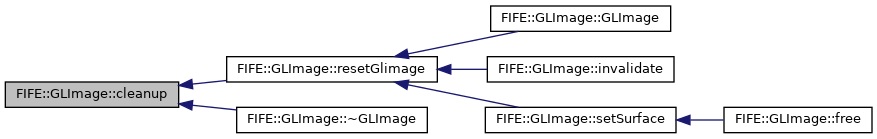

Here is the caller graph for this function:

◆ copySubimage()

void FIFE::GLImage::copySubimage	(	uint32_t	xoffset,
		uint32_t	yoffset,
		const ImagePtr &	img
	)

virtual

Copies given image into this one with respect to given offsets.

Reimplemented from FIFE::Image.

Definition at line 533 of file glimage.cpp.

References FIFE::Image::copySubimage(), FIFE::Image::getHeight(), FIFE::Image::getSurface(), FIFE::Image::getWidth(), FIFE::DynamicSingleton< RenderBackend >::instance(), and m_texId.

◆ forceLoadInternal()

void FIFE::GLImage::forceLoadInternal ( )

virtual

Forces to load the image into internal memory of GPU.

Implements FIFE::Image.

Definition at line 506 of file glimage.cpp.

References generateGLTexture(), FIFE::Image::m_shared, m_texId, and validateShared().

Referenced by render(), FIFE::RenderBackendOpenGL::renderGuiGeometry(), and renderZ().

Here is the caller graph for this function:

◆ free()

void FIFE::GLImage::free ( )

virtual

Reimplemented from FIFE::Image.

Definition at line 569 of file glimage.cpp.

References FIFE::IResource::m_state, FIFE::Image::m_xshift, FIFE::Image::m_yshift, FIFE::IResource::RES_NOT_LOADED, and setSurface().

◆ generateGLSharedTexture()

void FIFE::GLImage::generateGLSharedTexture	(	const GLImage *	shared,
		const Rect &	region
	)

private

Definition at line 464 of file glimage.cpp.

References FIFE::Image::getHeight(), FIFE::Image::getWidth(), FIFE::RectType< T >::h, FIFE::DynamicSingleton< RenderBackend >::instance(), m_tex_coords, FIFE::nextPow2(), FIFE::TEXTURE_FILTER_NONE, FIFE::RectType< T >::w, FIFE::RectType< T >::x, and FIFE::RectType< T >::y.

Referenced by load(), useSharedImage(), and validateShared().

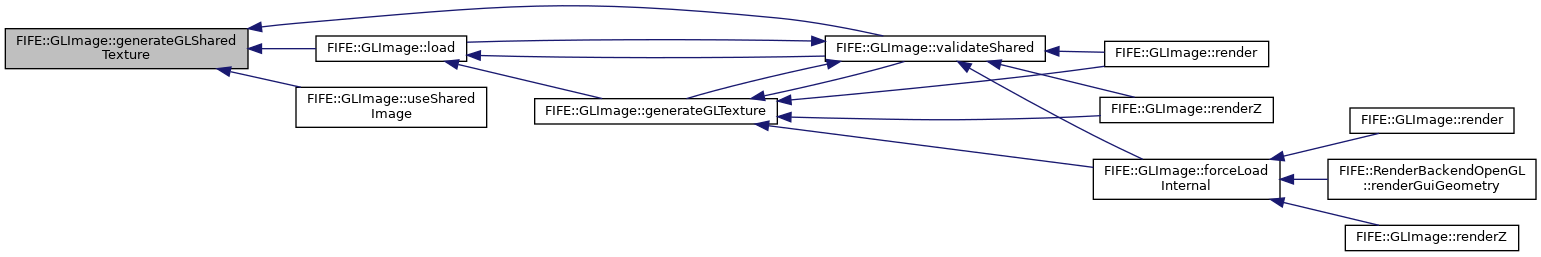

Here is the caller graph for this function:

◆ generateGLTexture()

void FIFE::GLImage::generateGLTexture ( )

private

Generates the GL Texture for use when rendering.

Definition at line 226 of file glimage.cpp.

References FIFE::RenderBackend::getPixelFormat(), FIFE::RenderBackend::getRenderTargetSurface(), FIFE::DynamicSingleton< RenderBackend >::instance(), FIFE::RenderBackend::isColorKeyEnabled(), FIFE::RenderBackend::isMipmappingEnabled(), FIFE::RenderBackend::isMonochromeEnabled(), load(), m_chunk_size_h, m_chunk_size_w, m_colorkey, m_compressed, FIFE::Image::m_shared, FIFE::IResource::m_state, FIFE::Image::m_surface, m_tex_coords, m_texId, FIFE::nextPow2(), FIFE::IResource::RES_NOT_LOADED, FIFE::TEXTURE_FILTER_ANISOTROPIC, FIFE::TEXTURE_FILTER_BILINEAR, FIFE::TEXTURE_FILTER_NONE, FIFE::TEXTURE_FILTER_TRILINEAR, and validateShared().

Referenced by forceLoadInternal(), render(), renderZ(), and validateShared().

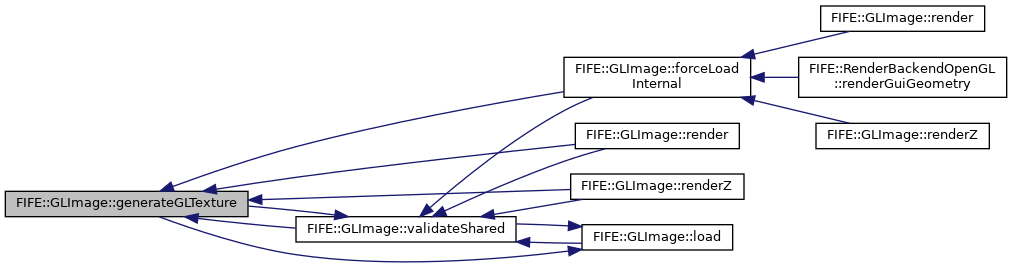

Here is the caller graph for this function:

◆ getTexCoords()

const GLfloat * FIFE::GLImage::getTexCoords ( ) const

Definition at line 583 of file glimage.cpp.

References m_tex_coords.

Referenced by render(), and renderZ().

Here is the caller graph for this function:

◆ getTexId()

GLuint FIFE::GLImage::getTexId ( ) const

Definition at line 579 of file glimage.cpp.

References m_texId.

Referenced by FIFE::RenderBackendOpenGL::attachRenderTarget(), render(), FIFE::RenderBackendOpenGL::renderGuiGeometry(), and renderZ().

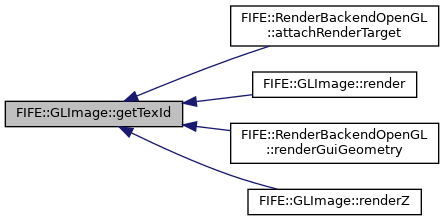

Here is the caller graph for this function:

◆ invalidate()

void FIFE::GLImage::invalidate ( )

virtual

Invalidates the Image causing it to be reset or re-loaded.

Implements FIFE::Image.

Definition at line 94 of file glimage.cpp.

References resetGlimage().

◆ isCompressed()

bool FIFE::GLImage::isCompressed ( ) const

inline

Definition at line 81 of file glimage.h.

References m_compressed.

Referenced by FIFE::RenderBackendOpenGL::attachRenderTarget().

Here is the caller graph for this function:

◆ load()

void FIFE::GLImage::load ( )

virtual

Reimplemented from FIFE::Image.

Definition at line 543 of file glimage.cpp.

References FIFE::ImageManager::create(), generateGLSharedTexture(), FIFE::SharedPtr< T >::get(), FIFE::DynamicSingleton< ImageManager >::instance(), FIFE::Image::load(), m_atlas_img, m_atlas_name, m_compressed, FIFE::Image::m_shared, m_shared_img, FIFE::IResource::m_state, FIFE::Image::m_subimagerect, FIFE::Image::m_surface, m_texId, FIFE::IResource::RES_LOADED, and validateShared().

Referenced by generateGLTexture(), and validateShared().

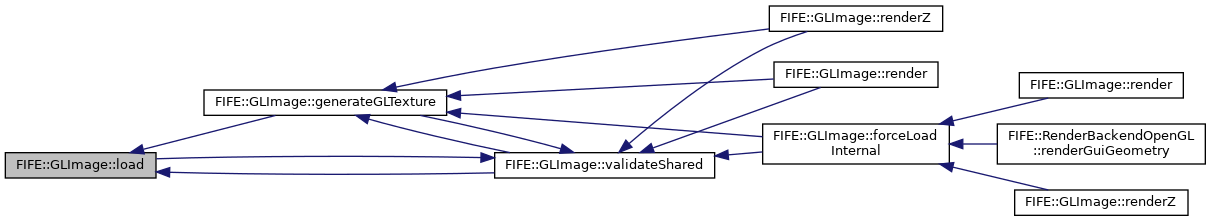

Here is the caller graph for this function:

◆ render() [1/2]

void FIFE::GLImage::render	(	const Rect &	rect,
		uint8_t	alpha = `255`,
		uint8_t const *	rgb = `0`
	)

virtual

Renders itself to the current render target (main screen or attached destination image) at the rectangle rect.

Convenience function

Parameters

rect	The position and clipping where to draw this image to.
alpha	The alpha value, with which to draw self.
rgb	The color value of overlay if any.

Implements FIFE::Image.

Definition at line 125 of file glimage.cpp.

References FIFE::RenderBackend::addImageToArray(), FIFE::RectType< T >::bottom(), generateGLTexture(), FIFE::RenderBackend::getRenderTargetSurface(), FIFE::DynamicSingleton< RenderBackend >::instance(), FIFE::Image::m_shared, FIFE::Image::m_surface, m_tex_coords, m_texId, FIFE::RectType< T >::right(), validateShared(), FIFE::RectType< T >::x, and FIFE::RectType< T >::y.

◆ render() [2/2]

void FIFE::GLImage::render	(	const Rect &	rect,
		const ImagePtr &	overlay,
		uint8_t	alpha = `255`,
		uint8_t const *	rgb = `0`
	)

virtual

Reimplemented from FIFE::Image.

Definition at line 148 of file glimage.cpp.

References FIFE::RectType< T >::bottom(), forceLoadInternal(), generateGLTexture(), FIFE::SharedPtr< T >::get(), FIFE::RenderBackend::getRenderTargetSurface(), getTexCoords(), getTexId(), FIFE::DynamicSingleton< RenderBackend >::instance(), FIFE::Image::m_shared, FIFE::Image::m_surface, m_tex_coords, m_texId, FIFE::RectType< T >::right(), validateShared(), FIFE::RectType< T >::x, and FIFE::RectType< T >::y.

◆ renderZ() [1/2]

void FIFE::GLImage::renderZ	(	const Rect &	rect,
		float	vertexZ,
		uint8_t	alpha = `255`,
		uint8_t const *	rgb = `0`
	)

virtual

Reimplemented from FIFE::Image.

Definition at line 175 of file glimage.cpp.

References FIFE::RectType< T >::bottom(), generateGLTexture(), FIFE::RenderBackend::getRenderTargetSurface(), FIFE::DynamicSingleton< RenderBackend >::instance(), FIFE::Image::m_shared, FIFE::Image::m_surface, m_tex_coords, m_texId, FIFE::RectType< T >::right(), validateShared(), FIFE::RectType< T >::x, and FIFE::RectType< T >::y.

◆ renderZ() [2/2]

void FIFE::GLImage::renderZ	(	const Rect &	rect,
		float	vertexZ,
		const ImagePtr &	overlay,
		uint8_t	alpha = `255`,
		uint8_t const *	rgb = `0`
	)

virtual

Reimplemented from FIFE::Image.

Definition at line 198 of file glimage.cpp.

References FIFE::RectType< T >::bottom(), forceLoadInternal(), generateGLTexture(), FIFE::SharedPtr< T >::get(), FIFE::RenderBackend::getRenderTargetSurface(), getTexCoords(), getTexId(), FIFE::DynamicSingleton< RenderBackend >::instance(), FIFE::Image::m_shared, FIFE::Image::m_surface, m_tex_coords, m_texId, FIFE::RectType< T >::right(), validateShared(), FIFE::RectType< T >::x, and FIFE::RectType< T >::y.

◆ resetGlimage()

void FIFE::GLImage::resetGlimage ( )

private

Resets GLImage variables.

Definition at line 103 of file glimage.cpp.

References cleanup(), FIFE::RenderBackend::getColorKey(), FIFE::DynamicSingleton< RenderBackend >::instance(), m_chunk_size_h, m_chunk_size_w, and m_colorkey.

Referenced by GLImage(), invalidate(), and setSurface().

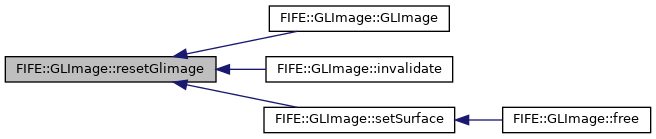

Here is the caller graph for this function:

◆ setCompressed()

void FIFE::GLImage::setCompressed ( bool compressed )

inline

Definition at line 82 of file glimage.h.

References m_compressed.

Referenced by FIFE::RenderBackendOpenGL::attachRenderTarget().

Here is the caller graph for this function:

◆ setSurface()

void FIFE::GLImage::setSurface ( SDL_Surface * surface )

virtual

This frees the current suface and replaces it with the surface passed in the parameter (which can be NULL).

See also: Image::reset(SDL_Surface* surface)

Parameters

surface the SDL_Surface to use for this image

Implements FIFE::Image.

Definition at line 98 of file glimage.cpp.

References FIFE::Image::reset(), and resetGlimage().

Referenced by free().

Here is the caller graph for this function:

◆ useSharedImage()

void FIFE::GLImage::useSharedImage	(	const ImagePtr &	shared,
		const Rect &	region
	)

virtual

After this call all image data will be taken from the given image and its subregion.

Implements FIFE::Image.

Definition at line 487 of file glimage.cpp.

References generateGLSharedTexture(), FIFE::SharedPtr< T >::get(), FIFE::IResource::getName(), FIFE::IResource::getState(), m_atlas_img, m_atlas_name, m_compressed, FIFE::Image::m_shared, m_shared_img, FIFE::Image::m_subimagerect, FIFE::Image::m_surface, m_texId, and FIFE::IResource::setState().

◆ validateShared()

void FIFE::GLImage::validateShared ( )

private

Definition at line 514 of file glimage.cpp.

References generateGLSharedTexture(), generateGLTexture(), FIFE::IResource::getState(), load(), m_compressed, m_shared_img, FIFE::Image::m_subimagerect, FIFE::Image::m_surface, m_texId, and FIFE::IResource::RES_NOT_LOADED.

Referenced by forceLoadInternal(), generateGLTexture(), load(), render(), and renderZ().

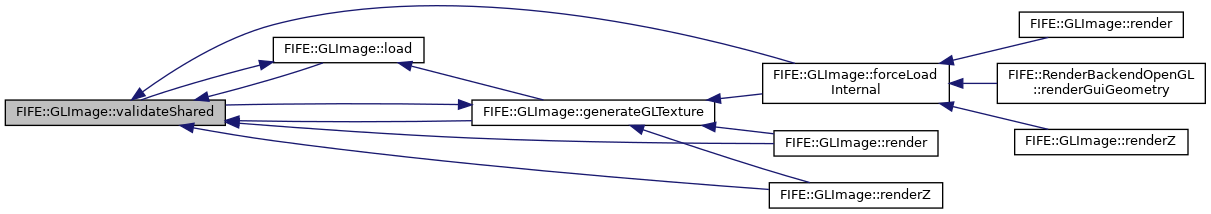

Here is the caller graph for this function:

Member Data Documentation

◆ m_atlas_img

ImagePtr FIFE::GLImage::m_atlas_img

private

Definition at line 128 of file glimage.h.

Referenced by load(), and useSharedImage().

◆ m_atlas_name

std::string FIFE::GLImage::m_atlas_name

private

Definition at line 130 of file glimage.h.

Referenced by load(), and useSharedImage().

◆ m_chunk_size_h

uint32_t FIFE::GLImage::m_chunk_size_h

private

Definition at line 122 of file glimage.h.

Referenced by generateGLTexture(), and resetGlimage().

◆ m_chunk_size_w

uint32_t FIFE::GLImage::m_chunk_size_w

private

Definition at line 121 of file glimage.h.

Referenced by generateGLTexture(), and resetGlimage().

◆ m_colorkey

SDL_Color FIFE::GLImage::m_colorkey

private

Definition at line 124 of file glimage.h.

Referenced by generateGLTexture(), and resetGlimage().

◆ m_compressed

bool FIFE::GLImage::m_compressed

private

Definition at line 88 of file glimage.h.

Referenced by cleanup(), generateGLTexture(), isCompressed(), load(), setCompressed(), useSharedImage(), and validateShared().

◆ m_shared_img

GLImage* FIFE::GLImage::m_shared_img

private

Definition at line 126 of file glimage.h.

Referenced by load(), useSharedImage(), and validateShared().

◆ m_tex_coords

GLfloat FIFE::GLImage::m_tex_coords[4]

private

Definition at line 85 of file glimage.h.

Referenced by cleanup(), generateGLSharedTexture(), generateGLTexture(), getTexCoords(), render(), and renderZ().

◆ m_texId

GLuint FIFE::GLImage::m_texId

private

Holds texture ids that are used to access textures in GL rendering context.

Definition at line 105 of file glimage.h.

Referenced by cleanup(), copySubimage(), forceLoadInternal(), generateGLTexture(), getTexId(), load(), render(), renderZ(), useSharedImage(), and validateShared().

The documentation for this class was generated from the following files:

engine/core/video/opengl/glimage.h
engine/core/video/opengl/glimage.cpp

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GLImage() [1/6]

◆ GLImage() [2/6]

◆ GLImage() [3/6]

◆ GLImage() [4/6]

◆ GLImage() [5/6]

◆ GLImage() [6/6]

◆ ~GLImage()

Member Function Documentation

◆ cleanup()

◆ copySubimage()

◆ forceLoadInternal()

◆ free()

◆ generateGLSharedTexture()

◆ generateGLTexture()

◆ getTexCoords()

◆ getTexId()

◆ invalidate()

◆ isCompressed()

◆ load()

◆ render() [1/2]

◆ render() [2/2]

◆ renderZ() [1/2]

◆ renderZ() [2/2]

◆ resetGlimage()

◆ setCompressed()

◆ setSurface()

◆ useSharedImage()

◆ validateShared()

Member Data Documentation

◆ m_atlas_img

◆ m_atlas_name

◆ m_chunk_size_h

◆ m_chunk_size_w

◆ m_colorkey

◆ m_compressed

◆ m_shared_img

◆ m_tex_coords

◆ m_texId
