FIFE::PitchShifter Class Reference

The pitch shifter applies time-invariant pitch shifting to the input signal, over a one octave range and controllable at a semi-tone and cent resolution. More...

#include <soundeffect.h>

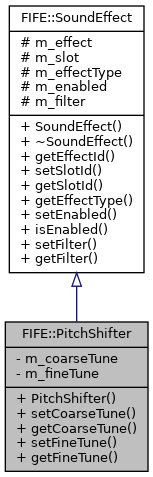

Inheritance diagram for FIFE::PitchShifter:

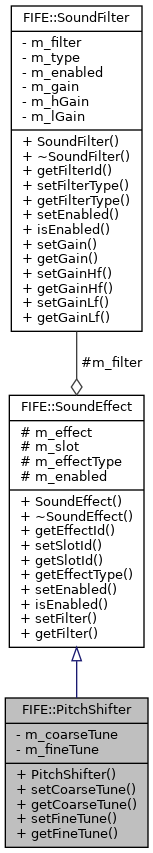

Collaboration diagram for FIFE::PitchShifter:

Public Member Functions
	PitchShifter ()
	Constructor. More...
void	setCoarseTune (int16_t value)
	Sets coarse tune, the number of semitones by which the pitch is shifted. More...
int16_t	getCoarseTune () const
	Return coarse tune. More...
void	setFineTune (int16_t value)
	Sets fine tune, the number of cents between Semitones a pitch is shifted. More...
int16_t	getFineTune () const
	Return fine tune. More...
Public Member Functions inherited from FIFE::SoundEffect
	SoundEffect ()
	Constructor. More...
virtual	~SoundEffect ()
	Destructor. More...
ALuint	getEffectId () const
	Return the OpenAL effect handle. More...
void	setSlotId (ALuint slot)
	Sets the OpenAL auxiliary slot handle. More...
ALuint	getSlotId ()
	Return the OpenAL auxiliary slot handle. More...
SoundEffectType	getEffectType () const
	Return sound effect type. More...
void	setEnabled (bool enabled)
	Enables or disables the effect. More...
bool	isEnabled () const
	Return true if the effect is enabled, false otherwise. More...
void	setFilter (SoundFilter *filter)
	Sets the additional sound filter. More...
SoundFilter *	getFilter ()
	Return sound filter or NULL. More...

Private Attributes
int16_t	m_coarseTune
int16_t	m_fineTune

Additional Inherited Members
Protected Attributes inherited from FIFE::SoundEffect
ALuint	m_effect
	Effect object id. More...
ALuint	m_slot
	Effect slot id;. More...
SoundEffectType	m_effectType
	Sound effect type. More...
bool	m_enabled
	Effect enabled. More...
SoundFilter *	m_filter
	Additional filter effect. More...

Detailed Description

The pitch shifter applies time-invariant pitch shifting to the input signal, over a one octave range and controllable at a semi-tone and cent resolution.

Definition at line 658 of file soundeffect.h.

Constructor & Destructor Documentation

FIFE::PitchShifter::PitchShifter

(

)

Constructor.

Definition at line 665 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, FIFE::SoundEffect::m_effectType, and FIFE::SE_EFFECT_PITCH_SHIFTER.

Member Function Documentation

int16_t FIFE::PitchShifter::getCoarseTune

(

)

const

Return coarse tune.

Definition at line 679 of file soundeffect.cpp.

References m_coarseTune.

int16_t FIFE::PitchShifter::getFineTune

(

)

const

Return fine tune.

Definition at line 690 of file soundeffect.cpp.

References m_fineTune.

void FIFE::PitchShifter::setCoarseTune

(

int16_t

value

)

Sets coarse tune, the number of semitones by which the pitch is shifted.

There are 12 semitones per octave.

Parameters

value

Range -12 to 12, default 12.

Definition at line 672 of file soundeffect.cpp.

References FIFE::alEffecti, m_coarseTune, and FIFE::SoundEffect::m_effect.

void FIFE::PitchShifter::setFineTune

(

int16_t

value

)

Sets fine tune, the number of cents between Semitones a pitch is shifted.

A Cent is 1/100th of a Semitone.

Parameters

value

Range -50 to 50, default 0.

Definition at line 683 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_fineTune.

Member Data Documentation

int16_t FIFE::PitchShifter::m_coarseTune

private

Definition at line 685 of file soundeffect.h.

Referenced by getCoarseTune(), and setCoarseTune().

int16_t FIFE::PitchShifter::m_fineTune

private

Definition at line 686 of file soundeffect.h.

Referenced by getFineTune(), and setFineTune().

---

The documentation for this class was generated from the following files:

• engine/core/audio/effects/soundeffect.h
• engine/core/audio/effects/soundeffect.cpp
