The ring modulator multiplies an input signal by a carrier signal in the time domain, resulting in tremolo or inharmonic effects. More...
#include <soundeffect.h>

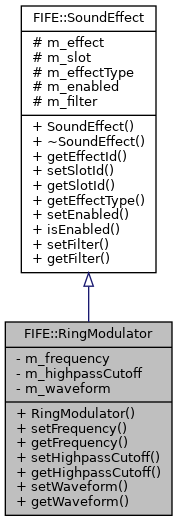

Inheritance diagram for FIFE::RingModulator:

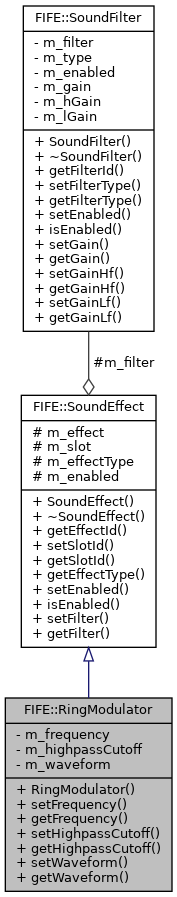

Collaboration diagram for FIFE::RingModulator:
Public Member Functions | |
| RingModulator () | |
| Constructor. More... | |
| void | setFrequency (float value) |
| Sets the carrier signal frequency. More... | |
| float | getFrequency () const |
| Return carrier frequency. More... | |
| void | setHighpassCutoff (float value) |
| Sets highpass cutoff at which the input signal is high-pass filtered before being ring modulated. More... | |
| float | getHighpassCutoff () const |
| Return highpass cutoff frequency. More... | |
| void | setWaveform (uint8_t value) |
| Sets waveform used as the carrier signal. More... | |
| uint8_t | getWaveform () const |
| Public Member Functions inherited from FIFE::SoundEffect | |
| SoundEffect () | |
| Constructor. More... | |
| virtual | ~SoundEffect () |
| Destructor. More... | |
| ALuint | getEffectId () const |
| Return the OpenAL effect handle. More... | |
| void | setSlotId (ALuint slot) |
| Sets the OpenAL auxiliary slot handle. More... | |
| ALuint | getSlotId () |
| Return the OpenAL auxiliary slot handle. More... | |
| SoundEffectType | getEffectType () const |
| Return sound effect type. More... | |
| void | setEnabled (bool enabled) |
| Enables or disables the effect. More... | |
| bool | isEnabled () const |
| Return true if the effect is enabled, false otherwise. More... | |
| void | setFilter (SoundFilter *filter) |
| Sets the additional sound filter. More... | |
| SoundFilter * | getFilter () |
| Return sound filter or NULL. More... | |
Private Attributes | |
| float | m_frequency |
| float | m_highpassCutoff |
| uint8_t | m_waveform |
Additional Inherited Members | |
| Protected Attributes inherited from FIFE::SoundEffect | |
| ALuint | m_effect |
| Effect object id. More... | |
| ALuint | m_slot |
| Effect slot id;. More... | |
| SoundEffectType | m_effectType |
| Sound effect type. More... | |
| bool | m_enabled |
| Effect enabled. More... | |
| SoundFilter * | m_filter |
| Additional filter effect. More... | |
Detailed Description
The ring modulator multiplies an input signal by a carrier signal in the time domain, resulting in tremolo or inharmonic effects.
Definition at line 692 of file soundeffect.h.
Constructor & Destructor Documentation
◆ RingModulator()
| FIFE::RingModulator::RingModulator | ( | ) |
Constructor.
Definition at line 695 of file soundeffect.cpp.
References FIFE::alEffecti, FIFE::SoundEffect::m_effect, FIFE::SoundEffect::m_effectType, and FIFE::SE_EFFECT_RING_MODULATOR.
Member Function Documentation
◆ getFrequency()
| float FIFE::RingModulator::getFrequency | ( | ) | const |
◆ getHighpassCutoff()
| float FIFE::RingModulator::getHighpassCutoff | ( | ) | const |
Return highpass cutoff frequency.
Definition at line 721 of file soundeffect.cpp.
References m_highpassCutoff.
◆ getWaveform()
| uint8_t FIFE::RingModulator::getWaveform | ( | ) | const |
Definition at line 732 of file soundeffect.cpp.
References m_waveform.
◆ setFrequency()
| void FIFE::RingModulator::setFrequency | ( | float | value | ) |
Sets the carrier signal frequency.
- Parameters
-
value Range 0.0 to 8000.0, default 440.0.
Definition at line 703 of file soundeffect.cpp.
References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_frequency.
◆ setHighpassCutoff()
| void FIFE::RingModulator::setHighpassCutoff | ( | float | value | ) |
Sets highpass cutoff at which the input signal is high-pass filtered before being ring modulated.
- Parameters
-
value Range 0.0 to 24000.0, default 800.0.
Definition at line 714 of file soundeffect.cpp.
References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_highpassCutoff.
◆ setWaveform()
| void FIFE::RingModulator::setWaveform | ( | uint8_t | value | ) |
Sets waveform used as the carrier signal.
- Parameters
-
value Range 0 to 2, default 0. 0=sin, 1=saw, 2=square.
Definition at line 725 of file soundeffect.cpp.
References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_waveform.
Member Data Documentation
◆ m_frequency
|
private |
Definition at line 724 of file soundeffect.h.
Referenced by getFrequency(), and setFrequency().
◆ m_highpassCutoff
|
private |
Definition at line 725 of file soundeffect.h.
Referenced by getHighpassCutoff(), and setHighpassCutoff().
◆ m_waveform
|
private |
Definition at line 726 of file soundeffect.h.
Referenced by getWaveform(), and setWaveform().
The documentation for this class was generated from the following files:
- engine/core/audio/effects/soundeffect.h
- engine/core/audio/effects/soundeffect.cpp
