#include <routepather.h>

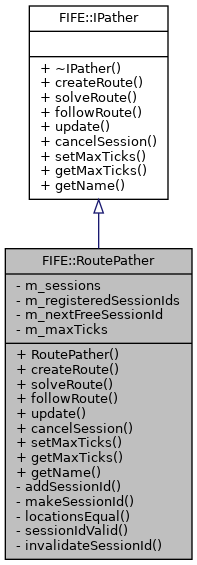

Inheritance diagram for FIFE::RoutePather:

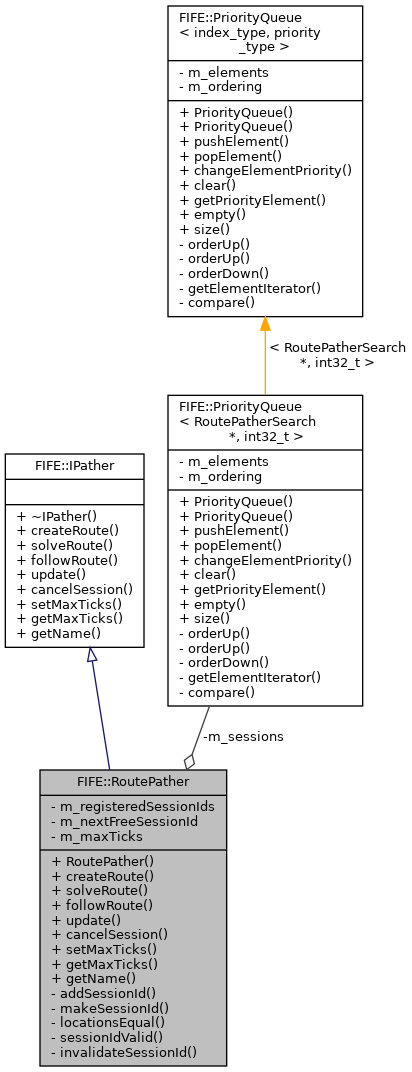

Collaboration diagram for FIFE::RoutePather:

Public Member Functions
	RoutePather ()
	Constructor. More...

Route *	createRoute (const Location &start, const Location &end, bool immediate=false, const std::string &costId="")
	Creates a route between the start and end location that needs be solved. More...

bool	solveRoute (Route *route, int32_t priority=MEDIUM_PRIORITY, bool immediate=false)
	Solves the route to create a path. More...

bool	followRoute (const Location &current, Route *route, double speed, Location &nextLocation)
	Follows the path of the route. More...

void	update ()
	Updates the route pather. More...

bool	cancelSession (const int32_t sessionId)
	Cancels a session. More...

void	setMaxTicks (int32_t ticks)
	Sets maximal ticks (update steps) to solve routes. More...

int32_t	getMaxTicks ()
	Returns maximal ticks (update steps) to solve routes. More...

std::string	getName () const
	Returns name of the pathfinder. More...

Public Member Functions inherited from FIFE::IPather
virtual	~IPather ()

Private Types
typedef std::list< Location >	Path
	A path is a list with locations. Each location holds the coordinate for one cell. More...

typedef PriorityQueue< RoutePatherSearch *, int32_t >	SessionQueue
	Holds the searches and their priority. More...

typedef std::list< int32_t >	SessionList
	Holds the sessions. More...

Private Member Functions
void	addSessionId (const int32_t sessionId)
	Adds a session id to the session map. More...

int32_t	makeSessionId ()
	Makes a new session id. More...

bool	locationsEqual (const Location &a, const Location &b)
	Are two locations equivalent from the perspective of pathing (same layer coordinates and layer). More...

bool	sessionIdValid (const int32_t sessionId)
	Determines if the given session Id is valid. More...

bool	invalidateSessionId (const int32_t sessionId)
	Removes a session id from the session map. More...

Private Attributes
SessionQueue	m_sessions
	A map of currently running sessions (searches). More...

SessionList	m_registeredSessionIds
	A list of session ids that have been registered. More...

int32_t	m_nextFreeSessionId
	The next free session id. More...

int32_t	m_maxTicks
	The maximum number of ticks allowed. More...

Detailed Description

Definition at line 45 of file routepather.h.

Member Typedef Documentation

◆ Path

typedef std::list<Location> FIFE::RoutePather::Path

private

A path is a list with locations. Each location holds the coordinate for one cell.

Definition at line 117 of file routepather.h.

◆ SessionList

typedef std::list<int32_t> FIFE::RoutePather::SessionList

private

Holds the sessions.

Definition at line 123 of file routepather.h.

◆ SessionQueue

typedef PriorityQueue<RoutePatherSearch*, int32_t> FIFE::RoutePather::SessionQueue

private

Holds the searches and their priority.

Definition at line 120 of file routepather.h.

Constructor & Destructor Documentation

◆ RoutePather()

FIFE::RoutePather::RoutePather ( )

inline

Constructor.

Definition at line 50 of file routepather.h.

References cancelSession(), createRoute(), followRoute(), getMaxTicks(), getName(), FIFE::MEDIUM_PRIORITY, setMaxTicks(), solveRoute(), and update().

Member Function Documentation

◆ addSessionId()

void FIFE::RoutePather::addSessionId ( const int32_t sessionId )

private

Adds a session id to the session map.

Stores the given session id in the session map.

Parameters

sessionId The session id to store.

Definition at line 96 of file routepather.cpp.

References m_registeredSessionIds.

Referenced by solveRoute().

Here is the caller graph for this function:

◆ cancelSession()

bool FIFE::RoutePather::cancelSession ( const int32_t sessionId )

virtual

Cancels a session.

Cancels a route pather session. Determines if it is an active session or not and acts accordingly.

Parameters

sessionId The id of the session to cancel.

Returns: True if the session could be canceled false otherwise.

Implements FIFE::IPather.

Definition at line 89 of file routepather.cpp.

References invalidateSessionId().

Referenced by RoutePather().

Here is the caller graph for this function:

◆ createRoute()

Route * FIFE::RoutePather::createRoute	(	const Location &	start,
		const Location &	end,
		bool	immediate = `false`,
		const std::string &	costId = `""`
	)

virtual

Creates a route between the start and end location that needs be solved.

Parameters

start	A const reference to the start location.
end	A const reference to the target location.
immediate	A optional boolean, if true the route bypass the max. ticks limit and solves the path immediately, otherwise false.
costId	A const reference to the string that holds the cost identifier. You can use it optional then this cost id is used instead of the default cost.

Implements FIFE::IPather.

Definition at line 121 of file routepather.cpp.

References FIFE::MEDIUM_PRIORITY, FIFE::ROUTE_FAILED, FIFE::Route::setCostId(), FIFE::Route::setRouteStatus(), and solveRoute().

Referenced by RoutePather().

Here is the caller graph for this function:

◆ followRoute()

bool FIFE::RoutePather::followRoute	(	const Location &	current,
		Route *	route,
		double	speed,
		Location &	nextLocation
	)

virtual

Follows the path of the route.

Parameters

current	A const reference to the current location.
route	A pointer to the route which should be followed.
speed	A double which holds the speed.
nextLocation	A reference to the next location returned by the pather.

Returns: A boolean, if true the route could be followed, otherwise false.

Implements FIFE::IPather.

Definition at line 271 of file routepather.cpp.

References FIFE::Layer::cellContainsBlockingInstance(), utf8::distance(), FIFE::doublePt2intPt(), FIFE::Math< T >::Equal(), FIFE::getAngleBetween(), FIFE::CellCache::getCell(), FIFE::Layer::getCellCache(), FIFE::Layer::getCellGrid(), FIFE::CellCache::getCellSpeedMultiplier(), FIFE::Route::getCurrentNode(), FIFE::CellCache::getDefaultSpeedMultiplier(), FIFE::Location::getExactLayerCoordinates(), FIFE::Location::getLayer(), FIFE::Cell::getLayer(), FIFE::Location::getLayerCoordinates(), FIFE::Cell::getLayerCoordinates(), FIFE::Location::getMapCoordinates(), FIFE::Route::getOccupiedCells(), FIFE::Route::getPath(), FIFE::Route::getPreviousNode(), FIFE::Route::getRotation(), FIFE::Cell::getTransition(), FIFE::CellGrid::getXScale(), FIFE::CellGrid::getYScale(), FIFE::CellGrid::getZShift(), FIFE::CellGrid::isAccessible(), FIFE::Route::isMultiCell(), locationsEqual(), FIFE::TransitionInfo::m_difflayer, FIFE::TransitionInfo::m_immediate, FIFE::TransitionInfo::m_layer, FIFE::TransitionInfo::m_mc, FIFE::Route::setEndNode(), FIFE::Location::setLayer(), FIFE::Location::setLayerCoordinates(), FIFE::Location::setMapCoordinates(), FIFE::Route::setRotation(), FIFE::Math< T >::Sqrt(), FIFE::Route::walkToNextNode(), FIFE::PointType3D< T >::x, FIFE::PointType3D< T >::y, and FIFE::PointType3D< T >::z.

Referenced by RoutePather().

Here is the caller graph for this function:

◆ getMaxTicks()

int32_t FIFE::RoutePather::getMaxTicks ( )

virtual

Returns maximal ticks (update steps) to solve routes.

See also: update()

Returns: A integer which holds the steps. default is 1000

Implements FIFE::IPather.

Definition at line 437 of file routepather.cpp.

References m_maxTicks.

Referenced by RoutePather().

Here is the caller graph for this function:

◆ getName()

std::string FIFE::RoutePather::getName ( ) const

virtual

Returns name of the pathfinder.

Returns: A string that contains the name of the pathfinder.

Implements FIFE::IPather.

Definition at line 441 of file routepather.cpp.

Referenced by RoutePather().

Here is the caller graph for this function:

◆ invalidateSessionId()

bool FIFE::RoutePather::invalidateSessionId ( const int32_t sessionId )

private

Removes a session id from the session map.

Parameters

sessionId The session id to remove.

Returns: True if the sessionId could be removed, false otherwise.

Definition at line 110 of file routepather.cpp.

References m_registeredSessionIds.

Referenced by cancelSession(), and update().

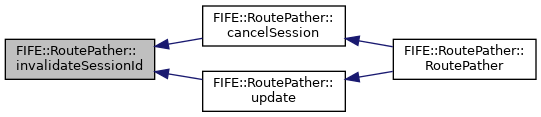

Here is the caller graph for this function:

◆ locationsEqual()

bool FIFE::RoutePather::locationsEqual	(	const Location &	a,
		const Location &	b
	)

private

Are two locations equivalent from the perspective of pathing (same layer coordinates and layer).

Parameters

a	A const reference to the first location to check.
b	A const reference to the second location to check.

Returns: A boolean, true if the locations are equal, false otherwise.

Definition at line 49 of file routepather.cpp.

References FIFE::Location::getLayer(), FIFE::Location::getLayerCoordinates(), FIFE::PointType3D< T >::x, and FIFE::PointType3D< T >::y.

Referenced by followRoute(), and solveRoute().

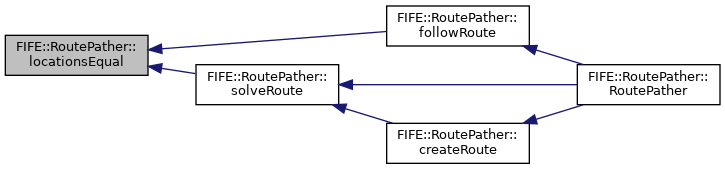

Here is the caller graph for this function:

◆ makeSessionId()

int32_t FIFE::RoutePather::makeSessionId ( )

private

Makes a new session id.

Returns: The new session id.

Definition at line 45 of file routepather.cpp.

References m_nextFreeSessionId.

Referenced by solveRoute().

Here is the caller graph for this function:

◆ sessionIdValid()

bool FIFE::RoutePather::sessionIdValid ( const int32_t sessionId )

private

Determines if the given session Id is valid.

Searches the session list to determine if a search with the given session id has been registered.

Parameters

sessionId The session id to check.

Returns: true if one has, false otherwise.

Definition at line 100 of file routepather.cpp.

References m_registeredSessionIds.

Referenced by solveRoute(), and update().

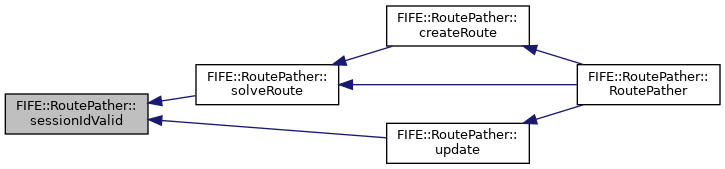

Here is the caller graph for this function:

◆ setMaxTicks()

void FIFE::RoutePather::setMaxTicks ( int32_t ticks )

virtual

Sets maximal ticks (update steps) to solve routes.

See also: update()

Parameters

ticks A integer which holds the steps. default is 1000

Implements FIFE::IPather.

Definition at line 433 of file routepather.cpp.

References m_maxTicks.

Referenced by RoutePather().

Here is the caller graph for this function:

◆ solveRoute()

bool FIFE::RoutePather::solveRoute	(	Route *	route,
		int32_t	priority = `MEDIUM_PRIORITY`,
		bool	immediate = `false`
	)

virtual

Solves the route to create a path.

Parameters

route	A pointer to the route which should be solved.
priority	The priority to assign to search (high are pushed to the front of the queue).

See also: PriorityType

Parameters

immediate A optional boolean, if true the route bypass the max. ticks limit and solves the path immediately, otherwise false.

Returns: A boolean, if true the route could be solved, otherwise false.

Implements FIFE::IPather.

Definition at line 135 of file routepather.cpp.

References addSessionId(), FIFE::RoutePatherSearch::calcPath(), FIFE::CellCache::getCell(), FIFE::Layer::getCellCache(), FIFE::Route::getEndNode(), FIFE::Location::getLayer(), FIFE::Location::getLayerCoordinates(), FIFE::Route::getLimitedAreas(), FIFE::Cell::getNeighbors(), FIFE::RoutePatherSearch::getSearchStatus(), FIFE::Route::getSessionId(), FIFE::Route::getStartNode(), FIFE::Cell::getZone(), FIFE::Route::isAreaLimited(), FIFE::CellCache::isCellInArea(), FIFE::CellCache::isInCellCache(), FIFE::Cell::isZoneProtected(), locationsEqual(), m_sessions, makeSessionId(), FIFE::PriorityQueue< index_type, priority_type >::pushElement(), FIFE::ROUTE_FAILED, FIFE::ROUTE_SOLVED, FIFE::RoutePatherSearch::search_status_complete, FIFE::RoutePatherSearch::search_status_failed, sessionIdValid(), FIFE::Route::setRouteStatus(), FIFE::Route::setSessionId(), and FIFE::RoutePatherSearch::updateSearch().

Referenced by createRoute(), and RoutePather().

Here is the caller graph for this function:

◆ update()

void FIFE::RoutePather::update ( )

virtual

Updates the route pather.

Advances the active search by so many time steps. If the search completes then this function pops it from the active session list and continues updating the next session until it runs out of time.

See also: setMaxTicks()

Implements FIFE::IPather.

Definition at line 57 of file routepather.cpp.

References FIFE::RoutePatherSearch::calcPath(), FIFE::PriorityQueue< index_type, priority_type >::empty(), FIFE::PriorityQueue< index_type, priority_type >::getPriorityElement(), FIFE::RoutePatherSearch::getRoute(), FIFE::Route::getRouteStatus(), FIFE::RoutePatherSearch::getSearchStatus(), FIFE::RoutePatherSearch::getSessionId(), invalidateSessionId(), m_maxTicks, m_sessions, FIFE::PriorityQueue< index_type, priority_type >::popElement(), FIFE::ROUTE_SOLVED, FIFE::RoutePatherSearch::search_status_complete, FIFE::RoutePatherSearch::search_status_failed, sessionIdValid(), and FIFE::RoutePatherSearch::updateSearch().

Referenced by RoutePather().

Here is the caller graph for this function:

Member Data Documentation

◆ m_maxTicks

int32_t FIFE::RoutePather::m_maxTicks

private

The maximum number of ticks allowed.

Definition at line 173 of file routepather.h.

Referenced by getMaxTicks(), setMaxTicks(), and update().

◆ m_nextFreeSessionId

int32_t FIFE::RoutePather::m_nextFreeSessionId

private

The next free session id.

Definition at line 170 of file routepather.h.

Referenced by makeSessionId().

◆ m_registeredSessionIds

SessionList FIFE::RoutePather::m_registeredSessionIds

private

A list of session ids that have been registered.

Definition at line 167 of file routepather.h.

Referenced by addSessionId(), invalidateSessionId(), and sessionIdValid().

◆ m_sessions

SessionQueue FIFE::RoutePather::m_sessions

private

A map of currently running sessions (searches).

Definition at line 164 of file routepather.h.

Referenced by solveRoute(), and update().

The documentation for this class was generated from the following files:

engine/core/pathfinder/routepather/routepather.h
engine/core/pathfinder/routepather/routepather.cpp
