The vocal morpher consists of a pair of 4-band formant filters, used to impose vocal tract effects upon the input signal. More...

#include <soundeffect.h>

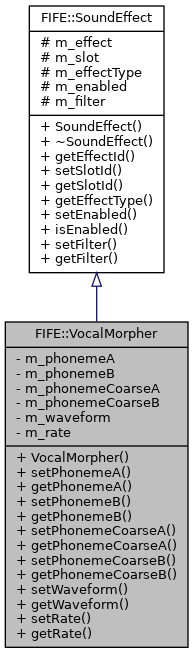

Inheritance diagram for FIFE::VocalMorpher:

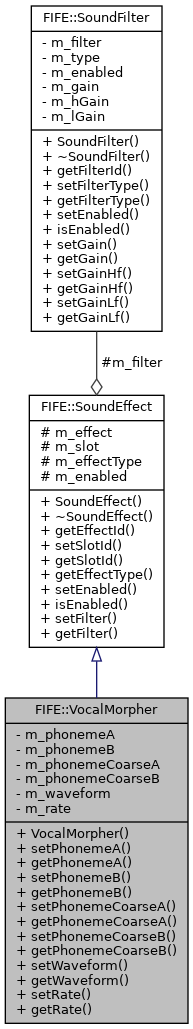

Collaboration diagram for FIFE::VocalMorpher:

Public Member Functions
	VocalMorpher ()
	Constructor. More...

void	setPhonemeA (uint16_t value)
	Sets phoneme A. More...

uint16_t	getPhonemeA () const
	Return phoneme A. More...

void	setPhonemeB (uint16_t value)
	Sets phoneme B. More...

uint16_t	getPhonemeB () const
	Return phoneme B. More...

void	setPhonemeCoarseA (int16_t value)
	Sets phoneme coarse A, used to adjust the pitch of phoneme filters A and B in 1-semitone increments. More...

int16_t	getPhonemeCoarseA () const
	Return phoneme coarse A. More...

void	setPhonemeCoarseB (int16_t value)
	Sets phoneme coarse B, used to adjust the pitch of phoneme filters A and B in 1-semitone increments. More...

int16_t	getPhonemeCoarseB () const
	Return phoneme coarse B. More...

void	setWaveform (uint8_t value)
	Sets waveform, the shape of the low-frequency oscillator used to morph between the two phoneme filters. More...

uint8_t	getWaveform () const
	Return waveform. More...

void	setRate (float value)
	Sets rate, the frequency of the low-frequency oscillator used to morph between the two phoneme filters. More...

float	getRate () const
	Return rate. More...

Public Member Functions inherited from FIFE::SoundEffect
	SoundEffect ()
	Constructor. More...

virtual	~SoundEffect ()
	Destructor. More...

ALuint	getEffectId () const
	Return the OpenAL effect handle. More...

void	setSlotId (ALuint slot)
	Sets the OpenAL auxiliary slot handle. More...

ALuint	getSlotId ()
	Return the OpenAL auxiliary slot handle. More...

SoundEffectType	getEffectType () const
	Return sound effect type. More...

void	setEnabled (bool enabled)
	Enables or disables the effect. More...

bool	isEnabled () const
	Return true if the effect is enabled, false otherwise. More...

void	setFilter (SoundFilter *filter)
	Sets the additional sound filter. More...

SoundFilter *	getFilter ()
	Return sound filter or NULL. More...

Private Attributes
uint16_t	m_phonemeA

uint16_t	m_phonemeB

int16_t	m_phonemeCoarseA

int16_t	m_phonemeCoarseB

uint8_t	m_waveform

float	m_rate

Additional Inherited Members
Protected Attributes inherited from FIFE::SoundEffect
ALuint	m_effect
	Effect object id. More...

ALuint	m_slot
	Effect slot id;. More...

SoundEffectType	m_effectType
	Sound effect type. More...

bool	m_enabled
	Effect enabled. More...

SoundFilter *	m_filter
	Additional filter effect. More...

Detailed Description

The vocal morpher consists of a pair of 4-band formant filters, used to impose vocal tract effects upon the input signal.

Phoneme values: 0=�A�, 1=�E�, 2="I", 3="O", 4="U", 5=�AA�, 6=�AE�, 7=�AH�, 8=�AO�, 9=�EH�, 10=�ER�, 11=�IH�, 12=�IY�, 13=�UH�, 14=�UW�, 15=�B�, 16=�D�, 17=�F�, 18=�G�, 19=�J�, 20=�K�, 21=�L�, 22=�M�, 23=�N�, 24=�P�, 25=�R�, 26=�S�, 27=�T�, 28=�V�, 29=�Z�

Definition at line 582 of file soundeffect.h.

Constructor & Destructor Documentation

◆ VocalMorpher()

FIFE::VocalMorpher::VocalMorpher ( )

Constructor.

Definition at line 587 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, FIFE::SoundEffect::m_effectType, and FIFE::SE_EFFECT_VOCAL_MORPHER.

Member Function Documentation

◆ getPhonemeA()

uint16_t FIFE::VocalMorpher::getPhonemeA ( ) const

Return phoneme A.

Definition at line 605 of file soundeffect.cpp.

References m_phonemeA.

◆ getPhonemeB()

uint16_t FIFE::VocalMorpher::getPhonemeB ( ) const

Return phoneme B.

Definition at line 616 of file soundeffect.cpp.

References m_phonemeB.

◆ getPhonemeCoarseA()

int16_t FIFE::VocalMorpher::getPhonemeCoarseA ( ) const

Return phoneme coarse A.

Definition at line 627 of file soundeffect.cpp.

References m_phonemeCoarseA.

◆ getPhonemeCoarseB()

int16_t FIFE::VocalMorpher::getPhonemeCoarseB ( ) const

Return phoneme coarse B.

Definition at line 638 of file soundeffect.cpp.

References m_phonemeCoarseB.

◆ getRate()

float FIFE::VocalMorpher::getRate ( ) const

Return rate.

Definition at line 660 of file soundeffect.cpp.

References m_rate.

◆ getWaveform()

uint8_t FIFE::VocalMorpher::getWaveform ( ) const

Return waveform.

Definition at line 649 of file soundeffect.cpp.

References m_waveform.

◆ setPhonemeA()

void FIFE::VocalMorpher::setPhonemeA ( uint16_t value )

Sets phoneme A.

Parameters

value Range 0 to 29, default 0.

Definition at line 598 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_phonemeA.

◆ setPhonemeB()

void FIFE::VocalMorpher::setPhonemeB ( uint16_t value )

Sets phoneme B.

Parameters

value Range 0 to 29, default 10.

Definition at line 609 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_phonemeB.

◆ setPhonemeCoarseA()

void FIFE::VocalMorpher::setPhonemeCoarseA ( int16_t value )

Sets phoneme coarse A, used to adjust the pitch of phoneme filters A and B in 1-semitone increments.

Parameters

value Range -24 to 24, default 0.

Definition at line 620 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_phonemeCoarseA.

◆ setPhonemeCoarseB()

void FIFE::VocalMorpher::setPhonemeCoarseB ( int16_t value )

Sets phoneme coarse B, used to adjust the pitch of phoneme filters A and B in 1-semitone increments.

Parameters

value Range -24 to 24, default 0.

Definition at line 631 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_phonemeCoarseB.

◆ setRate()

void FIFE::VocalMorpher::setRate ( float value )

Sets rate, the frequency of the low-frequency oscillator used to morph between the two phoneme filters.

Parameters

value Range 0.0 to 10.0, dfault 1.41.

Definition at line 653 of file soundeffect.cpp.

References FIFE::alEffectf, FIFE::SoundEffect::m_effect, and m_rate.

◆ setWaveform()

void FIFE::VocalMorpher::setWaveform ( uint8_t value )

Sets waveform, the shape of the low-frequency oscillator used to morph between the two phoneme filters.

Parameters

value Range 0 to 2, default 0. 0=sin, 1=tri, 2=saw.

Definition at line 642 of file soundeffect.cpp.

References FIFE::alEffecti, FIFE::SoundEffect::m_effect, and m_waveform.

Member Data Documentation

◆ m_phonemeA

uint16_t FIFE::VocalMorpher::m_phonemeA

private

Definition at line 647 of file soundeffect.h.

Referenced by getPhonemeA(), and setPhonemeA().

◆ m_phonemeB

uint16_t FIFE::VocalMorpher::m_phonemeB

private

Definition at line 648 of file soundeffect.h.

Referenced by getPhonemeB(), and setPhonemeB().

◆ m_phonemeCoarseA

int16_t FIFE::VocalMorpher::m_phonemeCoarseA

private

Definition at line 649 of file soundeffect.h.

Referenced by getPhonemeCoarseA(), and setPhonemeCoarseA().

◆ m_phonemeCoarseB

int16_t FIFE::VocalMorpher::m_phonemeCoarseB

private

Definition at line 650 of file soundeffect.h.

Referenced by getPhonemeCoarseB(), and setPhonemeCoarseB().

◆ m_rate

float FIFE::VocalMorpher::m_rate

private

Definition at line 652 of file soundeffect.h.

Referenced by getRate(), and setRate().

◆ m_waveform

uint8_t FIFE::VocalMorpher::m_waveform

private

Definition at line 651 of file soundeffect.h.

Referenced by getWaveform(), and setWaveform().

The documentation for this class was generated from the following files:

engine/core/audio/effects/soundeffect.h
engine/core/audio/effects/soundeffect.cpp
