#include <renderitem.h>

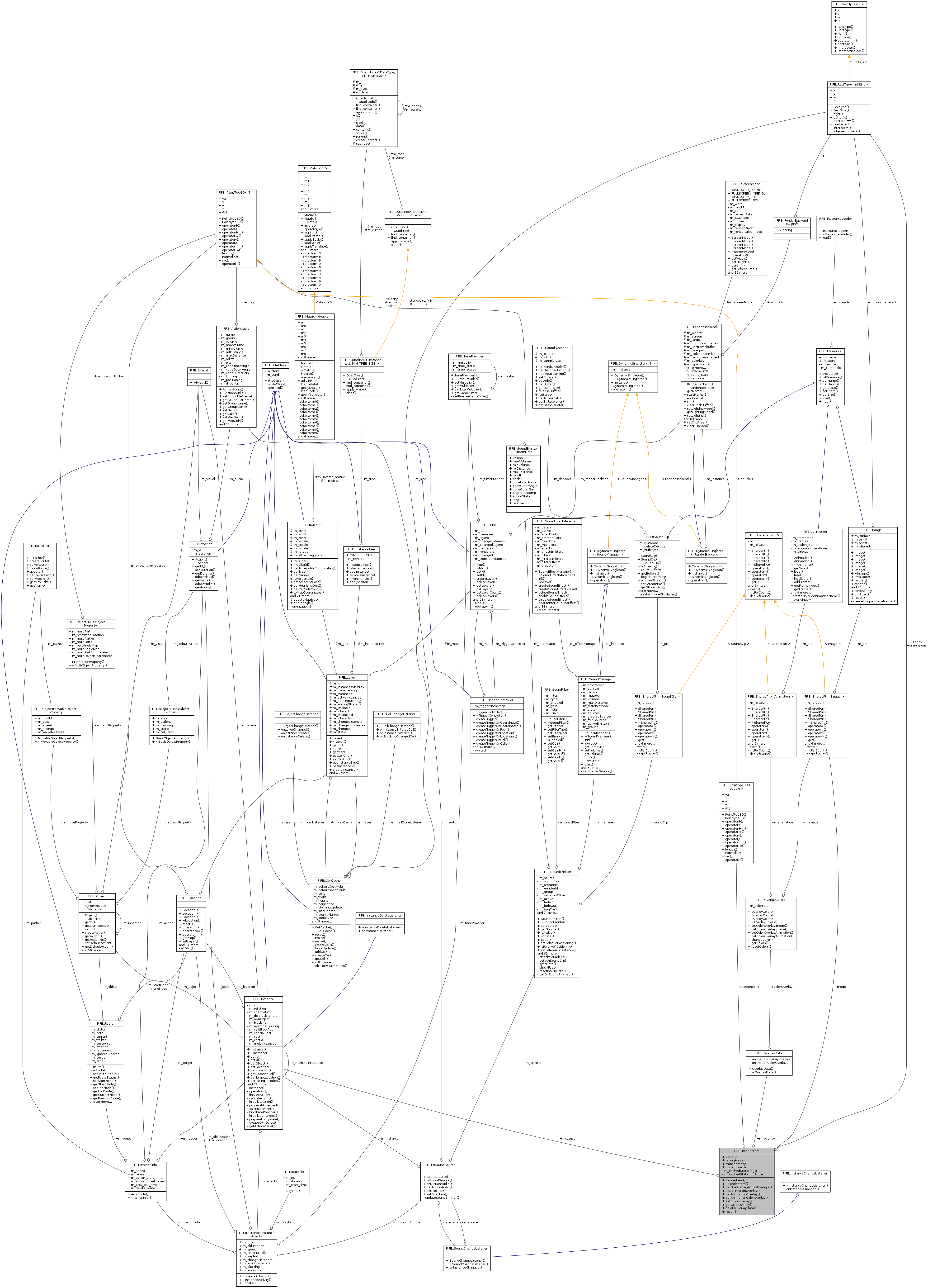

Collaboration diagram for FIFE::RenderItem:
Public Member Functions | |
| RenderItem (Instance *parent) | |
| ~RenderItem () | |
| int32_t | getStaticImageIndexByAngle (uint32_t angle, Instance *instance) |
| Returns closest matching static image for given angle. More... | |
| void | setAnimationOverlay (std::vector< ImagePtr > *ao, std::vector< OverlayColors *> *aco) |
| Sets AnimationOverlay and if available AnimationOverlayColors. More... | |
| std::vector< ImagePtr > * | getAnimationOverlay () const |
| Returns pointer to AnimationOverlay vector. More... | |
| std::vector< OverlayColors * > * | getAnimationColorOverlay () const |
| Returns pointer to AnimationColorOverlay vector. More... | |
| void | setColorOverlay (OverlayColors *co) |
| Sets single ColorOverlay. More... | |
| OverlayColors * | getColorOverlay () const |
| Returns pointer to single ColorOverlay. More... | |
| void | deleteOverlayData () |
| Deletes OverlayData. More... | |
| void | reset () |
| Resets the important values. More... | |
Public Attributes | |
| Instance * | instance |
| DoublePoint3D | screenpoint |
| Rect | bbox |
| Rect | dimensions |
| float | vertexZ |
| ImagePtr | image |
| int32_t | facingAngle |
| uint8_t | transparency |
| int32_t | currentFrame |
| OverlayData * | m_overlay |
Private Attributes | |
| int32_t | m_cachedStaticImgId |
| int32_t | m_cachedStaticImgAngle |
Detailed Description
Definition at line 54 of file renderitem.h.
Constructor & Destructor Documentation
◆ RenderItem()
| FIFE::RenderItem::RenderItem | ( | Instance * | parent | ) |
Definition at line 52 of file renderitem.cpp.
◆ ~RenderItem()
| FIFE::RenderItem::~RenderItem | ( | ) |
Definition at line 65 of file renderitem.cpp.
References m_overlay.
Member Function Documentation
◆ deleteOverlayData()
| void FIFE::RenderItem::deleteOverlayData | ( | ) |
Deletes OverlayData.
Definition at line 129 of file renderitem.cpp.
References m_overlay.
Referenced by reset(), and FIFE::LayerCache::updateVisual().
Here is the caller graph for this function:
◆ getAnimationColorOverlay()
| std::vector< OverlayColors * > * FIFE::RenderItem::getAnimationColorOverlay | ( | ) | const |
Returns pointer to AnimationColorOverlay vector.
Returns 0 if no OverlayData or AnimationColorOverlay exists.
Definition at line 108 of file renderitem.cpp.
References FIFE::OverlayData::animationColorOverlays, and m_overlay.
Referenced by FIFE::InstanceRenderer::renderOverlay().
Here is the caller graph for this function:
◆ getAnimationOverlay()
| std::vector< ImagePtr > * FIFE::RenderItem::getAnimationOverlay | ( | ) | const |
Returns pointer to AnimationOverlay vector.
Returns 0 if no OverlayData or AnimationOverlay exists.
Definition at line 101 of file renderitem.cpp.
References FIFE::OverlayData::animationOverlayImages, and m_overlay.
Referenced by FIFE::InstanceRenderer::bindMultiOutline(), FIFE::InstanceRenderer::bindOutline(), FIFE::Camera::getMatchingInstances(), and FIFE::InstanceRenderer::renderOverlay().
Here is the caller graph for this function:
◆ getColorOverlay()
| OverlayColors * FIFE::RenderItem::getColorOverlay | ( | ) | const |
Returns pointer to single ColorOverlay.
Returns 0 if no OverlayData or ColorOverlay exists.
Definition at line 122 of file renderitem.cpp.
References FIFE::OverlayData::colorOverlay, and m_overlay.
Referenced by FIFE::InstanceRenderer::getMultiColorOverlay(), and FIFE::InstanceRenderer::renderOverlay().

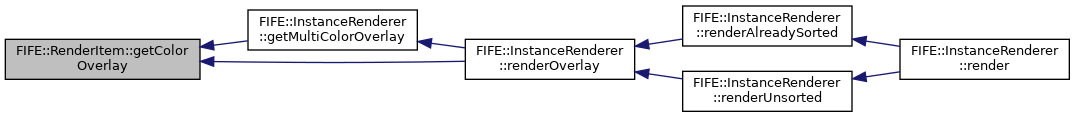

Here is the caller graph for this function:
◆ getStaticImageIndexByAngle()
| int32_t FIFE::RenderItem::getStaticImageIndexByAngle | ( | uint32_t | angle, |
| Instance * | instance | ||
| ) |
Returns closest matching static image for given angle.
- Returns
- id for static image
Definition at line 69 of file renderitem.cpp.
References FIFE::OverlayData::colorOverlay, FIFE::Instance::getObject(), FIFE::ObjectVisual::getStaticColorOverlay(), FIFE::ObjectVisual::getStaticImageIndexByAngle(), FIFE::Object::getVisual(), FIFE::ObjectVisual::isColorOverlay(), m_cachedStaticImgAngle, m_cachedStaticImgId, m_overlay, and FIFE::STATIC_IMAGE_NOT_INITIALIZED.
Referenced by FIFE::LayerCache::updateVisual().
Here is the caller graph for this function:
◆ reset()
| void FIFE::RenderItem::reset | ( | ) |
Resets the important values.
Definition at line 136 of file renderitem.cpp.
References currentFrame, deleteOverlayData(), dimensions, image, instance, m_cachedStaticImgId, FIFE::SharedPtr< T >::reset(), FIFE::STATIC_IMAGE_NOT_INITIALIZED, and transparency.
Referenced by FIFE::LayerCache::removeInstance().
Here is the caller graph for this function:
◆ setAnimationOverlay()
| void FIFE::RenderItem::setAnimationOverlay | ( | std::vector< ImagePtr > * | ao, |
| std::vector< OverlayColors *> * | aco | ||
| ) |
Sets AnimationOverlay and if available AnimationOverlayColors.
Note: Ownership of the vectors do change.
Definition at line 93 of file renderitem.cpp.
References FIFE::OverlayData::animationColorOverlays, FIFE::OverlayData::animationOverlayImages, and m_overlay.
Referenced by FIFE::LayerCache::updateVisual().
Here is the caller graph for this function:
◆ setColorOverlay()
| void FIFE::RenderItem::setColorOverlay | ( | OverlayColors * | co | ) |
Sets single ColorOverlay.
Note: Ownership does not change.
Definition at line 115 of file renderitem.cpp.
References FIFE::OverlayData::colorOverlay, and m_overlay.
Referenced by FIFE::LayerCache::updateVisual().
Here is the caller graph for this function:
Member Data Documentation
◆ bbox
| Rect FIFE::RenderItem::bbox |
Definition at line 103 of file renderitem.h.
Referenced by FIFE::LayerCache::updatePosition(), and FIFE::LayerCache::updateScreenCoordinate().
◆ currentFrame
| int32_t FIFE::RenderItem::currentFrame |
Definition at line 121 of file renderitem.h.
Referenced by reset(), and FIFE::LayerCache::updateVisual().
◆ dimensions
| Rect FIFE::RenderItem::dimensions |
Definition at line 106 of file renderitem.h.
Referenced by FIFE::Camera::getMatchingInstances(), FIFE::InstanceRenderer::renderAlreadySorted(), FIFE::InstanceRenderer::renderOverlay(), FIFE::InstanceRenderer::renderUnsorted(), reset(), FIFE::LayerCache::update(), FIFE::LayerCache::updateEntries(), and FIFE::LayerCache::updateScreenCoordinate().
◆ facingAngle
| int32_t FIFE::RenderItem::facingAngle |
Definition at line 115 of file renderitem.h.
Referenced by FIFE::LayerCache::updateVisual().
◆ image
| ImagePtr FIFE::RenderItem::image |
Definition at line 112 of file renderitem.h.
Referenced by FIFE::InstanceRenderer::bindColoring(), FIFE::InstanceRenderer::bindOutline(), FIFE::Camera::getMatchingInstances(), FIFE::InstanceRenderer::renderAlreadySorted(), FIFE::InstanceRenderer::renderOverlay(), FIFE::InstanceRenderer::renderUnsorted(), reset(), FIFE::LayerCache::update(), FIFE::LayerCache::updateEntries(), FIFE::LayerCache::updatePosition(), and FIFE::LayerCache::updateVisual().
◆ instance
| Instance* FIFE::RenderItem::instance |
Definition at line 58 of file renderitem.h.
Referenced by FIFE::InstanceDistanceSortCamera::operator()(), FIFE::InstanceDistanceSortLocation::operator()(), FIFE::InstanceDistanceSortCameraAndLocation::operator()(), FIFE::InstanceRenderer::renderOverlay(), FIFE::InstanceRenderer::renderUnsorted(), reset(), FIFE::LayerCache::updateEntries(), FIFE::LayerCache::updatePosition(), and FIFE::LayerCache::updateVisual().
◆ m_cachedStaticImgAngle
|
private |
Definition at line 127 of file renderitem.h.
Referenced by getStaticImageIndexByAngle().
◆ m_cachedStaticImgId
|
private |
Definition at line 126 of file renderitem.h.
Referenced by getStaticImageIndexByAngle(), and reset().
◆ m_overlay
| OverlayData* FIFE::RenderItem::m_overlay |
Definition at line 124 of file renderitem.h.
Referenced by deleteOverlayData(), getAnimationColorOverlay(), getAnimationOverlay(), getColorOverlay(), getStaticImageIndexByAngle(), FIFE::InstanceRenderer::renderAlreadySorted(), FIFE::InstanceRenderer::renderUnsorted(), setAnimationOverlay(), setColorOverlay(), and ~RenderItem().
◆ screenpoint
| DoublePoint3D FIFE::RenderItem::screenpoint |
Definition at line 100 of file renderitem.h.
Referenced by FIFE::InstanceDistanceSortCamera::operator()(), FIFE::InstanceDistanceSortCameraAndLocation::operator()(), FIFE::InstanceRenderer::renderAlreadySorted(), FIFE::InstanceRenderer::renderUnsorted(), FIFE::LayerCache::updatePosition(), and FIFE::LayerCache::updateScreenCoordinate().
◆ transparency
| uint8_t FIFE::RenderItem::transparency |
Definition at line 118 of file renderitem.h.
Referenced by FIFE::InstanceRenderer::renderAlreadySorted(), FIFE::InstanceRenderer::renderOverlay(), FIFE::InstanceRenderer::renderUnsorted(), reset(), and FIFE::LayerCache::updateVisual().
◆ vertexZ
| float FIFE::RenderItem::vertexZ |
Definition at line 109 of file renderitem.h.
Referenced by FIFE::InstanceRenderer::renderOverlay(), and FIFE::InstanceRenderer::renderUnsorted().
The documentation for this class was generated from the following files:
- engine/core/view/renderitem.h
- engine/core/view/renderitem.cpp
