The class for playing audio files. More...

#include <soundemitter.h>

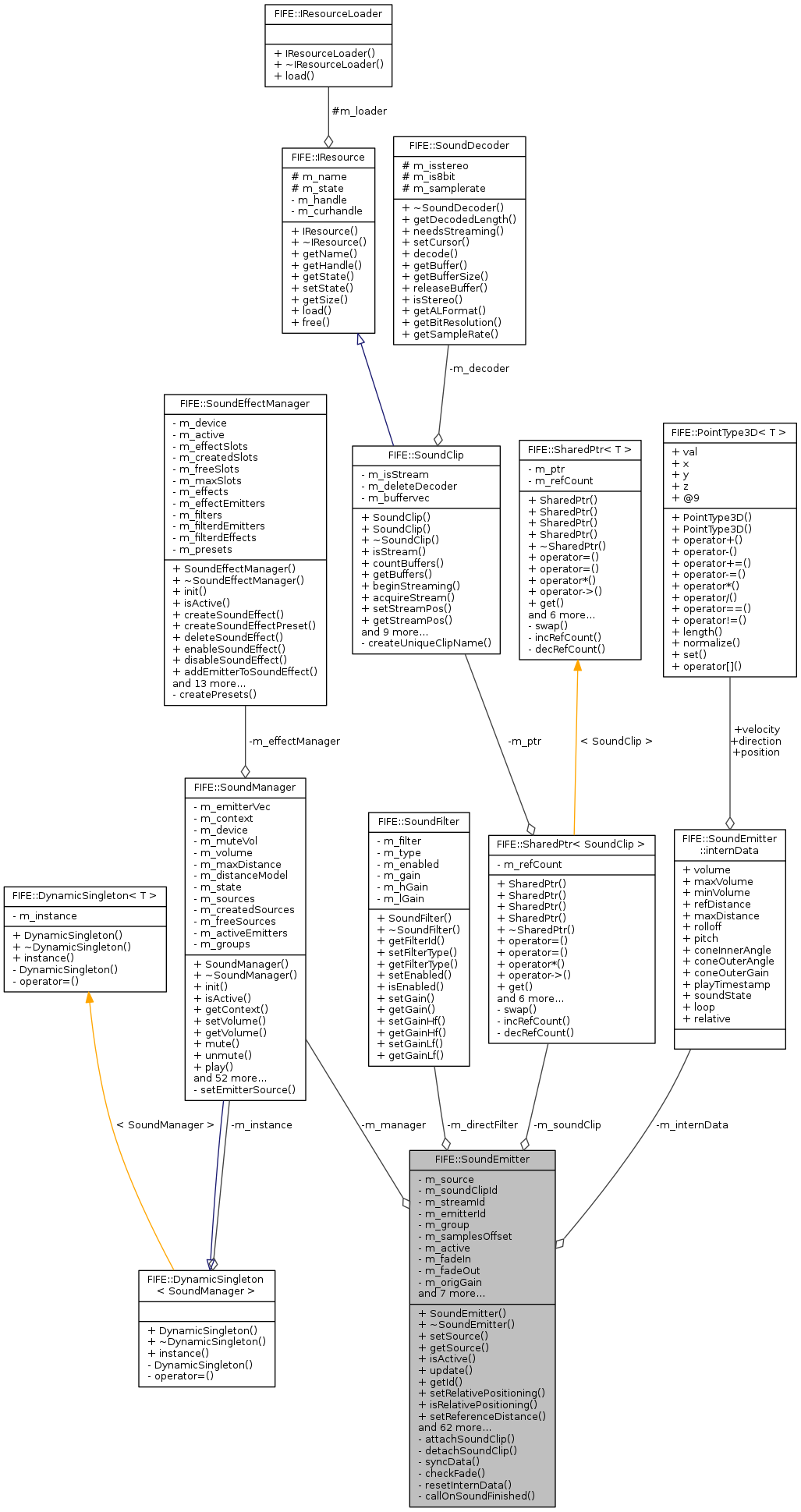

Collaboration diagram for FIFE::SoundEmitter:

Classes
struct	internData
	buffers OpenAL data More...

Public Member Functions
	SoundEmitter (SoundManager *manager, uint32_t uid)

	~SoundEmitter ()

void	setSource (ALuint source)
	Sets openAl-source. More...

ALuint	getSource () const
	Return openAl-source. More...

bool	isActive () const
	Return if the Emitter is active / have an openAl-source. More...

void	update ()
	Called once a frame from the SoundManager. More...

uint32_t	getId () const
	Returns the emitter-id. More...

void	setRelativePositioning (bool relative)
	Sets Positioning-Type Default is false. More...

bool	isRelativePositioning () const
	Return Positioning-Type. More...

void	setReferenceDistance (float distance)
	Sets the distance under which the volume for the SoundEmitter would normally drop by half (before being influenced by rolloff factor or max distance. More...

float	getReferenceDistance () const
	Return the reference distance. More...

void	setMaxDistance (float distance)
	Sets the max distance used with the Inverse Clamped Distance Model to set the distance where there will no longer be any attenuation of the source. More...

float	getMaxDistance () const
	Return the max distance. More...

void	setRolloff (float rolloff)
	Sets the AL_ROLEOFF_FACTOR. More...

float	getRolloff () const
	Return the AL_ROLEOFF_FACTOR. More...

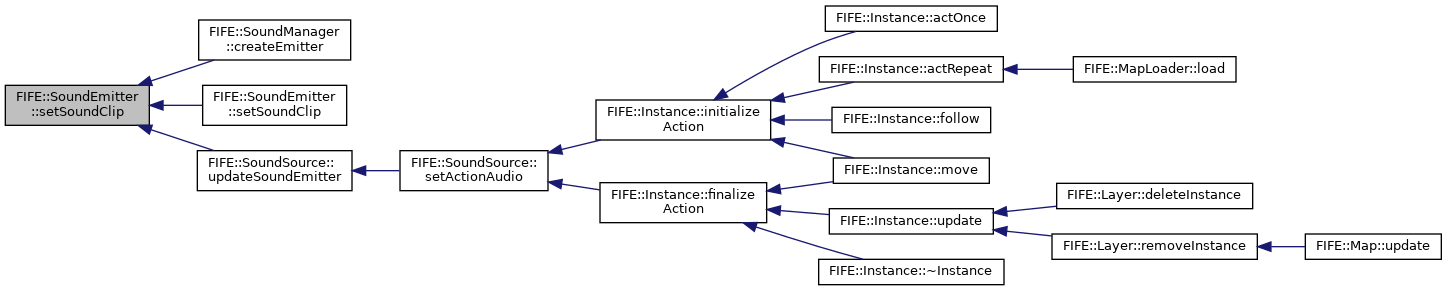

void	setSoundClip (SoundClipPtr soundClip)
	Sets the sound clip to be used by this emitter. More...

SoundClipPtr	getSoundClip ()
	Get the current sound clip used by this emitter. More...

void	setSoundClip (const std::string &name)
	Sets the sound clip to be used by this emitter. More...

void	reset (bool defaultall=false)
	Reset the emitter, free all internal buffers. More...

void	release ()
	Releases the emitter. More...

void	setLooping (bool loop)
	Sets the playing mode. More...

bool	isLooping () const
	Return playing mode. More...

void	play ()
	Plays the associated audio file. More...

void	play (float inTime, float outTime)
	Plays the associated audio file with fade in and / or out. More...

void	stop ()
	Stops playing the audio file and rewinds to the beginning. More...

void	stop (float time)
	Stops playing the audio file after time with fade out. More...

void	pause ()
	Pauses playing the audio file. More...

void	rewind ()
	Rewinds the associated audio file. More...

void	setGain (float gain)
	Sets the gain of the emitter. More...

float	getGain () const
	Returns the gain of the emitter. More...

void	setMaxGain (float gain)
	Sets the max. More...

float	getMaxGain () const
	Returns the max. More...

void	setMinGain (float gain)
	Sets the min. More...

float	getMinGain () const
	Returns the min. More...

bool	isStereo ()
	Tests if the audio data is stereo data or mono. More...

int16_t	getBitResolution ()
	Returns the bit resolution. More...

uint64_t	getSampleRate ()
	Returns the sample rate. More...

uint64_t	getDecodedLength ()
	Returns the length of the decoded length in bytes. More...

uint64_t	getDuration ()
	Returns the duration of the sound clip in milliseconds. More...

uint32_t	getPlayTimestamp ()
	Returns timestamp of the last play start in milliseconds. More...

bool	isFinished ()
	Returns true if clip is finished. More...

void	setCursor (SoundPositionType type, float value)
	Sets the cursor position in the audio file. More...

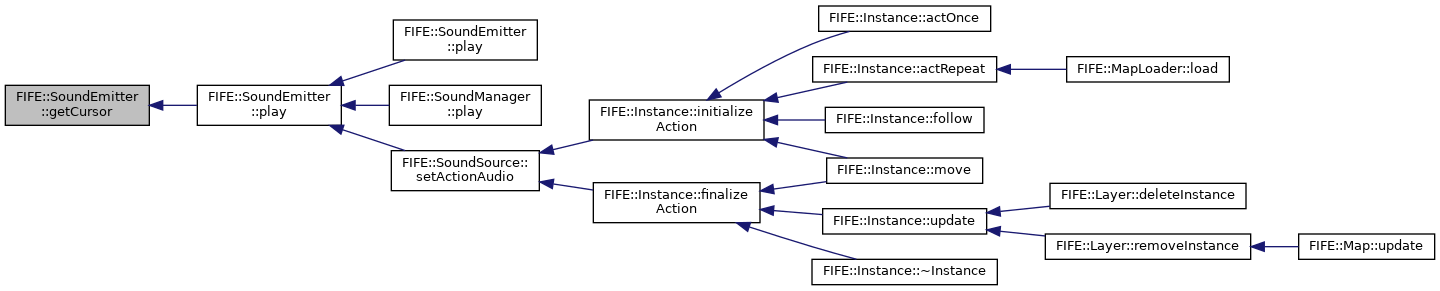

float	getCursor (SoundPositionType type)
	Returns the cursor position in the audio file. More...

void	setPosition (const AudioSpaceCoordinate &position)
	Sets the position of the SoundEmitter in the virtual audio space. More...

AudioSpaceCoordinate	getPosition () const
	Return the position of the SoundEmitter in the virtual audio space. More...

bool	isPosition () const
	Return if it is a positional SoundEmitter. More...

void	setDirection (const AudioSpaceCoordinate &direction)
	Sets the direction of the SoundEmitter in the virtual audio space. More...

AudioSpaceCoordinate	getDirection () const
	Return the direction of the SoundEmitter in the virtual audio space. More...

void	setPitch (float pitch)
	Sets pitch multiplier. More...

float	getPitch () const
	Return pitch multiplier. More...

void	setVelocity (const AudioSpaceCoordinate &velocity)
	Sets the velocity of the SoundEmitter in the virtual audio space. More...

AudioSpaceCoordinate	getVelocity () const
	Return the velocity of the SoundEmitter in the virtual audio space. More...

void	setConeInnerAngle (float inner)
	Sets inner angle of the sound cone, in degrees. More...

float	getConeInnerAngle () const
	Return inner angle of the sound cone, in degrees. More...

void	setConeOuterAngle (float outer)
	Sets outer angle of the sound cone, in degrees. More...

float	getConeOuterAngle () const
	Return outer angle of the sound cone, in degrees. More...

void	setConeOuterGain (float gain)
	Sets the gain when outside the oriented cone. More...

float	getConeOuterGain () const
	Return the gain when outside the oriented cone. More...

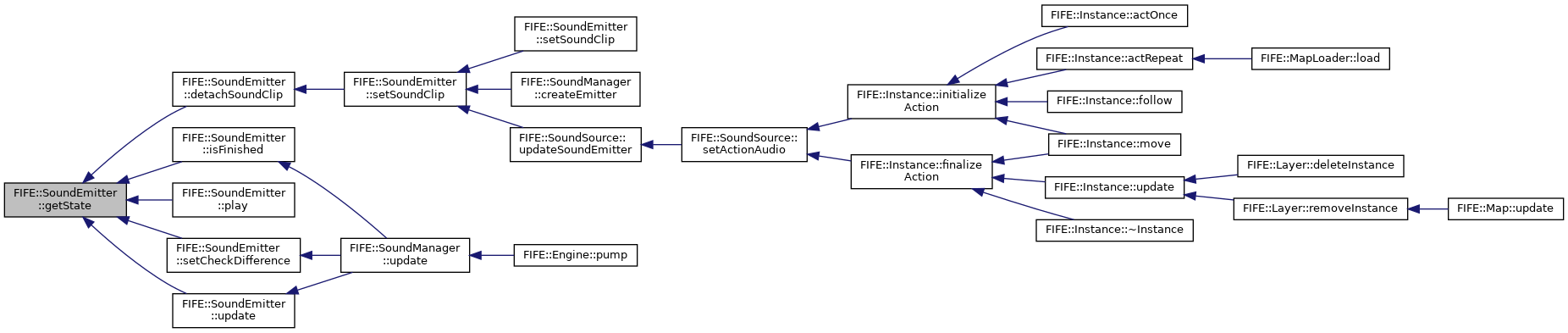

SoundStateType	getState ()
	Returns the state of the audio file. More...

void	setGroup (const std::string &group)
	Sets the group name. More...

const std::string &	getGroup ()
	Return the group name. More...

void	addEffect (SoundEffect *effect)
	Adds effect. More...

void	removeEffect (SoundEffect *effect)
	Removes effect. More...

uint8_t	getEffectCount ()
	Return the number of effects. More...

uint8_t	getEffectNumber (SoundEffect *effect)
	Return the number of the given effect. More...

void	setDirectFilter (SoundFilter *filter)
	Sets the direct filter. More...

SoundFilter *	getDirectFilter ()
	Return the direct filter. More...

void	activateEffects ()
	Activates effects if the Emitter got the openAL-source. More...

void	deactivateEffects ()
	Deactivates effects if the Emitter loses the openAL-source. More...

void	setCheckDifference ()
	Sets the time difference between play and the first check if it's playable. More...

void	addListener (SoundEmitterListener *listener)
	Adds new SoundEmitter listener. More...

void	removeListener (SoundEmitterListener *listener)
	Removes associated SoundEmitter listener. More...

Private Member Functions
void	attachSoundClip ()
	Internal function to attach a SoundClip to the source. More...

void	detachSoundClip ()
	Internal function to detach a SoundClip from the source. More...

void	syncData ()
	Updates OpenAL with collected data. More...

void	checkFade ()
	Updates fade in and out. More...

void	resetInternData ()
	Resets collected data to defaults. More...

void	callOnSoundFinished ()
	Calls the Listeners if a sound finished. More...

Private Attributes
SoundManager *	m_manager
	Access to the SoundManager. More...

ALuint	m_source
	The openAL-source. More...

SoundFilter *	m_directFilter
	Applied direct sound filter. More...

SoundClipPtr	m_soundClip
	The attached sound clip. More...

uint32_t	m_soundClipId
	Id of the attached sound clip. More...

uint32_t	m_streamId
	The id of the stream. More...

uint32_t	m_emitterId
	The emitter-id. More...

struct FIFE::SoundEmitter::internData	m_internData

std::string	m_group
	the group name More...

float	m_samplesOffset
	saves sample offset for played stream parts More...

bool	m_active
	is active More...

bool	m_fadeIn
	fade in clip More...

bool	m_fadeOut
	fade out clip More...

float	m_origGain
	original gain More...

uint32_t	m_fadeInStartTimestamp
	fade in start time More...

uint32_t	m_fadeInEndTimestamp
	fade in end time More...

uint32_t	m_fadeOutStartTimestamp
	fade out start time More...

uint32_t	m_fadeOutEndTimestamp
	fade out end time More...

uint32_t	m_playCheckDifference
	time difference between play and first check More...

std::vector< SoundEffect * >	m_effects
	holds pointer to applied SoundEffects More...

std::vector< SoundEmitterListener * >	m_listeners
	listeners for sound related events More...

Detailed Description

The class for playing audio files.

Definition at line 70 of file soundemitter.h.

Constructor & Destructor Documentation

◆ SoundEmitter()

FIFE::SoundEmitter::SoundEmitter	(	SoundManager *	manager,
		uint32_t	uid
	)

Definition at line 44 of file soundemitter.cpp.

References FIFE::SoundManager::isActive(), m_manager, and resetInternData().

◆ ~SoundEmitter()

FIFE::SoundEmitter::~SoundEmitter ( )

Definition at line 71 of file soundemitter.cpp.

References FIFE::SoundManager::isActive(), m_manager, and reset().

Member Function Documentation

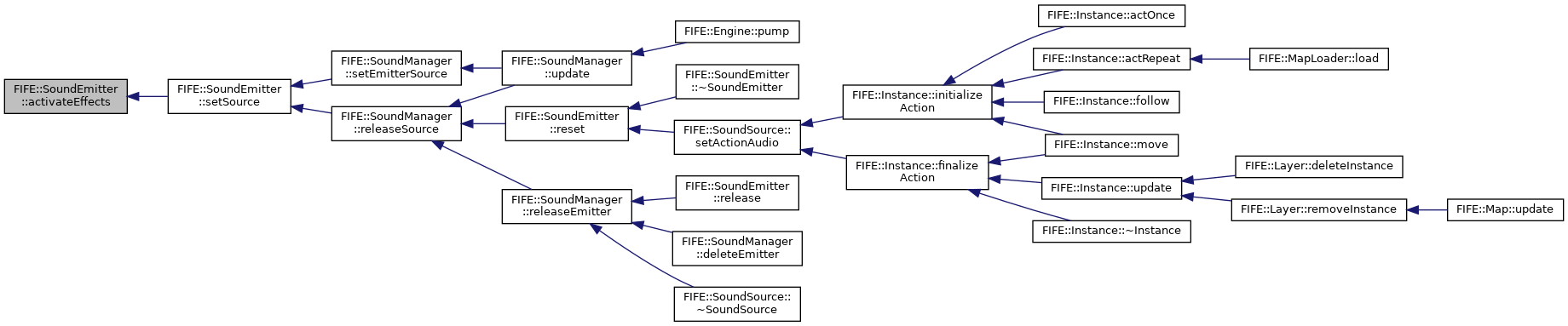

◆ activateEffects()

void FIFE::SoundEmitter::activateEffects ( )

Activates effects if the Emitter got the openAL-source.

Definition at line 853 of file soundemitter.cpp.

References FIFE::SoundManager::activateEffect(), FIFE::SoundManager::activateFilter(), m_directFilter, m_effects, and m_manager.

Referenced by setSource().

Here is the caller graph for this function:

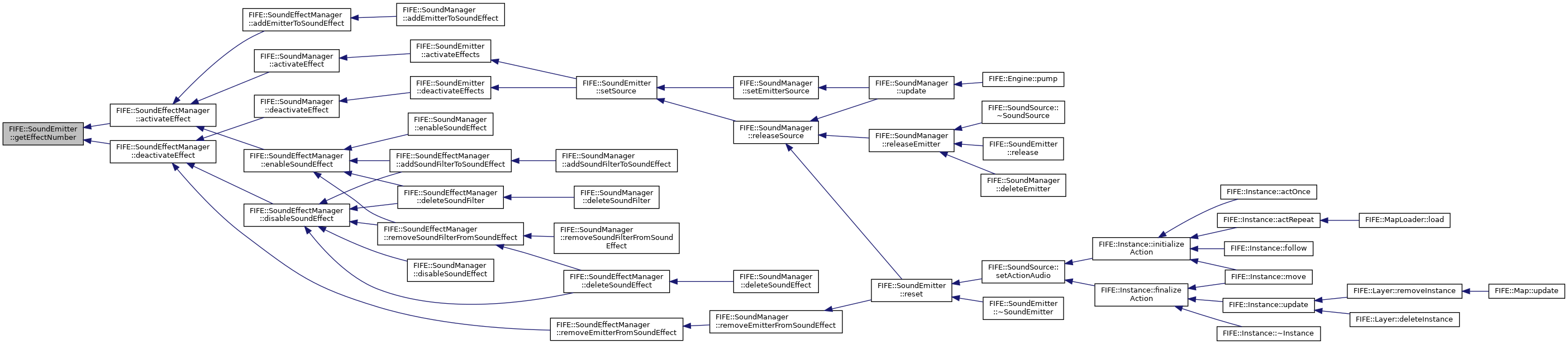

◆ addEffect()

void FIFE::SoundEmitter::addEffect ( SoundEffect * effect )

Adds effect.

Used from SoundEffectManager.

Definition at line 801 of file soundemitter.cpp.

References m_effects.

Referenced by FIFE::SoundEffectManager::addEmitterToSoundEffect().

Here is the caller graph for this function:

◆ addListener()

void FIFE::SoundEmitter::addListener ( SoundEmitterListener * listener )

Adds new SoundEmitter listener.

Parameters

listener to add

Definition at line 881 of file soundemitter.cpp.

References m_listeners.

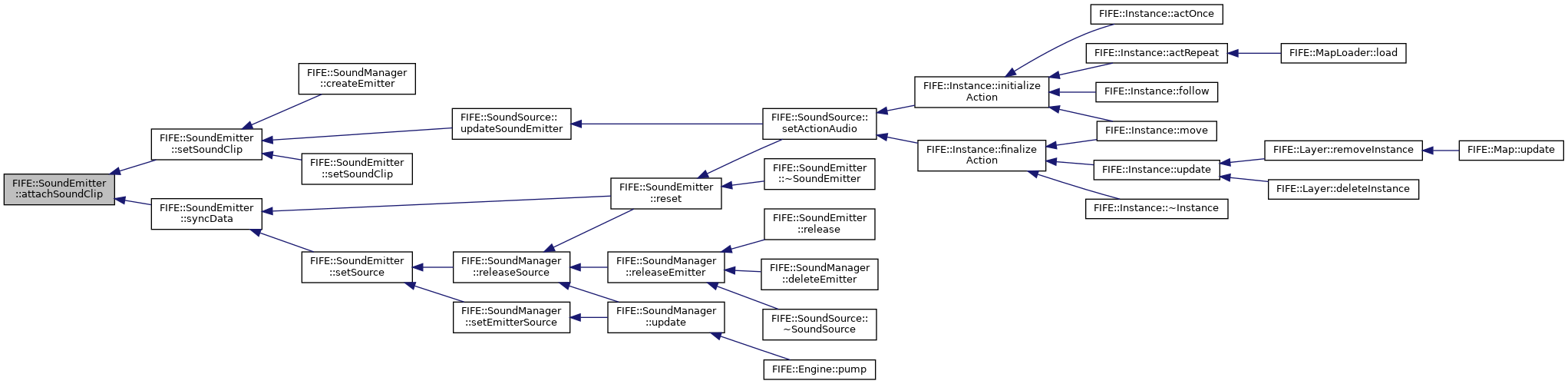

◆ attachSoundClip()

void FIFE::SoundEmitter::attachSoundClip ( )

private

Internal function to attach a SoundClip to the source.

Definition at line 283 of file soundemitter.cpp.

References FIFE::_log, FIFE::SoundClip::acquireStream(), FIFE::SoundClip::beginStreaming(), FIFE::BUFFER_NUM, CHECK_OPENAL_LOG, FIFE::SoundClip::countBuffers(), FIFE::SoundClip::getBuffers(), isActive(), FIFE::SoundClip::isStream(), FIFE::LogManager::LEVEL_ERROR, FIFE::SoundEmitter::internData::loop, m_internData, m_soundClip, m_source, and m_streamId.

Referenced by setSoundClip(), and syncData().

Here is the caller graph for this function:

◆ callOnSoundFinished()

void FIFE::SoundEmitter::callOnSoundFinished ( )

private

Calls the Listeners if a sound finished.

Definition at line 898 of file soundemitter.cpp.

References m_emitterId, m_listeners, and m_soundClipId.

Referenced by stop().

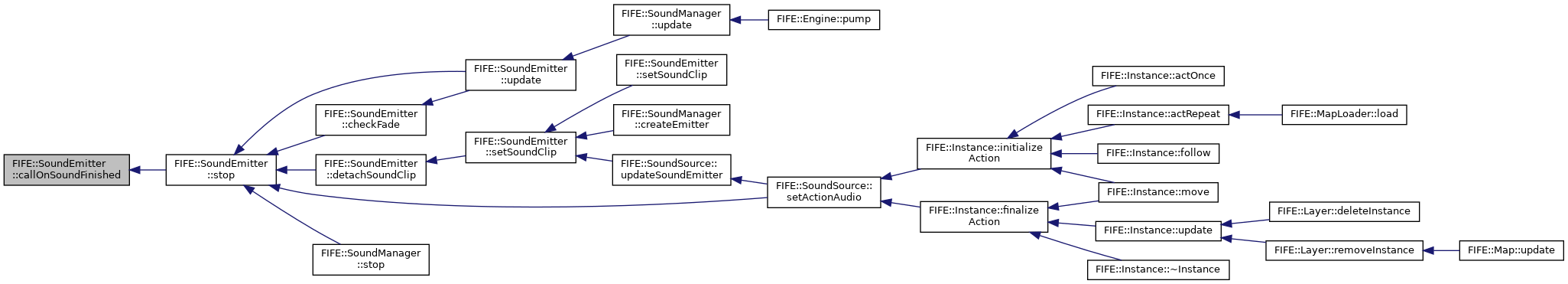

Here is the caller graph for this function:

◆ checkFade()

void FIFE::SoundEmitter::checkFade ( )

private

Updates fade in and out.

Definition at line 775 of file soundemitter.cpp.

References FIFE::TimeManager::getTime(), FIFE::DynamicSingleton< TimeManager >::instance(), m_fadeIn, m_fadeInEndTimestamp, m_fadeInStartTimestamp, m_fadeOut, m_fadeOutEndTimestamp, m_fadeOutStartTimestamp, m_origGain, setGain(), and stop().

Referenced by update().

Here is the caller graph for this function:

◆ deactivateEffects()

void FIFE::SoundEmitter::deactivateEffects ( )

Deactivates effects if the Emitter loses the openAL-source.

Definition at line 864 of file soundemitter.cpp.

References FIFE::SoundManager::deactivateEffect(), FIFE::SoundManager::deactivateFilter(), m_directFilter, m_effects, and m_manager.

Referenced by setSource().

Here is the caller graph for this function:

◆ detachSoundClip()

void FIFE::SoundEmitter::detachSoundClip ( )

private

Internal function to detach a SoundClip from the source.

Definition at line 307 of file soundemitter.cpp.

References FIFE::_log, CHECK_OPENAL_LOG, getState(), isActive(), FIFE::SoundClip::isStream(), FIFE::LogManager::LEVEL_ERROR, m_soundClip, m_soundClipId, m_source, m_streamId, FIFE::SoundClip::quitStreaming(), FIFE::SharedPtr< T >::reset(), FIFE::SD_PAUSED_STATE, FIFE::SD_PLAYING_STATE, and stop().

Referenced by setSoundClip().

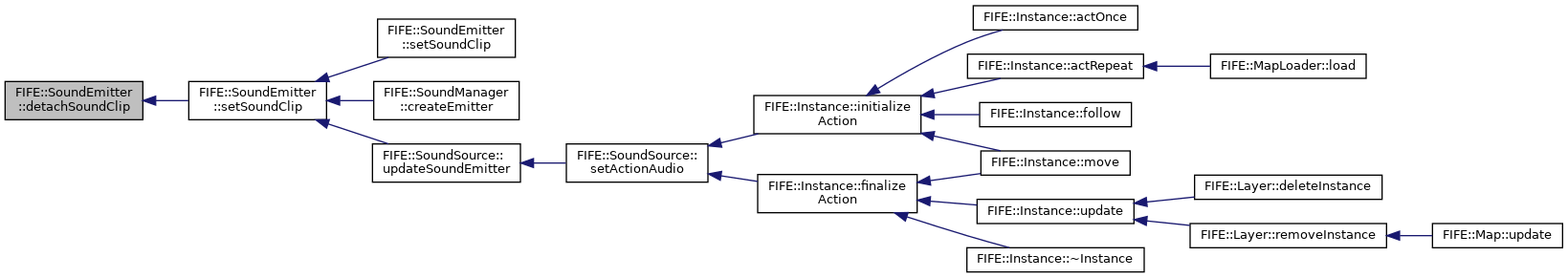

Here is the caller graph for this function:

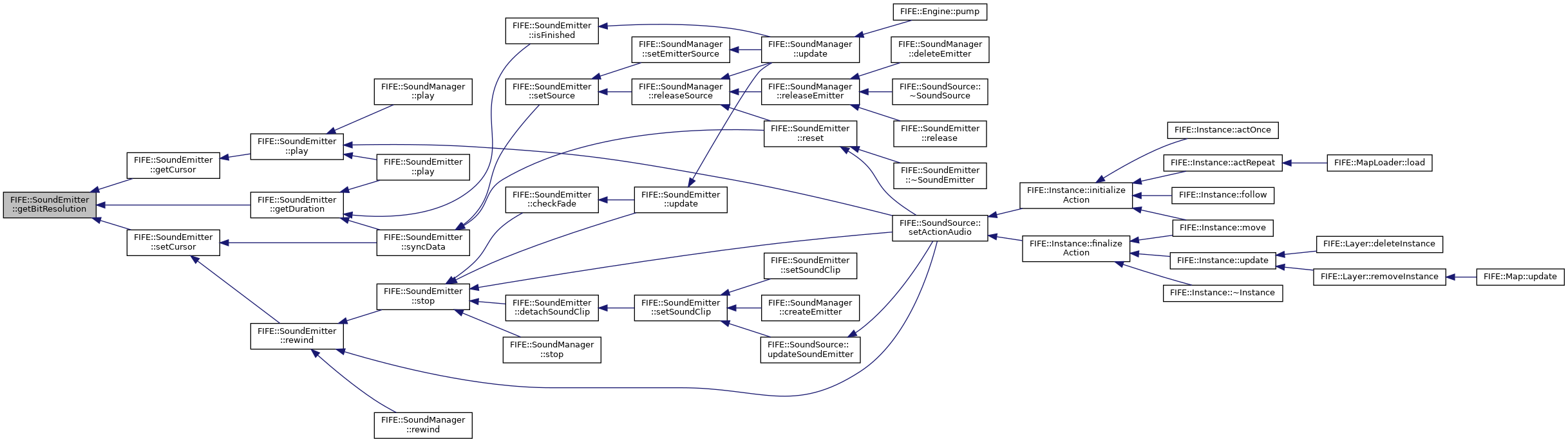

◆ getBitResolution()

int16_t FIFE::SoundEmitter::getBitResolution ( )

Returns the bit resolution.

Definition at line 454 of file soundemitter.cpp.

References FIFE::SoundDecoder::getBitResolution(), FIFE::SoundClip::getDecoder(), and m_soundClip.

Referenced by getCursor(), getDuration(), and setCursor().

Here is the caller graph for this function:

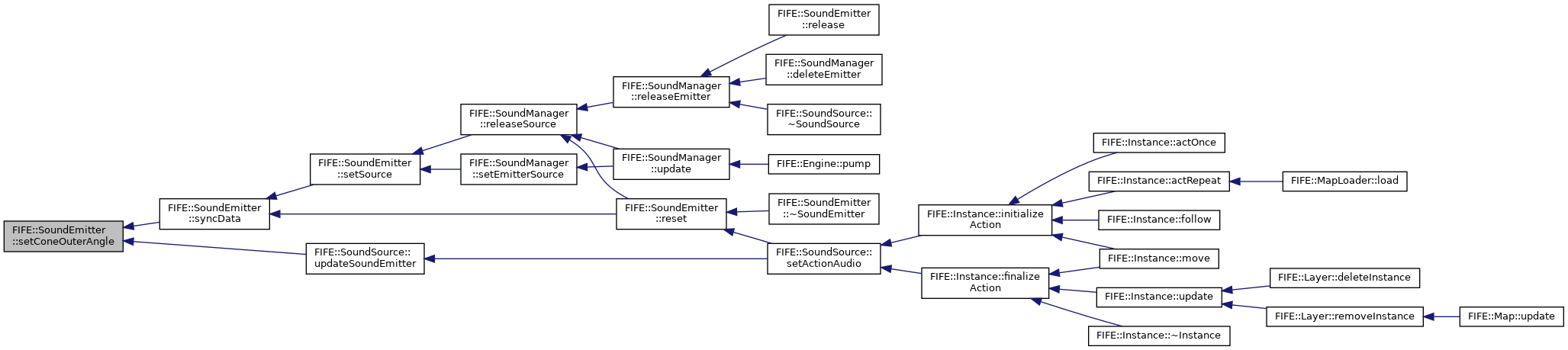

◆ getConeInnerAngle()

float FIFE::SoundEmitter::getConeInnerAngle ( ) const

Return inner angle of the sound cone, in degrees.

Definition at line 657 of file soundemitter.cpp.

References FIFE::SoundEmitter::internData::coneInnerAngle, and m_internData.

◆ getConeOuterAngle()

float FIFE::SoundEmitter::getConeOuterAngle ( ) const

Return outer angle of the sound cone, in degrees.

Definition at line 668 of file soundemitter.cpp.

References FIFE::SoundEmitter::internData::coneOuterAngle, and m_internData.

◆ getConeOuterGain()

float FIFE::SoundEmitter::getConeOuterGain ( ) const

Return the gain when outside the oriented cone.

Definition at line 679 of file soundemitter.cpp.

References FIFE::SoundEmitter::internData::coneOuterGain, and m_internData.

◆ getCursor()

float FIFE::SoundEmitter::getCursor ( SoundPositionType type )

Returns the cursor position in the audio file.

Definition at line 563 of file soundemitter.cpp.

References FIFE::_log, CHECK_OPENAL_LOG, getBitResolution(), getSampleRate(), isActive(), isStereo(), FIFE::SoundClip::isStream(), FIFE::LogManager::LEVEL_ERROR, m_samplesOffset, m_soundClip, m_source, FIFE::SD_BYTE_POS, FIFE::SD_SAMPLE_POS, and FIFE::SD_TIME_POS.

Referenced by play().

Here is the caller graph for this function:

◆ getDecodedLength()

uint64_t FIFE::SoundEmitter::getDecodedLength ( )

Returns the length of the decoded length in bytes.

Definition at line 468 of file soundemitter.cpp.

References FIFE::SoundDecoder::getDecodedLength(), FIFE::SoundClip::getDecoder(), and m_soundClip.

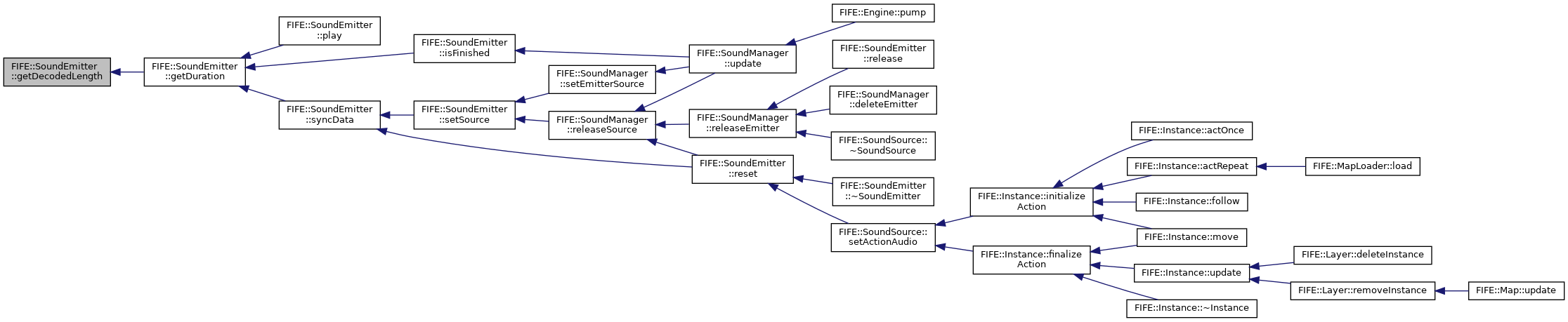

Referenced by getDuration().

Here is the caller graph for this function:

◆ getDirectFilter()

SoundFilter * FIFE::SoundEmitter::getDirectFilter ( )

Return the direct filter.

Used from SoundEffectManager.

Definition at line 849 of file soundemitter.cpp.

References m_directFilter.

Referenced by FIFE::SoundEffectManager::addEmitterToDirectSoundFilter().

Here is the caller graph for this function:

◆ getDirection()

AudioSpaceCoordinate FIFE::SoundEmitter::getDirection ( ) const

Return the direction of the SoundEmitter in the virtual audio space.

Definition at line 181 of file soundemitter.cpp.

References FIFE::SoundEmitter::internData::direction, and m_internData.

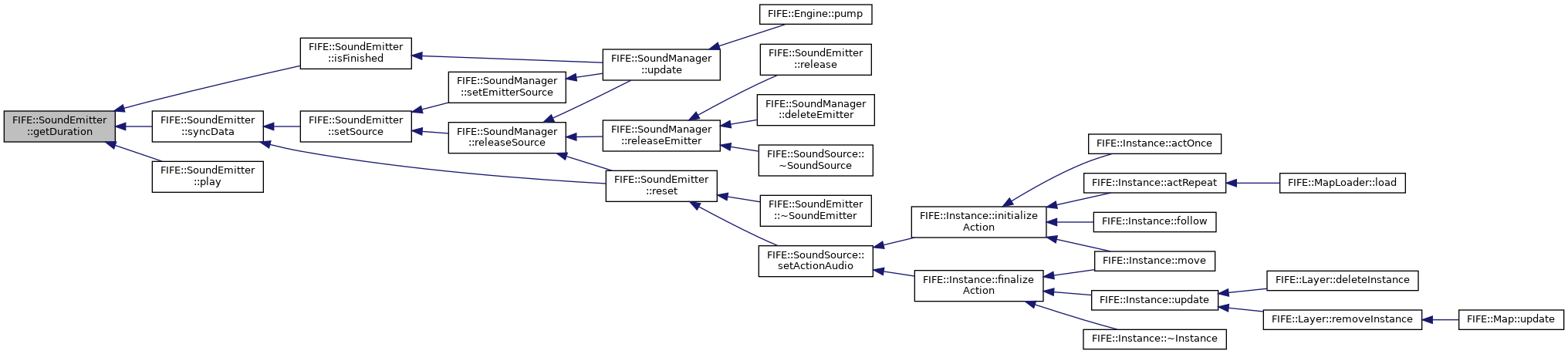

◆ getDuration()

uint64_t FIFE::SoundEmitter::getDuration ( )

Returns the duration of the sound clip in milliseconds.

Definition at line 475 of file soundemitter.cpp.

References getBitResolution(), getDecodedLength(), getSampleRate(), isStereo(), and m_soundClip.

Referenced by isFinished(), play(), and syncData().

Here is the caller graph for this function:

◆ getEffectCount()

uint8_t FIFE::SoundEmitter::getEffectCount ( )

Return the number of effects.

Used from SoundEffectManager.

Definition at line 824 of file soundemitter.cpp.

References m_effects.

Referenced by FIFE::SoundEffectManager::addEmitterToSoundEffect().

Here is the caller graph for this function:

◆ getEffectNumber()

uint8_t FIFE::SoundEmitter::getEffectNumber ( SoundEffect * effect )

Return the number of the given effect.

Used from SoundEffectManager.

Definition at line 834 of file soundemitter.cpp.

References m_effects.

Referenced by FIFE::SoundEffectManager::activateEffect(), and FIFE::SoundEffectManager::deactivateEffect().

Here is the caller graph for this function:

◆ getGain()

float FIFE::SoundEmitter::getGain ( ) const

Returns the gain of the emitter.

Returns: The gain value. 0=silence ... 1.0=normal loudness.

Definition at line 421 of file soundemitter.cpp.

References m_internData, and FIFE::SoundEmitter::internData::volume.

◆ getGroup()

const std::string & FIFE::SoundEmitter::getGroup ( )

Return the group name.

Definition at line 720 of file soundemitter.cpp.

References m_group.

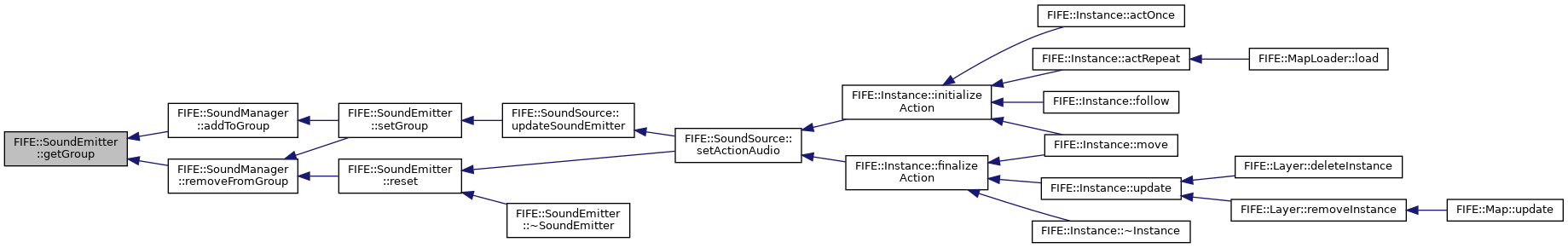

Referenced by FIFE::SoundManager::addToGroup(), and FIFE::SoundManager::removeFromGroup().

Here is the caller graph for this function:

◆ getId()

uint32_t FIFE::SoundEmitter::getId ( ) const

Returns the emitter-id.

Definition at line 158 of file soundemitter.cpp.

References m_emitterId.

Referenced by FIFE::SoundManager::deleteEmitter(), and FIFE::SoundSource::~SoundSource().

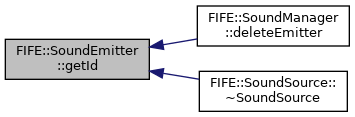

Here is the caller graph for this function:

◆ getMaxDistance()

float FIFE::SoundEmitter::getMaxDistance ( ) const

Return the max distance.

Definition at line 635 of file soundemitter.cpp.

References m_internData, and FIFE::SoundEmitter::internData::maxDistance.

◆ getMaxGain()

float FIFE::SoundEmitter::getMaxGain ( ) const

Returns the max.

gain of the emitter

Returns: The gain value. 0=silence ... 1.0=normal loudness.

Definition at line 432 of file soundemitter.cpp.

References m_internData, and FIFE::SoundEmitter::internData::maxVolume.

◆ getMinGain()

float FIFE::SoundEmitter::getMinGain ( ) const

Returns the min.

gain of the emitter

Returns: The gain value. 0=silence ... 1.0=normal loudness.

Definition at line 443 of file soundemitter.cpp.

References m_internData, and FIFE::SoundEmitter::internData::minVolume.

◆ getPitch()

float FIFE::SoundEmitter::getPitch ( ) const

Return pitch multiplier.

Can only be positiv.

Definition at line 194 of file soundemitter.cpp.

References m_internData, and FIFE::SoundEmitter::internData::pitch.

◆ getPlayTimestamp()

uint32_t FIFE::SoundEmitter::getPlayTimestamp ( )

Returns timestamp of the last play start in milliseconds.

Definition at line 490 of file soundemitter.cpp.

References m_internData, and FIFE::SoundEmitter::internData::playTimestamp.

◆ getPosition()

AudioSpaceCoordinate FIFE::SoundEmitter::getPosition ( ) const

Return the position of the SoundEmitter in the virtual audio space.

Definition at line 608 of file soundemitter.cpp.

References m_internData, and FIFE::SoundEmitter::internData::position.

Referenced by FIFE::SoundManager::update().

Here is the caller graph for this function:

◆ getReferenceDistance()

float FIFE::SoundEmitter::getReferenceDistance ( ) const

Return the reference distance.

Definition at line 624 of file soundemitter.cpp.

References m_internData, and FIFE::SoundEmitter::internData::refDistance.

◆ getRolloff()

float FIFE::SoundEmitter::getRolloff ( ) const

Return the AL_ROLEOFF_FACTOR.

Rolloff factor judges the strength of attenuation over distance.

Definition at line 205 of file soundemitter.cpp.

References m_internData, and FIFE::SoundEmitter::internData::rolloff.

◆ getSampleRate()

uint64_t FIFE::SoundEmitter::getSampleRate ( )

Returns the sample rate.

Definition at line 461 of file soundemitter.cpp.

References FIFE::SoundClip::getDecoder(), FIFE::SoundDecoder::getSampleRate(), and m_soundClip.

Referenced by getCursor(), getDuration(), and setCursor().

Here is the caller graph for this function:

◆ getSoundClip()

SoundClipPtr FIFE::SoundEmitter::getSoundClip ( )

Get the current sound clip used by this emitter.

Returns: A SoundClipPtr of the sound clip.

Definition at line 274 of file soundemitter.cpp.

References m_soundClip.

Referenced by FIFE::SoundManager::update().

Here is the caller graph for this function:

◆ getSource()

ALuint FIFE::SoundEmitter::getSource ( ) const

Return openAl-source.

Definition at line 99 of file soundemitter.cpp.

References m_source.

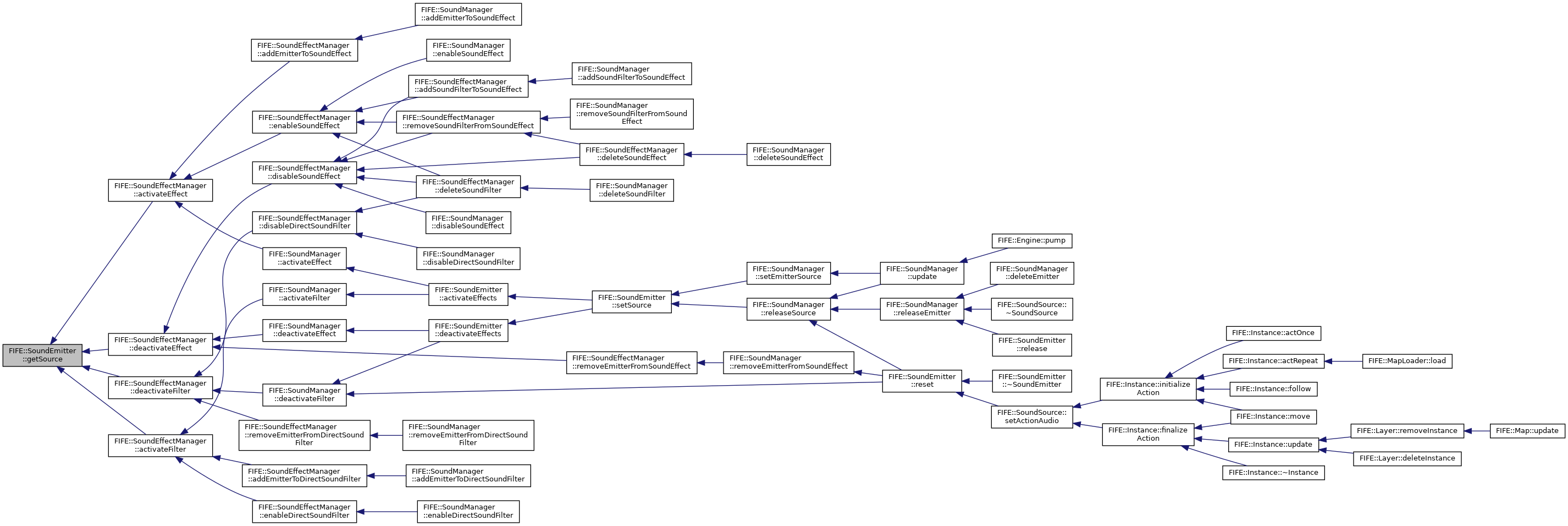

Referenced by FIFE::SoundEffectManager::activateEffect(), FIFE::SoundEffectManager::activateFilter(), FIFE::SoundEffectManager::deactivateEffect(), and FIFE::SoundEffectManager::deactivateFilter().

Here is the caller graph for this function:

◆ getState()

SoundStateType FIFE::SoundEmitter::getState ( )

Returns the state of the audio file.

Definition at line 683 of file soundemitter.cpp.

References isActive(), m_internData, m_source, FIFE::SD_INITIAL_STATE, FIFE::SD_PAUSED_STATE, FIFE::SD_PLAYING_STATE, FIFE::SD_STOPPED_STATE, FIFE::SD_UNKNOWN_STATE, and FIFE::SoundEmitter::internData::soundState.

Referenced by detachSoundClip(), isFinished(), play(), setCheckDifference(), and update().

Here is the caller graph for this function:

◆ getVelocity()

AudioSpaceCoordinate FIFE::SoundEmitter::getVelocity ( ) const

Return the velocity of the SoundEmitter in the virtual audio space.

Definition at line 646 of file soundemitter.cpp.

References m_internData, and FIFE::SoundEmitter::internData::velocity.

◆ isActive()

bool FIFE::SoundEmitter::isActive ( ) const

Return if the Emitter is active / have an openAl-source.

Definition at line 103 of file soundemitter.cpp.

References m_active.

Referenced by FIFE::SoundEffectManager::addEmitterToDirectSoundFilter(), attachSoundClip(), detachSoundClip(), getCursor(), getState(), isFinished(), pause(), play(), FIFE::SoundManager::releaseSource(), FIFE::SoundEffectManager::removeEmitterFromDirectSoundFilter(), FIFE::SoundEffectManager::removeEmitterFromSoundEffect(), reset(), rewind(), setConeInnerAngle(), setConeOuterAngle(), setConeOuterGain(), setCursor(), setDirection(), setGain(), setLooping(), setMaxDistance(), setMaxGain(), setMinGain(), setPitch(), setPosition(), setReferenceDistance(), setRelativePositioning(), setRolloff(), setVelocity(), stop(), syncData(), and FIFE::SoundManager::update().

Here is the caller graph for this function:

◆ isFinished()

bool FIFE::SoundEmitter::isFinished ( )

Returns true if clip is finished.

Definition at line 494 of file soundemitter.cpp.

References getDuration(), getState(), FIFE::TimeManager::getTime(), FIFE::DynamicSingleton< TimeManager >::instance(), isActive(), isLooping(), m_internData, m_playCheckDifference, FIFE::SoundEmitter::internData::playTimestamp, and FIFE::SD_STOPPED_STATE.

Referenced by FIFE::SoundManager::update().

Here is the caller graph for this function:

◆ isLooping()

bool FIFE::SoundEmitter::isLooping ( ) const

Return playing mode.

Definition at line 339 of file soundemitter.cpp.

References FIFE::SoundEmitter::internData::loop, and m_internData.

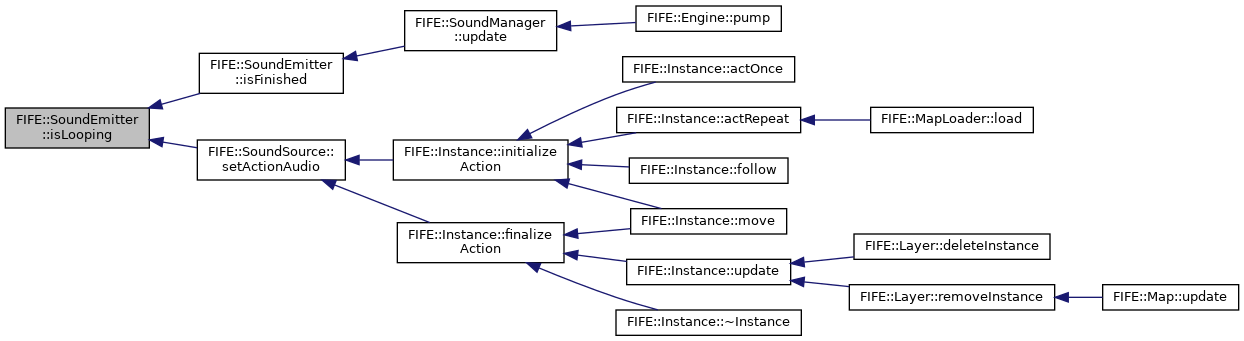

Referenced by isFinished(), and FIFE::SoundSource::setActionAudio().

Here is the caller graph for this function:

◆ isPosition()

bool FIFE::SoundEmitter::isPosition ( ) const

Return if it is a positional SoundEmitter.

Definition at line 612 of file soundemitter.cpp.

References FIFE::Math< T >::Equal(), m_internData, FIFE::SoundEmitter::internData::position, FIFE::PointType3D< T >::x, FIFE::PointType3D< T >::y, and FIFE::PointType3D< T >::z.

Referenced by FIFE::SoundManager::update().

Here is the caller graph for this function:

◆ isRelativePositioning()

bool FIFE::SoundEmitter::isRelativePositioning ( ) const

Return Positioning-Type.

Definition at line 169 of file soundemitter.cpp.

References m_internData, and FIFE::SoundEmitter::internData::relative.

◆ isStereo()

bool FIFE::SoundEmitter::isStereo ( )

Tests if the audio data is stereo data or mono.

Returns: Returns true if the audio data is stereo, false if mono.

Definition at line 447 of file soundemitter.cpp.

References FIFE::SoundClip::getDecoder(), FIFE::SoundDecoder::isStereo(), and m_soundClip.

Referenced by getCursor(), getDuration(), and setCursor().

Here is the caller graph for this function:

◆ pause()

void FIFE::SoundEmitter::pause ( )

Pauses playing the audio file.

Definition at line 394 of file soundemitter.cpp.

References isActive(), m_internData, m_soundClip, m_source, FIFE::SD_PAUSED_STATE, and FIFE::SoundEmitter::internData::soundState.

Referenced by FIFE::SoundManager::pause().

Here is the caller graph for this function:

◆ play() [1/2]

void FIFE::SoundEmitter::play ( )

Plays the associated audio file.

Definition at line 343 of file soundemitter.cpp.

References getCursor(), FIFE::TimeManager::getTime(), FIFE::DynamicSingleton< TimeManager >::instance(), isActive(), m_internData, m_playCheckDifference, m_soundClip, m_source, FIFE::SoundEmitter::internData::playTimestamp, FIFE::SD_PAUSED_STATE, FIFE::SD_PLAYING_STATE, FIFE::SD_TIME_POS, and FIFE::SoundEmitter::internData::soundState.

Referenced by FIFE::SoundManager::play(), play(), and FIFE::SoundSource::setActionAudio().

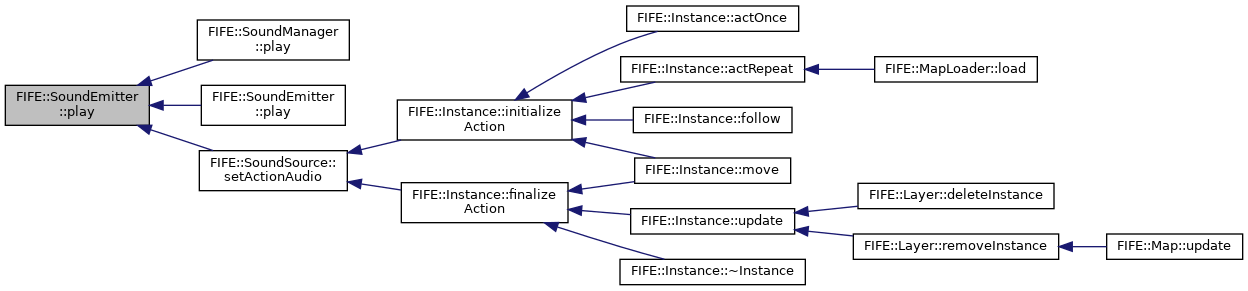

Here is the caller graph for this function:

◆ play() [2/2]

void FIFE::SoundEmitter::play	(	float	inTime,
		float	outTime
	)

Plays the associated audio file with fade in and / or out.

Definition at line 356 of file soundemitter.cpp.

References FIFE::Math< T >::Equal(), getDuration(), getState(), m_fadeIn, m_fadeInEndTimestamp, m_fadeInStartTimestamp, m_fadeOut, m_fadeOutEndTimestamp, m_fadeOutStartTimestamp, m_internData, m_origGain, play(), FIFE::SoundEmitter::internData::playTimestamp, FIFE::SD_PLAYING_STATE, setGain(), and FIFE::SoundEmitter::internData::volume.

◆ release()

void FIFE::SoundEmitter::release ( )

Releases the emitter.

Definition at line 257 of file soundemitter.cpp.

References m_emitterId, m_manager, and FIFE::SoundManager::releaseEmitter().

◆ removeEffect()

void FIFE::SoundEmitter::removeEffect ( SoundEffect * effect )

Removes effect.

Used from SoundEffectManager.

Definition at line 815 of file soundemitter.cpp.

References m_effects.

Referenced by FIFE::SoundEffectManager::removeEmitterFromSoundEffect().

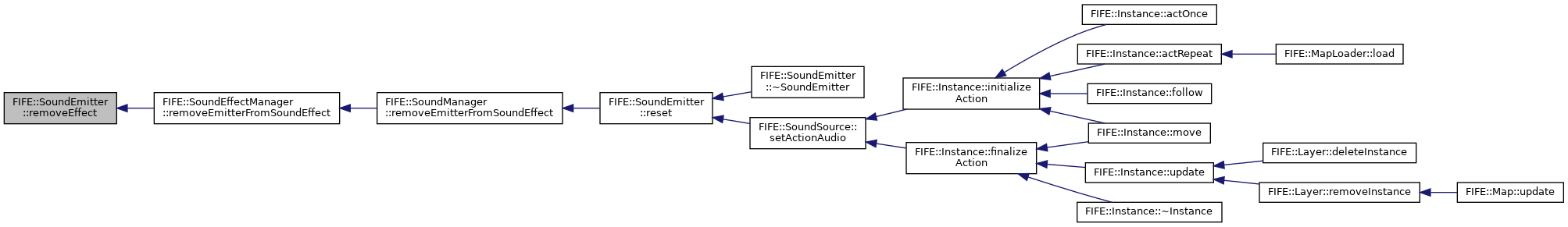

Here is the caller graph for this function:

◆ removeListener()

void FIFE::SoundEmitter::removeListener ( SoundEmitterListener * listener )

Removes associated SoundEmitter listener.

Parameters

listener to remove

Definition at line 885 of file soundemitter.cpp.

References FIFE::_log, FL_WARN, and m_listeners.

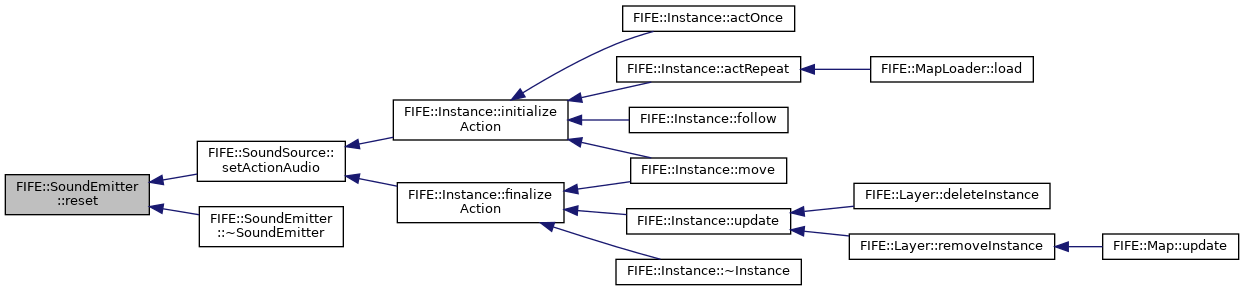

◆ reset()

void FIFE::SoundEmitter::reset ( bool defaultall = false )

Reset the emitter, free all internal buffers.

Parameters

defaultall If set to true, emitter position, velocity, gain and type will be set to the default values

Definition at line 209 of file soundemitter.cpp.

References FIFE::SoundManager::deactivateFilter(), isActive(), FIFE::SoundClip::isStream(), m_directFilter, m_effects, m_fadeIn, m_fadeOut, m_group, m_manager, m_origGain, m_samplesOffset, m_soundClip, m_soundClipId, m_source, m_streamId, FIFE::SoundClip::quitStreaming(), FIFE::SoundManager::releaseSource(), FIFE::SoundManager::removeEmitterFromSoundEffect(), FIFE::SoundManager::removeFromGroup(), FIFE::SharedPtr< T >::reset(), resetInternData(), and syncData().

Referenced by FIFE::SoundSource::setActionAudio(), and ~SoundEmitter().

Here is the caller graph for this function:

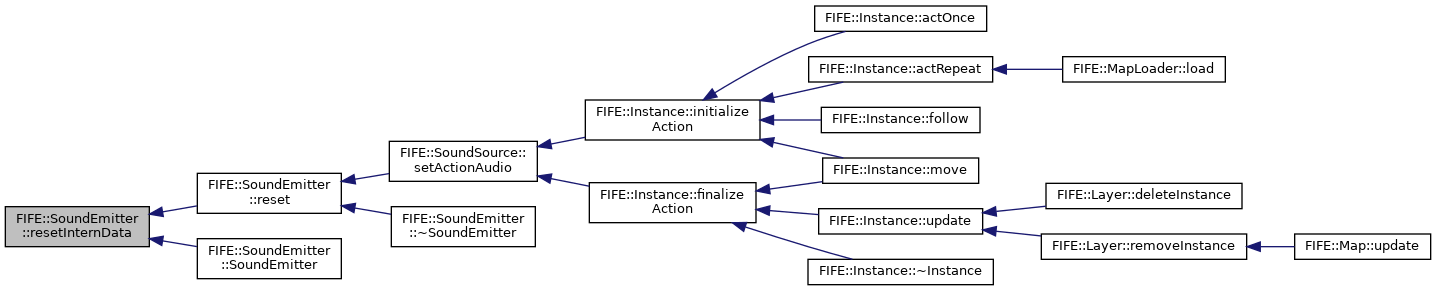

◆ resetInternData()

void FIFE::SoundEmitter::resetInternData ( )

private

Resets collected data to defaults.

Definition at line 755 of file soundemitter.cpp.

Referenced by reset(), and SoundEmitter().

Here is the caller graph for this function:

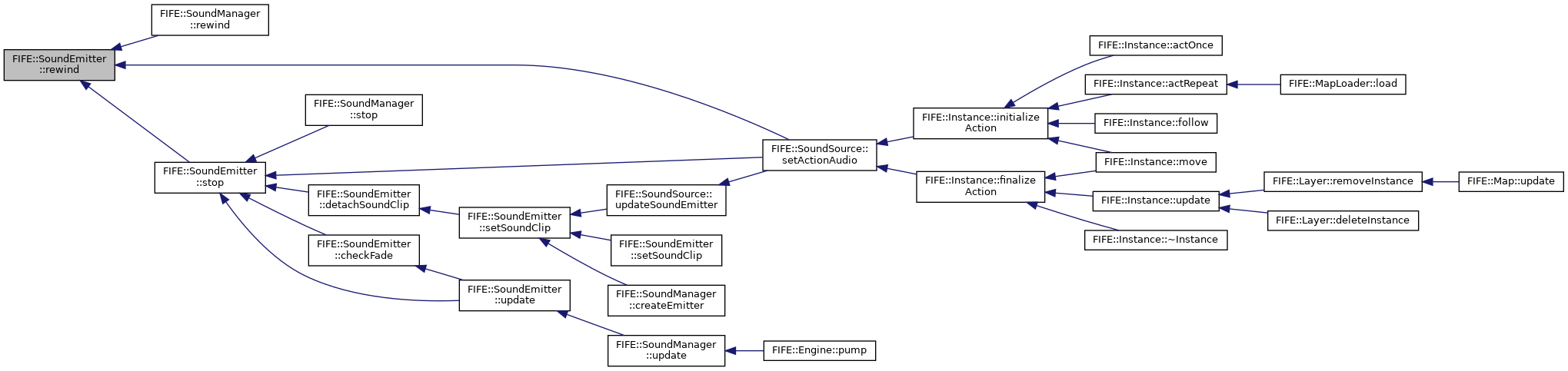

◆ rewind()

void FIFE::SoundEmitter::rewind ( )

Rewinds the associated audio file.

Definition at line 401 of file soundemitter.cpp.

References isActive(), FIFE::SoundClip::isStream(), m_internData, m_samplesOffset, m_soundClip, m_source, FIFE::SoundEmitter::internData::playTimestamp, FIFE::SD_BYTE_POS, and setCursor().

Referenced by FIFE::SoundManager::rewind(), FIFE::SoundSource::setActionAudio(), and stop().

Here is the caller graph for this function:

◆ setCheckDifference()

void FIFE::SoundEmitter::setCheckDifference ( )

Sets the time difference between play and the first check if it's playable.

Definition at line 875 of file soundemitter.cpp.

References getState(), FIFE::TimeManager::getTime(), FIFE::DynamicSingleton< TimeManager >::instance(), m_internData, m_playCheckDifference, FIFE::SoundEmitter::internData::playTimestamp, and FIFE::SD_PLAYING_STATE.

Referenced by FIFE::SoundManager::update().

Here is the caller graph for this function:

◆ setConeInnerAngle()

void FIFE::SoundEmitter::setConeInnerAngle ( float inner )

Sets inner angle of the sound cone, in degrees.

Default 360

Definition at line 650 of file soundemitter.cpp.

References FIFE::SoundEmitter::internData::coneInnerAngle, isActive(), m_internData, and m_source.

Referenced by syncData(), and FIFE::SoundSource::updateSoundEmitter().

Here is the caller graph for this function:

◆ setConeOuterAngle()

void FIFE::SoundEmitter::setConeOuterAngle ( float outer )

Sets outer angle of the sound cone, in degrees.

Default 360

Definition at line 661 of file soundemitter.cpp.

References FIFE::SoundEmitter::internData::coneOuterAngle, isActive(), m_internData, and m_source.

Referenced by syncData(), and FIFE::SoundSource::updateSoundEmitter().

Here is the caller graph for this function:

◆ setConeOuterGain()

void FIFE::SoundEmitter::setConeOuterGain ( float gain )

Sets the gain when outside the oriented cone.

Definition at line 672 of file soundemitter.cpp.

References FIFE::SoundEmitter::internData::coneOuterGain, isActive(), m_internData, and m_source.

Referenced by syncData(), and FIFE::SoundSource::updateSoundEmitter().

Here is the caller graph for this function:

◆ setCursor()

void FIFE::SoundEmitter::setCursor	(	SoundPositionType	type,
		float	value
	)

Sets the cursor position in the audio file.

Definition at line 508 of file soundemitter.cpp.

References FIFE::_log, FIFE::SoundClip::acquireStream(), FIFE::BUFFER_NUM, CHECK_OPENAL_LOG, getBitResolution(), FIFE::SoundClip::getBuffers(), getSampleRate(), isActive(), isStereo(), FIFE::SoundClip::isStream(), FIFE::LogManager::LEVEL_ERROR, m_samplesOffset, m_soundClip, m_source, m_streamId, FIFE::SD_BYTE_POS, FIFE::SD_SAMPLE_POS, FIFE::SD_TIME_POS, and FIFE::SoundClip::setStreamPos().

Referenced by rewind(), and syncData().

Here is the caller graph for this function:

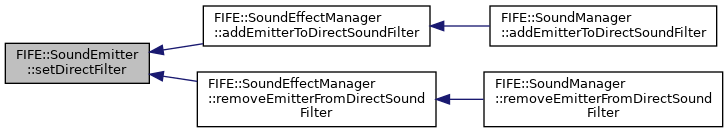

◆ setDirectFilter()

void FIFE::SoundEmitter::setDirectFilter ( SoundFilter * filter )

Sets the direct filter.

Used from SoundEffectManager.

Definition at line 845 of file soundemitter.cpp.

References m_directFilter.

Referenced by FIFE::SoundEffectManager::addEmitterToDirectSoundFilter(), and FIFE::SoundEffectManager::removeEmitterFromDirectSoundFilter().

Here is the caller graph for this function:

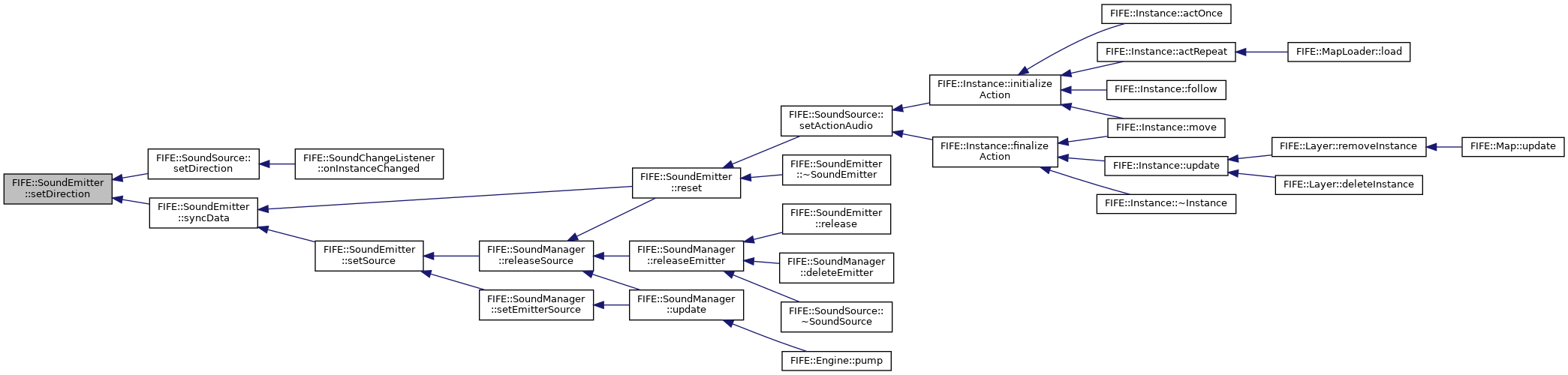

◆ setDirection()

void FIFE::SoundEmitter::setDirection ( const AudioSpaceCoordinate & direction )

Sets the direction of the SoundEmitter in the virtual audio space.

Definition at line 173 of file soundemitter.cpp.

References FIFE::SoundEmitter::internData::direction, isActive(), m_internData, m_source, FIFE::PointType3D< T >::x, FIFE::PointType3D< T >::y, and FIFE::PointType3D< T >::z.

Referenced by FIFE::SoundSource::setDirection(), and syncData().

Here is the caller graph for this function:

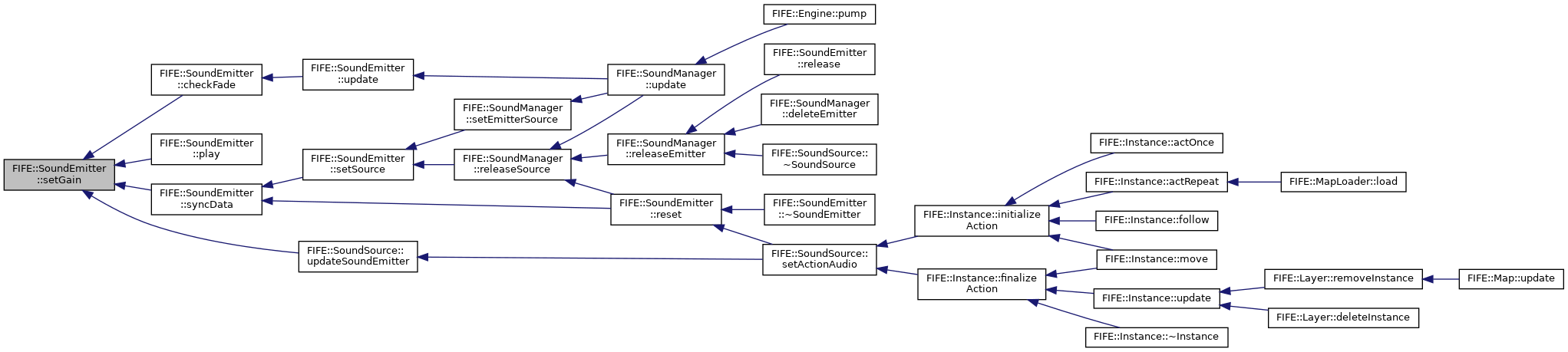

◆ setGain()

void FIFE::SoundEmitter::setGain ( float gain )

Sets the gain of the emitter.

Parameters

gain	The gain value. 0=silence ... 1.0=normal loudness.

Definition at line 414 of file soundemitter.cpp.

References isActive(), m_internData, m_source, and FIFE::SoundEmitter::internData::volume.

Referenced by checkFade(), play(), syncData(), and FIFE::SoundSource::updateSoundEmitter().

Here is the caller graph for this function:

◆ setGroup()

void FIFE::SoundEmitter::setGroup ( const std::string & group )

Sets the group name.

Adds the emitter automatically to the group.

Definition at line 708 of file soundemitter.cpp.

References FIFE::SoundManager::addToGroup(), m_group, m_manager, and FIFE::SoundManager::removeFromGroup().

Referenced by FIFE::SoundSource::updateSoundEmitter().

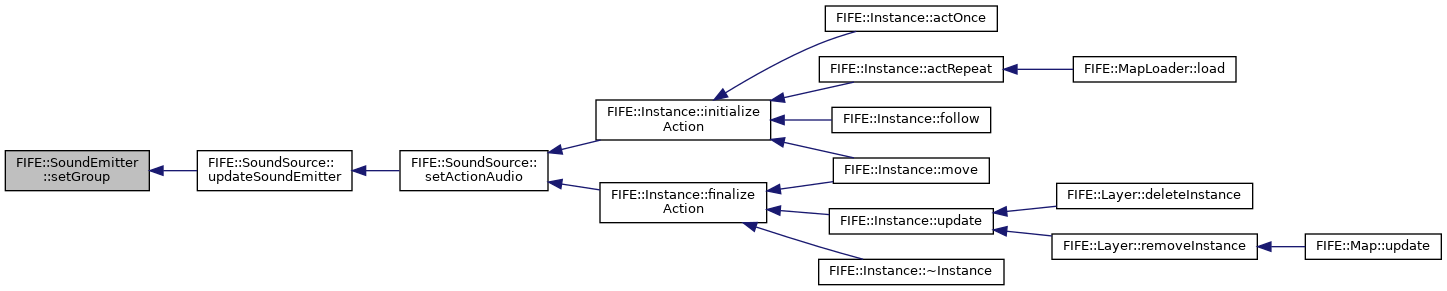

Here is the caller graph for this function:

◆ setLooping()

void FIFE::SoundEmitter::setLooping ( bool loop )

Sets the playing mode.

Definition at line 328 of file soundemitter.cpp.

References isActive(), FIFE::SoundClip::isStream(), FIFE::SoundEmitter::internData::loop, m_internData, m_soundClip, and m_source.

Referenced by syncData(), and FIFE::SoundSource::updateSoundEmitter().

Here is the caller graph for this function:

◆ setMaxDistance()

void FIFE::SoundEmitter::setMaxDistance ( float distance )

Sets the max distance used with the Inverse Clamped Distance Model to set the distance where there will no longer be any attenuation of the source.

Definition at line 628 of file soundemitter.cpp.

References utf8::distance(), isActive(), m_internData, m_source, and FIFE::SoundEmitter::internData::maxDistance.

Referenced by syncData(), and FIFE::SoundSource::updateSoundEmitter().

Here is the caller graph for this function:

◆ setMaxGain()

void FIFE::SoundEmitter::setMaxGain ( float gain )

Sets the max.

gain of the emitter

Parameters

gain	The gain value. 0=silence ... 1.0=normal loudness.

Definition at line 425 of file soundemitter.cpp.

References isActive(), m_internData, m_source, and FIFE::SoundEmitter::internData::maxVolume.

Referenced by syncData(), and FIFE::SoundSource::updateSoundEmitter().

Here is the caller graph for this function:

◆ setMinGain()

void FIFE::SoundEmitter::setMinGain ( float gain )

Sets the min.

gain of the emitter

Parameters

gain	The gain value. 0=silence ... 1.0=normal loudness.

Definition at line 436 of file soundemitter.cpp.

References isActive(), m_internData, m_source, and FIFE::SoundEmitter::internData::minVolume.

Referenced by syncData(), and FIFE::SoundSource::updateSoundEmitter().

Here is the caller graph for this function:

◆ setPitch()

void FIFE::SoundEmitter::setPitch ( float pitch )

Sets pitch multiplier.

Can only be positiv.

Definition at line 185 of file soundemitter.cpp.

References isActive(), m_internData, m_source, and FIFE::SoundEmitter::internData::pitch.

Referenced by syncData(), and FIFE::SoundSource::updateSoundEmitter().

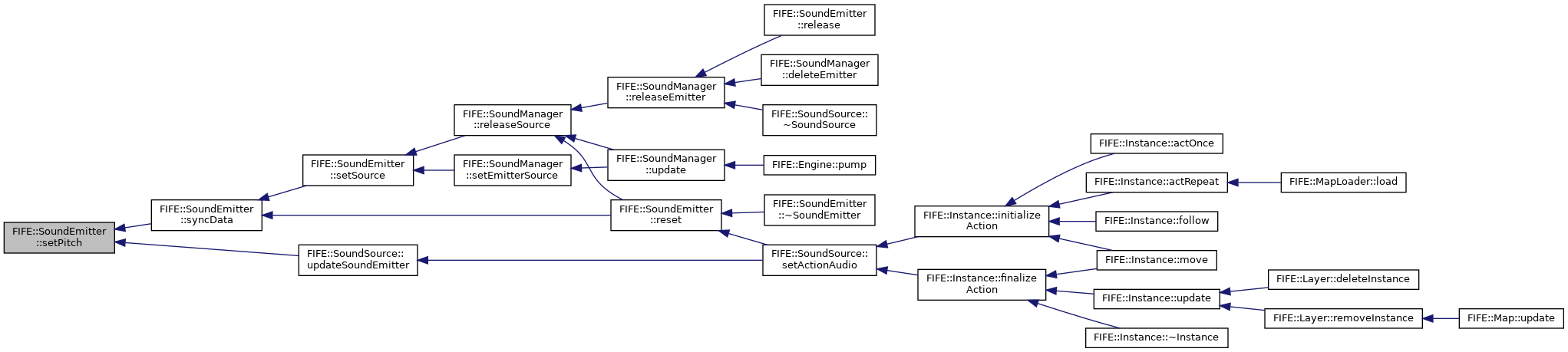

Here is the caller graph for this function:

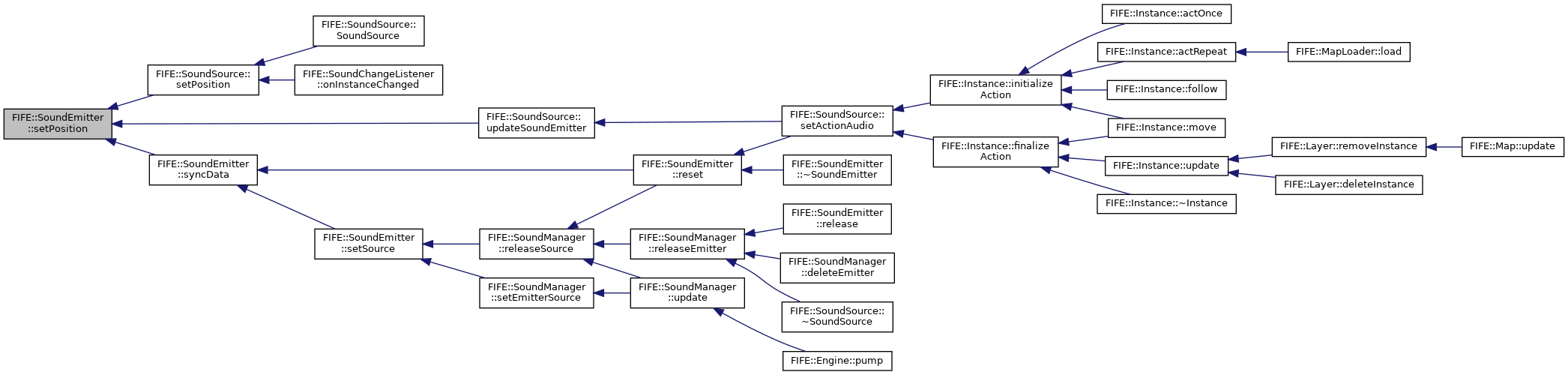

◆ setPosition()

void FIFE::SoundEmitter::setPosition ( const AudioSpaceCoordinate & position )

Sets the position of the SoundEmitter in the virtual audio space.

Definition at line 601 of file soundemitter.cpp.

References isActive(), m_internData, m_source, FIFE::SoundEmitter::internData::position, FIFE::PointType3D< T >::x, FIFE::PointType3D< T >::y, and FIFE::PointType3D< T >::z.

Referenced by FIFE::SoundSource::setPosition(), syncData(), and FIFE::SoundSource::updateSoundEmitter().

Here is the caller graph for this function:

◆ setReferenceDistance()

void FIFE::SoundEmitter::setReferenceDistance ( float distance )

Sets the distance under which the volume for the SoundEmitter would normally drop by half (before being influenced by rolloff factor or max distance.

Default 1.0

Definition at line 617 of file soundemitter.cpp.

References utf8::distance(), isActive(), m_internData, m_source, and FIFE::SoundEmitter::internData::refDistance.

Referenced by syncData(), and FIFE::SoundSource::updateSoundEmitter().

Here is the caller graph for this function:

◆ setRelativePositioning()

void FIFE::SoundEmitter::setRelativePositioning ( bool relative )

Sets Positioning-Type Default is false.

Parameters

relative If set to true, the emitters position will be interpreted relative to the listener object

Definition at line 162 of file soundemitter.cpp.

References isActive(), m_internData, m_source, and FIFE::SoundEmitter::internData::relative.

Referenced by syncData(), and FIFE::SoundSource::updateSoundEmitter().

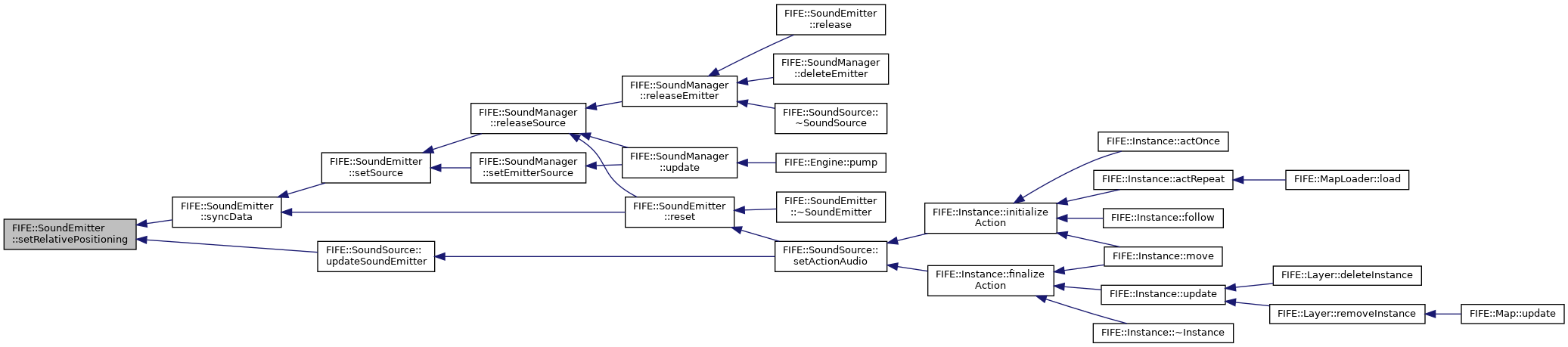

Here is the caller graph for this function:

◆ setRolloff()

void FIFE::SoundEmitter::setRolloff ( float rolloff )

Sets the AL_ROLEOFF_FACTOR.

Rolloff factor judges the strength of attenuation over distance.

Parameters

rolloff Rolloff factor. You'll need to do a lot of testing to find a value which suits your needs. Default 1.0

Definition at line 198 of file soundemitter.cpp.

References isActive(), m_internData, m_source, and FIFE::SoundEmitter::internData::rolloff.

Referenced by syncData(), and FIFE::SoundSource::updateSoundEmitter().

Here is the caller graph for this function:

◆ setSoundClip() [1/2]

void FIFE::SoundEmitter::setSoundClip ( SoundClipPtr soundClip )

Sets the sound clip to be used by this emitter.

Parameters

soundClip SoundClipPtr of the sound to be used.

Definition at line 261 of file soundemitter.cpp.

References attachSoundClip(), detachSoundClip(), FIFE::IResource::getHandle(), m_soundClip, and m_soundClipId.

Referenced by FIFE::SoundManager::createEmitter(), setSoundClip(), and FIFE::SoundSource::updateSoundEmitter().

Here is the caller graph for this function:

◆ setSoundClip() [2/2]

void FIFE::SoundEmitter::setSoundClip ( const std::string & name )

Sets the sound clip to be used by this emitter.

Parameters

name	The name of the sound to be used.

Definition at line 278 of file soundemitter.cpp.

References FIFE::SoundClipManager::get(), FIFE::DynamicSingleton< SoundClipManager >::instance(), and setSoundClip().

◆ setSource()

void FIFE::SoundEmitter::setSource ( ALuint source )

Sets openAl-source.

Definition at line 79 of file soundemitter.cpp.

References activateEffects(), deactivateEffects(), m_active, m_source, and syncData().

Referenced by FIFE::SoundManager::releaseSource(), and FIFE::SoundManager::setEmitterSource().

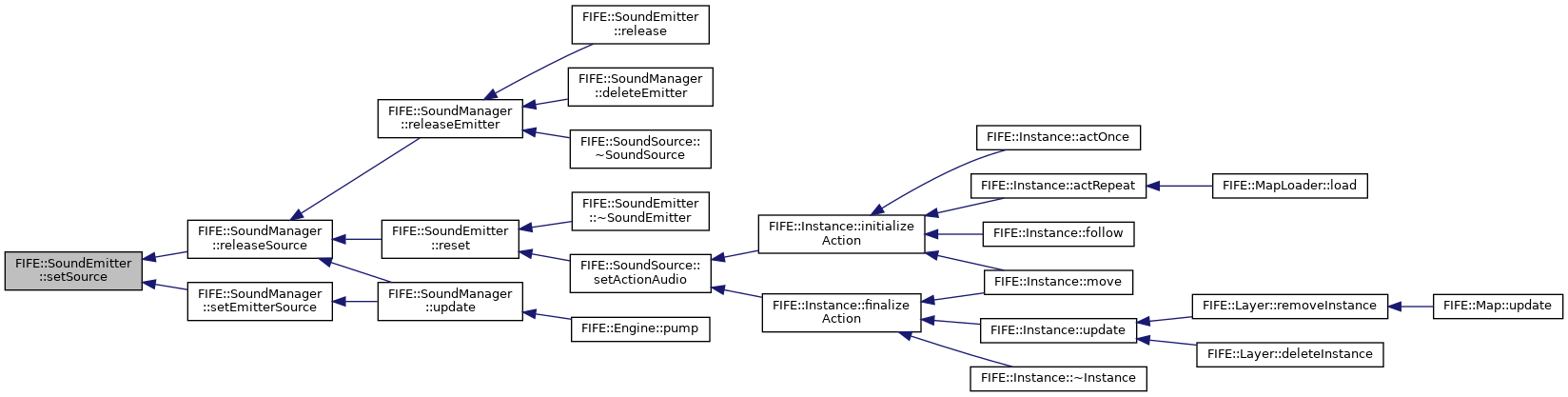

Here is the caller graph for this function:

◆ setVelocity()

void FIFE::SoundEmitter::setVelocity ( const AudioSpaceCoordinate & velocity )

Sets the velocity of the SoundEmitter in the virtual audio space.

Definition at line 639 of file soundemitter.cpp.

References isActive(), m_internData, m_source, FIFE::SoundEmitter::internData::velocity, FIFE::PointType3D< T >::x, FIFE::PointType3D< T >::y, and FIFE::PointType3D< T >::z.

Referenced by syncData(), and FIFE::SoundSource::updateSoundEmitter().

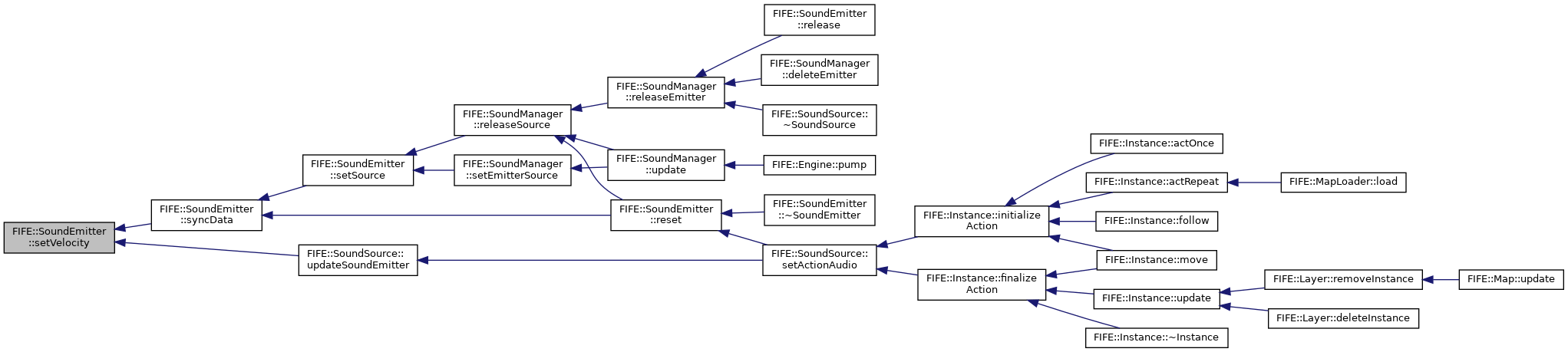

Here is the caller graph for this function:

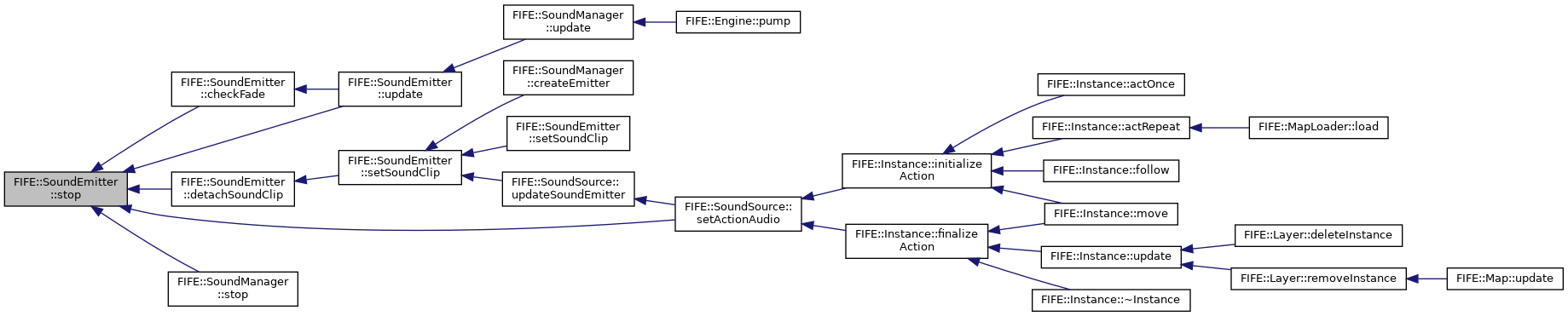

◆ stop() [1/2]

void FIFE::SoundEmitter::stop ( )

Stops playing the audio file and rewinds to the beginning.

Definition at line 377 of file soundemitter.cpp.

References callOnSoundFinished(), isActive(), m_internData, m_soundClip, m_source, FIFE::SoundEmitter::internData::playTimestamp, rewind(), FIFE::SD_STOPPED_STATE, and FIFE::SoundEmitter::internData::soundState.

Referenced by checkFade(), detachSoundClip(), FIFE::SoundSource::setActionAudio(), FIFE::SoundManager::stop(), and update().

Here is the caller graph for this function:

◆ stop() [2/2]

void FIFE::SoundEmitter::stop ( float time )

Stops playing the audio file after time with fade out.

Definition at line 387 of file soundemitter.cpp.

References FIFE::TimeManager::getTime(), FIFE::DynamicSingleton< TimeManager >::instance(), m_fadeOut, m_fadeOutEndTimestamp, m_fadeOutStartTimestamp, m_internData, m_origGain, and FIFE::SoundEmitter::internData::volume.

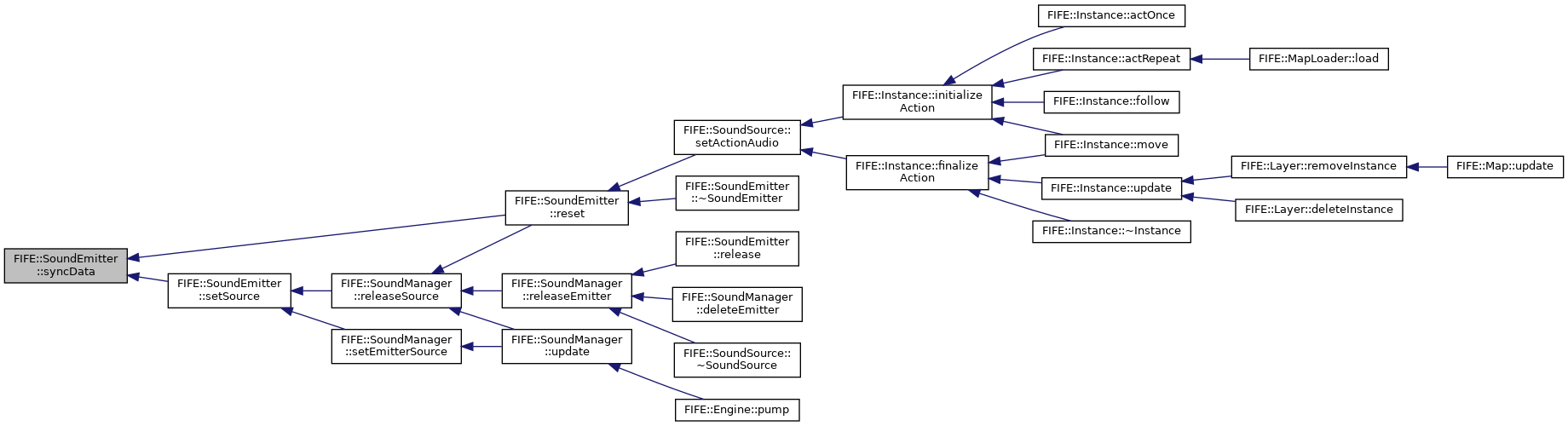

◆ syncData()

void FIFE::SoundEmitter::syncData ( )

private

Updates OpenAL with collected data.

Definition at line 724 of file soundemitter.cpp.

Referenced by reset(), and setSource().

Here is the caller graph for this function:

◆ update()

void FIFE::SoundEmitter::update ( )

Called once a frame from the SoundManager.

Definition at line 107 of file soundemitter.cpp.

References FIFE::_log, CHECK_OPENAL_LOG, checkFade(), getState(), FIFE::SoundClip::getStream(), FIFE::SoundClip::isStream(), FIFE::LogManager::LEVEL_ERROR, FIFE::SoundEmitter::internData::loop, m_fadeIn, m_fadeOut, m_internData, m_samplesOffset, m_soundClip, m_source, m_streamId, FIFE::SD_BYTE_POS, FIFE::SD_STOPPED_STATE, FIFE::SoundClip::setStreamPos(), FIFE::SoundEmitter::internData::soundState, and stop().

Referenced by FIFE::SoundManager::update().

Here is the caller graph for this function:

Member Data Documentation

◆ m_active

bool FIFE::SoundEmitter::m_active

private

is active

Definition at line 451 of file soundemitter.h.

Referenced by isActive(), and setSource().

◆ m_directFilter

SoundFilter* FIFE::SoundEmitter::m_directFilter

private

Applied direct sound filter.

Definition at line 415 of file soundemitter.h.

Referenced by activateEffects(), deactivateEffects(), getDirectFilter(), reset(), and setDirectFilter().

◆ m_effects

std::vector<SoundEffect*> FIFE::SoundEmitter::m_effects

private

holds pointer to applied SoundEffects

Definition at line 469 of file soundemitter.h.

Referenced by activateEffects(), addEffect(), deactivateEffects(), getEffectCount(), getEffectNumber(), removeEffect(), and reset().

◆ m_emitterId

uint32_t FIFE::SoundEmitter::m_emitterId

private

The emitter-id.

Definition at line 423 of file soundemitter.h.

Referenced by callOnSoundFinished(), getId(), and release().

◆ m_fadeIn

bool FIFE::SoundEmitter::m_fadeIn

private

fade in clip

Definition at line 453 of file soundemitter.h.

Referenced by checkFade(), play(), reset(), and update().

◆ m_fadeInEndTimestamp

uint32_t FIFE::SoundEmitter::m_fadeInEndTimestamp

private

fade in end time

Definition at line 461 of file soundemitter.h.

Referenced by checkFade(), and play().

◆ m_fadeInStartTimestamp

uint32_t FIFE::SoundEmitter::m_fadeInStartTimestamp

private

fade in start time

Definition at line 459 of file soundemitter.h.

Referenced by checkFade(), and play().

◆ m_fadeOut

bool FIFE::SoundEmitter::m_fadeOut

private

fade out clip

Definition at line 455 of file soundemitter.h.

Referenced by checkFade(), play(), reset(), stop(), and update().

◆ m_fadeOutEndTimestamp

uint32_t FIFE::SoundEmitter::m_fadeOutEndTimestamp

private

fade out end time

Definition at line 465 of file soundemitter.h.

Referenced by checkFade(), play(), and stop().

◆ m_fadeOutStartTimestamp

uint32_t FIFE::SoundEmitter::m_fadeOutStartTimestamp

private

fade out start time

Definition at line 463 of file soundemitter.h.

Referenced by checkFade(), play(), and stop().

◆ m_group

std::string FIFE::SoundEmitter::m_group

private

the group name

Definition at line 447 of file soundemitter.h.

Referenced by getGroup(), reset(), and setGroup().

◆ m_internData

struct FIFE::SoundEmitter::internData FIFE::SoundEmitter::m_internData

private

◆ m_listeners

std::vector<SoundEmitterListener*> FIFE::SoundEmitter::m_listeners

private

listeners for sound related events

Definition at line 471 of file soundemitter.h.

Referenced by addListener(), callOnSoundFinished(), and removeListener().

◆ m_manager

SoundManager* FIFE::SoundEmitter::m_manager

private

Access to the SoundManager.

Definition at line 411 of file soundemitter.h.

Referenced by activateEffects(), deactivateEffects(), release(), reset(), setGroup(), SoundEmitter(), and ~SoundEmitter().

◆ m_origGain

float FIFE::SoundEmitter::m_origGain

private

original gain

Definition at line 457 of file soundemitter.h.

Referenced by checkFade(), play(), reset(), and stop().

◆ m_playCheckDifference

uint32_t FIFE::SoundEmitter::m_playCheckDifference

private

time difference between play and first check

Definition at line 467 of file soundemitter.h.

Referenced by isFinished(), play(), setCheckDifference(), and syncData().

◆ m_samplesOffset

float FIFE::SoundEmitter::m_samplesOffset

private

saves sample offset for played stream parts

Definition at line 449 of file soundemitter.h.

Referenced by getCursor(), reset(), rewind(), setCursor(), and update().

◆ m_soundClip

SoundClipPtr FIFE::SoundEmitter::m_soundClip

private

The attached sound clip.

Definition at line 417 of file soundemitter.h.

Referenced by attachSoundClip(), detachSoundClip(), getBitResolution(), getCursor(), getDecodedLength(), getDuration(), getSampleRate(), getSoundClip(), isStereo(), pause(), play(), reset(), rewind(), setCursor(), setLooping(), setSoundClip(), stop(), syncData(), and update().

◆ m_soundClipId

uint32_t FIFE::SoundEmitter::m_soundClipId

private

Id of the attached sound clip.

Definition at line 419 of file soundemitter.h.

Referenced by callOnSoundFinished(), detachSoundClip(), reset(), and setSoundClip().

◆ m_source

ALuint FIFE::SoundEmitter::m_source

private

The openAL-source.

Definition at line 413 of file soundemitter.h.

Referenced by attachSoundClip(), detachSoundClip(), getCursor(), getSource(), getState(), pause(), play(), reset(), rewind(), setConeInnerAngle(), setConeOuterAngle(), setConeOuterGain(), setCursor(), setDirection(), setGain(), setLooping(), setMaxDistance(), setMaxGain(), setMinGain(), setPitch(), setPosition(), setReferenceDistance(), setRelativePositioning(), setRolloff(), setSource(), setVelocity(), stop(), syncData(), and update().

◆ m_streamId

uint32_t FIFE::SoundEmitter::m_streamId

private

The id of the stream.

Definition at line 421 of file soundemitter.h.

Referenced by attachSoundClip(), detachSoundClip(), reset(), setCursor(), and update().

The documentation for this class was generated from the following files:

engine/core/audio/soundemitter.h
engine/core/audio/soundemitter.cpp

Classes

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SoundEmitter()

◆ ~SoundEmitter()

Member Function Documentation

◆ activateEffects()

◆ addEffect()

◆ addListener()

◆ attachSoundClip()

◆ callOnSoundFinished()

◆ checkFade()

◆ deactivateEffects()

◆ detachSoundClip()

◆ getBitResolution()

◆ getConeInnerAngle()

◆ getConeOuterAngle()

◆ getConeOuterGain()

◆ getCursor()

◆ getDecodedLength()

◆ getDirectFilter()

◆ getDirection()

◆ getDuration()

◆ getEffectCount()

◆ getEffectNumber()

◆ getGain()

◆ getGroup()

◆ getId()

◆ getMaxDistance()

◆ getMaxGain()

◆ getMinGain()

◆ getPitch()

◆ getPlayTimestamp()

◆ getPosition()

◆ getReferenceDistance()

◆ getRolloff()

◆ getSampleRate()

◆ getSoundClip()

◆ getSource()

◆ getState()

◆ getVelocity()

◆ isActive()

◆ isFinished()

◆ isLooping()

◆ isPosition()

◆ isRelativePositioning()

◆ isStereo()

◆ pause()

◆ play() [1/2]

◆ play() [2/2]

◆ release()

◆ removeEffect()

◆ removeListener()

◆ reset()

◆ resetInternData()

◆ rewind()

◆ setCheckDifference()

◆ setConeInnerAngle()

◆ setConeOuterAngle()

◆ setConeOuterGain()

◆ setCursor()

◆ setDirectFilter()

◆ setDirection()

◆ setGain()

◆ setGroup()

◆ setLooping()

◆ setMaxDistance()

◆ setMaxGain()

◆ setMinGain()

◆ setPitch()

◆ setPosition()

◆ setReferenceDistance()

◆ setRelativePositioning()

◆ setRolloff()

◆ setSoundClip() [1/2]

◆ setSoundClip() [2/2]

◆ setSource()
