A model is a facade for everything in the model. More...

#include <model.h>

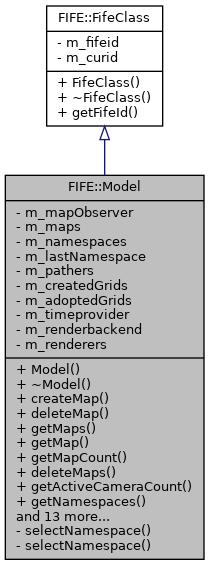

Inheritance diagram for FIFE::Model:

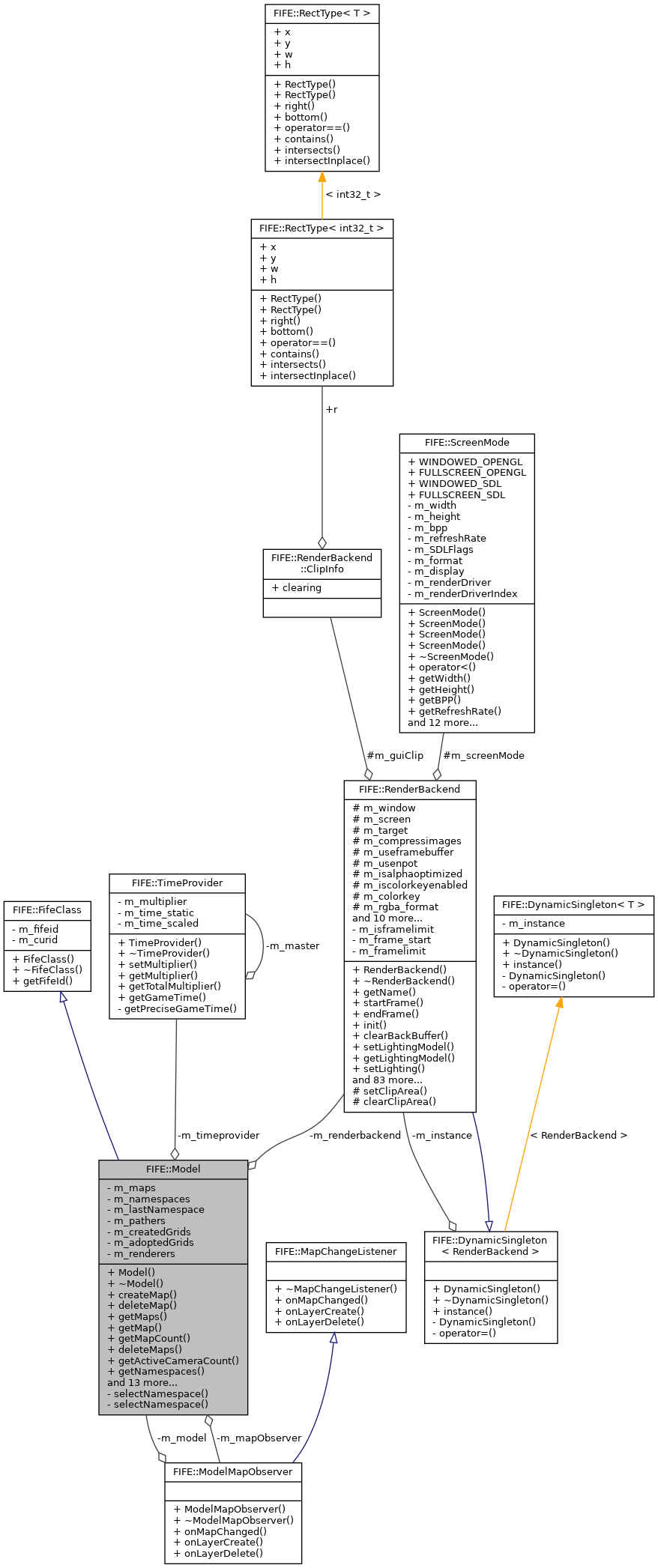

Collaboration diagram for FIFE::Model:

Public Member Functions
	Model (RenderBackend renderbackend, const std::vector< RendererBase > &renderers)
	Constructor. More...

	~Model ()
	Destructor. More...

Map *	createMap (const std::string &identifier)
	Add a map this model, and get a pointer to it. More...

void	deleteMap (Map *)
	Remove a map from this model. More...

const std::list< Map * > &	getMaps () const
	Get all the maps in the model. More...

Map *	getMap (const std::string &identifier) const
	Get a map. More...

uint32_t	getMapCount () const
	Return the number of maps in this model. More...

void	deleteMaps ()
	Removes all maps from this model. More...

uint32_t	getActiveCameraCount () const
	Return the number of enabled cameras in this model. More...

std::list< std::string >	getNamespaces () const
	Get a list of namespaces currently referenced by objects in the metamodel. More...

Object *	createObject (const std::string &identifier, const std::string &name_space, Object *parent=0)
	Add an object to the metamodel. More...

bool	deleteObject (Object *)
	Attempt to remove an object from the model Fails and returns false if the object is referenced by an instance. More...

bool	deleteObjects ()
	Attempt to remove all objects from the model Fails and returns false if any maps with instances are present. More...

Object *	getObject (const std::string &id, const std::string &name_space)
	Get an object by its id. More...

std::list< Object * >	getObjects (const std::string &name_space) const
	Get all the objects in the given namespace. More...

void	adoptPather (IPather *pather)
	Adds pather to model. More...

IPather *	getPather (const std::string &pathername)
	Returns pather corresponding given name. More...

void	adoptCellGrid (CellGrid *grid)
	Adds cellgrid to model. More...

CellGrid *	getCellGrid (const std::string &gridtype)
	Returns new copy of cellgrid corresponding given name. More...

void	removeCellGrid (CellGrid *grid)
	Removes cellgrid from model. More...

void	update ()
	Called periodically to update events on model. More...

void	setTimeMultiplier (float multip)
	Sets speed for the model. More...

double	getTimeMultiplier () const
	Gets model speed. More...

Public Member Functions inherited from FIFE::FifeClass
	FifeClass ()

virtual	~FifeClass ()

fifeid_t	getFifeId ()
	Gets unique id of this instance inside the engine. More...

Private Types
typedef std::map< std::string, Object * >	objectmap_t

typedef std::pair< std::string, objectmap_t >	namespace_t

Private Member Functions
namespace_t *	selectNamespace (const std::string &name_space)
	Convenience function to retrieve a pointer to a namespace or NULL if it doesn't exist. More...

const namespace_t *	selectNamespace (const std::string &name_space) const
	Convenience function to retrieve a pointer to a namespace or NULL if it doesn't exist. More...

Private Attributes
ModelMapObserver *	m_mapObserver

std::list< Map * >	m_maps

std::list< namespace_t >	m_namespaces

namespace_t *	m_lastNamespace
	Used to remember last 'selected' namespace. More...

std::vector< IPather * >	m_pathers

std::vector< CellGrid * >	m_createdGrids

std::vector< CellGrid * >	m_adoptedGrids

TimeProvider	m_timeprovider

RenderBackend *	m_renderbackend

std::vector< RendererBase * >	m_renderers

Detailed Description

A model is a facade for everything in the model.

Definition at line 54 of file model.h.

Member Typedef Documentation

◆ namespace_t

typedef std::pair<std::string,objectmap_t> FIFE::Model::namespace_t

private

Definition at line 170 of file model.h.

◆ objectmap_t

typedef std::map<std::string,Object*> FIFE::Model::objectmap_t

private

Definition at line 169 of file model.h.

Constructor & Destructor Documentation

◆ Model()

FIFE::Model::Model	(	RenderBackend *	renderbackend,
		const std::vector< RendererBase *> &	renderers
	)

Constructor.

Definition at line 68 of file model.cpp.

References m_mapObserver.

◆ ~Model()

FIFE::Model::~Model ( )

Destructor.

Definition at line 78 of file model.cpp.

References m_adoptedGrids, m_createdGrids, m_mapObserver, m_maps, m_namespaces, m_pathers, purge(), and purge_map().

Member Function Documentation

◆ adoptCellGrid()

void FIFE::Model::adoptCellGrid ( CellGrid * grid )

Adds cellgrid to model.

Moves ownership to model

Definition at line 122 of file model.cpp.

References m_adoptedGrids.

Referenced by getMaps(), and FIFE::Engine::init().

Here is the caller graph for this function:

◆ adoptPather()

void FIFE::Model::adoptPather ( IPather * pather )

Adds pather to model.

Moves ownership to model

Definition at line 107 of file model.cpp.

References m_pathers.

Referenced by getMaps(), and FIFE::Engine::init().

Here is the caller graph for this function:

◆ createMap()

Map * FIFE::Model::createMap ( const std::string & identifier )

Add a map this model, and get a pointer to it.

The returned pointer is owned by the Model, so don't delete it!

Definition at line 93 of file model.cpp.

References FIFE::Map::addChangeListener(), m_mapObserver, m_maps, m_renderbackend, m_renderers, and m_timeprovider.

Referenced by FIFE::MapLoader::load().

Here is the caller graph for this function:

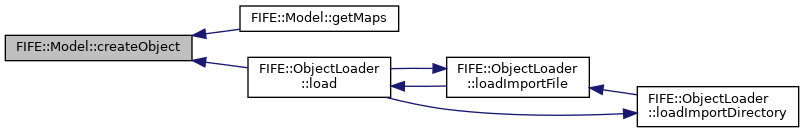

◆ createObject()

Object * FIFE::Model::createObject	(	const std::string &	identifier,
		const std::string &	name_space,
		Object *	parent = `0`
	)

Add an object to the metamodel.

Parameters

identifier	A string for identifying this object; must be unique for its namespace.
name_space	A string identifying the namespace this object resides in.
parent	Objects may optionally inherit values from a parent object.

Note: This object belongs to the model, so don't delete the returned pointer

Definition at line 205 of file model.cpp.

References m_namespaces, and selectNamespace().

Referenced by getMaps(), and FIFE::ObjectLoader::load().

Here is the caller graph for this function:

◆ deleteMap()

void FIFE::Model::deleteMap ( Map * map )

Remove a map from this model.

Definition at line 161 of file model.cpp.

References m_maps.

◆ deleteMaps()

void FIFE::Model::deleteMaps ( )

Removes all maps from this model.

Definition at line 176 of file model.cpp.

References m_createdGrids, m_mapObserver, m_maps, and purge().

Referenced by getMaps().

Here is the caller graph for this function:

◆ deleteObject()

bool FIFE::Model::deleteObject ( Object * object )

Attempt to remove an object from the model Fails and returns false if the object is referenced by an instance.

Definition at line 225 of file model.cpp.

References FIFE::Object::getId(), FIFE::Object::getNamespace(), m_maps, and selectNamespace().

Referenced by getMaps().

Here is the caller graph for this function:

◆ deleteObjects()

bool FIFE::Model::deleteObjects ( )

Attempt to remove all objects from the model Fails and returns false if any maps with instances are present.

Definition at line 257 of file model.cpp.

References m_lastNamespace, m_maps, and m_namespaces.

Referenced by getMaps().

Here is the caller graph for this function:

◆ getActiveCameraCount()

uint32_t FIFE::Model::getActiveCameraCount ( ) const

Return the number of enabled cameras in this model.

Definition at line 187 of file model.cpp.

References m_maps.

Referenced by getMaps(), and FIFE::Engine::pump().

Here is the caller graph for this function:

◆ getCellGrid()

CellGrid * FIFE::Model::getCellGrid ( const std::string & gridtype )

Returns new copy of cellgrid corresponding given name.

If none found, returns NULL

Definition at line 126 of file model.cpp.

References FIFE::_log, FIFE::CellGrid::clone(), FL_WARN, m_adoptedGrids, and m_createdGrids.

Referenced by getMaps(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ getMap()

Map * FIFE::Model::getMap ( const std::string & identifier ) const

Get a map.

Parameters

identifier the id of the map to be found.

Definition at line 151 of file model.cpp.

References m_maps.

Referenced by getMaps().

Here is the caller graph for this function:

◆ getMapCount()

uint32_t FIFE::Model::getMapCount ( ) const

Return the number of maps in this model.

Definition at line 172 of file model.cpp.

References m_maps.

Referenced by getMaps().

Here is the caller graph for this function:

◆ getMaps()

const std::list<Map*>& FIFE::Model::getMaps ( ) const

inline

Get all the maps in the model.

Definition at line 78 of file model.h.

References adoptCellGrid(), adoptPather(), createObject(), deleteMaps(), deleteObject(), deleteObjects(), getActiveCameraCount(), getCellGrid(), getMap(), getMapCount(), getNamespaces(), getObject(), getObjects(), getPather(), m_maps, removeCellGrid(), and update().

◆ getNamespaces()

std::list< std::string > FIFE::Model::getNamespaces ( ) const

Get a list of namespaces currently referenced by objects in the metamodel.

Definition at line 196 of file model.cpp.

References m_namespaces.

Referenced by getMaps(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

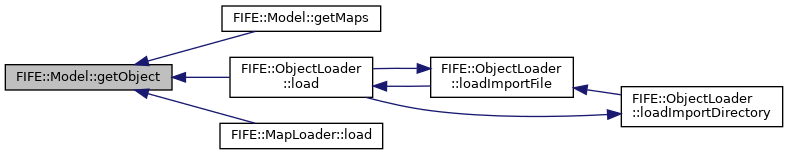

◆ getObject()

Object * FIFE::Model::getObject	(	const std::string &	id,
		const std::string &	name_space
	)

Get an object by its id.

Returns 0 if object is not found.

Definition at line 280 of file model.cpp.

References selectNamespace().

Referenced by getMaps(), FIFE::ObjectLoader::load(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ getObjects()

std::list< Object * > FIFE::Model::getObjects ( const std::string & name_space ) const

Get all the objects in the given namespace.

Definition at line 290 of file model.cpp.

References selectNamespace().

Referenced by getMaps(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

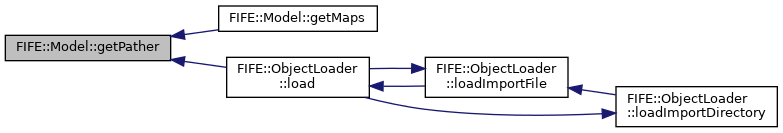

◆ getPather()

IPather * FIFE::Model::getPather ( const std::string & pathername )

Returns pather corresponding given name.

If none found, returns NULL

Definition at line 111 of file model.cpp.

References FIFE::_log, FL_WARN, and m_pathers.

Referenced by getMaps(), and FIFE::ObjectLoader::load().

Here is the caller graph for this function:

◆ getTimeMultiplier()

double FIFE::Model::getTimeMultiplier ( ) const

inline

Gets model speed.

See also: setTimeMultiplier.

Definition at line 161 of file model.h.

References FIFE::TimeProvider::getMultiplier(), and m_timeprovider.

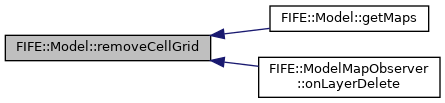

◆ removeCellGrid()

void FIFE::Model::removeCellGrid ( CellGrid * grid )

Removes cellgrid from model.

Definition at line 139 of file model.cpp.

References m_createdGrids.

Referenced by getMaps(), and FIFE::ModelMapObserver::onLayerDelete().

Here is the caller graph for this function:

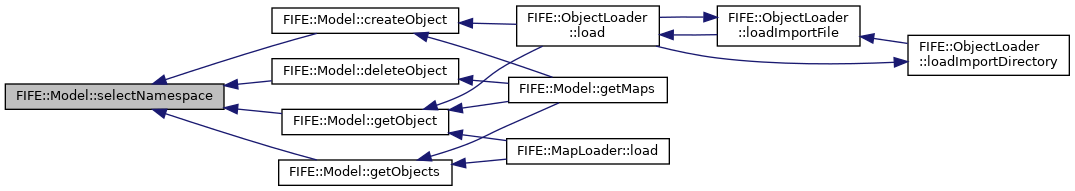

◆ selectNamespace() [1/2]

Model::namespace_t * FIFE::Model::selectNamespace ( const std::string & name_space )

private

Convenience function to retrieve a pointer to a namespace or NULL if it doesn't exist.

Definition at line 313 of file model.cpp.

References m_lastNamespace, and m_namespaces.

Referenced by createObject(), deleteObject(), getObject(), and getObjects().

Here is the caller graph for this function:

◆ selectNamespace() [2/2]

const Model::namespace_t * FIFE::Model::selectNamespace ( const std::string & name_space ) const

private

Convenience function to retrieve a pointer to a namespace or NULL if it doesn't exist.

Definition at line 302 of file model.cpp.

References m_namespaces.

◆ setTimeMultiplier()

void FIFE::Model::setTimeMultiplier ( float multip )

inline

Sets speed for the model.

With speed 1.0, everything runs with normal speed. With speed 2.0, clock is ticking twice as fast. With 0, everything gets paused. Negavtive values are not supported (throws NotSupported exception).

Definition at line 157 of file model.h.

References m_timeprovider, and FIFE::TimeProvider::setMultiplier().

◆ update()

void FIFE::Model::update ( )

Called periodically to update events on model.

Definition at line 327 of file model.cpp.

References m_maps, and m_pathers.

Referenced by getMaps(), and FIFE::Engine::pump().

Here is the caller graph for this function:

Member Data Documentation

◆ m_adoptedGrids

std::vector<CellGrid*> FIFE::Model::m_adoptedGrids

private

Definition at line 184 of file model.h.

Referenced by adoptCellGrid(), getCellGrid(), and ~Model().

◆ m_createdGrids

std::vector<CellGrid*> FIFE::Model::m_createdGrids

private

Definition at line 183 of file model.h.

Referenced by deleteMaps(), getCellGrid(), removeCellGrid(), and ~Model().

◆ m_lastNamespace

namespace_t* FIFE::Model::m_lastNamespace

private

Used to remember last 'selected' namespace.

Definition at line 174 of file model.h.

Referenced by deleteObjects(), and selectNamespace().

◆ m_mapObserver

ModelMapObserver* FIFE::Model::m_mapObserver

private

Definition at line 165 of file model.h.

Referenced by createMap(), deleteMaps(), Model(), and ~Model().

◆ m_maps

std::list<Map*> FIFE::Model::m_maps

private

Definition at line 167 of file model.h.

Referenced by createMap(), deleteMap(), deleteMaps(), deleteObject(), deleteObjects(), getActiveCameraCount(), getMap(), getMapCount(), getMaps(), update(), and ~Model().

◆ m_namespaces

std::list<namespace_t> FIFE::Model::m_namespaces

private

Definition at line 171 of file model.h.

Referenced by createObject(), deleteObjects(), getNamespaces(), selectNamespace(), and ~Model().

◆ m_pathers

std::vector<IPather*> FIFE::Model::m_pathers

private

Definition at line 182 of file model.h.

Referenced by adoptPather(), getPather(), update(), and ~Model().

◆ m_renderbackend

RenderBackend* FIFE::Model::m_renderbackend

private

Definition at line 188 of file model.h.

Referenced by createMap().

◆ m_renderers

std::vector<RendererBase*> FIFE::Model::m_renderers

private

Definition at line 190 of file model.h.

Referenced by createMap().

◆ m_timeprovider

TimeProvider FIFE::Model::m_timeprovider

private

Definition at line 186 of file model.h.

Referenced by createMap(), getTimeMultiplier(), and setTimeMultiplier().

The documentation for this class was generated from the following files:

engine/core/model/model.h
engine/core/model/model.cpp

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ namespace_t

◆ objectmap_t

Constructor & Destructor Documentation

◆ Model()

◆ ~Model()

Member Function Documentation

◆ adoptCellGrid()

◆ adoptPather()

◆ createMap()

◆ createObject()

◆ deleteMap()

◆ deleteMaps()

◆ deleteObject()

◆ deleteObjects()

◆ getActiveCameraCount()

◆ getCellGrid()

◆ getMap()

◆ getMapCount()

◆ getMaps()

◆ getNamespaces()

◆ getObject()

◆ getObjects()

◆ getPather()

◆ getTimeMultiplier()

◆ removeCellGrid()

◆ selectNamespace() [1/2]

◆ selectNamespace() [2/2]

◆ setTimeMultiplier()

◆ update()

Member Data Documentation

◆ m_adoptedGrids

◆ m_createdGrids

◆ m_lastNamespace

◆ m_mapObserver

◆ m_maps

◆ m_namespaces

◆ m_pathers

◆ m_renderbackend

◆ m_renderers

◆ m_timeprovider
