#include <blockinginforenderer.h>

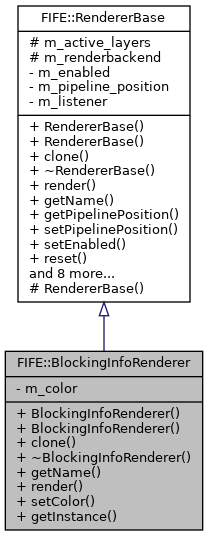

Inheritance diagram for FIFE::BlockingInfoRenderer:

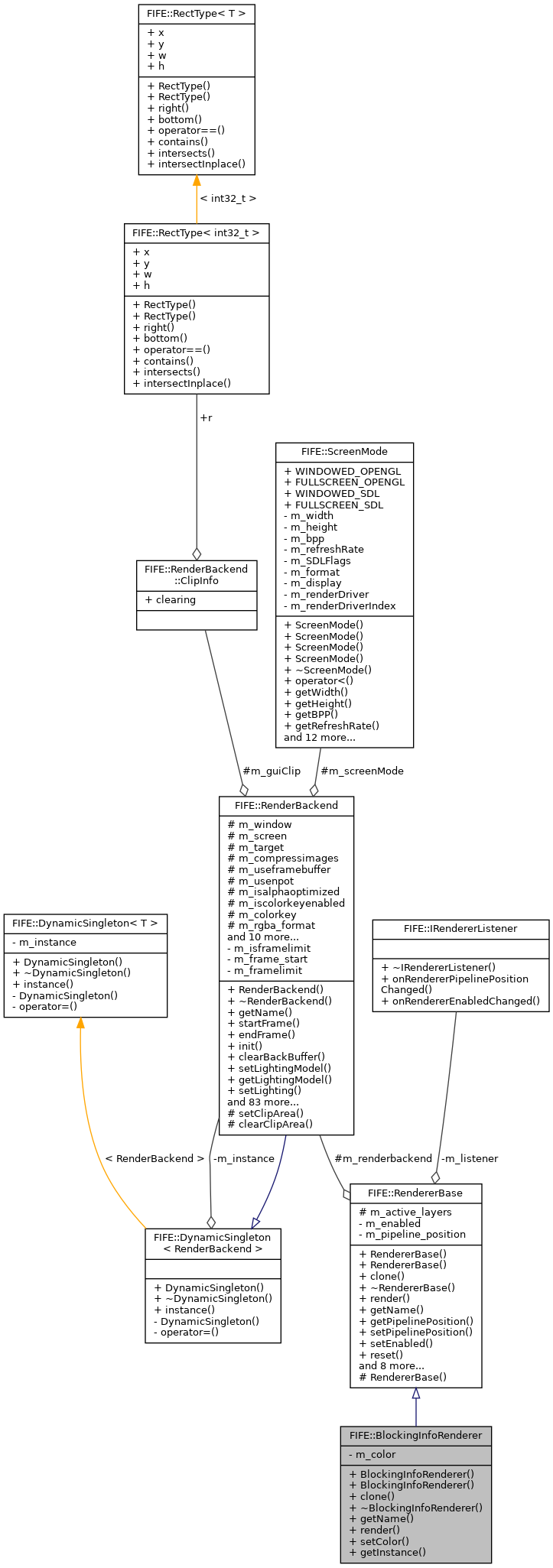

Collaboration diagram for FIFE::BlockingInfoRenderer:

Public Member Functions
	BlockingInfoRenderer (RenderBackend *renderbackend, int32_t position)
	Constructor. More...

	BlockingInfoRenderer (const BlockingInfoRenderer &old)
	Copy Constructor. More...

RendererBase *	clone ()
	Makes copy of this renderer. More...

virtual	~BlockingInfoRenderer ()
	Destructor. More...

std::string	getName ()
	Returns the renderer name. More...

void	render (Camera cam, Layer layer, RenderList &instances)
	This method is called by the view to ask renderer to draw its rendering aspect based on given parameters. More...

void	setColor (uint8_t r, uint8_t g, uint8_t b)
	Changes the used color. More...

Public Member Functions inherited from FIFE::RendererBase
	RendererBase (RenderBackend *renderbackend, int32_t position)
	Constructor. More...

	RendererBase (const RendererBase &old)
	Copy Constructor. More...

virtual	~RendererBase ()
	Destructor. More...

int32_t	getPipelinePosition () const
	Gets renderer position in the rendering pipeline. More...

void	setPipelinePosition (int32_t position)
	Sets renderer position in the rendering pipeline Pipeline position defines in which order view calls the renderers when update occurs Note that renderers are called once per rendered layer, thus to update the whole screen, renderer might receive multiple calls. More...

virtual void	setEnabled (bool enabled)
	Enables renderer. More...

virtual void	reset ()
	Resets information in the renderer. More...

bool	isEnabled () const
	Is renderer enabled. More...

void	setRendererListener (IRendererListener *listener)
	Sets listener for renderer. More...

void	addActiveLayer (Layer *layer)
	Adds active layer to renderer. More...

void	removeActiveLayer (Layer *layer)
	Removes active layer from renderer. More...

void	clearActiveLayers ()
	Clears all active layers from renderer. More...

void	activateAllLayers (Map *elevation)
	Activates all layers from given elevation. More...

bool	isActivedLayer (Layer *layer)
	Returns if given layer is currently activated. More...

std::list< Layer * >	getActiveLayers () const
	Returns list of activated layer. More...

Static Public Member Functions
static BlockingInfoRenderer *	getInstance (IRendererContainer *cnt)
	Gets instance for interface access. More...

Private Attributes
SDL_Color	m_color
	currently used color More...

Additional Inherited Members
Protected Member Functions inherited from FIFE::RendererBase
	RendererBase ()

Protected Attributes inherited from FIFE::RendererBase
std::list< Layer * >	m_active_layers

RenderBackend *	m_renderbackend

Detailed Description

Definition at line 38 of file blockinginforenderer.h.

Constructor & Destructor Documentation

◆ BlockingInfoRenderer() [1/2]

FIFE::BlockingInfoRenderer::BlockingInfoRenderer	(	RenderBackend *	renderbackend,
		int32_t	position
	)

Constructor.

Parameters

renderbackend	The renderbackend to use.
position	The position for this renderer in rendering pipeline. @ see setPipelinePosition

Definition at line 50 of file blockinginforenderer.cpp.

References m_color, and FIFE::RendererBase::setEnabled().

Referenced by clone().

Here is the caller graph for this function:

◆ BlockingInfoRenderer() [2/2]

FIFE::BlockingInfoRenderer::BlockingInfoRenderer ( const BlockingInfoRenderer & old )

Copy Constructor.

Definition at line 58 of file blockinginforenderer.cpp.

References FIFE::RendererBase::setEnabled().

◆ ~BlockingInfoRenderer()

FIFE::BlockingInfoRenderer::~BlockingInfoRenderer ( )

virtual

Destructor.

Definition at line 68 of file blockinginforenderer.cpp.

Member Function Documentation

◆ clone()

RendererBase * FIFE::BlockingInfoRenderer::clone ( )

virtual

Makes copy of this renderer.

Implements FIFE::RendererBase.

Definition at line 64 of file blockinginforenderer.cpp.

References BlockingInfoRenderer().

◆ getInstance()

BlockingInfoRenderer * FIFE::BlockingInfoRenderer::getInstance ( IRendererContainer * cnt )

static

Gets instance for interface access.

Definition at line 71 of file blockinginforenderer.cpp.

References FIFE::IRendererContainer::getRenderer().

Referenced by getName().

Here is the caller graph for this function:

◆ getName()

std::string FIFE::BlockingInfoRenderer::getName ( )

inlinevirtual

Returns the renderer name.

Returns: The name as string.

Implements FIFE::RendererBase.

Definition at line 64 of file blockinginforenderer.h.

References getInstance(), render(), and setColor().

◆ render()

void FIFE::BlockingInfoRenderer::render	(	Camera *	cam,
		Layer *	layer,
		RenderList &	instances
	)

virtual

This method is called by the view to ask renderer to draw its rendering aspect based on given parameters.

Parameters

cam	Camera view to draw
layer	Current layer to be rendered
instances	Instances on the current layer

Implements FIFE::RendererBase.

Definition at line 75 of file blockinginforenderer.cpp.

References FIFE::_log, FIFE::CTYPE_NO_BLOCKER, FIFE::RenderBackend::drawLine(), FL_WARN, FIFE::Layer::getCellCache(), FIFE::Layer::getCellGrid(), FIFE::CellCache::getCells(), FIFE::Location::getLayerCoordinates(), FIFE::Instance::getLocationRef(), FIFE::Instance::getObject(), FIFE::CellGrid::getVertices(), FIFE::Camera::getViewPort(), FIFE::RectType< T >::h, FIFE::intPt2doublePt(), FIFE::Object::isBlocking(), FIFE::Instance::isBlocking(), m_color, FIFE::RendererBase::m_renderbackend, FIFE::CellGrid::toMapCoordinates(), FIFE::Camera::toScreenCoordinates(), FIFE::RectType< T >::w, FIFE::PointType2D< T >::x, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::PointType2D< T >::y, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

Referenced by getName().

Here is the caller graph for this function:

◆ setColor()

void FIFE::BlockingInfoRenderer::setColor	(	uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Changes the used color.

Parameters

r	The value for red, range 0-255.
g	The value for green, range 0-255.
b	The value for blue, range 0-255.

Definition at line 154 of file blockinginforenderer.cpp.

References m_color.

Referenced by getName().

Here is the caller graph for this function:

Member Data Documentation

◆ m_color

SDL_Color FIFE::BlockingInfoRenderer::m_color

private

currently used color

Definition at line 89 of file blockinginforenderer.h.

Referenced by BlockingInfoRenderer(), render(), and setColor().

The documentation for this class was generated from the following files:

engine/core/view/renderers/blockinginforenderer.h
engine/core/view/renderers/blockinginforenderer.cpp
