Base class for all view renderers View renderer renders one aspect of the view shown on screen. More...

#include <rendererbase.h>

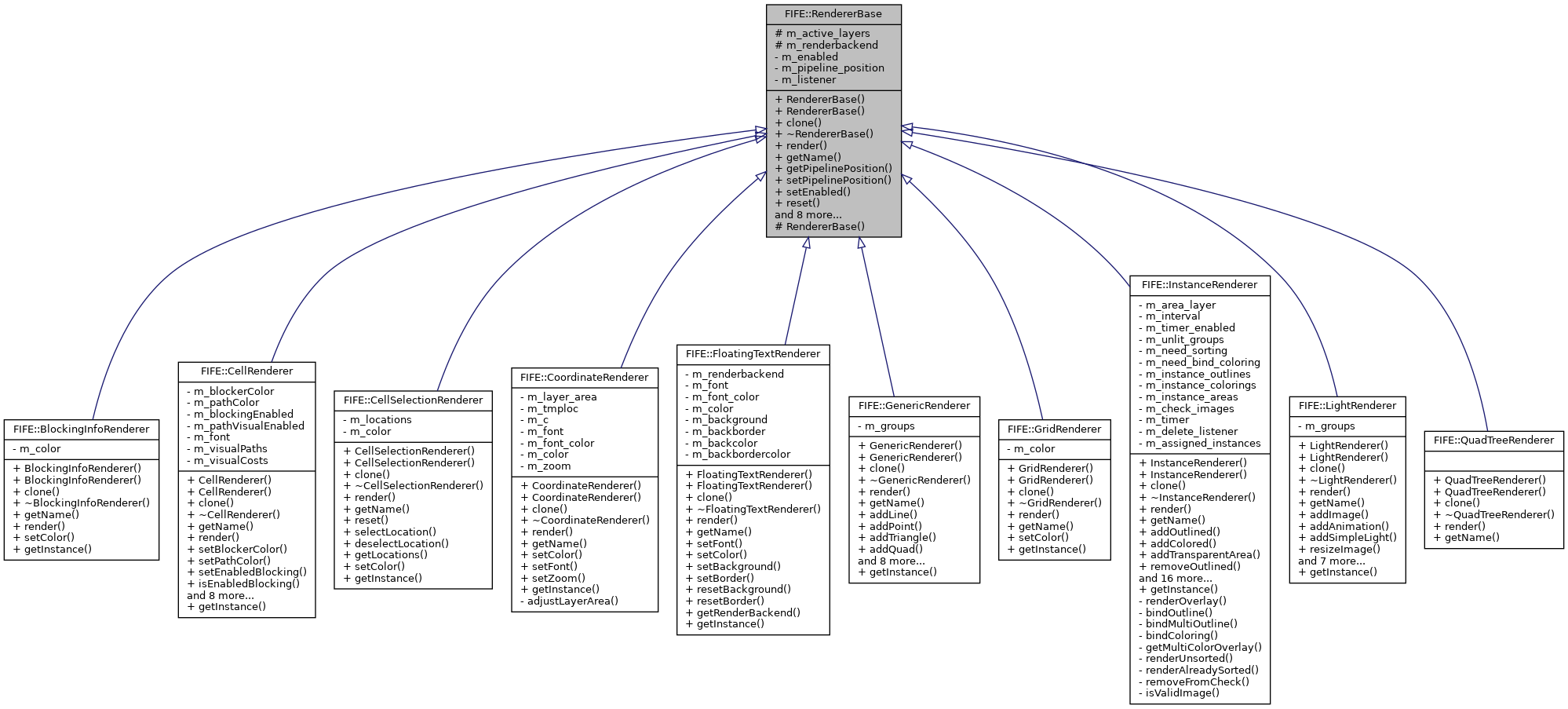

Inheritance diagram for FIFE::RendererBase:

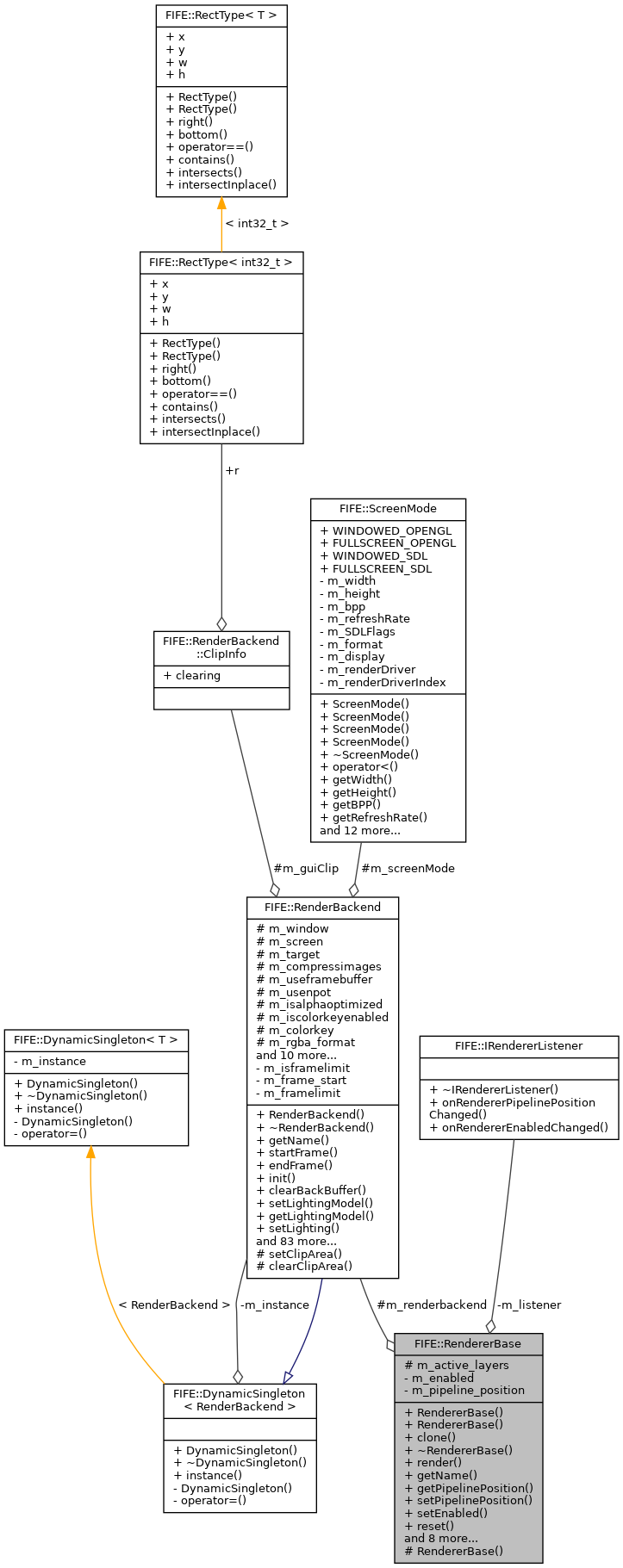

Collaboration diagram for FIFE::RendererBase:

Public Member Functions
	RendererBase (RenderBackend *renderbackend, int32_t position)
	Constructor. More...

	RendererBase (const RendererBase &old)
	Copy Constructor. More...

virtual RendererBase *	clone ()=0
	Makes copy of this renderer. More...

virtual	~RendererBase ()
	Destructor. More...

virtual void	render (Camera cam, Layer layer, RenderList &instances)=0
	This method is called by the view to ask renderer to draw its rendering aspect based on given parameters. More...

virtual std::string	getName ()=0
	Name of the renderer. More...

int32_t	getPipelinePosition () const
	Gets renderer position in the rendering pipeline. More...

void	setPipelinePosition (int32_t position)
	Sets renderer position in the rendering pipeline Pipeline position defines in which order view calls the renderers when update occurs Note that renderers are called once per rendered layer, thus to update the whole screen, renderer might receive multiple calls. More...

virtual void	setEnabled (bool enabled)
	Enables renderer. More...

virtual void	reset ()
	Resets information in the renderer. More...

bool	isEnabled () const
	Is renderer enabled. More...

void	setRendererListener (IRendererListener *listener)
	Sets listener for renderer. More...

void	addActiveLayer (Layer *layer)
	Adds active layer to renderer. More...

void	removeActiveLayer (Layer *layer)
	Removes active layer from renderer. More...

void	clearActiveLayers ()
	Clears all active layers from renderer. More...

void	activateAllLayers (Map *elevation)
	Activates all layers from given elevation. More...

bool	isActivedLayer (Layer *layer)
	Returns if given layer is currently activated. More...

std::list< Layer * >	getActiveLayers () const
	Returns list of activated layer. More...

Protected Member Functions
	RendererBase ()

Protected Attributes
std::list< Layer * >	m_active_layers

RenderBackend *	m_renderbackend

Private Attributes
bool	m_enabled

int32_t	m_pipeline_position

IRendererListener *	m_listener

Detailed Description

Base class for all view renderers View renderer renders one aspect of the view shown on screen.

Definition at line 78 of file rendererbase.h.

Constructor & Destructor Documentation

◆ RendererBase() [1/3]

FIFE::RendererBase::RendererBase	(	RenderBackend *	renderbackend,
		int32_t	position
	)

Constructor.

Parameters

renderbackend	to use
position	position for this renderer in rendering pipeline

Definition at line 41 of file rendererbase.cpp.

References setPipelinePosition().

◆ RendererBase() [2/3]

FIFE::RendererBase::RendererBase ( const RendererBase & old )

Copy Constructor.

Definition at line 49 of file rendererbase.cpp.

References m_pipeline_position, and setPipelinePosition().

◆ ~RendererBase()

virtual FIFE::RendererBase::~RendererBase ( )

inlinevirtual

Destructor.

Definition at line 96 of file rendererbase.h.

◆ RendererBase() [3/3]

FIFE::RendererBase::RendererBase ( )

protected

Definition at line 57 of file rendererbase.cpp.

Member Function Documentation

◆ activateAllLayers()

void FIFE::RendererBase::activateAllLayers ( Map * elevation )

Activates all layers from given elevation.

Definition at line 100 of file rendererbase.cpp.

References addActiveLayer(), clearActiveLayers(), and FIFE::Map::getLayers().

Referenced by FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ addActiveLayer()

void FIFE::RendererBase::addActiveLayer ( Layer * layer )

Adds active layer to renderer.

Only active layers are rendered

Definition at line 82 of file rendererbase.cpp.

References m_active_layers.

Referenced by activateAllLayers().

Here is the caller graph for this function:

◆ clearActiveLayers()

void FIFE::RendererBase::clearActiveLayers ( )

Clears all active layers from renderer.

Definition at line 92 of file rendererbase.cpp.

References m_active_layers.

Referenced by activateAllLayers().

Here is the caller graph for this function:

◆ clone()

virtual RendererBase* FIFE::RendererBase::clone ( )

pure virtual

Makes copy of this renderer.

Implemented in FIFE::GenericRenderer, FIFE::LightRenderer, FIFE::QuadTreeRenderer, FIFE::CellRenderer, FIFE::CellSelectionRenderer, FIFE::CoordinateRenderer, FIFE::FloatingTextRenderer, FIFE::BlockingInfoRenderer, FIFE::InstanceRenderer, and FIFE::GridRenderer.

◆ getActiveLayers()

std::list<Layer*> FIFE::RendererBase::getActiveLayers ( ) const

inline

Returns list of activated layer.

Definition at line 164 of file rendererbase.h.

◆ getName()

virtual std::string FIFE::RendererBase::getName ( )

pure virtual

Name of the renderer.

Implemented in FIFE::GenericRenderer, FIFE::LightRenderer, FIFE::CellSelectionRenderer, FIFE::CoordinateRenderer, FIFE::FloatingTextRenderer, FIFE::QuadTreeRenderer, FIFE::CellRenderer, FIFE::BlockingInfoRenderer, FIFE::InstanceRenderer, and FIFE::GridRenderer.

Referenced by FIFE::Camera::addRenderer(), and FIFE::Camera::onRendererEnabledChanged().

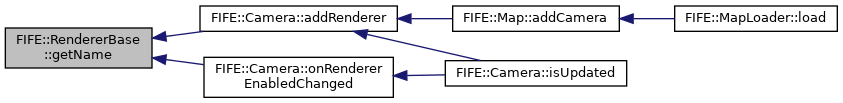

Here is the caller graph for this function:

◆ getPipelinePosition()

int32_t FIFE::RendererBase::getPipelinePosition ( ) const

inline

Gets renderer position in the rendering pipeline.

Definition at line 117 of file rendererbase.h.

Referenced by FIFE::pipelineSort().

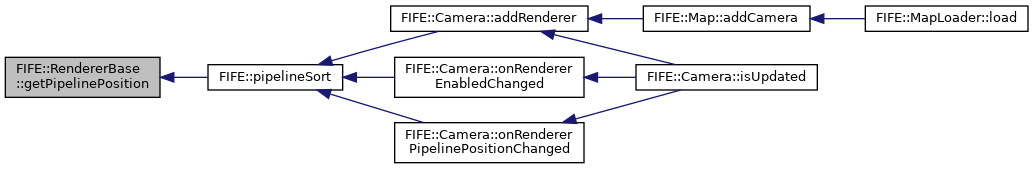

Here is the caller graph for this function:

◆ isActivedLayer()

bool FIFE::RendererBase::isActivedLayer ( Layer * layer )

Returns if given layer is currently activated.

Definition at line 96 of file rendererbase.cpp.

References m_active_layers.

◆ isEnabled()

bool FIFE::RendererBase::isEnabled ( ) const

inline

Is renderer enabled.

Definition at line 136 of file rendererbase.h.

Referenced by FIFE::Camera::addRenderer(), and FIFE::Camera::onRendererEnabledChanged().

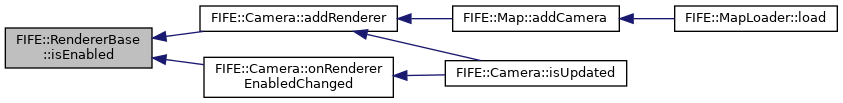

Here is the caller graph for this function:

◆ removeActiveLayer()

void FIFE::RendererBase::removeActiveLayer ( Layer * layer )

Removes active layer from renderer.

Definition at line 88 of file rendererbase.cpp.

References m_active_layers.

◆ render()

virtual void FIFE::RendererBase::render	(	Camera *	cam,
		Layer *	layer,
		RenderList &	instances
	)

pure virtual

This method is called by the view to ask renderer to draw its rendering aspect based on given parameters.

Renderers receive non-clipped instance stack since there is no way to know which information is relevant for the renderer. E.g. effect renderer might need to know offscreen instance locations to be able to draw radiation coming from some instance not visible on the screen.

Parameters

cam	camera view to draw
layer	current layer to be rendered
instances	instances on the current layer @ see setPipelinePosition

Implemented in FIFE::GenericRenderer, FIFE::LightRenderer, FIFE::CellRenderer, FIFE::BlockingInfoRenderer, FIFE::CellSelectionRenderer, FIFE::CoordinateRenderer, FIFE::FloatingTextRenderer, FIFE::QuadTreeRenderer, FIFE::InstanceRenderer, and FIFE::GridRenderer.

◆ reset()

virtual void FIFE::RendererBase::reset ( )

inlinevirtual

Resets information in the renderer.

Reimplemented in FIFE::GenericRenderer, FIFE::LightRenderer, FIFE::InstanceRenderer, and FIFE::CellSelectionRenderer.

Definition at line 132 of file rendererbase.h.

◆ setEnabled()

void FIFE::RendererBase::setEnabled ( bool enabled )

virtual

Enables renderer.

Definition at line 73 of file rendererbase.cpp.

References m_enabled, m_listener, and FIFE::IRendererListener::onRendererEnabledChanged().

Referenced by FIFE::BlockingInfoRenderer::BlockingInfoRenderer(), FIFE::CellRenderer::CellRenderer(), FIFE::CellSelectionRenderer::CellSelectionRenderer(), FIFE::CoordinateRenderer::CoordinateRenderer(), FIFE::FloatingTextRenderer::FloatingTextRenderer(), FIFE::GenericRenderer::GenericRenderer(), FIFE::GridRenderer::GridRenderer(), FIFE::InstanceRenderer::InstanceRenderer(), FIFE::LightRenderer::LightRenderer(), and FIFE::QuadTreeRenderer::QuadTreeRenderer().

Here is the caller graph for this function:

◆ setPipelinePosition()

void FIFE::RendererBase::setPipelinePosition ( int32_t position )

Sets renderer position in the rendering pipeline Pipeline position defines in which order view calls the renderers when update occurs Note that renderers are called once per rendered layer, thus to update the whole screen, renderer might receive multiple calls.

Definition at line 64 of file rendererbase.cpp.

References m_listener, m_pipeline_position, and FIFE::IRendererListener::onRendererPipelinePositionChanged().

Referenced by RendererBase().

Here is the caller graph for this function:

◆ setRendererListener()

void FIFE::RendererBase::setRendererListener ( IRendererListener * listener )

inline

Sets listener for renderer.

Definition at line 140 of file rendererbase.h.

Referenced by FIFE::Camera::addRenderer().

Here is the caller graph for this function:

Member Data Documentation

◆ m_active_layers

std::list<Layer*> FIFE::RendererBase::m_active_layers

protected

Definition at line 170 of file rendererbase.h.

Referenced by addActiveLayer(), clearActiveLayers(), isActivedLayer(), and removeActiveLayer().

◆ m_enabled

bool FIFE::RendererBase::m_enabled

private

Definition at line 174 of file rendererbase.h.

Referenced by setEnabled().

◆ m_listener

IRendererListener* FIFE::RendererBase::m_listener

private

Definition at line 176 of file rendererbase.h.

Referenced by setEnabled(), and setPipelinePosition().

◆ m_pipeline_position

int32_t FIFE::RendererBase::m_pipeline_position

private

Definition at line 175 of file rendererbase.h.

Referenced by RendererBase(), and setPipelinePosition().

◆ m_renderbackend

RenderBackend* FIFE::RendererBase::m_renderbackend

protected

The documentation for this class was generated from the following files:

engine/core/view/rendererbase.h
engine/core/view/rendererbase.cpp
