Camera describes properties of a view port shown in the main screen Main screen can have multiple cameras active simultanously Different cameras can have different properties, like location to shoot, zoom or tilt. More...

#include <camera.h>

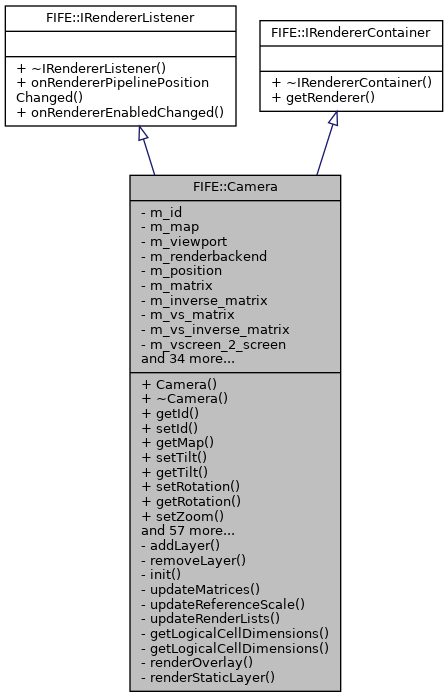

Inheritance diagram for FIFE::Camera:

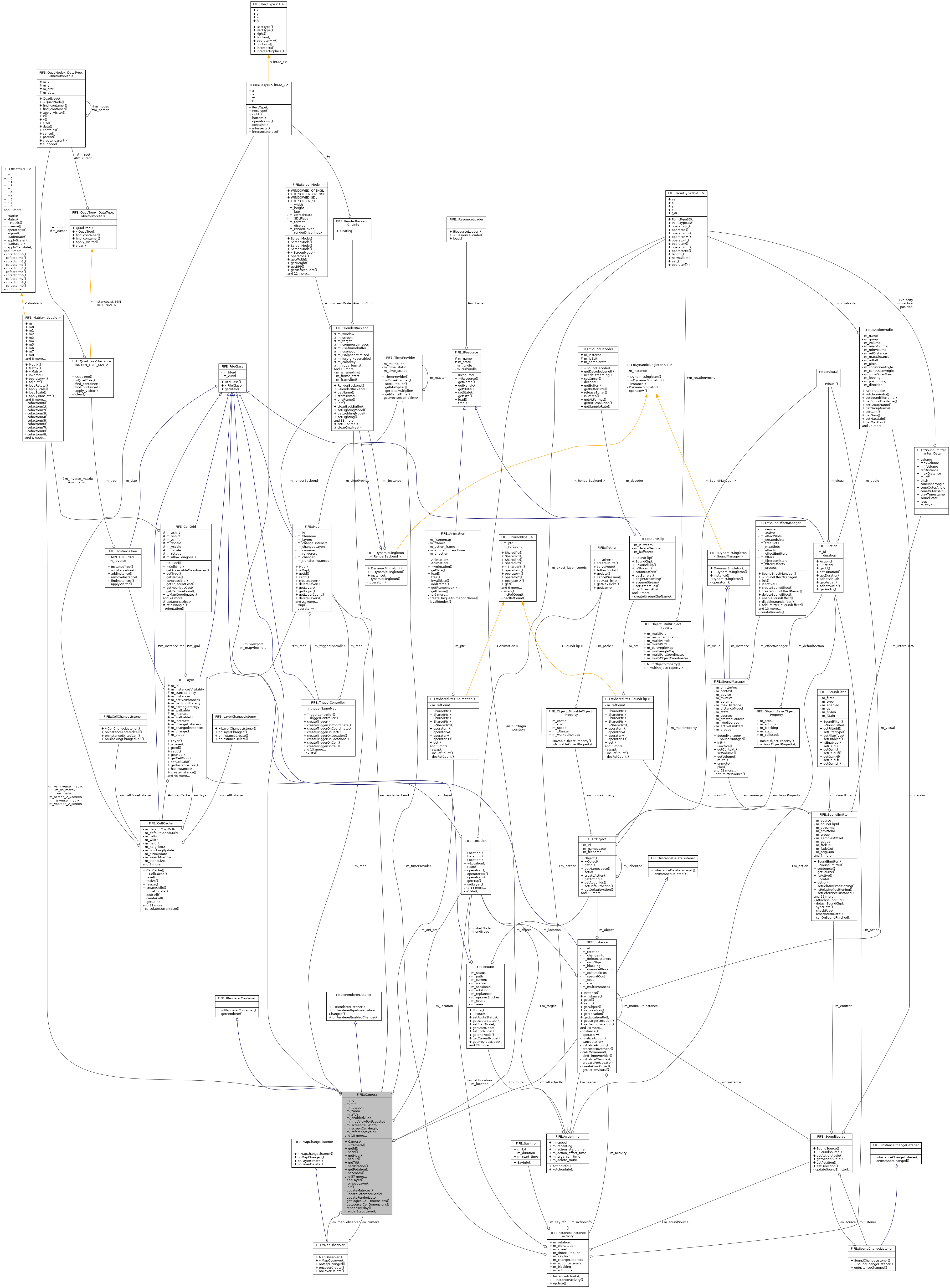

Collaboration diagram for FIFE::Camera:

Public Types
enum	TransformType { NoneTransform = 0x00, TiltTransform = 0x01, RotationTransform = 0x02, ZoomTransform = 0x04, PositionTransform = 0x08, ZTransform = 0x10 }

typedef uint32_t	Transform

Public Member Functions
	Camera (const std::string &id, Map map, const Rect &viewport, RenderBackend renderbackend)
	Constructor Camera needs to be added to the view. More...

virtual	~Camera ()
	Destructor. More...

const std::string &	getId () const
	Gets the identifier for this camera. More...

void	setId (const std::string &id)
	Sets the identifier for this camera. More...

Map *	getMap ()
	Gets the map where camera is bound. More...

void	setTilt (double tilt)
	Sets tilt for the camera. More...

double	getTilt () const
	Gets camera tilt. More...

void	setRotation (double rotation)
	Sets rotation for the camera. More...

double	getRotation () const
	Gets camera rotation. More...

void	setZoom (double zoom)
	Sets zoom for the camera. More...

double	getZoom () const
	Gets camera zoom. More...

double	getOriginalZToY () const
	Gets original zToY transformation value. More...

void	setZToY (double zToY)
	Sets zToY value for the camera and enables their use. More...

double	getZToY () const
	Gets zToY value. More...

void	setZToYEnabled (bool enabled)
	Sets z to y manipulation enabled / disabled. More...

bool	isZToYEnabled () const
	Gets if z to y manipulation is enabled / disabled. More...

void	setCellImageDimensions (uint32_t width, uint32_t height)
	Sets screen cell image dimensions. More...

Point	getCellImageDimensions ()
	Gets screen cell image dimensions. More...

Point	getCellImageDimensions (Layer *layer)
	Gets screen cell image dimensions for given layer. More...

double	getReferenceScaleX () const
	Gets x reference scale for cell image dimensions. More...

double	getReferenceScaleY () const
	Gets y reference scale for cell image dimensions. More...

void	setLocation (const Location &location)
	Sets the location for camera. More...

Location	getLocation ()
	Gets the location camera is rendering. More...

void	setPosition (const ExactModelCoordinate &position)
	Sets map point for the camera. More...

ExactModelCoordinate	getPosition () const
	Gets map point of the camera. More...

Point3D	getOrigin () const
	Gets screen point of the camera. More...

void	attach (Instance *instance)
	Attaches the camera to an instance. More...

void	detach ()
	Detaches the camera from an instance. More...

Instance *	getAttached () const
	Returns instance where camera is attached. More...

void	setViewPort (const Rect &viewport)
	Sets the viewport for camera viewport is rectangle inside the view where camera renders. More...

const Rect &	getViewPort () const
	Gets the viewport for camera in pixel coordinates. More...

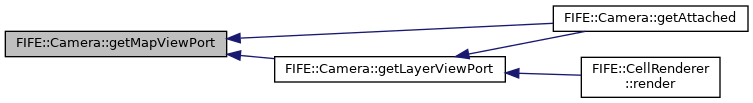

const Rect &	getMapViewPort ()
	Gets the viewport for camera in map coordinates. More...

Rect	getLayerViewPort (Layer *layer)
	Gets the viewport for camera in layer coordinates. More...

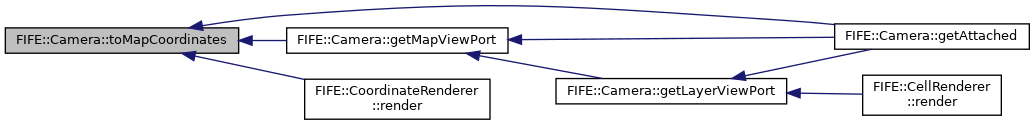

ExactModelCoordinate	toMapCoordinates (ScreenPoint screen_coords, bool z_calculated=true)
	Transforms given point from screen coordinates to map coordinates. More...

ScreenPoint	toScreenCoordinates (const ExactModelCoordinate &map_coords)
	Transforms given point from map coordinates to screen coordinates. More...

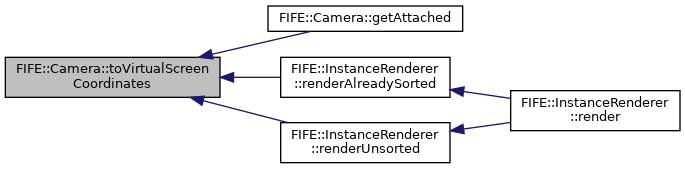

DoublePoint3D	toVirtualScreenCoordinates (const ExactModelCoordinate &map_coords)
	Transforms given point from map coordinates to virtual screen coordinates. More...

ScreenPoint	virtualScreenToScreen (const DoublePoint3D &p)
	Transforms given point from virtual screen coordinates to screen coordinates. More...

DoublePoint3D	screenToVirtualScreen (const ScreenPoint &p)
	Transforms given point from screen coordinates to virtual screen coordinates. More...

void	setEnabled (bool enabled)
	Sets camera enabled / disabled. More...

bool	isEnabled ()
	Gets if camera is enabled / disabled. More...

RenderList &	getRenderListRef (Layer *layer)
	Returns reference to RenderList. More...

void	getMatchingInstances (ScreenPoint screen_coords, Layer &layer, std::list< Instance *> &instances, uint8_t alpha=0)
	Returns instances that match given screen coordinate. More...

void	getMatchingInstances (Rect screen_rect, Layer &layer, std::list< Instance *> &instances, uint8_t alpha=0)
	Returns instances that match given screen coordinate. More...

void	getMatchingInstances (Location &loc, std::list< Instance *> &instances, bool use_exactcoordinates=false)
	Returns instances that match given location. More...

void	update ()
	General update routine. More...

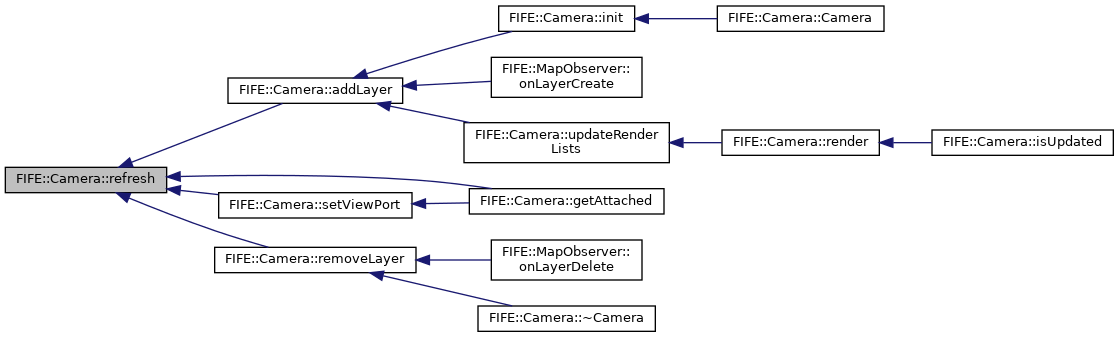

void	refresh ()
	Refreshes camera view in case e.g. More...

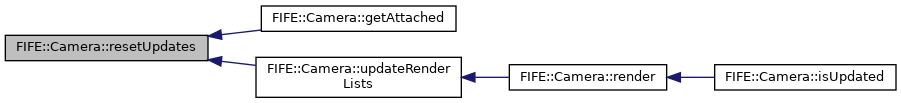

void	resetUpdates ()
	Resets temporary values from last update round, like warped flag. More...

bool	isUpdated ()
	Returns true if camera view has been updated, otherwise false. More...

void	addRenderer (RendererBase *renderer)
	Adds new renderer on the view. More...

RendererBase *	getRenderer (const std::string &name)
	Gets renderer with given name. More...

void	resetRenderers ()
	resets active layer information on all renderers. More...

void	calculateZValue (DoublePoint3D &screen_coords)
	calculates z-value for given screenpoint More...

void	onRendererPipelinePositionChanged (RendererBase *renderer)
	Renderer's pipeline position has been changed. More...

void	onRendererEnabledChanged (RendererBase *renderer)
	Renderer is enabled / disabled. More...

void	setLightingColor (float red, float green, float blue)
	Sets lighting color. More...

void	resetLightingColor ()
	Resets lighting color. More...

std::vector< float >	getLightingColor ()
	Returns a vector that contain the light color. More...

void	setOverlayColor (uint8_t red, uint8_t green, uint8_t blue, uint8_t alpha)
	Sets a color as overlay. More...

std::vector< uint8_t >	getOverlayColor ()
	Returns a vector that contain the overlay color. More...

void	resetOverlayColor ()
	Resets the color overlay. More...

void	setOverlayImage (int32_t id, bool fill=false)
	Sets a image as overlay, if fill is true the image gets the viewport size. More...

int32_t	getOverlayImage ()
	Returns the pool id of the overlay image. More...

void	resetOverlayImage ()
	Resets the image overlay. More...

void	setOverlayAnimation (AnimationPtr anim, bool fill=false)
	Sets a animation as overlay, if fill is true the animation gets the viewport size. More...

AnimationPtr	getOverlayAnimation ()
	Returns an AnimationPtr to the overlay animation. More...

void	resetOverlayAnimation ()
	Resets the animation overlay. More...

void	render ()
	Renders camera. More...

Public Member Functions inherited from FIFE::IRendererListener
virtual	~IRendererListener ()

Public Member Functions inherited from FIFE::IRendererContainer
virtual	~IRendererContainer ()

Private Member Functions
void	addLayer (Layer *layer)

void	removeLayer (Layer *layer)

void	init ()

void	updateMatrices ()
	Updates the camera transformation matrix T with requested values. More...

void	updateReferenceScale ()
	Updates camera reference scale Reference scale is in a sense an internal zooming factor, which adjusts cell dimensions in logical space to ones shown on screen. More...

void	updateRenderLists ()
	Updates camera RenderLists. More...

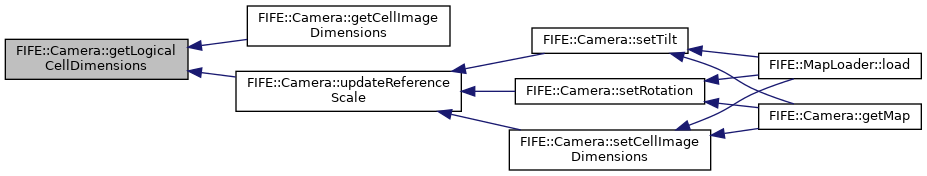

DoublePoint	getLogicalCellDimensions (Layer *layer)
	Gets logical cell image dimensions for given layer. More...

DoublePoint	getLogicalCellDimensions ()
	Gets logical cell image dimensions and ignores the layer and cellgrid. More...

void	renderOverlay ()
	Renders the overlay(color, image, animation) for the camera. More...

void	renderStaticLayer (Layer *layer, bool update)
	Renders the layer part that is on screen as one image. More...

Private Attributes
std::string	m_id

Map *	m_map

Rect	m_viewport

RenderBackend *	m_renderbackend

ExactModelCoordinate	m_position

DoubleMatrix	m_matrix

DoubleMatrix	m_inverse_matrix

DoubleMatrix	m_vs_matrix

DoubleMatrix	m_vs_inverse_matrix

DoubleMatrix	m_vscreen_2_screen

DoubleMatrix	m_screen_2_vscreen

double	m_tilt

double	m_rotation

double	m_zoom

double	m_zToY

bool	m_enabledZToY

Location	m_location

ScreenPoint	m_curOrigin

Rect	m_mapViewPort

bool	m_mapViewPortUpdated

uint32_t	m_screenCellWidth

uint32_t	m_screenCellHeight

double	m_referenceScaleX

double	m_referenceScaleY

bool	m_enabled

Instance *	m_attachedTo

Transform	m_transform

std::map< std::string, RendererBase * >	m_renderers

std::list< RendererBase * >	m_pipeline

bool	m_updated

t_layer_to_instances	m_layerToInstances

std::map< Layer , LayerCache >	m_cache

MapObserver *	m_map_observer

bool	m_lighting

std::vector< float >	m_light_colors

bool	m_col_overlay

bool	m_img_overlay

bool	m_ani_overlay

SDL_Color	m_overlay_color

int32_t	m_img_id

AnimationPtr	m_ani_ptr

bool	m_img_fill

bool	m_ani_fill

uint32_t	m_start_time

Friends
class	MapObserver

Detailed Description

Camera describes properties of a view port shown in the main screen Main screen can have multiple cameras active simultanously Different cameras can have different properties, like location to shoot, zoom or tilt.

Definition at line 59 of file camera.h.

Member Typedef Documentation

◆ Transform

typedef uint32_t FIFE::Camera::Transform

Definition at line 69 of file camera.h.

Member Enumeration Documentation

◆ TransformType

enum FIFE::Camera::TransformType

Enumerator
NoneTransform
TiltTransform
RotationTransform
ZoomTransform
PositionTransform
ZTransform

Definition at line 61 of file camera.h.

Constructor & Destructor Documentation

◆ Camera()

FIFE::Camera::Camera	(	const std::string &	id,
		Map *	map,
		const Rect &	viewport,
		RenderBackend *	renderbackend
	)

Constructor Camera needs to be added to the view.

If not done so, it is not rendered.

Parameters

id	identifier for the camera
map	map where camera is bound
viewport	used viewport for the camera. Viewport is measured in pixels in relation to game main screen
renderbackend	to use with rendering

Definition at line 80 of file camera.cpp.

References init(), m_map_observer, and MapObserver.

◆ ~Camera()

FIFE::Camera::~Camera ( )

virtual

Destructor.

Definition at line 118 of file camera.cpp.

References FIFE::Map::getLayers(), m_map, m_map_observer, m_renderers, FIFE::Map::removeChangeListener(), and removeLayer().

Member Function Documentation

◆ addLayer()

void FIFE::Camera::addLayer ( Layer * layer )

private

Definition at line 747 of file camera.cpp.

References m_cache, m_layerToInstances, and refresh().

Referenced by init(), FIFE::MapObserver::onLayerCreate(), and updateRenderLists().

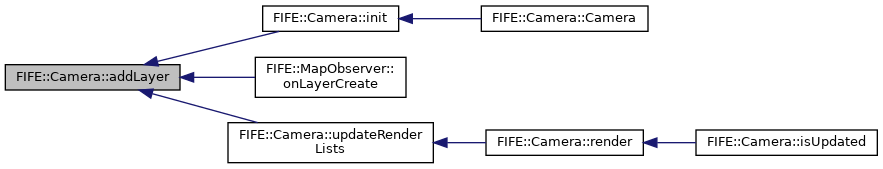

Here is the caller graph for this function:

◆ addRenderer()

void FIFE::Camera::addRenderer ( RendererBase * renderer )

Adds new renderer on the view.

Ownership is transferred to the camera.

Definition at line 712 of file camera.cpp.

References FIFE::RendererBase::getName(), FIFE::RendererBase::isEnabled(), m_pipeline, m_renderers, FIFE::pipelineSort(), and FIFE::RendererBase::setRendererListener().

Referenced by FIFE::Map::addCamera(), and isUpdated().

Here is the caller graph for this function:

◆ attach()

void FIFE::Camera::attach ( Instance * instance )

Attaches the camera to an instance.

Parameters

instance Instance to which the camera shall be attached

Note: The camera can only be attached to an instance at the same layer!

Definition at line 669 of file camera.cpp.

References m_attachedTo.

Referenced by getReferenceScaleY().

Here is the caller graph for this function:

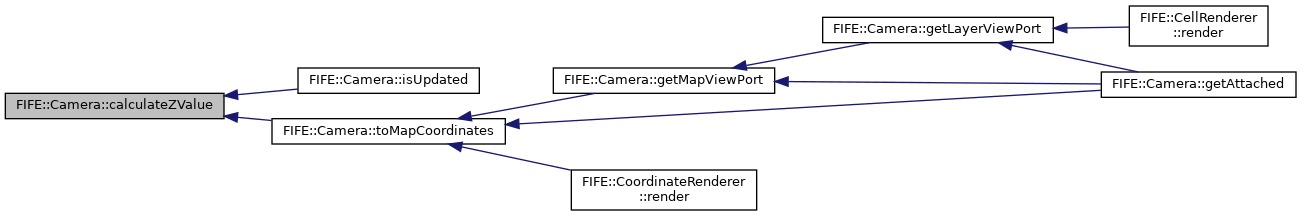

◆ calculateZValue()

void FIFE::Camera::calculateZValue ( DoublePoint3D & screen_coords )

calculates z-value for given screenpoint

Definition at line 410 of file camera.cpp.

References m_position, m_tilt, FIFE::Math< T >::pi(), FIFE::Math< T >::Tan(), toScreenCoordinates(), FIFE::PointType3D< T >::y, and FIFE::PointType3D< T >::z.

Referenced by isUpdated(), and toMapCoordinates().

Here is the caller graph for this function:

◆ detach()

void FIFE::Camera::detach ( )

Detaches the camera from an instance.

Definition at line 675 of file camera.cpp.

References m_attachedTo.

Referenced by getReferenceScaleY().

Here is the caller graph for this function:

◆ getAttached()

Instance* FIFE::Camera::getAttached ( ) const

inline

Returns instance where camera is attached.

NULL if not attached

Definition at line 221 of file camera.h.

References getLayerViewPort(), getMapViewPort(), getMatchingInstances(), getRenderListRef(), getViewPort(), isEnabled(), m_attachedTo, refresh(), resetUpdates(), screenToVirtualScreen(), setEnabled(), setViewPort(), toMapCoordinates(), toScreenCoordinates(), toVirtualScreenCoordinates(), update(), and virtualScreenToScreen().

◆ getCellImageDimensions() [1/2]

Point FIFE::Camera::getCellImageDimensions ( )

Gets screen cell image dimensions.

See also: setCellImageDimensions

Returns: Point containing x=width and y=height

Definition at line 259 of file camera.cpp.

References m_screenCellHeight, and m_screenCellWidth.

Referenced by getMap().

Here is the caller graph for this function:

◆ getCellImageDimensions() [2/2]

Point FIFE::Camera::getCellImageDimensions ( Layer * layer )

Gets screen cell image dimensions for given layer.

Returns: Point containing x=width and y=height

Definition at line 263 of file camera.cpp.

References getLogicalCellDimensions(), m_referenceScaleX, m_referenceScaleY, FIFE::PointType2D< T >::x, and FIFE::PointType2D< T >::y.

◆ getId()

const std::string& FIFE::Camera::getId ( ) const

inline

Gets the identifier for this camera.

Definition at line 86 of file camera.h.

References m_id.

◆ getLayerViewPort()

Rect FIFE::Camera::getLayerViewPort ( Layer * layer )

Gets the viewport for camera in layer coordinates.

Parameters

layer A pointer to the layer whose geometry is used for the conversion

Returns: camera viewport

Definition at line 326 of file camera.cpp.

References ABS, FIFE::Location::getLayerCoordinates(), getMapViewPort(), FIFE::RectType< T >::h, FIFE::Location::setMapCoordinates(), FIFE::RectType< T >::w, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

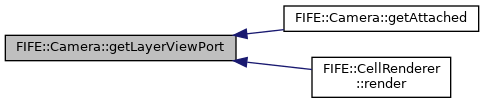

Referenced by getAttached(), and FIFE::CellRenderer::render().

Here is the caller graph for this function:

◆ getLightingColor()

std::vector< float > FIFE::Camera::getLightingColor ( )

Returns a vector that contain the light color.

Definition at line 772 of file camera.cpp.

References m_light_colors.

Referenced by isUpdated().

Here is the caller graph for this function:

◆ getLocation()

Location FIFE::Camera::getLocation ( )

Gets the location camera is rendering.

If no location was set, the camera creates a location. The top layer of the map together with current camera position are used for that.

Returns: camera location

Definition at line 271 of file camera.cpp.

References FIFE::Location::getLayer(), FIFE::Map::getLayerCount(), FIFE::Map::getLayers(), m_location, m_map, m_position, FIFE::Location::setLayer(), and FIFE::Location::setMapCoordinates().

Referenced by getReferenceScaleY().

Here is the caller graph for this function:

◆ getLogicalCellDimensions() [1/2]

DoublePoint FIFE::Camera::getLogicalCellDimensions ( Layer * layer )

private

Gets logical cell image dimensions for given layer.

Definition at line 441 of file camera.cpp.

References FIFE::Matrix< T >::applyRotate(), FIFE::Layer::getCellGrid(), FIFE::CellGrid::getVertices(), FIFE::Matrix< T >::loadRotate(), m_rotation, m_tilt, and FIFE::CellGrid::toMapCoordinates().

◆ getLogicalCellDimensions() [2/2]

DoublePoint FIFE::Camera::getLogicalCellDimensions ( )

private

Gets logical cell image dimensions and ignores the layer and cellgrid.

Definition at line 475 of file camera.cpp.

References FIFE::Matrix< T >::applyRotate(), FIFE::Matrix< T >::loadRotate(), m_rotation, and m_tilt.

Referenced by getCellImageDimensions(), and updateReferenceScale().

Here is the caller graph for this function:

◆ getMap()

Map* FIFE::Camera::getMap ( )

inline

Gets the map where camera is bound.

Returns: The associated map for this camera.

Definition at line 95 of file camera.h.

References getCellImageDimensions(), getOriginalZToY(), getRotation(), getTilt(), getZoom(), getZToY(), isZToYEnabled(), m_map, setCellImageDimensions(), setRotation(), setTilt(), setZoom(), setZToY(), and setZToYEnabled().

◆ getMapViewPort()

const Rect & FIFE::Camera::getMapViewPort ( )

Gets the viewport for camera in map coordinates.

Returns: camera viewport

Definition at line 293 of file camera.cpp.

References ABS, FIFE::RectType< T >::h, m_mapViewPort, m_mapViewPortUpdated, m_viewport, toMapCoordinates(), FIFE::RectType< T >::w, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

Referenced by getAttached(), and getLayerViewPort().

Here is the caller graph for this function:

◆ getMatchingInstances() [1/3]

void FIFE::Camera::getMatchingInstances	(	ScreenPoint	screen_coords,
		Layer &	layer,
		std::list< Instance *> &	instances,
		uint8_t	alpha = `0`
	)

Returns instances that match given screen coordinate.

Parameters

screen_coords	screen coordinates to be used for hit search
layer	layer to use for search
instances	list of instances that is filled based on hit test results
alpha	the alpha to use to filter the matching instances. Pixels that have an alpha value higher than what is specified here are considered a hit.

Definition at line 524 of file camera.cpp.

References FIFE::RectType< T >::contains(), FIFE::RenderItem::dimensions, FIFE::Math< T >::Equal(), FIFE::Image::forceLoadInternal(), FIFE::RenderItem::getAnimationOverlay(), FIFE::Image::getHeight(), FIFE::Image::getPixelRGBA(), FIFE::Image::getWidth(), FIFE::RectType< T >::h, FIFE::RenderItem::image, FIFE::Image::isSharedImage(), m_layerToInstances, m_zoom, FIFE::RectType< T >::w, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, and FIFE::PointType3D< T >::y.

Referenced by getAttached().

Here is the caller graph for this function:

◆ getMatchingInstances() [2/3]

void FIFE::Camera::getMatchingInstances	(	Rect	screen_rect,
		Layer &	layer,
		std::list< Instance *> &	instances,
		uint8_t	alpha = `0`
	)

Returns instances that match given screen coordinate.

Parameters

screen_rect	rect that contains screen coordinates to be used for search
layer	layer to use for search
instances	list of instances that is filled based on hit test results
alpha	the alpha to use to filter the matching instances. Pixels that have an alpha value higher than what is specified here are considered a hit.

Definition at line 579 of file camera.cpp.

References FIFE::RectType< T >::bottom(), FIFE::RenderItem::dimensions, FIFE::Math< T >::Equal(), FIFE::Image::forceLoadInternal(), FIFE::RenderItem::getAnimationOverlay(), FIFE::Image::getHeight(), FIFE::Image::getPixelRGBA(), FIFE::Image::getWidth(), FIFE::RectType< T >::h, FIFE::RenderItem::image, FIFE::RectType< T >::intersects(), FIFE::Image::isSharedImage(), m_layerToInstances, m_zoom, FIFE::RectType< T >::right(), FIFE::RectType< T >::w, FIFE::RectType< T >::x, and FIFE::RectType< T >::y.

◆ getMatchingInstances() [3/3]

void FIFE::Camera::getMatchingInstances	(	Location &	loc,
		std::list< Instance *> &	instances,
		bool	use_exactcoordinates = `false`
	)

Returns instances that match given location.

Instances are sorted based on camera view, so that "topmost" instance is first in returned list

Parameters

loc	location where to fetch instances from
instances	list of instances that is filled based on hit test results
use_exactcoordinates	if true, comparison is done using exact coordinates. if not, cell coordinates are used

Definition at line 645 of file camera.cpp.

References FIFE::Location::getExactLayerCoordinatesRef(), FIFE::Location::getLayer(), FIFE::Location::getLayerCoordinates(), FIFE::Instance::getLocationRef(), and m_layerToInstances.

◆ getOrigin()

Point3D FIFE::Camera::getOrigin ( ) const

Gets screen point of the camera.

Returns: camera screen point

Definition at line 364 of file camera.cpp.

References m_curOrigin.

Referenced by getReferenceScaleY().

Here is the caller graph for this function:

◆ getOriginalZToY()

double FIFE::Camera::getOriginalZToY ( ) const

Gets original zToY transformation value.

Returns: zToY value of the camera.

Definition at line 192 of file camera.cpp.

References FIFE::Matrix< T >::applyRotate(), FIFE::Matrix< T >::applyTranslate(), FIFE::Layer::getCellGrid(), FIFE::Location::getLayer(), FIFE::Location::getMapCoordinates(), FIFE::Matrix< T >::loadScale(), FIFE::Matrix< T >::m9, m_location, m_referenceScaleX, m_referenceScaleY, m_rotation, m_tilt, FIFE::PointType3D< T >::x, FIFE::PointType3D< T >::y, and FIFE::PointType3D< T >::z.

Referenced by getMap().

Here is the caller graph for this function:

◆ getOverlayAnimation()

AnimationPtr FIFE::Camera::getOverlayAnimation ( )

Returns an AnimationPtr to the overlay animation.

Definition at line 839 of file camera.cpp.

References m_ani_ptr.

Referenced by isUpdated().

Here is the caller graph for this function:

◆ getOverlayColor()

std::vector< uint8_t > FIFE::Camera::getOverlayColor ( )

Returns a vector that contain the overlay color.

Definition at line 794 of file camera.cpp.

References m_col_overlay, and m_overlay_color.

Referenced by isUpdated().

Here is the caller graph for this function:

◆ getOverlayImage()

int32_t FIFE::Camera::getOverlayImage ( )

Returns the pool id of the overlay image.

Definition at line 819 of file camera.cpp.

References m_img_id, and m_img_overlay.

Referenced by isUpdated().

Here is the caller graph for this function:

◆ getPosition()

ExactModelCoordinate FIFE::Camera::getPosition ( ) const

Gets map point of the camera.

Returns: The camera position on the map

Definition at line 360 of file camera.cpp.

References m_position.

Referenced by getReferenceScaleY().

Here is the caller graph for this function:

◆ getReferenceScaleX()

double FIFE::Camera::getReferenceScaleX ( ) const

inline

Gets x reference scale for cell image dimensions.

Definition at line 177 of file camera.h.

References m_referenceScaleX.

◆ getReferenceScaleY()

double FIFE::Camera::getReferenceScaleY ( ) const

inline

Gets y reference scale for cell image dimensions.

Definition at line 181 of file camera.h.

References attach(), detach(), getLocation(), getOrigin(), getPosition(), m_referenceScaleY, setLocation(), and setPosition().

◆ getRenderer()

RendererBase * FIFE::Camera::getRenderer ( const std::string & name )

virtual

Gets renderer with given name.

Implements FIFE::IRendererContainer.

Definition at line 736 of file camera.cpp.

References m_renderers.

Referenced by isUpdated().

Here is the caller graph for this function:

◆ getRenderListRef()

RenderList & FIFE::Camera::getRenderListRef ( Layer * layer )

Returns reference to RenderList.

Definition at line 520 of file camera.cpp.

References m_layerToInstances.

Referenced by getAttached().

Here is the caller graph for this function:

◆ getRotation()

double FIFE::Camera::getRotation ( ) const

Gets camera rotation.

Returns: rotation of the camera

Definition at line 173 of file camera.cpp.

References m_rotation.

Referenced by getMap().

Here is the caller graph for this function:

◆ getTilt()

double FIFE::Camera::getTilt ( ) const

Gets camera tilt.

Returns: tilt of camera

Definition at line 160 of file camera.cpp.

References m_tilt.

Referenced by getMap().

Here is the caller graph for this function:

◆ getViewPort()

const Rect & FIFE::Camera::getViewPort ( ) const

Gets the viewport for camera in pixel coordinates.

Returns: camera viewport

Definition at line 289 of file camera.cpp.

References m_viewport.

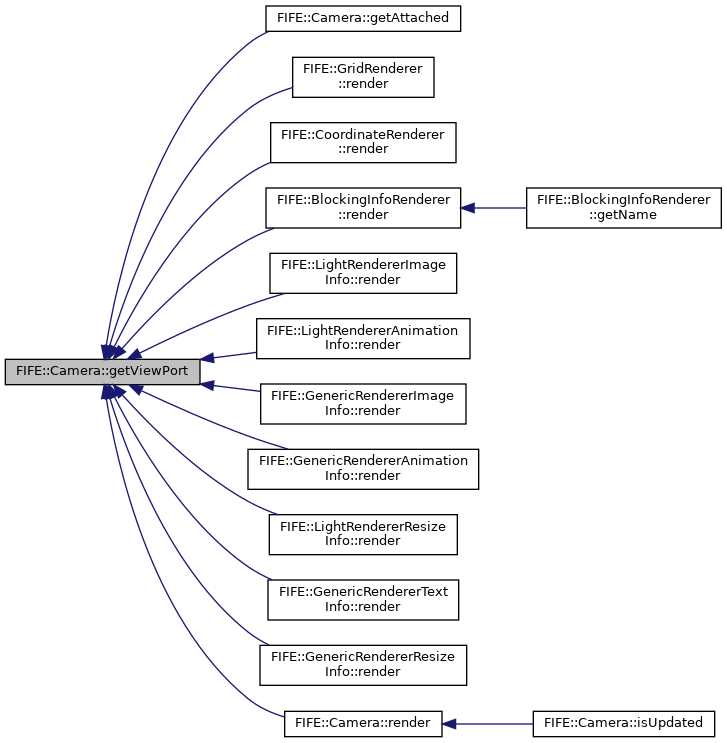

Referenced by getAttached(), FIFE::GridRenderer::render(), FIFE::CoordinateRenderer::render(), FIFE::BlockingInfoRenderer::render(), FIFE::LightRendererImageInfo::render(), FIFE::LightRendererAnimationInfo::render(), FIFE::GenericRendererImageInfo::render(), FIFE::GenericRendererAnimationInfo::render(), FIFE::LightRendererResizeInfo::render(), FIFE::GenericRendererTextInfo::render(), FIFE::GenericRendererResizeInfo::render(), and render().

Here is the caller graph for this function:

◆ getZoom()

double FIFE::Camera::getZoom ( ) const

Gets camera zoom.

Returns: zoom of the camera

Definition at line 188 of file camera.cpp.

References m_zoom.

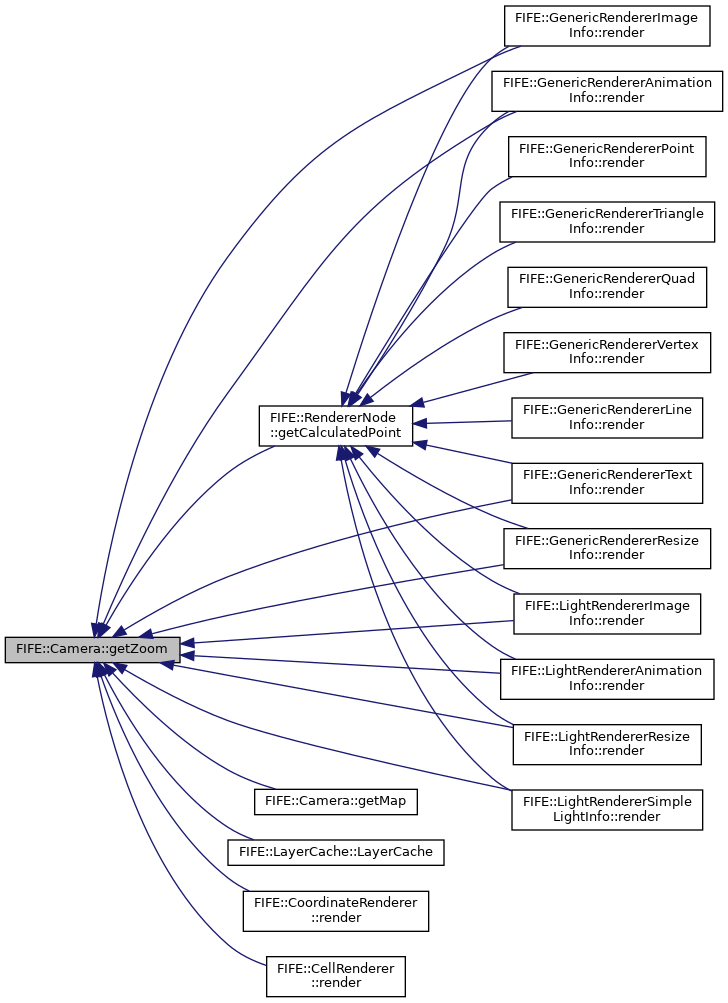

Referenced by FIFE::RendererNode::getCalculatedPoint(), getMap(), FIFE::LayerCache::LayerCache(), FIFE::CoordinateRenderer::render(), FIFE::CellRenderer::render(), FIFE::LightRendererImageInfo::render(), FIFE::LightRendererAnimationInfo::render(), FIFE::LightRendererSimpleLightInfo::render(), FIFE::GenericRendererImageInfo::render(), FIFE::GenericRendererAnimationInfo::render(), FIFE::LightRendererResizeInfo::render(), FIFE::GenericRendererTextInfo::render(), and FIFE::GenericRendererResizeInfo::render().

Here is the caller graph for this function:

◆ getZToY()

double FIFE::Camera::getZToY ( ) const

Gets zToY value.

Returns: zToY value of the camera.

Definition at line 216 of file camera.cpp.

References m_zToY.

Referenced by getMap().

Here is the caller graph for this function:

◆ init()

void FIFE::Camera::init ( )

private

Definition at line 137 of file camera.cpp.

References FIFE::Map::addChangeListener(), addLayer(), FIFE::Map::getLayers(), m_curOrigin, m_map, m_map_observer, m_position, m_transform, PositionTransform, toScreenCoordinates(), and updateMatrices().

Referenced by Camera().

Here is the caller graph for this function:

◆ isEnabled()

bool FIFE::Camera::isEnabled ( )

Gets if camera is enabled / disabled.

Definition at line 346 of file camera.cpp.

References m_enabled.

Referenced by getAttached().

Here is the caller graph for this function:

◆ isUpdated()

bool FIFE::Camera::isUpdated ( )

inline

Returns true if camera view has been updated, otherwise false.

Definition at line 334 of file camera.h.

References addRenderer(), calculateZValue(), getLightingColor(), getOverlayAnimation(), getOverlayColor(), getOverlayImage(), getRenderer(), m_updated, onRendererEnabledChanged(), onRendererPipelinePositionChanged(), render(), resetLightingColor(), resetOverlayAnimation(), resetOverlayColor(), resetOverlayImage(), resetRenderers(), setLightingColor(), setOverlayAnimation(), setOverlayColor(), and setOverlayImage().

◆ isZToYEnabled()

bool FIFE::Camera::isZToYEnabled ( ) const

Gets if z to y manipulation is enabled / disabled.

Returns: true if z to y manipulation is enabled, otherwise false.

Definition at line 224 of file camera.cpp.

References m_enabledZToY.

Referenced by getMap().

Here is the caller graph for this function:

◆ onRendererEnabledChanged()

void FIFE::Camera::onRendererEnabledChanged ( RendererBase * renderer )

virtual

Renderer is enabled / disabled.

Implements FIFE::IRendererListener.

Definition at line 725 of file camera.cpp.

References FIFE::_log, FL_LOG, FIFE::RendererBase::getName(), FIFE::RendererBase::isEnabled(), m_pipeline, m_renderers, and FIFE::pipelineSort().

Referenced by isUpdated().

Here is the caller graph for this function:

◆ onRendererPipelinePositionChanged()

void FIFE::Camera::onRendererPipelinePositionChanged ( RendererBase * renderer )

virtual

Renderer's pipeline position has been changed.

Implements FIFE::IRendererListener.

Definition at line 721 of file camera.cpp.

References m_pipeline, and FIFE::pipelineSort().

Referenced by isUpdated().

Here is the caller graph for this function:

◆ refresh()

void FIFE::Camera::refresh ( )

Refreshes camera view in case e.g.

location is updated directly (not via setLocation)

Note: calling this function marks camera as "warped", therefore it causes all instance positions to be recalculated. If you constantly call this, you end up with pixel wobbling effect when camera is moved.

Definition at line 693 of file camera.cpp.

References m_curOrigin, m_position, m_transform, RotationTransform, toScreenCoordinates(), and updateMatrices().

Referenced by addLayer(), getAttached(), removeLayer(), and setViewPort().

Here is the caller graph for this function:

◆ removeLayer()

void FIFE::Camera::removeLayer ( Layer * layer )

private

Definition at line 754 of file camera.cpp.

References FIFE::Location::getLayer(), m_cache, m_layerToInstances, m_location, refresh(), and FIFE::Location::reset().

Referenced by FIFE::MapObserver::onLayerDelete(), and ~Camera().

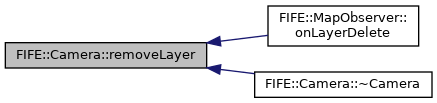

Here is the caller graph for this function:

◆ render()

void FIFE::Camera::render ( )

Renders camera.

Definition at line 981 of file camera.cpp.

References FIFE::Map::getLayers(), FIFE::RenderBackend::getLightingModel(), getViewPort(), m_cache, m_layerToInstances, m_light_colors, m_lighting, m_map, m_pipeline, m_renderbackend, m_updated, m_viewport, FIFE::MAX_BATCH_SIZE, FIFE::RenderBackend::popClipArea(), FIFE::RenderBackend::pushClipArea(), renderOverlay(), renderStaticLayer(), FIFE::RenderBackend::renderVertexArrays(), FIFE::RenderBackend::resetLighting(), FIFE::RenderBackend::resetStencilBuffer(), FIFE::RenderBackend::setLighting(), and updateRenderLists().

Referenced by isUpdated().

Here is the caller graph for this function:

◆ renderOverlay()

void FIFE::Camera::renderOverlay ( )

private

Renders the overlay(color, image, animation) for the camera.

Definition at line 848 of file camera.cpp.

References FIFE::RenderBackend::fillRectangle(), FIFE::SharedPtr< T >::get(), FIFE::ImageManager::get(), FIFE::Animation::getDuration(), FIFE::Animation::getFrameByTimestamp(), FIFE::Image::getHeight(), FIFE::TimeManager::getTime(), FIFE::Image::getWidth(), FIFE::RectType< T >::h, FIFE::DynamicSingleton< ImageManager >::instance(), FIFE::DynamicSingleton< TimeManager >::instance(), m_ani_fill, m_ani_overlay, m_ani_ptr, m_col_overlay, m_img_fill, m_img_id, m_img_overlay, m_overlay_color, m_renderbackend, m_start_time, m_viewport, FIFE::Image::render(), FIFE::scaleTime(), FIFE::RectType< T >::w, FIFE::PointType2D< T >::x, FIFE::RectType< T >::x, FIFE::PointType2D< T >::y, and FIFE::RectType< T >::y.

Referenced by render().

Here is the caller graph for this function:

◆ renderStaticLayer()

void FIFE::Camera::renderStaticLayer	(	Layer *	layer,
		bool	update
	)

private

Renders the layer part that is on screen as one image.

Definition at line 903 of file camera.cpp.

References FIFE::RenderBackend::attachRenderTarget(), FIFE::RenderBackend::detachRenderTarget(), FIFE::SharedPtr< T >::get(), FIFE::LayerCache::getCacheImage(), FIFE::RenderBackend::getHeight(), FIFE::Layer::getId(), FIFE::RenderBackend::getName(), FIFE::RectType< T >::h, FIFE::DynamicSingleton< ImageManager >::instance(), FIFE::ImageManager::loadBlank(), m_cache, m_id, m_layerToInstances, m_pipeline, m_renderbackend, m_viewport, FIFE::MAX_BATCH_SIZE, FIFE::RenderBackend::popClipArea(), FIFE::RenderBackend::pushClipArea(), FIFE::RenderBackend::renderVertexArrays(), FIFE::LayerCache::setCacheImage(), and FIFE::RectType< T >::w.

Referenced by render().

Here is the caller graph for this function:

◆ resetLightingColor()

void FIFE::Camera::resetLightingColor ( )

Resets lighting color.

Definition at line 781 of file camera.cpp.

References m_lighting, m_renderbackend, and FIFE::RenderBackend::resetLighting().

Referenced by isUpdated().

Here is the caller graph for this function:

◆ resetOverlayAnimation()

void FIFE::Camera::resetOverlayAnimation ( )

Resets the animation overlay.

Definition at line 843 of file camera.cpp.

References m_ani_overlay, m_ani_ptr, and FIFE::SharedPtr< T >::reset().

Referenced by isUpdated().

Here is the caller graph for this function:

◆ resetOverlayColor()

void FIFE::Camera::resetOverlayColor ( )

Resets the color overlay.

Definition at line 809 of file camera.cpp.

References m_col_overlay.

Referenced by isUpdated().

Here is the caller graph for this function:

◆ resetOverlayImage()

void FIFE::Camera::resetOverlayImage ( )

Resets the image overlay.

Definition at line 827 of file camera.cpp.

References m_img_id, and m_img_overlay.

Referenced by isUpdated().

Here is the caller graph for this function:

◆ resetRenderers()

void FIFE::Camera::resetRenderers ( )

resets active layer information on all renderers.

Definition at line 740 of file camera.cpp.

References m_renderers.

Referenced by isUpdated().

Here is the caller graph for this function:

◆ resetUpdates()

void FIFE::Camera::resetUpdates ( )

Resets temporary values from last update round, like warped flag.

Definition at line 699 of file camera.cpp.

References m_transform, m_updated, and NoneTransform.

Referenced by getAttached(), and updateRenderLists().

Here is the caller graph for this function:

◆ screenToVirtualScreen()

DoublePoint3D FIFE::Camera::screenToVirtualScreen ( const ScreenPoint & p )

Transforms given point from screen coordinates to virtual screen coordinates.

Returns: point in virtual screen coordinates

Definition at line 437 of file camera.cpp.

References FIFE::intPt2doublePt(), and m_screen_2_vscreen.

Referenced by getAttached().

Here is the caller graph for this function:

◆ setCellImageDimensions()

void FIFE::Camera::setCellImageDimensions	(	uint32_t	width,
		uint32_t	height
	)

Sets screen cell image dimensions.

Cell image dimension is basically width and height of a bitmap, that covers one cell in the layer where camera is bind

Returns: Point Point containing x=width and y=height

Definition at line 228 of file camera.cpp.

References m_screenCellHeight, m_screenCellWidth, m_transform, PositionTransform, updateMatrices(), and updateReferenceScale().

Referenced by getMap(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ setEnabled()

void FIFE::Camera::setEnabled ( bool enabled )

Sets camera enabled / disabled.

Definition at line 342 of file camera.cpp.

References m_enabled.

Referenced by getAttached().

Here is the caller graph for this function:

◆ setId()

void FIFE::Camera::setId ( const std::string & id )

inline

Sets the identifier for this camera.

Definition at line 90 of file camera.h.

References m_id.

◆ setLightingColor()

void FIFE::Camera::setLightingColor	(	float	red,
		float	green,
		float	blue
	)

Sets lighting color.

Definition at line 764 of file camera.cpp.

References m_light_colors, and m_lighting.

Referenced by isUpdated().

Here is the caller graph for this function:

◆ setLocation()

void FIFE::Camera::setLocation ( const Location & location )

Sets the location for camera.

Parameters

location location (center point) to render

Definition at line 236 of file camera.cpp.

References FIFE::Layer::getCellGrid(), FIFE::Location::getLayer(), FIFE::Location::getMapCoordinates(), m_curOrigin, m_location, m_position, m_transform, PositionTransform, toScreenCoordinates(), and updateMatrices().

Referenced by getReferenceScaleY().

Here is the caller graph for this function:

◆ setOverlayAnimation()

void FIFE::Camera::setOverlayAnimation	(	AnimationPtr	anim,
		bool	fill = `false`
	)

Sets a animation as overlay, if fill is true the animation gets the viewport size.

Definition at line 832 of file camera.cpp.

References m_ani_fill, m_ani_overlay, m_ani_ptr, and m_start_time.

Referenced by isUpdated().

Here is the caller graph for this function:

◆ setOverlayColor()

void FIFE::Camera::setOverlayColor	(	uint8_t	red,
		uint8_t	green,
		uint8_t	blue,
		uint8_t	alpha
	)

Sets a color as overlay.

Definition at line 786 of file camera.cpp.

References m_col_overlay, and m_overlay_color.

Referenced by isUpdated().

Here is the caller graph for this function:

◆ setOverlayImage()

void FIFE::Camera::setOverlayImage	(	int32_t	id,
		bool	fill = `false`
	)

Sets a image as overlay, if fill is true the image gets the viewport size.

Definition at line 813 of file camera.cpp.

References m_img_fill, m_img_id, and m_img_overlay.

Referenced by isUpdated().

Here is the caller graph for this function:

◆ setPosition()

void FIFE::Camera::setPosition ( const ExactModelCoordinate & position )

Sets map point for the camera.

Parameters

position The camera position on the map

Definition at line 350 of file camera.cpp.

References FIFE::Math< T >::Equal(), m_curOrigin, m_position, m_transform, PositionTransform, toScreenCoordinates(), updateMatrices(), FIFE::PointType3D< T >::x, and FIFE::PointType3D< T >::y.

Referenced by getReferenceScaleY().

Here is the caller graph for this function:

◆ setRotation()

void FIFE::Camera::setRotation ( double rotation )

Sets rotation for the camera.

Rotation can be visualized by thinking camera that rotates around an object that it is rendering

Parameters

rotation rotation for the camera

Definition at line 164 of file camera.cpp.

References FIFE::Math< T >::Equal(), m_rotation, m_transform, RotationTransform, updateMatrices(), and updateReferenceScale().

Referenced by getMap(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ setTilt()

void FIFE::Camera::setTilt ( double tilt )

Sets tilt for the camera.

e.g. overhead camera has tilt 0, while traditional isometric camera has tilt 45

Parameters

tilt	tilt for the camera

Definition at line 151 of file camera.cpp.

References FIFE::Math< T >::Equal(), m_tilt, m_transform, TiltTransform, updateMatrices(), and updateReferenceScale().

Referenced by getMap(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ setViewPort()

void FIFE::Camera::setViewPort ( const Rect & viewport )

Sets the viewport for camera viewport is rectangle inside the view where camera renders.

Parameters

viewport area for camera render

Definition at line 284 of file camera.cpp.

References m_viewport, and refresh().

Referenced by getAttached().

Here is the caller graph for this function:

◆ setZoom()

void FIFE::Camera::setZoom ( double zoom )

Sets zoom for the camera.

Parameters

zoom	zoom for the camera

Definition at line 177 of file camera.cpp.

References FIFE::Math< T >::Equal(), m_transform, m_zoom, updateMatrices(), and ZoomTransform.

Referenced by getMap(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ setZToY()

void FIFE::Camera::setZToY ( double zToY )

Sets zToY value for the camera and enables their use.

This means the factor which influenced the z to y transformation, so if you set zToY=32 then 1z corresponds to 32 pixels in y direction.

Parameters

zToY	influenced the z to y transformation of the camera.

Definition at line 207 of file camera.cpp.

References FIFE::Math< T >::Equal(), m_enabledZToY, m_transform, m_zToY, updateMatrices(), and ZTransform.

Referenced by getMap(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

◆ setZToYEnabled()

void FIFE::Camera::setZToYEnabled ( bool enabled )

Sets z to y manipulation enabled / disabled.

Parameters

enabled If true then the zToY value is used instead of the original matrix value.

Definition at line 220 of file camera.cpp.

References m_enabledZToY.

Referenced by getMap().

Here is the caller graph for this function:

◆ toMapCoordinates()

ExactModelCoordinate FIFE::Camera::toMapCoordinates	(	ScreenPoint	screen_coords,
		bool	z_calculated = `true`
	)

Transforms given point from screen coordinates to map coordinates.

Parameters

screen_coords	screen coordinates to transform
z_calculated	if true, z-value (depth cut point) is pre-calculated. If false, camera calculates it

Returns: point in map coordinates

Definition at line 415 of file camera.cpp.

References calculateZValue(), FIFE::intPt2doublePt(), and m_inverse_matrix.

Referenced by getAttached(), getMapViewPort(), and FIFE::CoordinateRenderer::render().

Here is the caller graph for this function:

◆ toScreenCoordinates()

ScreenPoint FIFE::Camera::toScreenCoordinates ( const ExactModelCoordinate & map_coords )

Transforms given point from map coordinates to screen coordinates.

Returns: point in screen coordinates

Definition at line 423 of file camera.cpp.

References FIFE::doublePt2intPt(), and m_matrix.

Referenced by calculateZValue(), getAttached(), FIFE::RendererNode::getCalculatedPoint(), init(), refresh(), FIFE::GridRenderer::render(), FIFE::CoordinateRenderer::render(), FIFE::CellSelectionRenderer::render(), FIFE::BlockingInfoRenderer::render(), FIFE::CellRenderer::render(), FIFE::InstanceRenderer::renderAlreadySorted(), FIFE::InstanceRenderer::renderUnsorted(), setLocation(), setPosition(), and update().

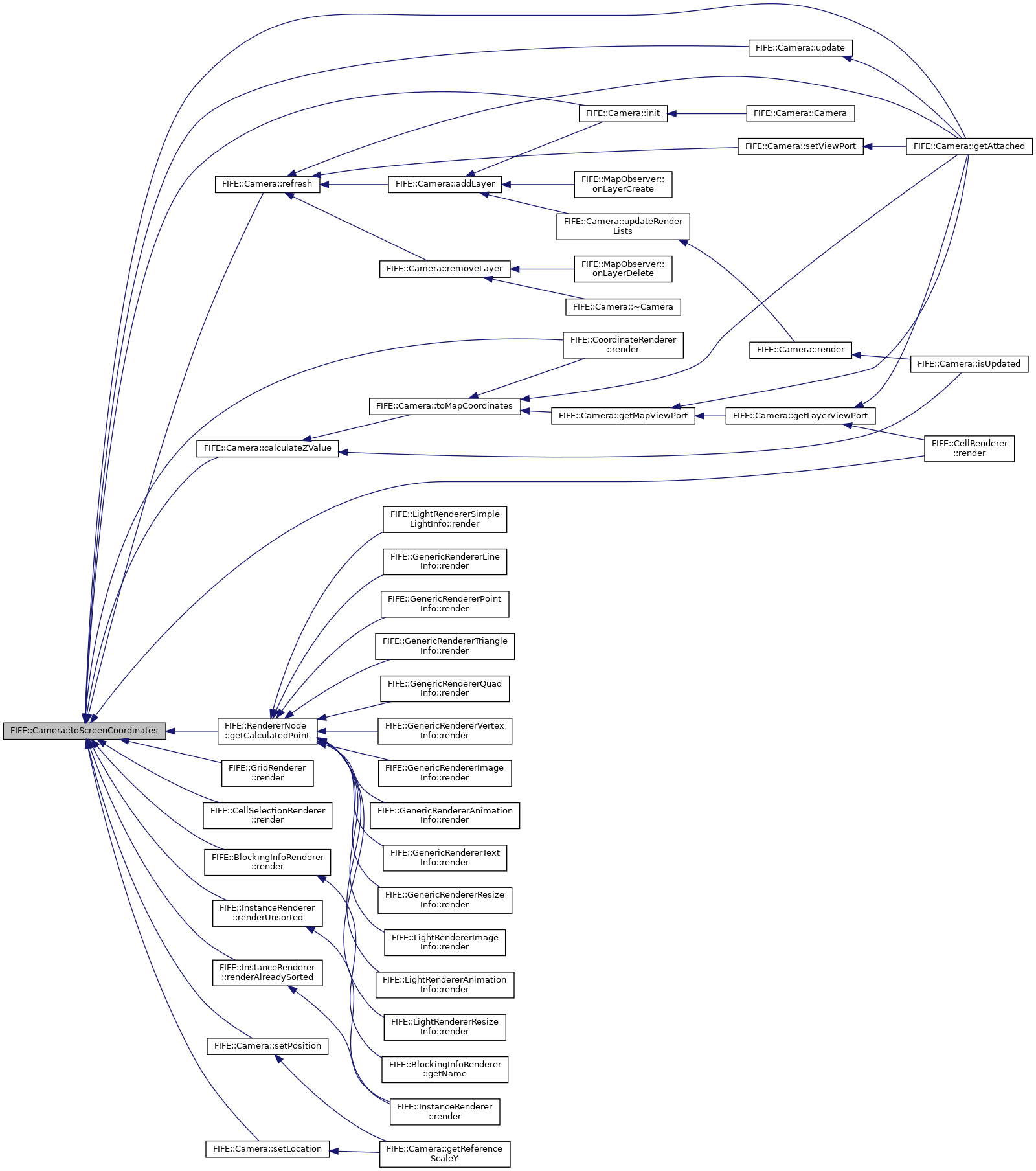

Here is the caller graph for this function:

◆ toVirtualScreenCoordinates()

DoublePoint3D FIFE::Camera::toVirtualScreenCoordinates ( const ExactModelCoordinate & map_coords )

Transforms given point from map coordinates to virtual screen coordinates.

Returns: point in virtual screen coordinates

Definition at line 428 of file camera.cpp.

References m_vs_matrix.

Referenced by getAttached(), FIFE::InstanceRenderer::renderAlreadySorted(), and FIFE::InstanceRenderer::renderUnsorted().

Here is the caller graph for this function:

◆ update()

void FIFE::Camera::update ( )

General update routine.

In this function, the camera's position gets updated when its attached to another instance.

Note: call this only once in engine update cycle, so that tracking between current position and previous position keeps in sync. This information is used e.g. by view to fix the pixel wobbling problem

Definition at line 679 of file camera.cpp.

References FIFE::Math< T >::Equal(), FIFE::Instance::getLocationRef(), FIFE::Location::getMapCoordinates(), m_attachedTo, m_curOrigin, m_position, m_transform, PositionTransform, toScreenCoordinates(), updateMatrices(), FIFE::PointType3D< T >::x, and FIFE::PointType3D< T >::y.

Referenced by getAttached().

Here is the caller graph for this function:

◆ updateMatrices()

void FIFE::Camera::updateMatrices ( )

private

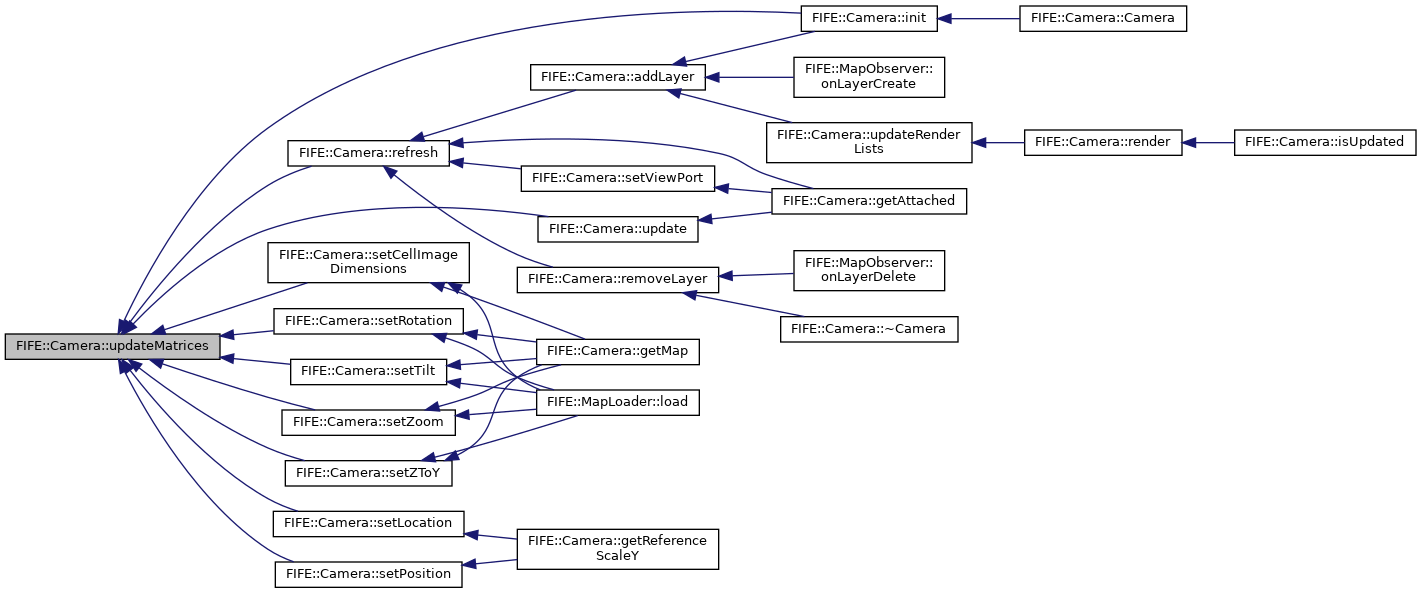

Updates the camera transformation matrix T with requested values.

The requests are done using these functions :

setLocation
setRotation
setTilt

Definition at line 368 of file camera.cpp.

References FIFE::Matrix< T >::applyRotate(), FIFE::Matrix< T >::applyScale(), FIFE::Matrix< T >::applyTranslate(), FIFE::RectType< T >::h, FIFE::Matrix< T >::inverse(), FIFE::Matrix< T >::loadScale(), FIFE::Matrix< T >::m9, m_enabledZToY, m_inverse_matrix, m_mapViewPortUpdated, m_matrix, m_position, m_referenceScaleX, m_referenceScaleY, m_rotation, m_screen_2_vscreen, m_tilt, m_viewport, m_vs_inverse_matrix, m_vs_matrix, m_vscreen_2_screen, m_zoom, m_zToY, FIFE::Matrix< T >::mult4by4(), FIFE::RectType< T >::w, FIFE::RectType< T >::x, FIFE::PointType3D< T >::x, FIFE::RectType< T >::y, FIFE::PointType3D< T >::y, and FIFE::PointType3D< T >::z.

Referenced by init(), refresh(), setCellImageDimensions(), setLocation(), setPosition(), setRotation(), setTilt(), setZoom(), setZToY(), and update().

Here is the caller graph for this function:

◆ updateReferenceScale()

void FIFE::Camera::updateReferenceScale ( )

private

Updates camera reference scale Reference scale is in a sense an internal zooming factor, which adjusts cell dimensions in logical space to ones shown on screen.

Calculation is based on current camera properties (e.g. rotation)

Definition at line 507 of file camera.cpp.

References FIFE::_log, FL_DBG, getLogicalCellDimensions(), m_referenceScaleX, m_referenceScaleY, m_rotation, m_screenCellHeight, m_screenCellWidth, m_tilt, FIFE::PointType2D< T >::x, and FIFE::PointType2D< T >::y.
