#include <floatingtextrenderer.h>

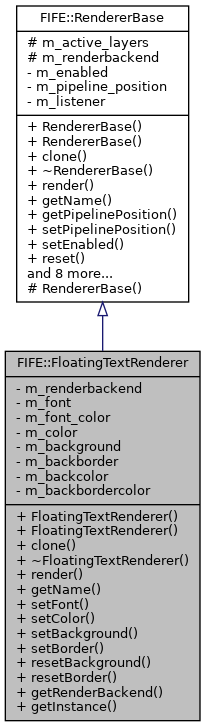

Inheritance diagram for FIFE::FloatingTextRenderer:

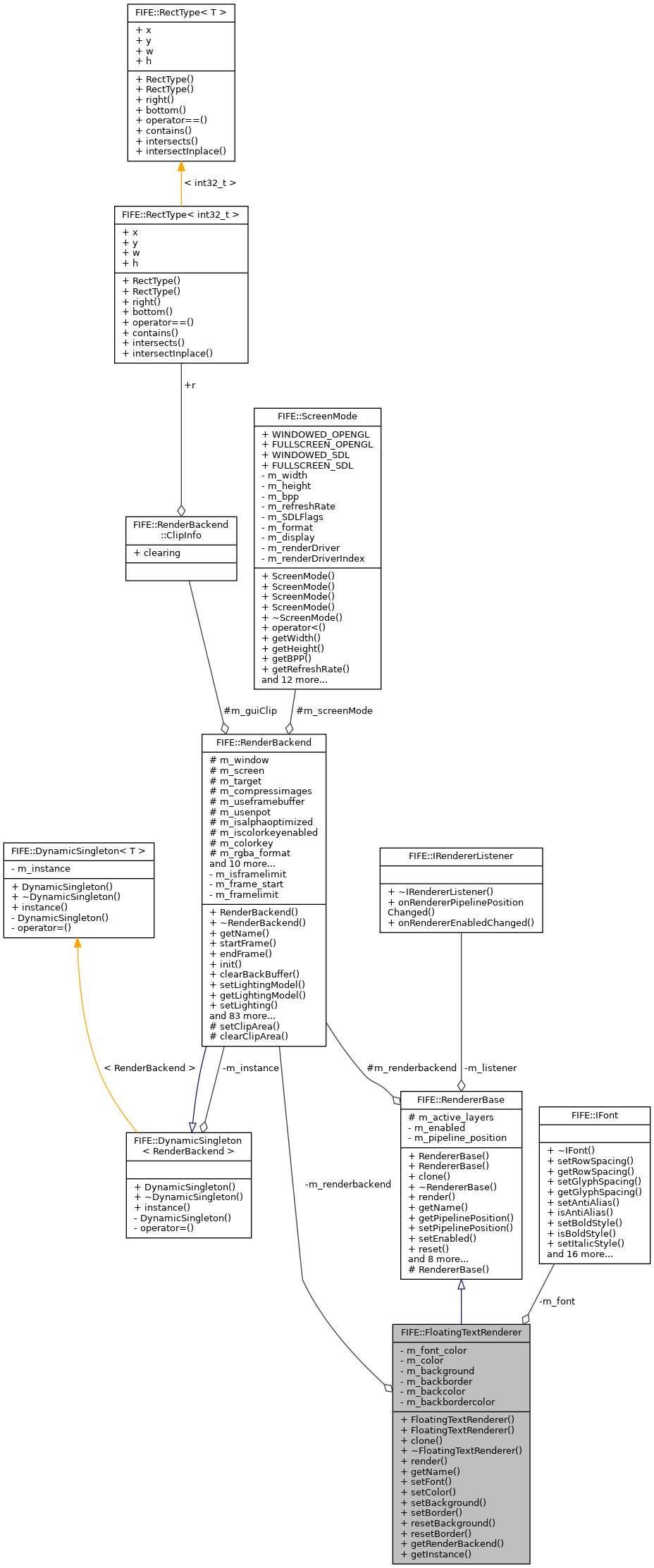

Collaboration diagram for FIFE::FloatingTextRenderer:

Public Member Functions
	FloatingTextRenderer (RenderBackend *renderbackend, int32_t position)
	Constructor. More...

	FloatingTextRenderer (const FloatingTextRenderer &old)
	Copy Constructor. More...

RendererBase *	clone ()
	Makes copy of this renderer. More...

virtual	~FloatingTextRenderer ()
	Destructor. More...

void	render (Camera cam, Layer layer, RenderList &instances)
	This method is called by the view to ask renderer to draw its rendering aspect based on given parameters. More...

std::string	getName ()
	Returns the renderer name. More...

void	setFont (IFont *font)
	Changes default font in the renderer Note that this does not change the font ownership. More...

void	setColor (uint8_t r, uint8_t g, uint8_t b, uint8_t a=255)
	Changes default font color Only useful for .ttf fonts. More...

void	setBackground (uint8_t br, uint8_t bg, uint8_t bb, uint8_t ba=255)
	Set default background quad r,g,b,a values for background. More...

void	setBorder (uint8_t bbr, uint8_t bbg, uint8_t bbb, uint8_t bba=255)
	Set default border r,g,b,a values for border. More...

void	resetBackground ()
	Disable the default background. More...

void	resetBorder ()
	Disable the default border. More...

RenderBackend *	getRenderBackend () const
	Provides access point to the RenderBackend. More...

Public Member Functions inherited from FIFE::RendererBase
	RendererBase (RenderBackend *renderbackend, int32_t position)
	Constructor. More...

	RendererBase (const RendererBase &old)
	Copy Constructor. More...

virtual	~RendererBase ()
	Destructor. More...

int32_t	getPipelinePosition () const
	Gets renderer position in the rendering pipeline. More...

void	setPipelinePosition (int32_t position)
	Sets renderer position in the rendering pipeline Pipeline position defines in which order view calls the renderers when update occurs Note that renderers are called once per rendered layer, thus to update the whole screen, renderer might receive multiple calls. More...

virtual void	setEnabled (bool enabled)
	Enables renderer. More...

virtual void	reset ()
	Resets information in the renderer. More...

bool	isEnabled () const
	Is renderer enabled. More...

void	setRendererListener (IRendererListener *listener)
	Sets listener for renderer. More...

void	addActiveLayer (Layer *layer)
	Adds active layer to renderer. More...

void	removeActiveLayer (Layer *layer)
	Removes active layer from renderer. More...

void	clearActiveLayers ()
	Clears all active layers from renderer. More...

void	activateAllLayers (Map *elevation)
	Activates all layers from given elevation. More...

bool	isActivedLayer (Layer *layer)
	Returns if given layer is currently activated. More...

std::list< Layer * >	getActiveLayers () const
	Returns list of activated layer. More...

Static Public Member Functions
static FloatingTextRenderer *	getInstance (IRendererContainer *cnt)
	Gets instance for interface access. More...

Private Attributes
RenderBackend *	m_renderbackend

IFont *	m_font

bool	m_font_color

SDL_Color	m_color

bool	m_background

bool	m_backborder

SDL_Color	m_backcolor

SDL_Color	m_backbordercolor

Additional Inherited Members
Protected Member Functions inherited from FIFE::RendererBase
	RendererBase ()

Protected Attributes inherited from FIFE::RendererBase
std::list< Layer * >	m_active_layers

RenderBackend *	m_renderbackend

Detailed Description

Definition at line 39 of file floatingtextrenderer.h.

Constructor & Destructor Documentation

◆ FloatingTextRenderer() [1/2]

FIFE::FloatingTextRenderer::FloatingTextRenderer	(	RenderBackend *	renderbackend,
		int32_t	position
	)

Constructor.

Parameters

renderbackend	The renderbackend to use.
position	The position for this renderer in rendering pipeline. @ see setPipelinePosition

Definition at line 50 of file floatingtextrenderer.cpp.

References FIFE::RendererBase::setEnabled().

Referenced by clone().

Here is the caller graph for this function:

◆ FloatingTextRenderer() [2/2]

FIFE::FloatingTextRenderer::FloatingTextRenderer ( const FloatingTextRenderer & old )

Copy Constructor.

Definition at line 60 of file floatingtextrenderer.cpp.

References FIFE::RendererBase::setEnabled().

◆ ~FloatingTextRenderer()

FIFE::FloatingTextRenderer::~FloatingTextRenderer ( )

virtual

Destructor.

Definition at line 75 of file floatingtextrenderer.cpp.

Member Function Documentation

◆ clone()

RendererBase * FIFE::FloatingTextRenderer::clone ( )

virtual

Makes copy of this renderer.

Implements FIFE::RendererBase.

Definition at line 71 of file floatingtextrenderer.cpp.

References FloatingTextRenderer().

◆ getInstance()

FloatingTextRenderer * FIFE::FloatingTextRenderer::getInstance ( IRendererContainer * cnt )

static

Gets instance for interface access.

Definition at line 174 of file floatingtextrenderer.cpp.

References FIFE::IRendererContainer::getRenderer().

Referenced by setFont().

Here is the caller graph for this function:

◆ getName()

std::string FIFE::FloatingTextRenderer::getName ( )

inlinevirtual

Returns the renderer name.

Returns: The name as string.

Implements FIFE::RendererBase.

Definition at line 74 of file floatingtextrenderer.h.

◆ getRenderBackend()

RenderBackend* FIFE::FloatingTextRenderer::getRenderBackend ( ) const

inline

Provides access point to the RenderBackend.

Definition at line 110 of file floatingtextrenderer.h.

References m_renderbackend.

◆ render()

void FIFE::FloatingTextRenderer::render	(	Camera *	cam,
		Layer *	layer,
		RenderList &	instances
	)

virtual

This method is called by the view to ask renderer to draw its rendering aspect based on given parameters.

Parameters

cam	Camera view to draw
layer	Current layer to be rendered
instances	Instances on the current layer

the center of the text rect is always aligned to the instance's rect center.

make the text rect floating higher than the instance.

Implements FIFE::RendererBase.

Definition at line 78 of file floatingtextrenderer.cpp.

References FIFE::ALWAYS, FIFE::RectType< T >::bottom(), FIFE::RenderBackend::changeRenderInfos(), FIFE::RenderBackend::drawRectangle(), FIFE::RenderBackend::fillRectangle(), FIFE::IFont::getAsImageMultiline(), FIFE::IFont::getColor(), FIFE::Image::getHeight(), FIFE::RenderBackend::getHeight(), FIFE::RenderBackend::getLightingModel(), FIFE::Instance::getSayText(), FIFE::Image::getWidth(), FIFE::RenderBackend::getWidth(), FIFE::RectType< T >::h, m_backborder, m_backbordercolor, m_backcolor, m_background, m_color, m_font, m_font_color, m_renderbackend, FIFE::Image::render(), FIFE::RENDER_DATA_WITHOUT_Z, FIFE::REPLACE, FIFE::RectType< T >::right(), FIFE::IFont::setColor(), FIFE::RectType< T >::w, FIFE::RectType< T >::x, and FIFE::RectType< T >::y.

◆ resetBackground()

void FIFE::FloatingTextRenderer::resetBackground ( )

Disable the default background.

Definition at line 166 of file floatingtextrenderer.cpp.

References m_background.

Referenced by setFont().

Here is the caller graph for this function:

◆ resetBorder()

void FIFE::FloatingTextRenderer::resetBorder ( )

Disable the default border.

Definition at line 170 of file floatingtextrenderer.cpp.

References m_backborder.

Referenced by setFont().

Here is the caller graph for this function:

◆ setBackground()

void FIFE::FloatingTextRenderer::setBackground	(	uint8_t	br,
		uint8_t	bg,
		uint8_t	bb,
		uint8_t	ba = `255`
	)

Set default background quad r,g,b,a values for background.

Definition at line 148 of file floatingtextrenderer.cpp.

References m_backcolor, and m_background.

Referenced by setFont().

Here is the caller graph for this function:

◆ setBorder()

void FIFE::FloatingTextRenderer::setBorder	(	uint8_t	bbr,
		uint8_t	bbg,
		uint8_t	bbb,
		uint8_t	bba = `255`
	)

Set default border r,g,b,a values for border.

Definition at line 157 of file floatingtextrenderer.cpp.

References m_backborder, and m_backbordercolor.

Referenced by setFont().

Here is the caller graph for this function:

◆ setColor()

void FIFE::FloatingTextRenderer::setColor	(	uint8_t	r,
		uint8_t	g,
		uint8_t	b,
		uint8_t	a = `255`
	)

Changes default font color Only useful for .ttf fonts.

Definition at line 139 of file floatingtextrenderer.cpp.

References m_color, and m_font_color.

Referenced by setFont().

Here is the caller graph for this function:

◆ setFont()

void FIFE::FloatingTextRenderer::setFont ( IFont * font )

inline

Changes default font in the renderer Note that this does not change the font ownership.

Definition at line 79 of file floatingtextrenderer.h.

References getInstance(), m_font, resetBackground(), resetBorder(), setBackground(), setBorder(), and setColor().

Member Data Documentation

◆ m_backborder

bool FIFE::FloatingTextRenderer::m_backborder

private

Definition at line 118 of file floatingtextrenderer.h.

Referenced by render(), resetBorder(), and setBorder().

◆ m_backbordercolor

SDL_Color FIFE::FloatingTextRenderer::m_backbordercolor

private

Definition at line 120 of file floatingtextrenderer.h.

Referenced by render(), and setBorder().

◆ m_backcolor

SDL_Color FIFE::FloatingTextRenderer::m_backcolor

private

Definition at line 119 of file floatingtextrenderer.h.

Referenced by render(), and setBackground().

◆ m_background

bool FIFE::FloatingTextRenderer::m_background

private

Definition at line 117 of file floatingtextrenderer.h.

Referenced by render(), resetBackground(), and setBackground().

◆ m_color

SDL_Color FIFE::FloatingTextRenderer::m_color

private

Definition at line 116 of file floatingtextrenderer.h.

Referenced by render(), and setColor().

◆ m_font

IFont* FIFE::FloatingTextRenderer::m_font

private

Definition at line 114 of file floatingtextrenderer.h.

Referenced by render(), and setFont().

◆ m_font_color

bool FIFE::FloatingTextRenderer::m_font_color

private

Definition at line 115 of file floatingtextrenderer.h.

Referenced by render(), and setColor().

◆ m_renderbackend

RenderBackend* FIFE::FloatingTextRenderer::m_renderbackend

private

Definition at line 113 of file floatingtextrenderer.h.

Referenced by getRenderBackend(), and render().

The documentation for this class was generated from the following files:

engine/core/view/renderers/floatingtextrenderer.h
engine/core/view/renderers/floatingtextrenderer.cpp
