#include <genericrenderer.h>

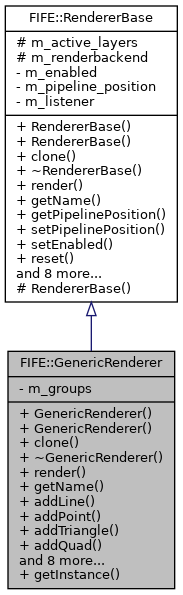

Inheritance diagram for FIFE::GenericRenderer:

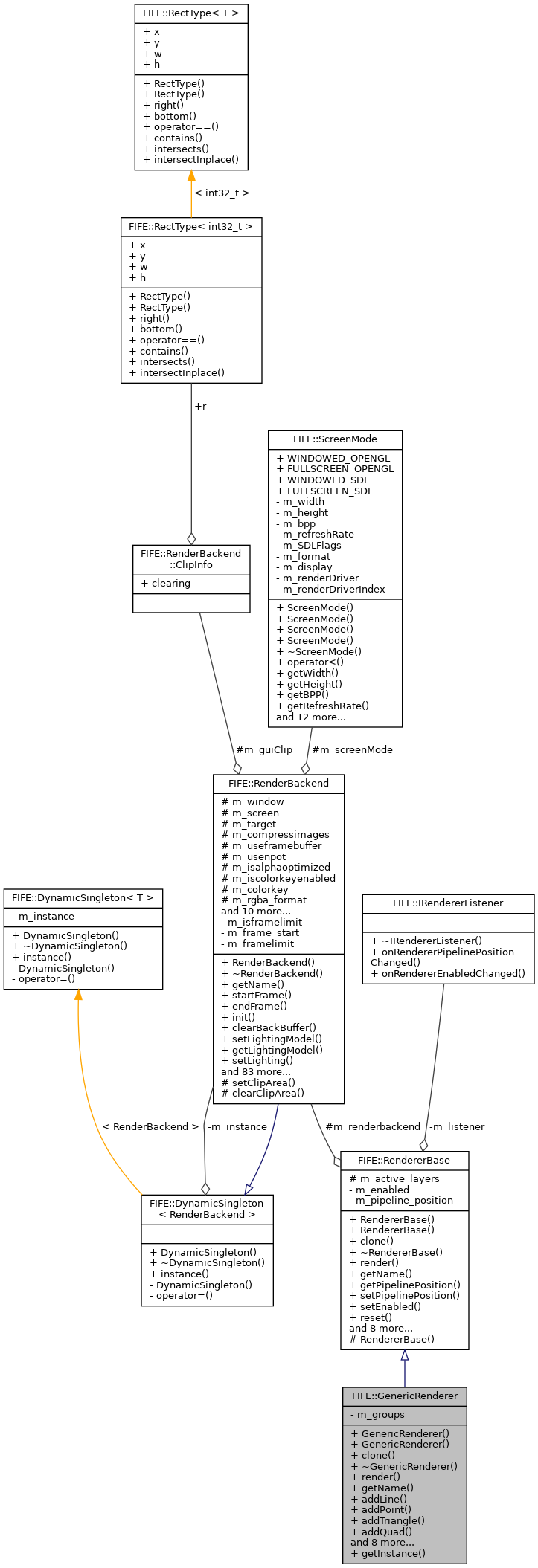

Collaboration diagram for FIFE::GenericRenderer:

Public Member Functions
	GenericRenderer (RenderBackend *renderbackend, int32_t position)
	Constructor. More...

	GenericRenderer (const GenericRenderer &old)
	Copy Constructor. More...

RendererBase *	clone ()
	Makes copy of this renderer. More...

virtual	~GenericRenderer ()
	Destructor. More...

void	render (Camera cam, Layer layer, RenderList &instances)
	This method is called by the view to ask renderer to draw its rendering aspect based on given parameters. More...

std::string	getName ()
	Returns the renderer name. More...

void	addLine (const std::string &group, RendererNode n1, RendererNode n2, uint8_t r, uint8_t g, uint8_t b, uint8_t a=255)
	Adds a line. More...

void	addPoint (const std::string &group, RendererNode n, uint8_t r, uint8_t g, uint8_t b, uint8_t a=255)
	Adds a point. More...

void	addTriangle (const std::string &group, RendererNode n1, RendererNode n2, RendererNode n3, uint8_t r, uint8_t g, uint8_t b, uint8_t a=255)
	Adds a triangle. More...

void	addQuad (const std::string &group, RendererNode n1, RendererNode n2, RendererNode n3, RendererNode n4, uint8_t r, uint8_t g, uint8_t b, uint8_t a=255)
	Adds a quad. More...

void	addVertex (const std::string &group, RendererNode n, int32_t size, uint8_t r, uint8_t g, uint8_t b, uint8_t a=255)
	Adds a vertex. More...

void	addText (const std::string &group, RendererNode n, IFont *font, const std::string &text, bool zoomed=true)
	Adds text. More...

void	addImage (const std::string &group, RendererNode n, ImagePtr image, bool zoomed=true)
	Adds an image. More...

void	addAnimation (const std::string &group, RendererNode n, AnimationPtr animation, bool zoomed=true)
	Adds an animation. More...

void	resizeImage (const std::string &group, RendererNode n, ImagePtr image, int32_t width, int32_t height, bool zoomed=true)
	Adds an image with another size. More...

void	removeAll (const std::string &group)
	Removes all elements of a group. More...

void	removeAll ()
	Removes all elements. More...

void	reset ()
	Resets the renderer. More...

Public Member Functions inherited from FIFE::RendererBase
	RendererBase (RenderBackend *renderbackend, int32_t position)
	Constructor. More...

	RendererBase (const RendererBase &old)
	Copy Constructor. More...

virtual	~RendererBase ()
	Destructor. More...

int32_t	getPipelinePosition () const
	Gets renderer position in the rendering pipeline. More...

void	setPipelinePosition (int32_t position)
	Sets renderer position in the rendering pipeline Pipeline position defines in which order view calls the renderers when update occurs Note that renderers are called once per rendered layer, thus to update the whole screen, renderer might receive multiple calls. More...

virtual void	setEnabled (bool enabled)
	Enables renderer. More...

bool	isEnabled () const
	Is renderer enabled. More...

void	setRendererListener (IRendererListener *listener)
	Sets listener for renderer. More...

void	addActiveLayer (Layer *layer)
	Adds active layer to renderer. More...

void	removeActiveLayer (Layer *layer)
	Removes active layer from renderer. More...

void	clearActiveLayers ()
	Clears all active layers from renderer. More...

void	activateAllLayers (Map *elevation)
	Activates all layers from given elevation. More...

bool	isActivedLayer (Layer *layer)
	Returns if given layer is currently activated. More...

std::list< Layer * >	getActiveLayers () const
	Returns list of activated layer. More...

Static Public Member Functions
static GenericRenderer *	getInstance (IRendererContainer *cnt)
	Gets instance for interface access. More...

Private Attributes
std::map< std::string, std::vector< GenericRendererElementInfo * > >	m_groups
	A map that holds the groups together with the appended render elements. More...

Additional Inherited Members
Protected Member Functions inherited from FIFE::RendererBase
	RendererBase ()

Protected Attributes inherited from FIFE::RendererBase
std::list< Layer * >	m_active_layers

RenderBackend *	m_renderbackend

Detailed Description

Definition at line 161 of file genericrenderer.h.

Constructor & Destructor Documentation

◆ GenericRenderer() [1/2]

FIFE::GenericRenderer::GenericRenderer	(	RenderBackend *	renderbackend,
		int32_t	position
	)

Constructor.

Parameters

renderbackend	The renderbackend to use.
position	The position for this renderer in rendering pipeline. @ see setPipelinePosition

Definition at line 289 of file genericrenderer.cpp.

References FIFE::RendererBase::setEnabled().

Referenced by clone().

Here is the caller graph for this function:

◆ GenericRenderer() [2/2]

FIFE::GenericRenderer::GenericRenderer ( const GenericRenderer & old )

Copy Constructor.

Definition at line 295 of file genericrenderer.cpp.

References FIFE::RendererBase::setEnabled().

◆ ~GenericRenderer()

FIFE::GenericRenderer::~GenericRenderer ( )

virtual

Destructor.

Definition at line 305 of file genericrenderer.cpp.

Member Function Documentation

◆ addAnimation()

void FIFE::GenericRenderer::addAnimation	(	const std::string &	group,
		RendererNode	n,
		AnimationPtr	animation,
		bool	zoomed = `true`
	)

Adds an animation.

Parameters

group	The group name as string.
n	A RendererNode, contains the coordinates.
animation	The used animation.
zoomed	A flag that indicates whether the camera zoom to be used. Default is true.

Definition at line 335 of file genericrenderer.cpp.

References m_groups.

◆ addImage()

void FIFE::GenericRenderer::addImage	(	const std::string &	group,
		RendererNode	n,
		ImagePtr	image,
		bool	zoomed = `true`
	)

Adds an image.

Parameters

group	The group name as string.
n	A RendererNode, contains the coordinates.
image	The used image.
zoomed	A flag that indicates whether the camera zoom to be used. Default is true.

Definition at line 331 of file genericrenderer.cpp.

References m_groups.

◆ addLine()

void FIFE::GenericRenderer::addLine	(	const std::string &	group,
		RendererNode	n1,
		RendererNode	n2,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b,
		uint8_t	a = `255`
	)

Adds a line.

Parameters

group	The group name as string.
n1	A RendererNode, contains the coordinates.
n2	A RendererNode, contains the coordinates.
r	The value for red, range 0-255.
g	The value for green, range 0-255.
b	The value for blue, range 0-255.
a	The value for alpha, range 0-255. Default value is 255, full opaque.

Definition at line 307 of file genericrenderer.cpp.

References m_groups.

◆ addPoint()

void FIFE::GenericRenderer::addPoint	(	const std::string &	group,
		RendererNode	n,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b,
		uint8_t	a = `255`
	)

Adds a point.

Parameters

group	The group name as string.
n	A RendererNode, contains the coordinates.
r	The value for red, range 0-255.
g	The value for green, range 0-255.
b	The value for blue, range 0-255.
a	The value for alpha, range 0-255. Default value is 255, full opaque.

Definition at line 311 of file genericrenderer.cpp.

References m_groups.

◆ addQuad()

void FIFE::GenericRenderer::addQuad	(	const std::string &	group,
		RendererNode	n1,
		RendererNode	n2,
		RendererNode	n3,
		RendererNode	n4,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b,
		uint8_t	a = `255`
	)

Adds a quad.

Parameters

group	The group name as string.
n1	A RendererNode, contains the coordinates.
n2	A RendererNode, contains the coordinates.
n3	A RendererNode, contains the coordinates.
n4	A RendererNode, contains the coordinates.
r	The value for red, range 0-255.
g	The value for green, range 0-255.
b	The value for blue, range 0-255.
a	The value for alpha, range 0-255. Default value is 255, full opaque.

Definition at line 319 of file genericrenderer.cpp.

References m_groups.

◆ addText()

void FIFE::GenericRenderer::addText	(	const std::string &	group,
		RendererNode	n,
		IFont *	font,
		const std::string &	text,
		bool	zoomed = `true`
	)

Adds text.

Parameters

group	The group name as string.
n	A RendererNode, contains the coordinates.
font	The used font.
text	The text as string.
zoomed	A flag that indicates whether the camera zoom to be used. Default is true.

Definition at line 327 of file genericrenderer.cpp.

References m_groups.

◆ addTriangle()

void FIFE::GenericRenderer::addTriangle	(	const std::string &	group,
		RendererNode	n1,
		RendererNode	n2,
		RendererNode	n3,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b,
		uint8_t	a = `255`
	)

Adds a triangle.

Parameters

group	The group name as string.
n1	A RendererNode, contains the coordinates.
n2	A RendererNode, contains the coordinates.
n3	A RendererNode, contains the coordinates.
r	The value for red, range 0-255.
g	The value for green, range 0-255.
b	The value for blue, range 0-255.
a	The value for alpha, range 0-255. Default value is 255, full opaque.

Definition at line 315 of file genericrenderer.cpp.

References m_groups.

◆ addVertex()

void FIFE::GenericRenderer::addVertex	(	const std::string &	group,
		RendererNode	n,
		int32_t	size,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b,
		uint8_t	a = `255`
	)

Adds a vertex.

Parameters

group	The group name as string.
n	A RendererNode, contains the coordinates.
size	The size of the vertex.
r	The value for red, range 0-255.
g	The value for green, range 0-255.
b	The value for blue, range 0-255.
a	The value for alpha, range 0-255. Default value is 255, full opaque.

Definition at line 323 of file genericrenderer.cpp.

References m_groups.

◆ clone()

RendererBase * FIFE::GenericRenderer::clone ( )

virtual

Makes copy of this renderer.

Implements FIFE::RendererBase.

Definition at line 301 of file genericrenderer.cpp.

References GenericRenderer().

◆ getInstance()

GenericRenderer * FIFE::GenericRenderer::getInstance ( IRendererContainer * cnt )

static

Gets instance for interface access.

Definition at line 285 of file genericrenderer.cpp.

References FIFE::IRendererContainer::getRenderer().

◆ getName()

std::string FIFE::GenericRenderer::getName ( )

inlinevirtual

Returns the renderer name.

Returns: The name as string.

Implements FIFE::RendererBase.

Definition at line 196 of file genericrenderer.h.

◆ removeAll() [1/2]

void FIFE::GenericRenderer::removeAll ( const std::string & group )

Removes all elements of a group.

Parameters

group The group name as string.

Definition at line 343 of file genericrenderer.cpp.

References m_groups.

◆ removeAll() [2/2]

void FIFE::GenericRenderer::removeAll ( )

Removes all elements.

Definition at line 352 of file genericrenderer.cpp.

References m_groups.

Referenced by reset().

Here is the caller graph for this function:

◆ render()

void FIFE::GenericRenderer::render	(	Camera *	cam,
		Layer *	layer,
		RenderList &	instances
	)

virtual

This method is called by the view to ask renderer to draw its rendering aspect based on given parameters.

Parameters

cam	Camera view to draw
layer	Current layer to be rendered
instances	Instances on the current layer

Implements FIFE::RendererBase.

Definition at line 367 of file genericrenderer.cpp.

References m_groups, and FIFE::RendererBase::m_renderbackend.

◆ reset()

void FIFE::GenericRenderer::reset ( )

virtual

Resets the renderer.

Reimplemented from FIFE::RendererBase.

Definition at line 363 of file genericrenderer.cpp.

References removeAll().

◆ resizeImage()

void FIFE::GenericRenderer::resizeImage	(	const std::string &	group,
		RendererNode	n,
		ImagePtr	image,
		int32_t	width,
		int32_t	height,
		bool	zoomed = `true`
	)

Adds an image with another size.

Parameters

group	The group name as string.
n	A RendererNode, contains the coordinates.
image	The used image.
width	New width of the image.
height	New height of the image.
zoomed	A flag that indicates whether the camera zoom to be used. Default is true.

Definition at line 339 of file genericrenderer.cpp.

References m_groups.

Member Data Documentation

◆ m_groups

std::map<std::string, std::vector<GenericRendererElementInfo*> > FIFE::GenericRenderer::m_groups

private

A map that holds the groups together with the appended render elements.

Definition at line 319 of file genericrenderer.h.

Referenced by addAnimation(), addImage(), addLine(), addPoint(), addQuad(), addText(), addTriangle(), addVertex(), removeAll(), render(), and resizeImage().

The documentation for this class was generated from the following files:

engine/core/view/renderers/genericrenderer.h
engine/core/view/renderers/genericrenderer.cpp

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GenericRenderer() [1/2]

◆ GenericRenderer() [2/2]

◆ ~GenericRenderer()

Member Function Documentation

◆ addAnimation()

◆ addImage()

◆ addLine()

◆ addPoint()

◆ addQuad()

◆ addText()

◆ addTriangle()

◆ addVertex()

◆ clone()

◆ getInstance()

◆ getName()

◆ removeAll() [1/2]

◆ removeAll() [2/2]

◆ render()

◆ reset()

◆ resizeImage()

Member Data Documentation

◆ m_groups
