#include <lightrenderer.h>

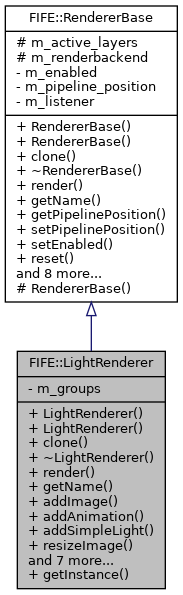

Inheritance diagram for FIFE::LightRenderer:

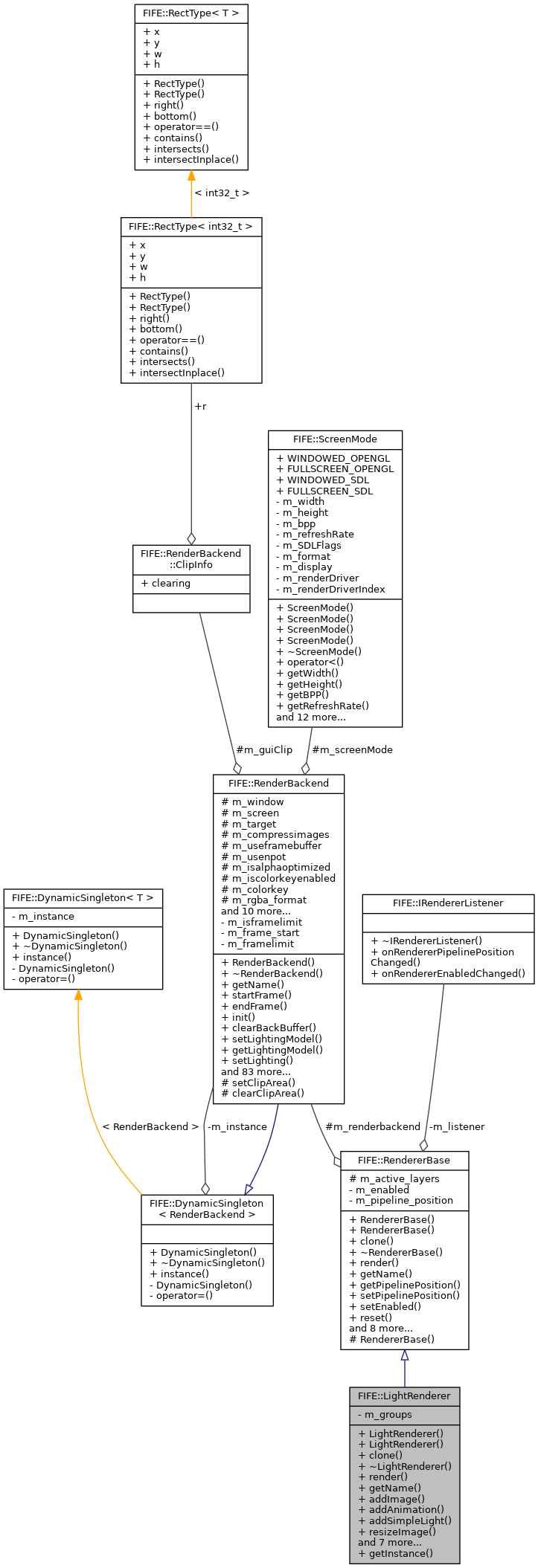

Collaboration diagram for FIFE::LightRenderer:

Public Member Functions
	LightRenderer (RenderBackend *renderbackend, int32_t position)
	constructor. More...

	LightRenderer (const LightRenderer &old)

RendererBase *	clone ()
	Makes copy of this renderer. More...

virtual	~LightRenderer ()
	Destructor. More...

void	render (Camera cam, Layer layer, RenderList &instances)
	This method is called by the view to ask renderer to draw its rendering aspect based on given parameters. More...

std::string	getName ()
	Name of the renderer. More...

void	addImage (const std::string &group, RendererNode n, ImagePtr image, int32_t src=-1, int32_t dst=-1)

void	addAnimation (const std::string &group, RendererNode n, AnimationPtr animation, int32_t src=-1, int32_t dst=-1)

void	addSimpleLight (const std::string &group, RendererNode n, uint8_t intensity, float radius, int32_t subdivisions, float xstretch, float ystretch, uint8_t r, uint8_t g, uint8_t b, int32_t src=-1, int32_t dst=-1)

void	resizeImage (const std::string &group, RendererNode n, ImagePtr image, int32_t width, int32_t height, int32_t src=-1, int32_t dst=-1)

void	addStencilTest (const std::string &group, uint8_t stencil_ref=0)

void	removeStencilTest (const std::string &group)

std::list< std::string >	getGroups ()

std::vector< LightRendererElementInfo * >	getLightInfo (const std::string &group)

void	removeAll (const std::string &group)

void	removeAll ()

void	reset ()
	Resets information in the renderer. More...

Public Member Functions inherited from FIFE::RendererBase
	RendererBase (RenderBackend *renderbackend, int32_t position)
	Constructor. More...

	RendererBase (const RendererBase &old)
	Copy Constructor. More...

virtual	~RendererBase ()
	Destructor. More...

int32_t	getPipelinePosition () const
	Gets renderer position in the rendering pipeline. More...

void	setPipelinePosition (int32_t position)
	Sets renderer position in the rendering pipeline Pipeline position defines in which order view calls the renderers when update occurs Note that renderers are called once per rendered layer, thus to update the whole screen, renderer might receive multiple calls. More...

virtual void	setEnabled (bool enabled)
	Enables renderer. More...

bool	isEnabled () const
	Is renderer enabled. More...

void	setRendererListener (IRendererListener *listener)
	Sets listener for renderer. More...

void	addActiveLayer (Layer *layer)
	Adds active layer to renderer. More...

void	removeActiveLayer (Layer *layer)
	Removes active layer from renderer. More...

void	clearActiveLayers ()
	Clears all active layers from renderer. More...

void	activateAllLayers (Map *elevation)
	Activates all layers from given elevation. More...

bool	isActivedLayer (Layer *layer)
	Returns if given layer is currently activated. More...

std::list< Layer * >	getActiveLayers () const
	Returns list of activated layer. More...

Static Public Member Functions
static LightRenderer *	getInstance (IRendererContainer *cnt)
	Gets instance for interface access. More...

Private Attributes
std::map< std::string, std::vector< LightRendererElementInfo * > >	m_groups

Additional Inherited Members
Protected Member Functions inherited from FIFE::RendererBase
	RendererBase ()

Protected Attributes inherited from FIFE::RendererBase
std::list< Layer * >	m_active_layers

RenderBackend *	m_renderbackend

Detailed Description

Definition at line 141 of file lightrenderer.h.

Constructor & Destructor Documentation

◆ LightRenderer() [1/2]

FIFE::LightRenderer::LightRenderer	(	RenderBackend *	renderbackend,
		int32_t	position
	)

constructor.

Parameters

renderbackend	to use
position	position for this renderer in rendering pipeline

Definition at line 204 of file lightrenderer.cpp.

References FIFE::RendererBase::setEnabled().

Referenced by clone().

Here is the caller graph for this function:

◆ LightRenderer() [2/2]

FIFE::LightRenderer::LightRenderer ( const LightRenderer & old )

Definition at line 209 of file lightrenderer.cpp.

References FIFE::RendererBase::setEnabled().

◆ ~LightRenderer()

FIFE::LightRenderer::~LightRenderer ( )

virtual

Destructor.

Definition at line 217 of file lightrenderer.cpp.

Member Function Documentation

◆ addAnimation()

void FIFE::LightRenderer::addAnimation	(	const std::string &	group,
		RendererNode	n,
		AnimationPtr	animation,
		int32_t	src = `-1`,
		int32_t	dst = `-1`
	)

Definition at line 225 of file lightrenderer.cpp.

References m_groups.

◆ addImage()

void FIFE::LightRenderer::addImage	(	const std::string &	group,
		RendererNode	n,
		ImagePtr	image,
		int32_t	src = `-1`,
		int32_t	dst = `-1`
	)

Definition at line 220 of file lightrenderer.cpp.

References m_groups.

◆ addSimpleLight()

void FIFE::LightRenderer::addSimpleLight	(	const std::string &	group,
		RendererNode	n,
		uint8_t	intensity,
		float	radius,
		int32_t	subdivisions,
		float	xstretch,
		float	ystretch,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b,
		int32_t	src = `-1`,
		int32_t	dst = `-1`
	)

Definition at line 230 of file lightrenderer.cpp.

References m_groups.

◆ addStencilTest()

void FIFE::LightRenderer::addStencilTest	(	const std::string &	group,
		uint8_t	stencil_ref = `0`
	)

Definition at line 240 of file lightrenderer.cpp.

References m_groups.

◆ clone()

RendererBase * FIFE::LightRenderer::clone ( )

virtual

Makes copy of this renderer.

Implements FIFE::RendererBase.

Definition at line 214 of file lightrenderer.cpp.

References LightRenderer().

◆ getGroups()

std::list< std::string > FIFE::LightRenderer::getGroups ( )

Definition at line 254 of file lightrenderer.cpp.

References m_groups.

◆ getInstance()

LightRenderer * FIFE::LightRenderer::getInstance ( IRendererContainer * cnt )

static

Gets instance for interface access.

Definition at line 201 of file lightrenderer.cpp.

References FIFE::IRendererContainer::getRenderer().

◆ getLightInfo()

std::vector< LightRendererElementInfo * > FIFE::LightRenderer::getLightInfo ( const std::string & group )

Definition at line 265 of file lightrenderer.cpp.

References m_groups.

◆ getName()

std::string FIFE::LightRenderer::getName ( )

inlinevirtual

Name of the renderer.

Implements FIFE::RendererBase.

Definition at line 157 of file lightrenderer.h.

◆ removeAll() [1/2]

void FIFE::LightRenderer::removeAll ( const std::string & group )

Definition at line 274 of file lightrenderer.cpp.

References m_groups.

◆ removeAll() [2/2]

void FIFE::LightRenderer::removeAll ( )

Definition at line 283 of file lightrenderer.cpp.

References m_groups.

Referenced by reset().

Here is the caller graph for this function:

◆ removeStencilTest()

void FIFE::LightRenderer::removeStencilTest ( const std::string & group )

Definition at line 247 of file lightrenderer.cpp.

References m_groups.

◆ render()

void FIFE::LightRenderer::render	(	Camera *	cam,
		Layer *	layer,
		RenderList &	instances
	)

virtual

This method is called by the view to ask renderer to draw its rendering aspect based on given parameters.

Renderers receive non-clipped instance stack since there is no way to know which information is relevant for the renderer. E.g. effect renderer might need to know offscreen instance locations to be able to draw radiation coming from some instance not visible on the screen.

Parameters

cam	camera view to draw
layer	current layer to be rendered
instances	instances on the current layer @ see setPipelinePosition

Implements FIFE::RendererBase.

Definition at line 298 of file lightrenderer.cpp.

References FIFE::Layer::areInstancesVisible(), FIFE::RenderBackend::getLightingModel(), m_groups, and FIFE::RendererBase::m_renderbackend.

◆ reset()

void FIFE::LightRenderer::reset ( )

virtual

Resets information in the renderer.

Reimplemented from FIFE::RendererBase.

Definition at line 294 of file lightrenderer.cpp.

References removeAll().

◆ resizeImage()

void FIFE::LightRenderer::resizeImage	(	const std::string &	group,
		RendererNode	n,
		ImagePtr	image,
		int32_t	width,
		int32_t	height,
		int32_t	src = `-1`,
		int32_t	dst = `-1`
	)

Definition at line 235 of file lightrenderer.cpp.

References m_groups.

Member Data Documentation

◆ m_groups

std::map<std::string, std::vector<LightRendererElementInfo*> > FIFE::LightRenderer::m_groups

private

Definition at line 176 of file lightrenderer.h.

Referenced by addAnimation(), addImage(), addSimpleLight(), addStencilTest(), getGroups(), getLightInfo(), removeAll(), removeStencilTest(), render(), and resizeImage().

The documentation for this class was generated from the following files:

engine/core/view/renderers/lightrenderer.h
engine/core/view/renderers/lightrenderer.cpp
