#include <object.h>

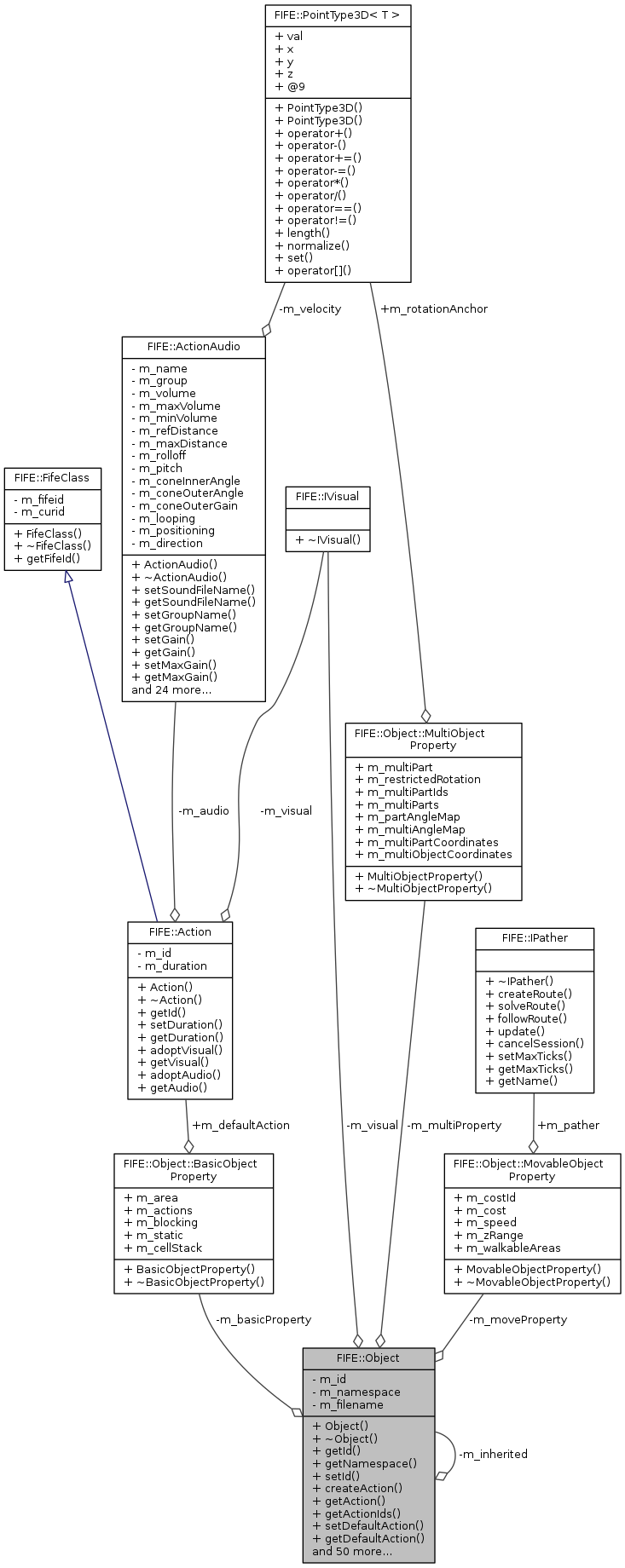

Collaboration diagram for FIFE::Object:

Classes
class	BasicObjectProperty

class	MovableObjectProperty

class	MultiObjectProperty

Public Member Functions
	Object (const std::string &identifier, const std::string &name_space, Object *inherited=NULL)
	Constructor An object may optionally inherit default attributes from another object. More...

	~Object ()
	Destructor. More...

const std::string &	getId () const

const std::string &	getNamespace () const

void	setId (const std::string &id)
	Sets the identifier for this object. More...

Action *	createAction (const std::string &identifier, bool is_default=false)
	Adds new action with given id. More...

Action *	getAction (const std::string &identifier, bool deepsearch=true) const
	Gets action with given id. More...

std::list< std::string >	getActionIds () const
	Gets all available action ids of the object and packs them into a list. More...

void	setDefaultAction (const std::string &identifier)
	Sets default action assigned to this object. More...

Action *	getDefaultAction () const
	Gets default action assigned to this object. More...

void	setPather (IPather *pather)
	Sets pather used by instances created out of this object. More...

IPather *	getPather () const
	Gets associated pather. More...

Object *	getInherited () const
	Gets an object where this object was inherited from. More...

void	adoptVisual (IVisual *visual)
	Sets visualization to be used. More...

template<typename T >
T *	getVisual () const
	Gets used visualization. More...

void	setBlocking (bool blocking)
	Sets if object blocks movement. More...

bool	isBlocking () const
	Gets if object blocks movement. More...

void	setStatic (bool stat)
	Set to true, if object is such that it doesn't move. More...

bool	isStatic () const
	Gets if object moves. More...

void	setFilename (const std::string &file)

const std::string &	getFilename () const

void	setCellStackPosition (uint8_t position)
	Sets the cell stack position. More...

uint8_t	getCellStackPosition () const
	Returns cell stack position. More...

bool	isSpecialCost () const
	Gets if object uses special cost. More...

void	setCostId (const std::string &cost)
	Sets the cost id. More...

std::string	getCostId () const
	Returns the cost id. More...

void	setCost (double cost)
	Sets the cost. More...

double	getCost () const
	Returns the cost. More...

bool	isSpecialSpeed () const
	Gets if object uses special speed modifier. More...

void	setSpeed (double cost)
	Sets the speed modifier. More...

double	getSpeed () const
	Returns the speed modifier. More...

bool	isMultiObject () const
	Gets if object uses special cost. More...

void	addMultiPartId (const std::string &partId)
	Adds a multi part identifier. More...

std::list< std::string >	getMultiPartIds () const
	Returns all multi part identifiers. More...

void	removeMultiPartId (const std::string &partId)
	Removes a multi part identifier. More...

void	removeAllMultiPartIds ()
	Removes all multi part identifiers. More...

bool	isMultiPart () const
	Gets if object is a part of a multi object. More...

void	setMultiPart (bool part)
	Sets the object as a part of a multi object. More...

void	addMultiPart (Object *obj)
	Adds a object as a part of a multi object. More...

std::set< Object * >	getMultiParts () const
	Returns all multi part objects. More...

void	removeMultiPart (Object *obj)
	Removes a multi part object. More...

void	removeMultiParts ()
	Removes all multi part objects. More...

void	addMultiPartCoordinate (int32_t rotation, ModelCoordinate coord)
	Adds rotationally dependent coordinates for this object part. More...

std::multimap< int32_t, ModelCoordinate >	getMultiPartCoordinates () const
	Returns all rotationally dependent coordinates from this object part. More...

std::vector< ModelCoordinate >	getMultiPartCoordinates (int32_t rotation) const
	Returns all object part coordinates for the given rotation. More...

std::vector< ModelCoordinate >	getMultiObjectCoordinates (int32_t rotation) const
	Returns all multi object coordinates for the given rotation. More...

void	setRotationAnchor (const ExactModelCoordinate &anchor)
	Sets the rotation anchor for this multi object. More...

ExactModelCoordinate	getRotationAnchor () const
	Returns the rotation anchor for this multi object. More...

void	setRestrictedRotation (bool restrict)
	Sets the rotation to restricted. More...

bool	isRestrictedRotation () const
	Gets if object uses restricted rotations. More...

int32_t	getRestrictedRotation (int32_t rotation)
	Returns the most obvious rotation, based on multi coordinates. More...

void	setZStepRange (int32_t zRange)
	Sets z-step range for object. More...

int32_t	getZStepRange () const
	Returns z-step range from object. More...

void	setArea (const std::string &id)
	Sets the area id that the instances of this object adds to their cells. More...

std::string	getArea () const
	Gets the area id that the instances of this object adds to their cells. More...

void	addWalkableArea (const std::string &id)
	Adds an area id to walkable area. More...

void	removeWalkableArea (const std::string &id)
	Removes an area id from walkable areas. More...

std::list< std::string >	getWalkableAreas () const
	Returns a list that contains all walkable area ids. More...

bool	operator== (const Object &obj) const
	Compares equality of two objects. More...

bool	operator!= (const Object &obj) const
	Compares unequality of two objects. More...

Private Attributes
std::string	m_id
	identifier More...

std::string	m_namespace
	namespace More...

std::string	m_filename
	filename More...

Object *	m_inherited
	pointer to inherited object More...

IVisual *	m_visual
	pointer to object visual More...

BasicObjectProperty *	m_basicProperty

MovableObjectProperty *	m_moveProperty

MultiObjectProperty *	m_multiProperty

Detailed Description

Object class.

Objects describe the properties of objects. Objects may inherit default values from another object.

Definition at line 51 of file object.h.

Constructor & Destructor Documentation

◆ Object()

FIFE::Object::Object	(	const std::string &	identifier,
		const std::string &	name_space,
		Object *	inherited = `NULL`
	)

Constructor An object may optionally inherit default attributes from another object.

This object may override these defaults, but it may not CHANGE the inherited values.

Objects are created by calling Model::createObject, thus this method should really be called only by Model or test code

See also: Model in model/model.h for creation of objects.

Definition at line 74 of file object.cpp.

◆ ~Object()

FIFE::Object::~Object ( )

Destructor.

Definition at line 85 of file object.cpp.

References m_basicProperty, m_moveProperty, m_multiProperty, and m_visual.

Member Function Documentation

◆ addMultiPart()

void FIFE::Object::addMultiPart ( Object * obj )

Adds a object as a part of a multi object.

Parameters

obj	A pointer to the multi part object.

Definition at line 410 of file object.cpp.

References FIFE::Object::MultiObjectProperty::m_multiParts, and m_multiProperty.

Referenced by getVisual().

Here is the caller graph for this function:

◆ addMultiPartCoordinate()

void FIFE::Object::addMultiPartCoordinate	(	int32_t	rotation,
		ModelCoordinate	coord
	)

Adds rotationally dependent coordinates for this object part.

Parameters

rotation	A integer value for the angle.
coord	A ModelCoordinate as relative coordinate, 0,0 is always the multi object center.

Definition at line 442 of file object.cpp.

References FIFE::Object::MultiObjectProperty::m_multiPartCoordinates, m_multiProperty, and FIFE::Object::MultiObjectProperty::m_partAngleMap.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

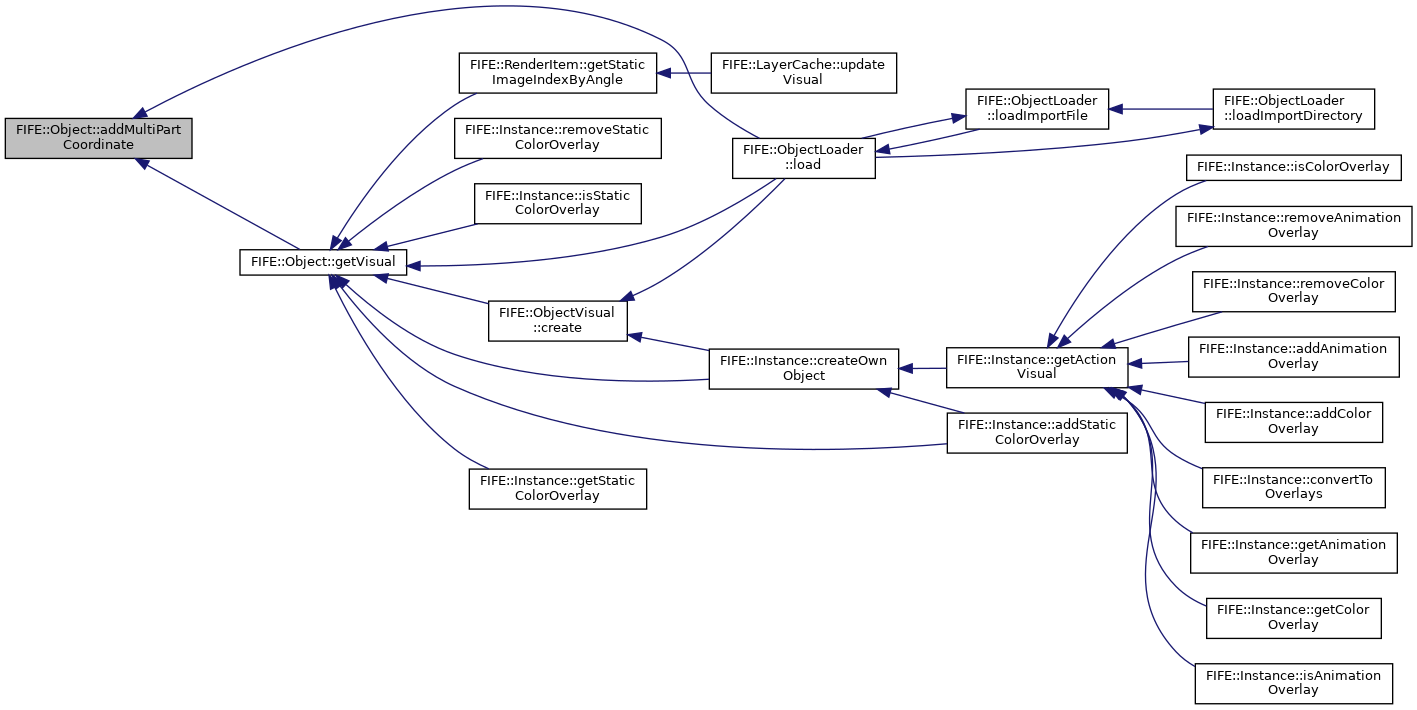

Here is the caller graph for this function:

◆ addMultiPartId()

void FIFE::Object::addMultiPartId ( const std::string & partId )

Adds a multi part identifier.

Parameters

partId A const reference to a string that holds the identifier.

Definition at line 356 of file object.cpp.

References FIFE::Object::MultiObjectProperty::m_multiPartIds, and m_multiProperty.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

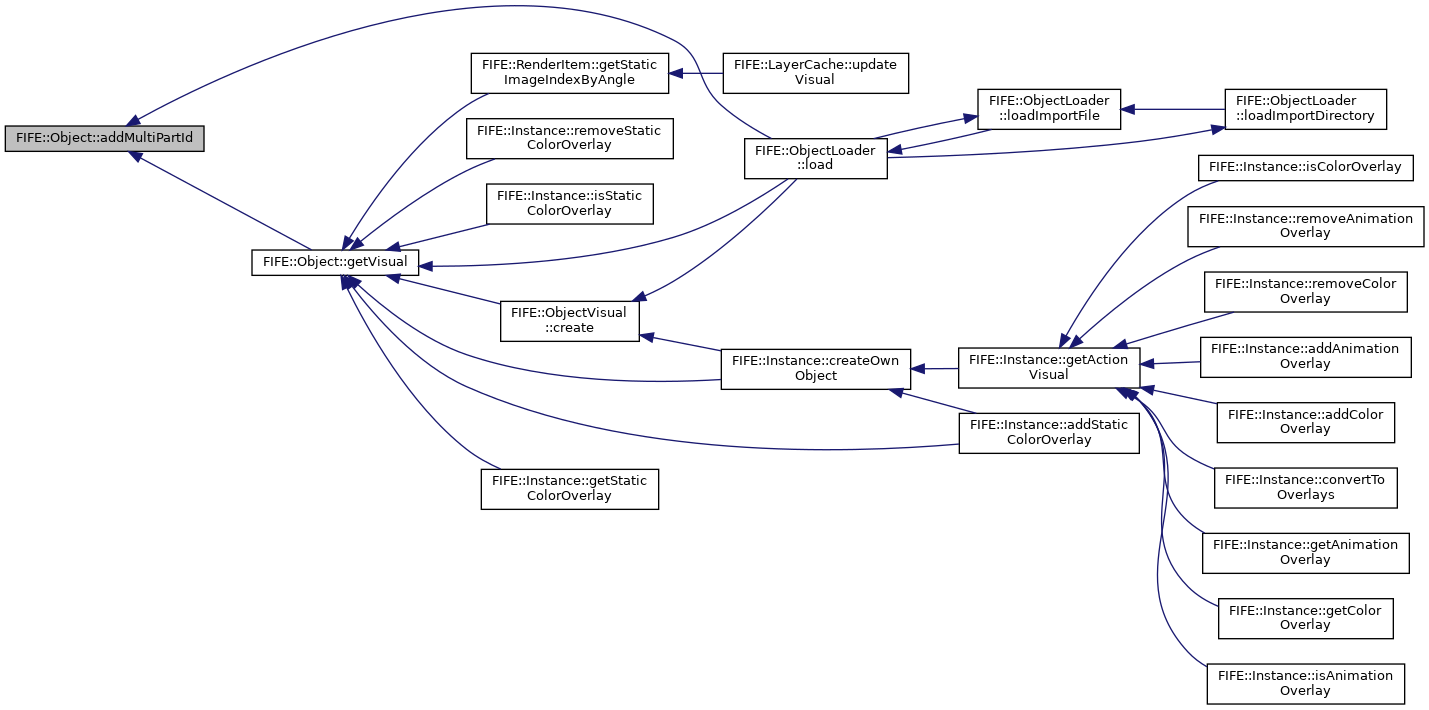

Here is the caller graph for this function:

◆ addWalkableArea()

void FIFE::Object::addWalkableArea ( const std::string & id )

Adds an area id to walkable area.

The instances of this object can only walk on cells that part of the given areas.

Parameters

id	The area id.

Definition at line 590 of file object.cpp.

References m_moveProperty, and FIFE::Object::MovableObjectProperty::m_walkableAreas.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

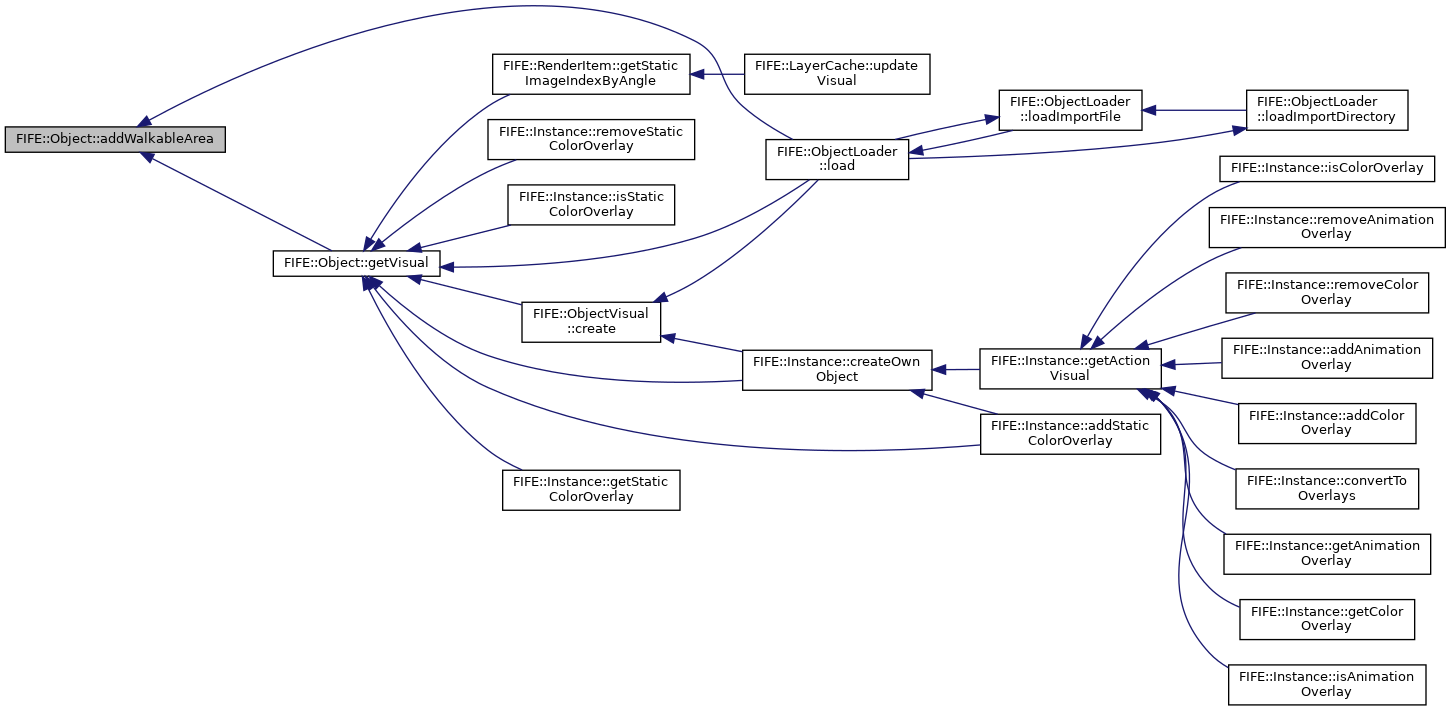

Here is the caller graph for this function:

◆ adoptVisual()

void FIFE::Object::adoptVisual ( IVisual * visual )

Sets visualization to be used.

Transfers ownership.

Definition at line 209 of file object.cpp.

References m_visual.

Referenced by FIFE::Instance::createOwnObject(), and setId().

Here is the caller graph for this function:

◆ createAction()

Action * FIFE::Object::createAction	(	const std::string &	identifier,
		bool	is_default = `false`
	)

Adds new action with given id.

In case there is action already with given id, returns it instead of new object Action instances are managed by object

Parameters

identifier	An identifier or name to give the action.
is_default	if true, becomes default action for this object default objects are used e.g. when showing them on editor. if multiple default actions are created, last one remains. In case there's no explicit default action created, first action created becomes the default

Definition at line 92 of file object.cpp.

References getAction(), FIFE::Object::BasicObjectProperty::m_actions, m_basicProperty, and FIFE::Object::BasicObjectProperty::m_defaultAction.

Referenced by FIFE::Instance::getActionVisual(), FIFE::ObjectLoader::load(), and setId().

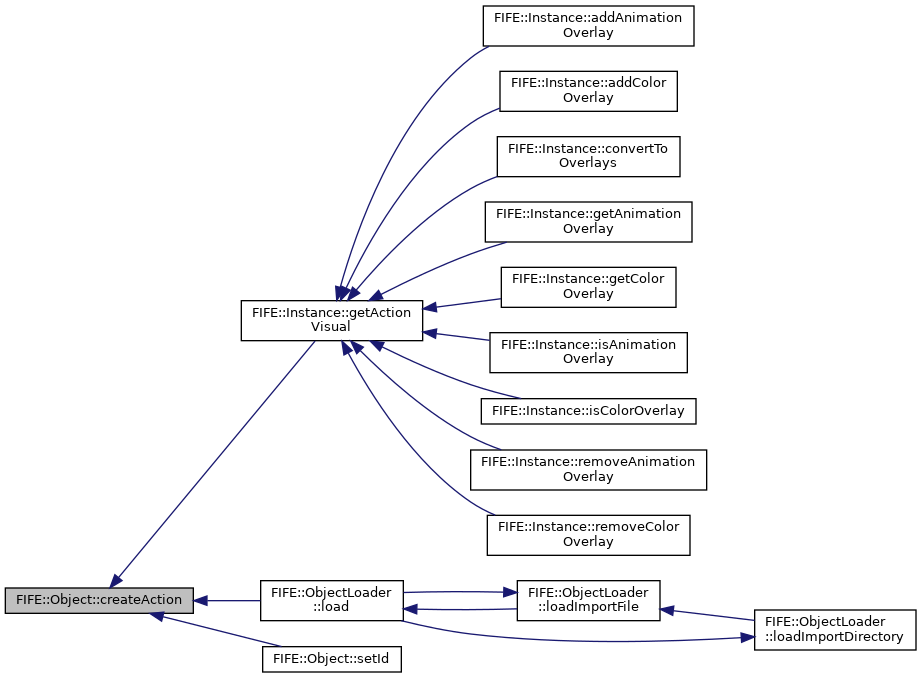

Here is the caller graph for this function:

◆ getAction()

Action * FIFE::Object::getAction	(	const std::string &	identifier,
		bool	deepsearch = `true`
	)		const

Gets action with given id.

If not found, returns NULL

Definition at line 121 of file object.cpp.

References getAction(), FIFE::Object::BasicObjectProperty::m_actions, m_basicProperty, and m_inherited.

Referenced by createAction(), getAction(), FIFE::Instance::getActionVisual(), FIFE::Instance::initializeAction(), FIFE::MapLoader::load(), FIFE::Instance::move(), setDefaultAction(), and setId().

Here is the caller graph for this function:

◆ getActionIds()

std::list< std::string > FIFE::Object::getActionIds ( ) const

Gets all available action ids of the object and packs them into a list.

Definition at line 140 of file object.cpp.

References FIFE::Object::BasicObjectProperty::m_actions, and m_basicProperty.

Referenced by setId().

Here is the caller graph for this function:

◆ getArea()

std::string FIFE::Object::getArea ( ) const

Gets the area id that the instances of this object adds to their cells.

Returns: The area id, default is "".

Definition at line 580 of file object.cpp.

References getArea(), FIFE::Object::BasicObjectProperty::m_area, m_basicProperty, and m_inherited.

Referenced by FIFE::Cell::addInstance(), getArea(), getVisual(), and FIFE::Cell::removeInstance().

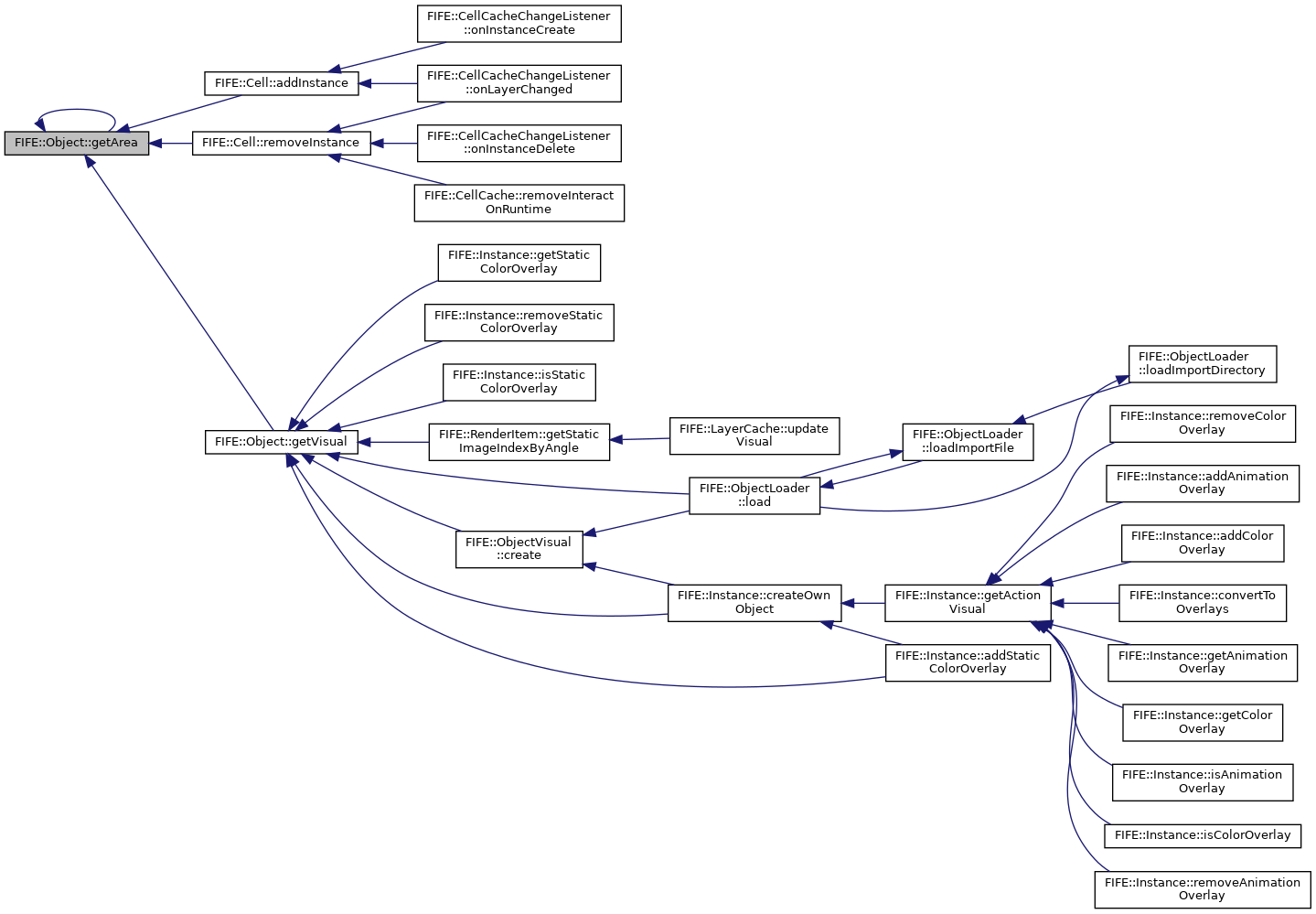

Here is the caller graph for this function:

◆ getCellStackPosition()

uint8_t FIFE::Object::getCellStackPosition ( ) const

Returns cell stack position.

Returns: The stack position on a cell, range 0-255.

Definition at line 265 of file object.cpp.

References getCellStackPosition(), m_basicProperty, FIFE::Object::BasicObjectProperty::m_cellStack, and m_inherited.

Referenced by getCellStackPosition(), getVisual(), and FIFE::MapSaver::save().

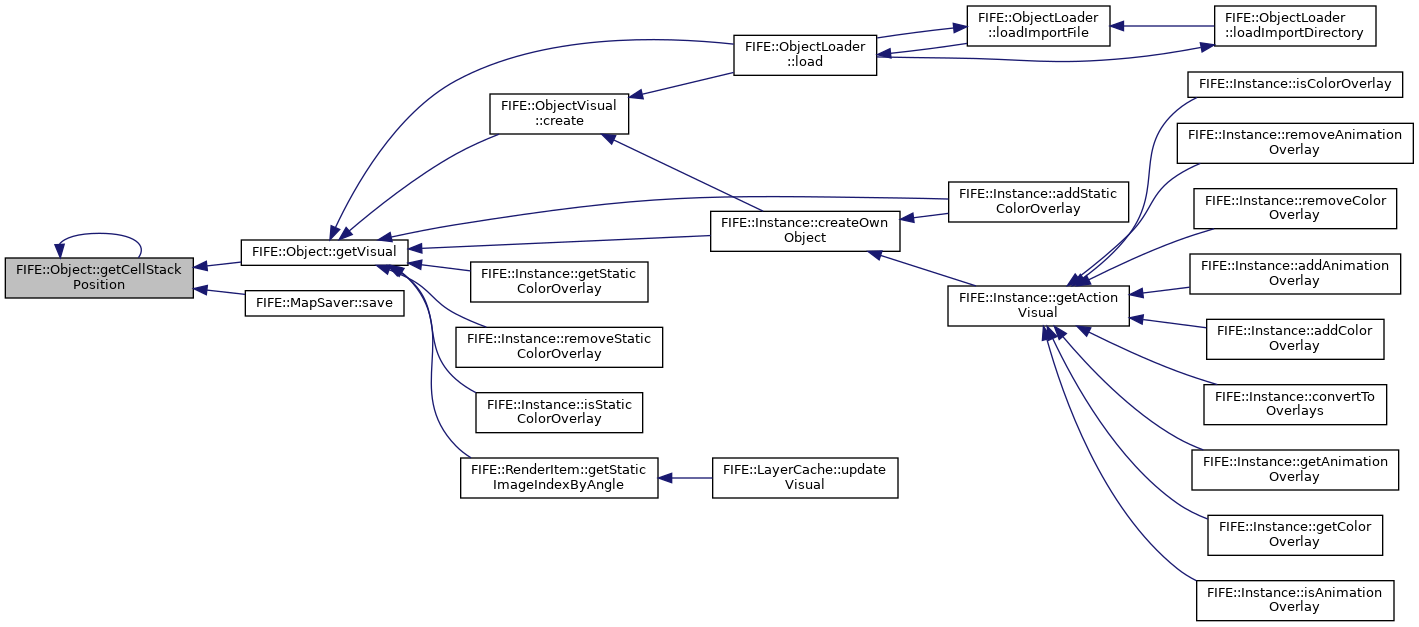

Here is the caller graph for this function:

◆ getCost()

double FIFE::Object::getCost ( ) const

Returns the cost.

Returns: A double which value is used as cost.

Definition at line 309 of file object.cpp.

References getCost(), FIFE::Object::MovableObjectProperty::m_cost, m_inherited, and m_moveProperty.

Referenced by getCost(), FIFE::Instance::getCost(), getVisual(), and FIFE::MapSaver::save().

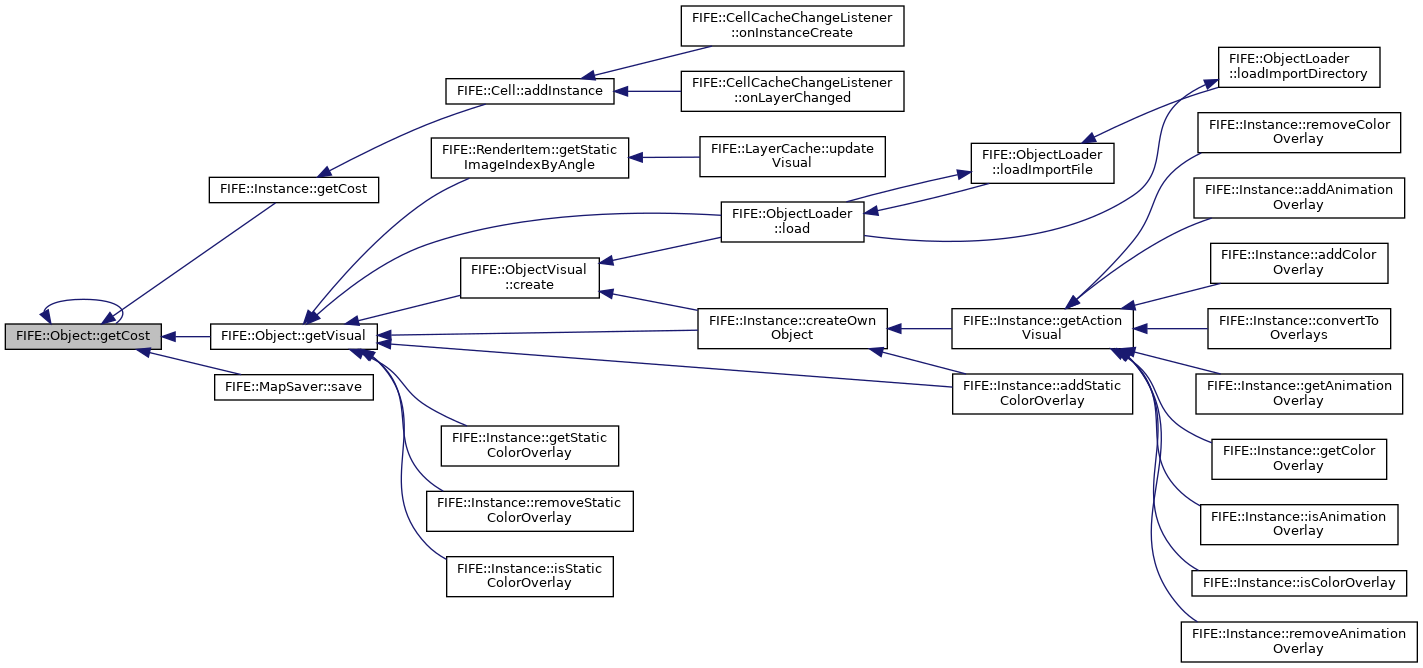

Here is the caller graph for this function:

◆ getCostId()

std::string FIFE::Object::getCostId ( ) const

Returns the cost id.

Returns: A const reference to a string which contains the identifier.

Definition at line 292 of file object.cpp.

References getCostId(), FIFE::Object::MovableObjectProperty::m_costId, m_inherited, and m_moveProperty.

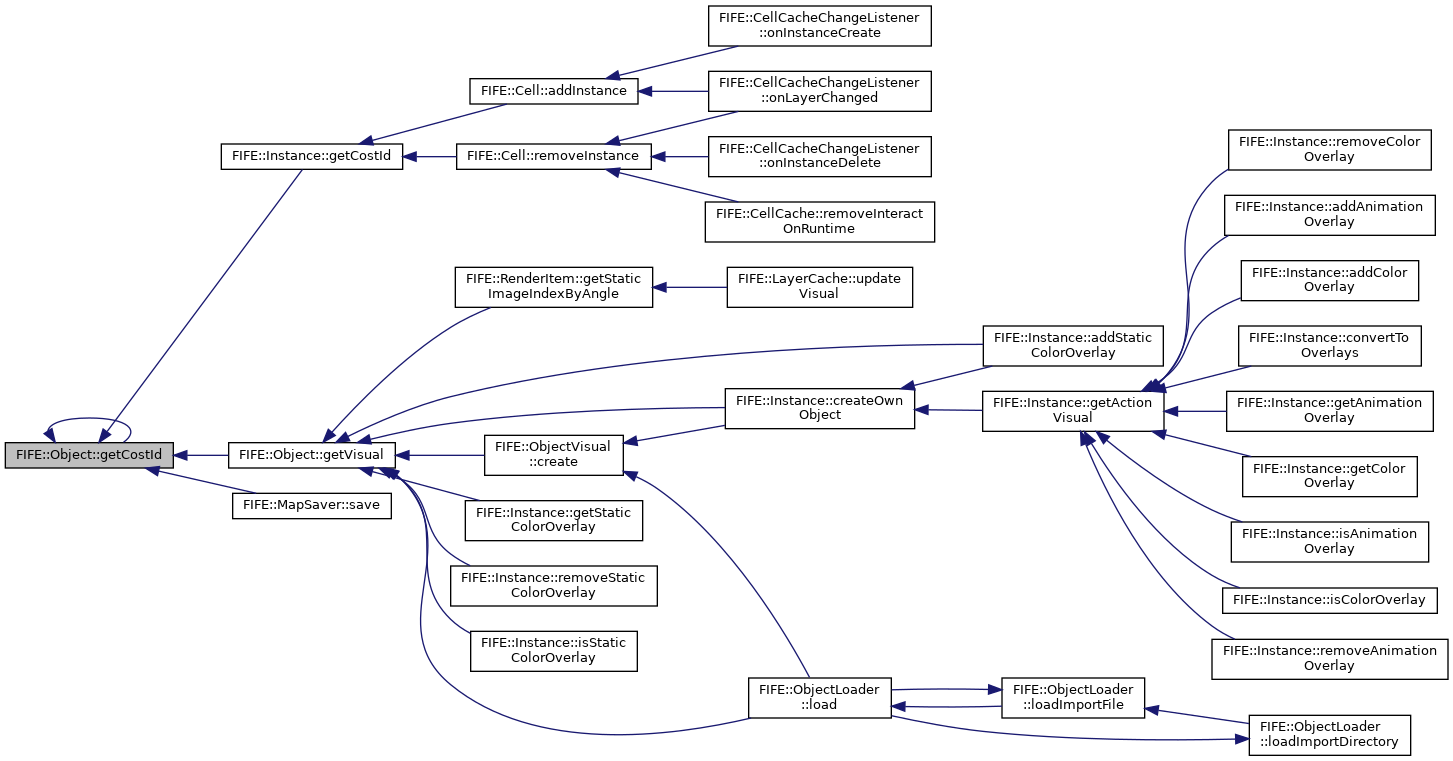

Referenced by getCostId(), FIFE::Instance::getCostId(), getVisual(), and FIFE::MapSaver::save().

Here is the caller graph for this function:

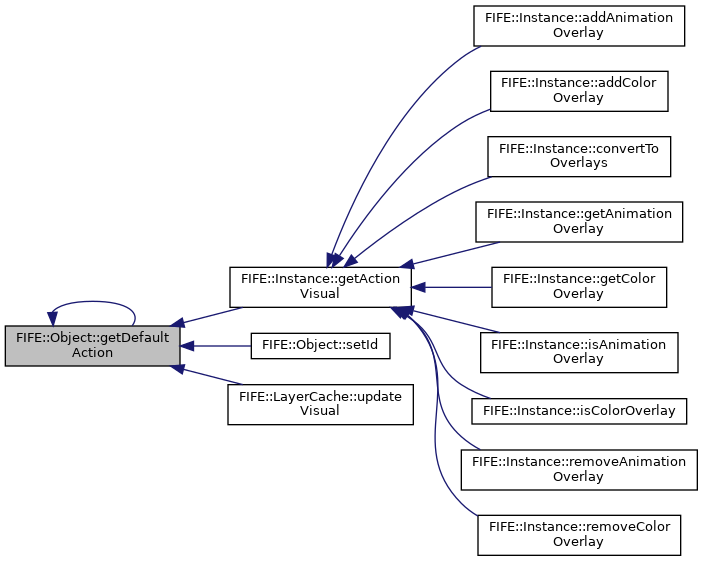

◆ getDefaultAction()

Action * FIFE::Object::getDefaultAction ( ) const

Gets default action assigned to this object.

If none available, returns NULL

Definition at line 178 of file object.cpp.

References getDefaultAction(), m_basicProperty, FIFE::Object::BasicObjectProperty::m_defaultAction, and m_inherited.

Referenced by FIFE::Instance::getActionVisual(), getDefaultAction(), setId(), and FIFE::LayerCache::updateVisual().

Here is the caller graph for this function:

◆ getFilename()

const std::string & FIFE::Object::getFilename ( ) const

Definition at line 254 of file object.cpp.

References m_filename.

Referenced by getVisual().

Here is the caller graph for this function:

◆ getId()

const std::string& FIFE::Object::getId ( ) const

inline

Definition at line 68 of file object.h.

References m_id.

Referenced by FIFE::Instance::createOwnObject(), FIFE::Model::deleteObject(), operator!=(), operator==(), and FIFE::MapSaver::save().

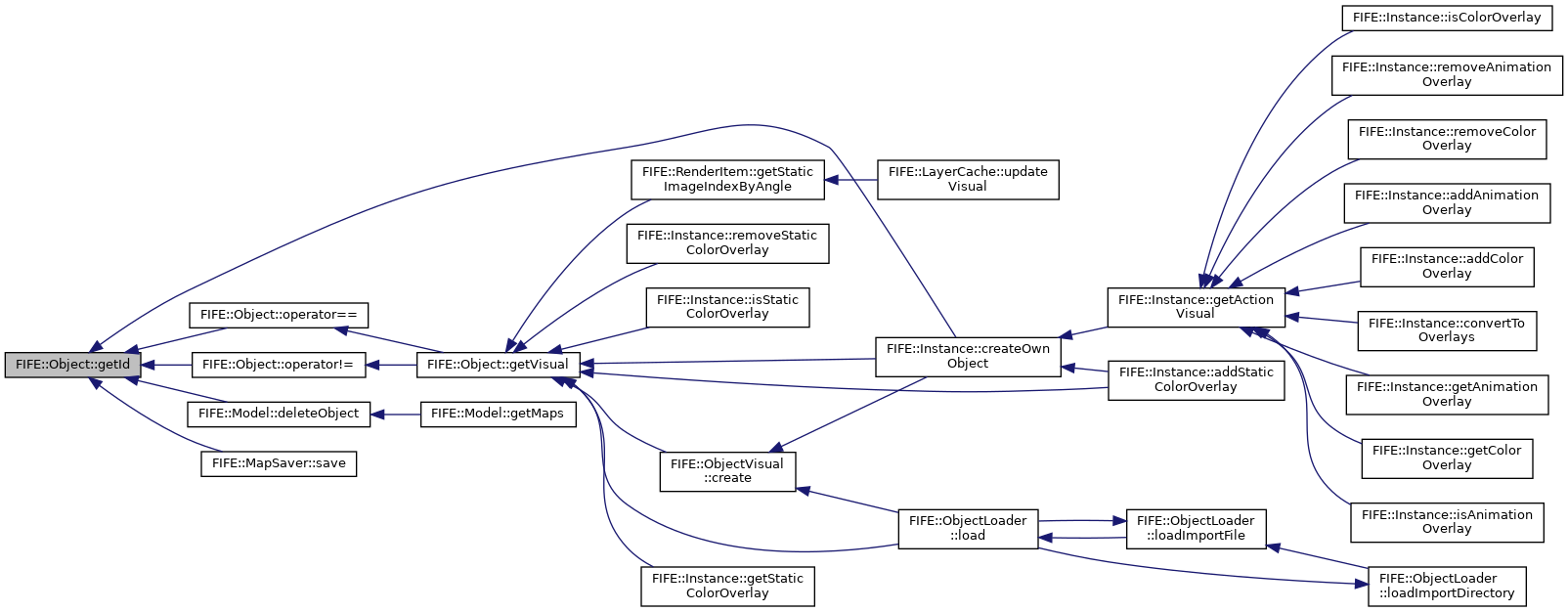

Here is the caller graph for this function:

◆ getInherited()

Object * FIFE::Object::getInherited ( ) const

Gets an object where this object was inherited from.

See also: inherited object

Definition at line 205 of file object.cpp.

References m_inherited.

Referenced by setId().

Here is the caller graph for this function:

◆ getMultiObjectCoordinates()

std::vector< ModelCoordinate > FIFE::Object::getMultiObjectCoordinates ( int32_t rotation ) const

Returns all multi object coordinates for the given rotation.

Parameters

rotation A integer value for the angle.

Returns: A vector which contains the coordinates.

Definition at line 478 of file object.cpp.

References FIFE::getIndexByAngle(), getMultiObjectCoordinates(), m_inherited, FIFE::Object::MultiObjectProperty::m_multiAngleMap, FIFE::Object::MultiObjectProperty::m_multiObjectCoordinates, FIFE::Object::MultiObjectProperty::m_multiParts, and m_multiProperty.

Referenced by FIFE::Instance::follow(), getMultiObjectCoordinates(), FIFE::Route::getOccupiedCells(), getVisual(), FIFE::Instance::move(), and FIFE::Instance::processMovement().

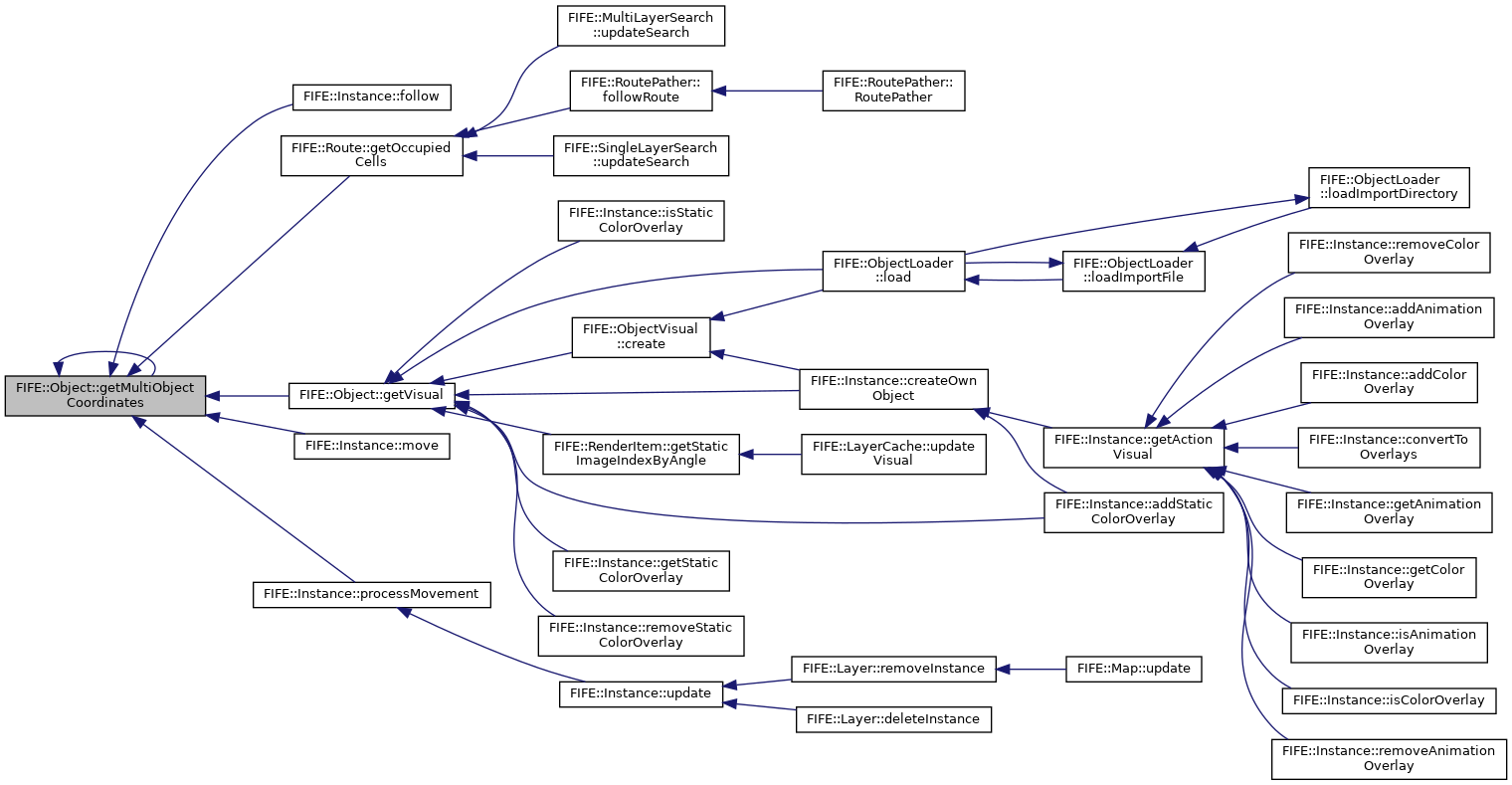

Here is the caller graph for this function:

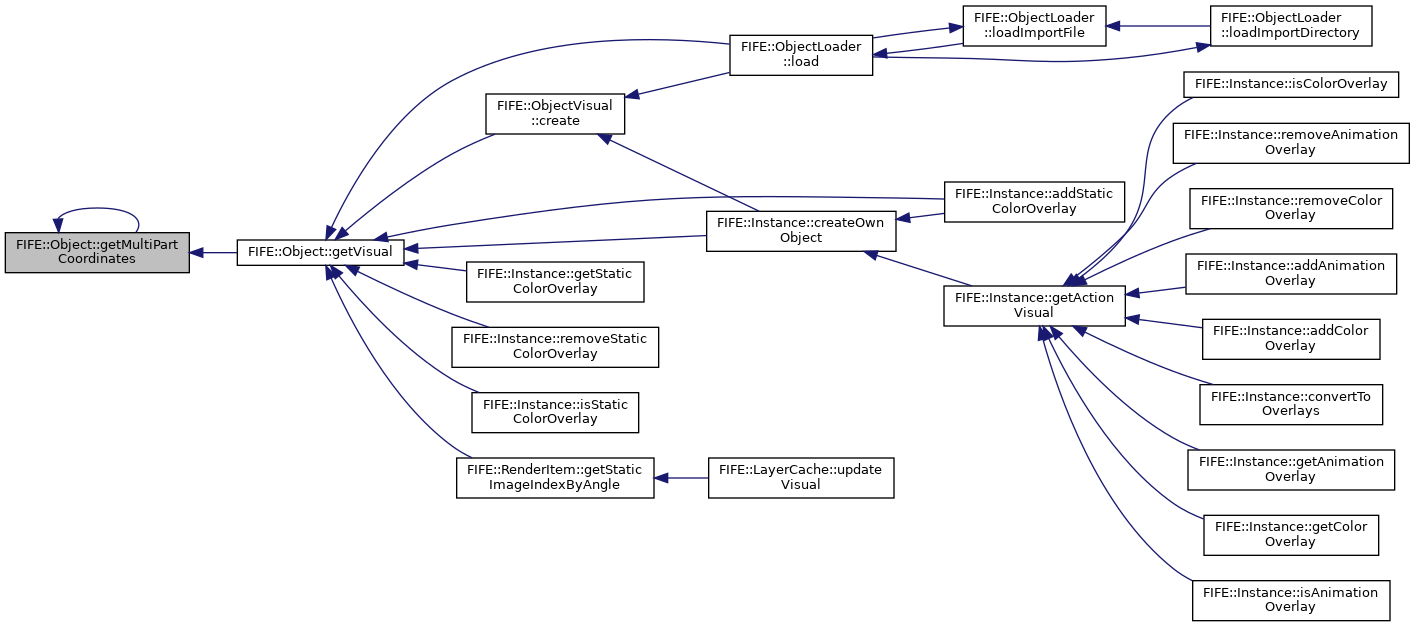

◆ getMultiPartCoordinates() [1/2]

std::multimap< int32_t, ModelCoordinate > FIFE::Object::getMultiPartCoordinates ( ) const

Returns all rotationally dependent coordinates from this object part.

Returns: A const reference to a multimap which contains the coordinates per rotation.

Definition at line 450 of file object.cpp.

References getMultiPartCoordinates(), m_inherited, FIFE::Object::MultiObjectProperty::m_multiPartCoordinates, and m_multiProperty.

Referenced by getMultiPartCoordinates(), and getVisual().

Here is the caller graph for this function:

◆ getMultiPartCoordinates() [2/2]

std::vector< ModelCoordinate > FIFE::Object::getMultiPartCoordinates ( int32_t rotation ) const

Returns all object part coordinates for the given rotation.

Parameters

rotation A integer value for the angle.

Returns: A vector which contains the coordinates.

Definition at line 460 of file object.cpp.

References FIFE::getIndexByAngle(), getMultiPartCoordinates(), m_inherited, FIFE::Object::MultiObjectProperty::m_multiPartCoordinates, m_multiProperty, and FIFE::Object::MultiObjectProperty::m_partAngleMap.

◆ getMultiPartIds()

std::list< std::string > FIFE::Object::getMultiPartIds ( ) const

Returns all multi part identifiers.

Returns: A const reference to a list that holds the identifiers.

Definition at line 363 of file object.cpp.

References getMultiPartIds(), m_inherited, FIFE::Object::MultiObjectProperty::m_multiPartIds, and m_multiProperty.

Referenced by getMultiPartIds(), and getVisual().

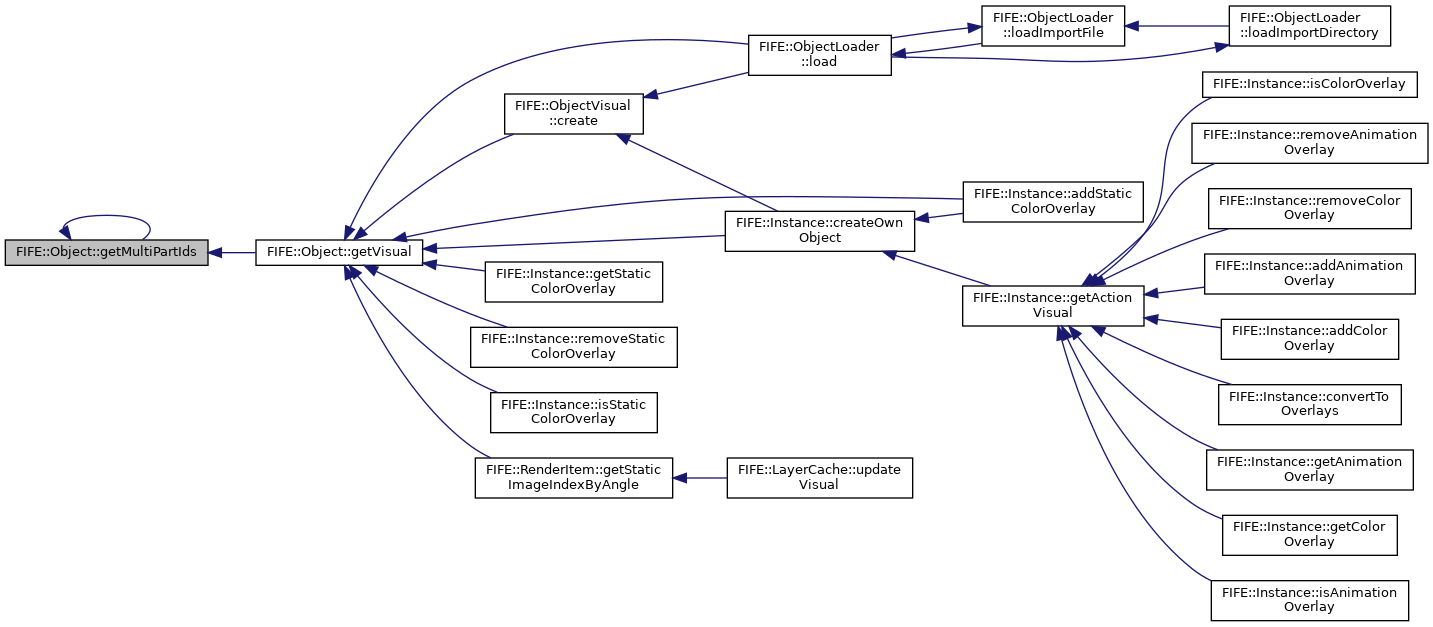

Here is the caller graph for this function:

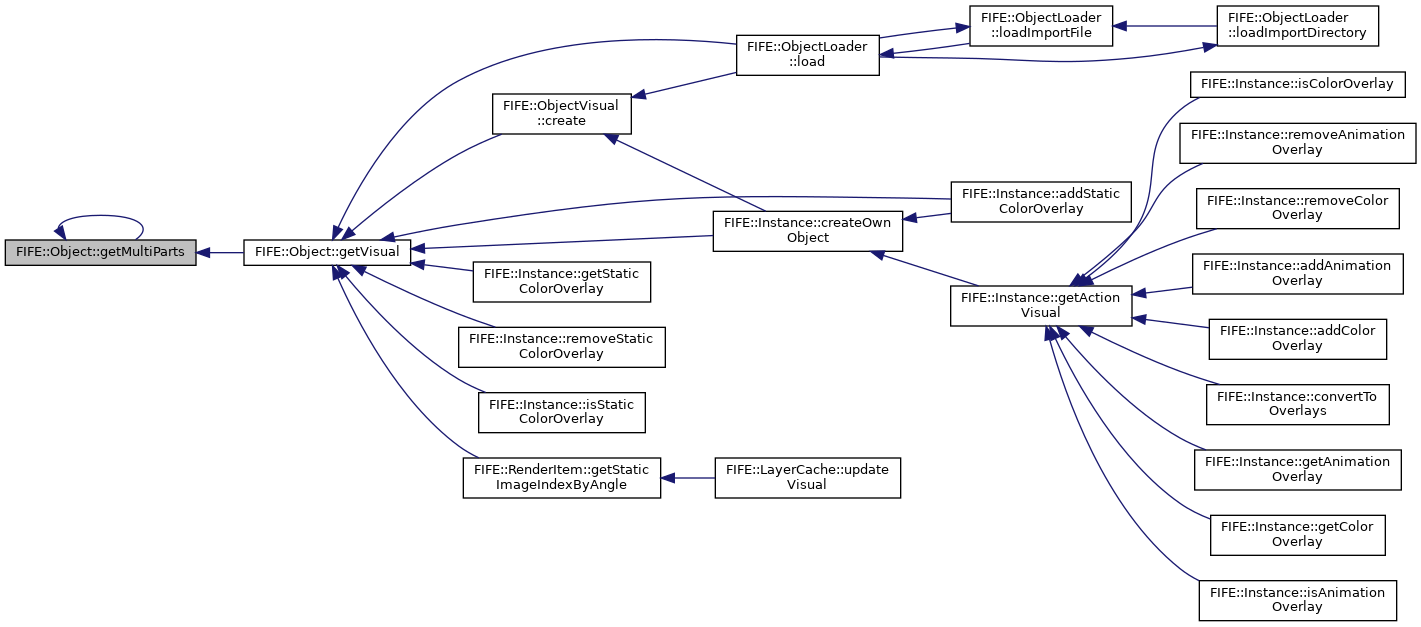

◆ getMultiParts()

std::set< Object * > FIFE::Object::getMultiParts ( ) const

Returns all multi part objects.

Returns: A const reference to a set that holds the objects.

Definition at line 417 of file object.cpp.

References getMultiParts(), m_inherited, FIFE::Object::MultiObjectProperty::m_multiParts, and m_multiProperty.

Referenced by getMultiParts(), and getVisual().

Here is the caller graph for this function:

◆ getNamespace()

const std::string& FIFE::Object::getNamespace ( ) const

inline

Definition at line 69 of file object.h.

References m_namespace.

Referenced by FIFE::Instance::createOwnObject(), FIFE::Model::deleteObject(), operator!=(), operator==(), FIFE::InstanceRenderer::renderAlreadySorted(), FIFE::InstanceRenderer::renderUnsorted(), and FIFE::MapSaver::save().

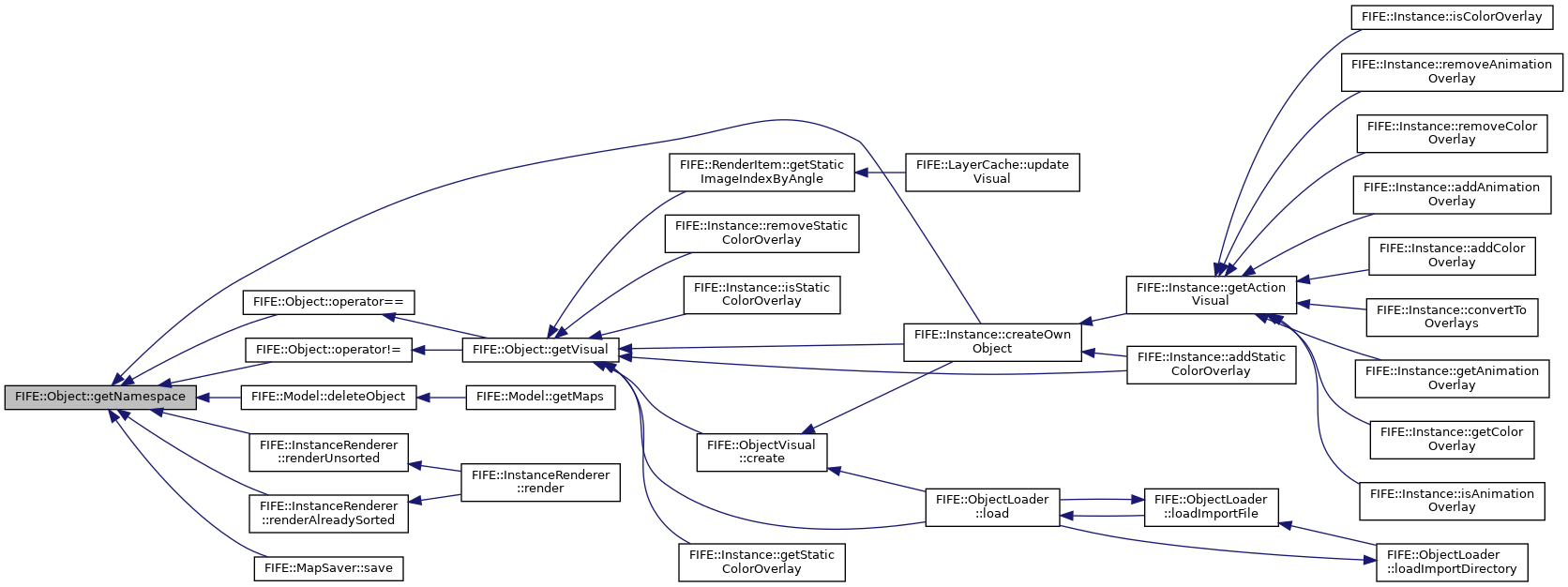

Here is the caller graph for this function:

◆ getPather()

IPather * FIFE::Object::getPather ( ) const

Gets associated pather.

Definition at line 195 of file object.cpp.

References getPather(), m_inherited, m_moveProperty, and FIFE::Object::MovableObjectProperty::m_pather.

Referenced by getPather(), FIFE::Instance::initializeAction(), and setId().

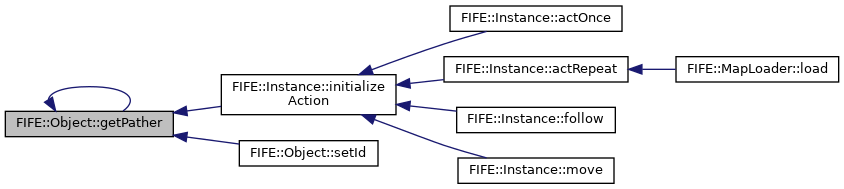

Here is the caller graph for this function:

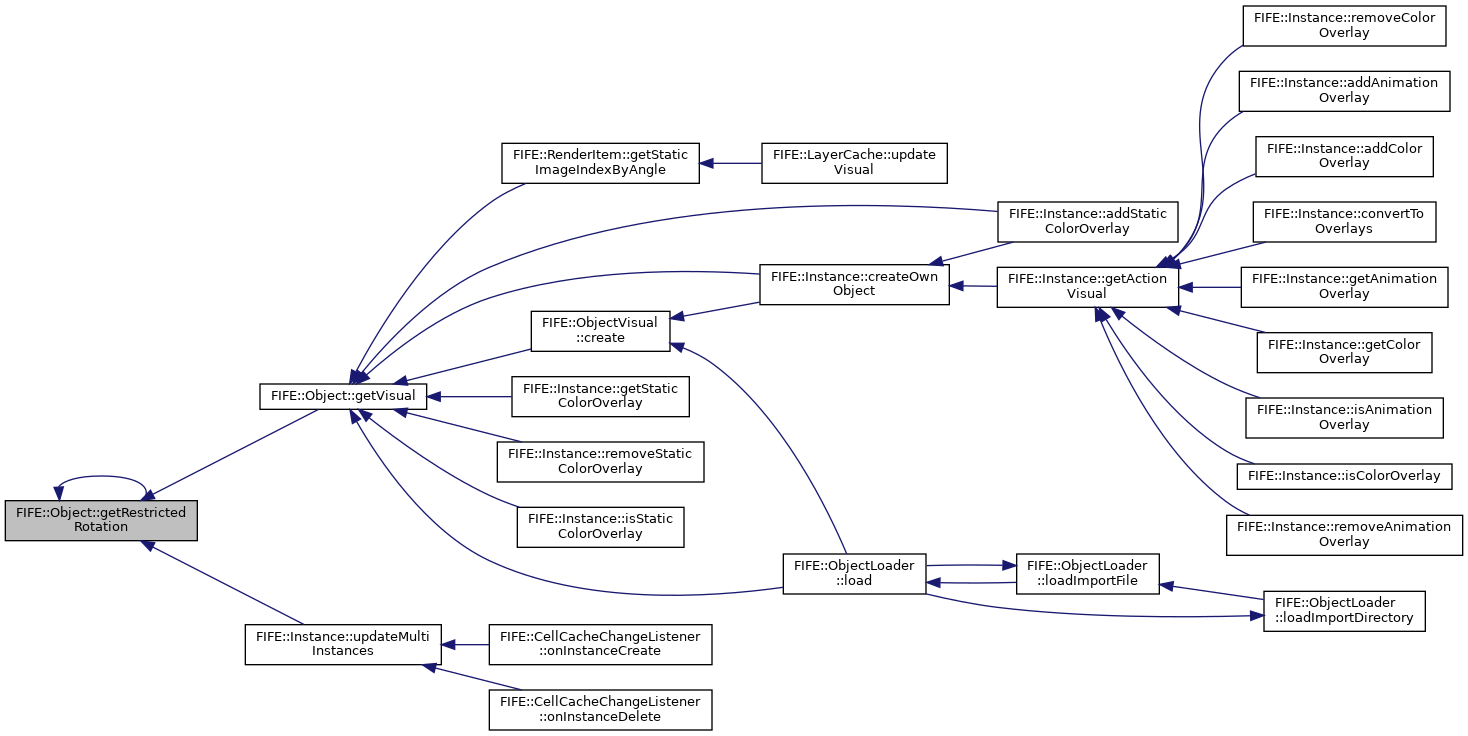

◆ getRestrictedRotation()

int32_t FIFE::Object::getRestrictedRotation ( int32_t rotation )

Returns the most obvious rotation, based on multi coordinates.

Parameters

rotation A integer value for the original angle.

Returns: A integer value for the obvious rotation.

Definition at line 542 of file object.cpp.

References FIFE::getIndexByAngle(), getRestrictedRotation(), m_inherited, FIFE::Object::MultiObjectProperty::m_multiAngleMap, m_multiProperty, and FIFE::Object::MultiObjectProperty::m_partAngleMap.

Referenced by getRestrictedRotation(), getVisual(), and FIFE::Instance::updateMultiInstances().

Here is the caller graph for this function:

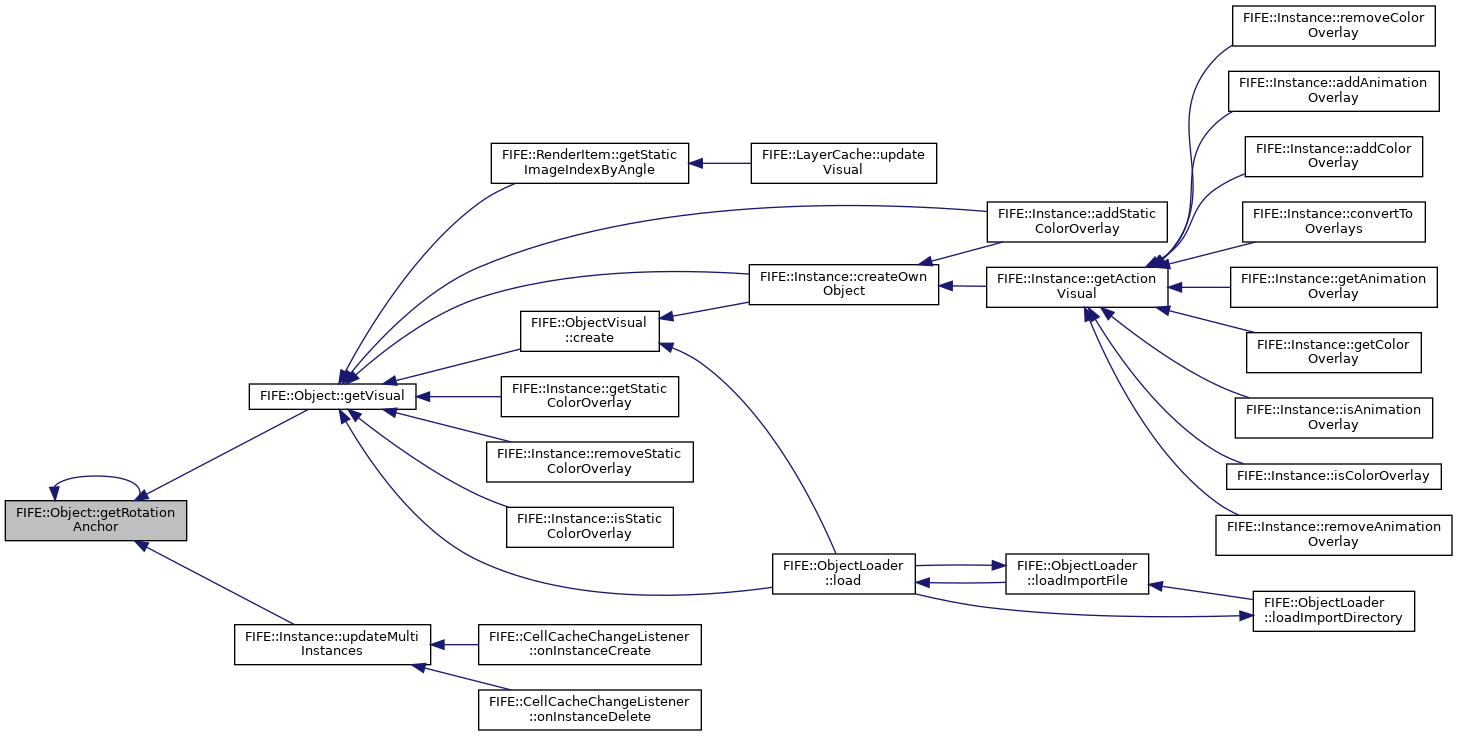

◆ getRotationAnchor()

ExactModelCoordinate FIFE::Object::getRotationAnchor ( ) const

Returns the rotation anchor for this multi object.

Returns: A const reference to a ExactModelCoordinate that holds the anchor coordinate.

Definition at line 515 of file object.cpp.

References getRotationAnchor(), m_inherited, m_multiProperty, and FIFE::Object::MultiObjectProperty::m_rotationAnchor.

Referenced by getRotationAnchor(), getVisual(), and FIFE::Instance::updateMultiInstances().

Here is the caller graph for this function:

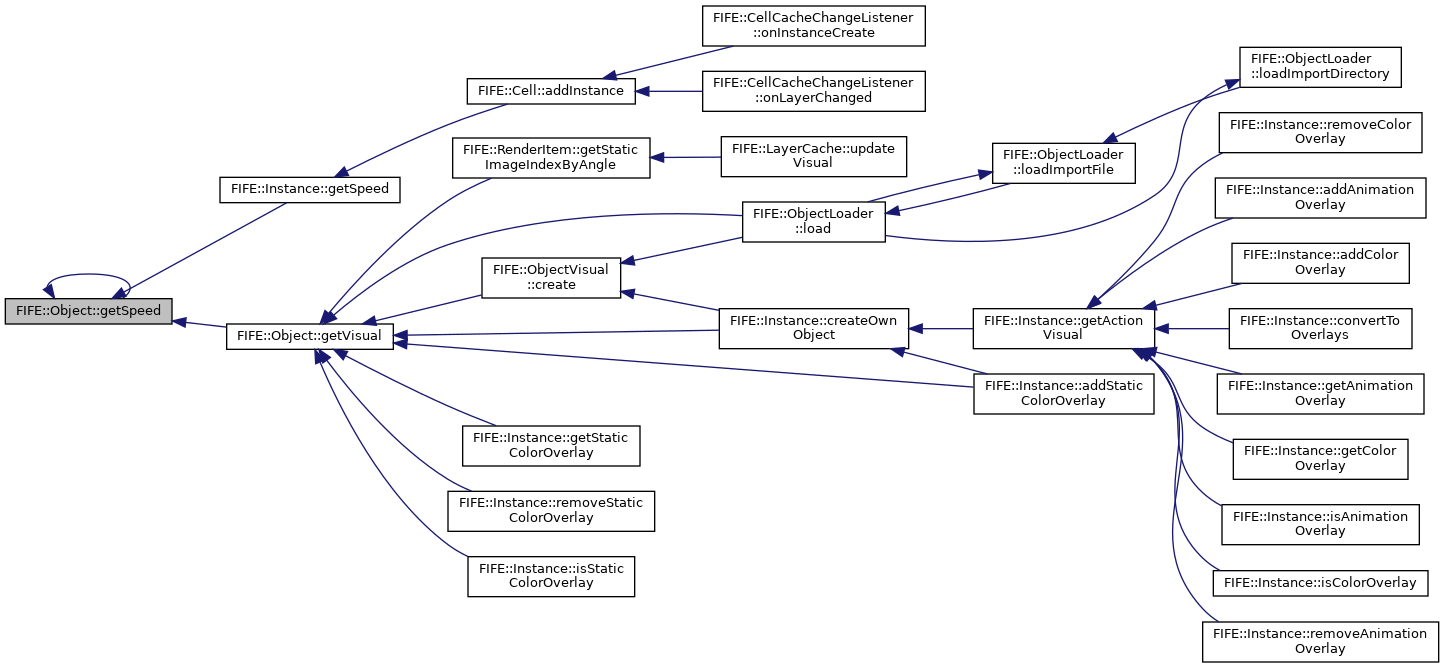

◆ getSpeed()

double FIFE::Object::getSpeed ( ) const

Returns the speed modifier.

Returns: A double which value is used as speed multiplier.

Definition at line 336 of file object.cpp.

References getSpeed(), m_inherited, m_moveProperty, and FIFE::Object::MovableObjectProperty::m_speed.

Referenced by getSpeed(), FIFE::Instance::getSpeed(), and getVisual().

Here is the caller graph for this function:

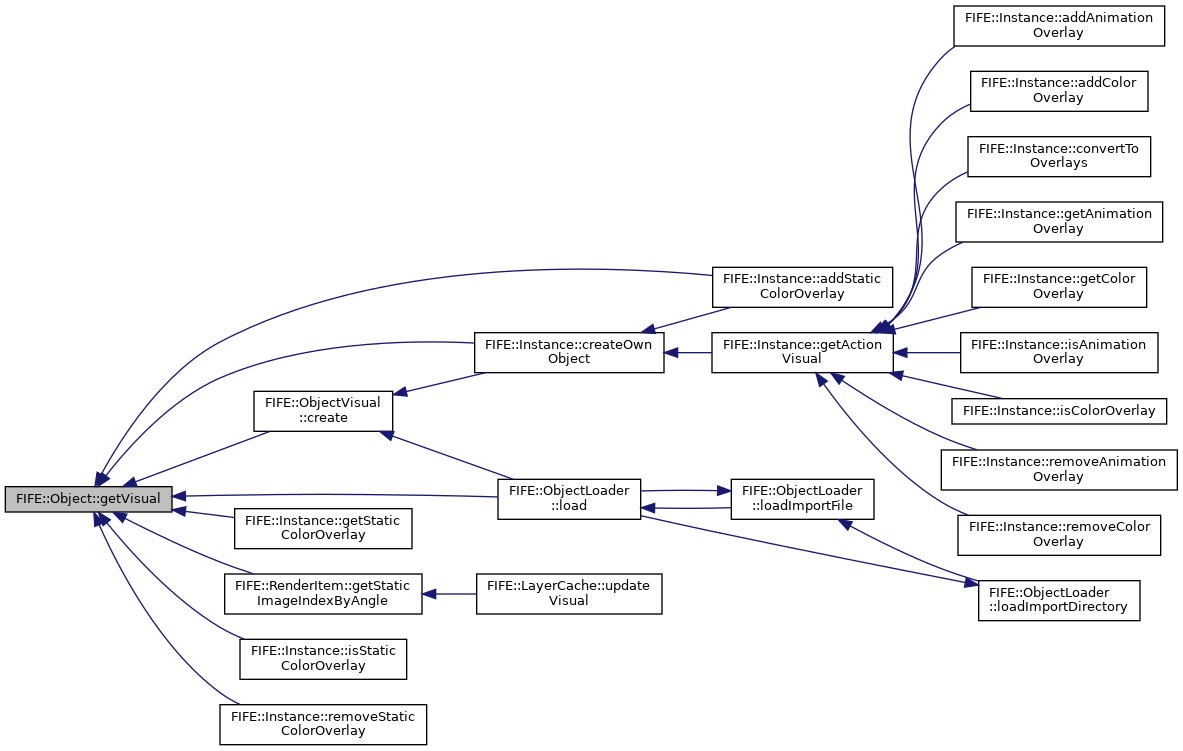

◆ getVisual()

template<typename T >

T* FIFE::Object::getVisual ( ) const

inline

Gets used visualization.

Definition at line 122 of file object.h.

References addMultiPart(), addMultiPartCoordinate(), addMultiPartId(), addWalkableArea(), getArea(), getCellStackPosition(), getCost(), getCostId(), getFilename(), getMultiObjectCoordinates(), getMultiPartCoordinates(), getMultiPartIds(), getMultiParts(), getRestrictedRotation(), getRotationAnchor(), getSpeed(), getWalkableAreas(), getZStepRange(), isBlocking(), isMultiObject(), isMultiPart(), isRestrictedRotation(), isSpecialCost(), isSpecialSpeed(), isStatic(), m_visual, operator!=(), operator==(), removeAllMultiPartIds(), removeMultiPart(), removeMultiPartId(), removeMultiParts(), removeWalkableArea(), setArea(), setBlocking(), setCellStackPosition(), setCost(), setCostId(), setFilename(), setMultiPart(), setRestrictedRotation(), setRotationAnchor(), setSpeed(), setStatic(), and setZStepRange().

Referenced by FIFE::Instance::addStaticColorOverlay(), FIFE::ObjectVisual::create(), FIFE::Instance::createOwnObject(), FIFE::Instance::getStaticColorOverlay(), FIFE::RenderItem::getStaticImageIndexByAngle(), FIFE::Instance::isStaticColorOverlay(), FIFE::ObjectLoader::load(), and FIFE::Instance::removeStaticColorOverlay().

Here is the caller graph for this function:

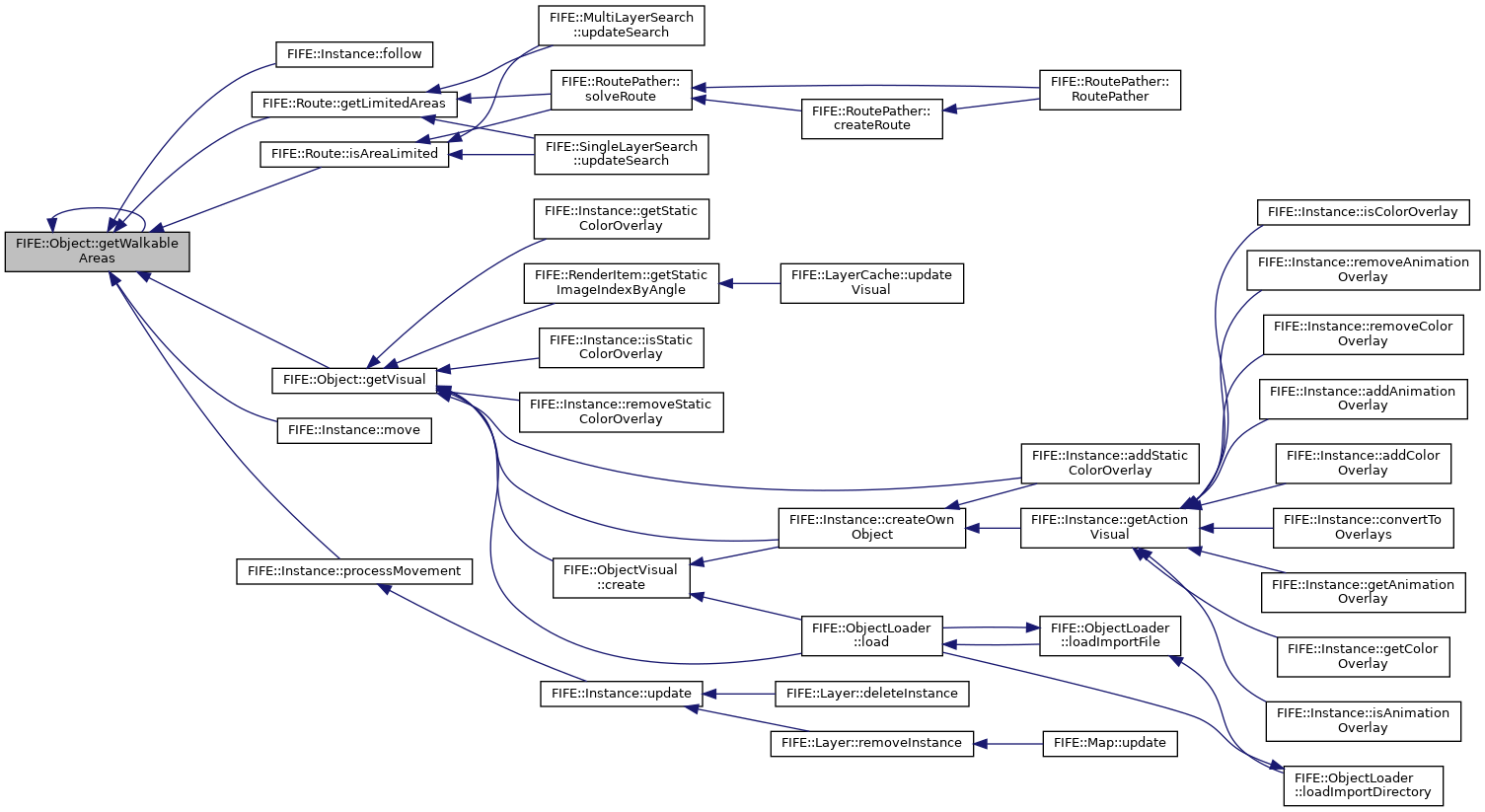

◆ getWalkableAreas()

std::list< std::string > FIFE::Object::getWalkableAreas ( ) const

Returns a list that contains all walkable area ids.

Returns: A list that contains all walkable area ids as strings.

Definition at line 606 of file object.cpp.

References getWalkableAreas(), m_inherited, m_moveProperty, and FIFE::Object::MovableObjectProperty::m_walkableAreas.

Referenced by FIFE::Instance::follow(), FIFE::Route::getLimitedAreas(), getVisual(), getWalkableAreas(), FIFE::Route::isAreaLimited(), FIFE::Instance::move(), and FIFE::Instance::processMovement().

Here is the caller graph for this function:

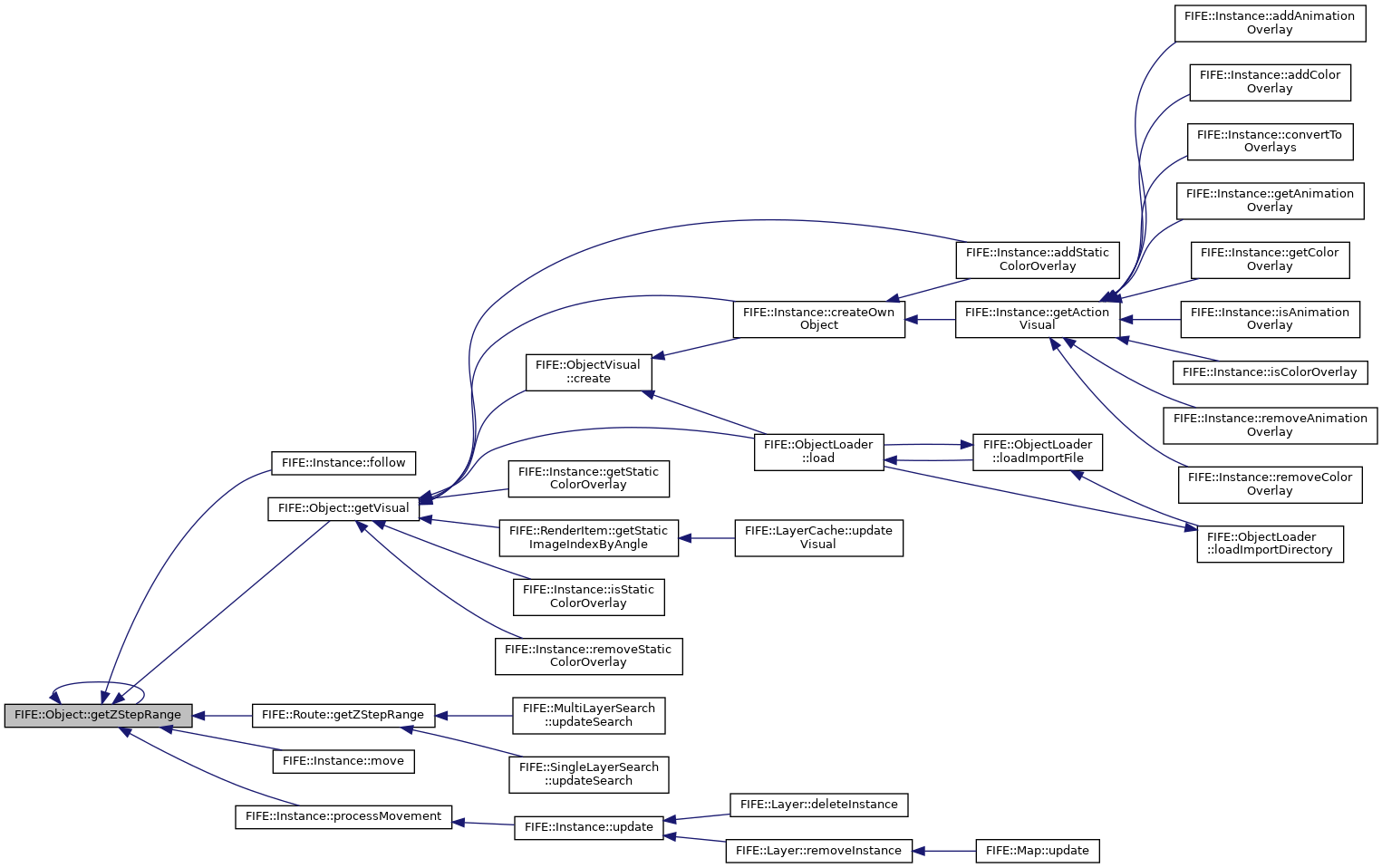

◆ getZStepRange()

int32_t FIFE::Object::getZStepRange ( ) const

Returns z-step range from object.

In case it is not limited -1 is returned.

Returns: The z-step range as int.

Definition at line 563 of file object.cpp.

References getZStepRange(), m_inherited, m_moveProperty, and FIFE::Object::MovableObjectProperty::m_zRange.

Referenced by FIFE::Instance::follow(), getVisual(), FIFE::Route::getZStepRange(), getZStepRange(), FIFE::Instance::move(), and FIFE::Instance::processMovement().

Here is the caller graph for this function:

◆ isBlocking()

bool FIFE::Object::isBlocking ( ) const

Gets if object blocks movement.

Definition at line 223 of file object.cpp.

References isBlocking(), m_basicProperty, FIFE::Object::BasicObjectProperty::m_blocking, and m_inherited.

Referenced by getVisual(), isBlocking(), and FIFE::BlockingInfoRenderer::render().

Here is the caller graph for this function:

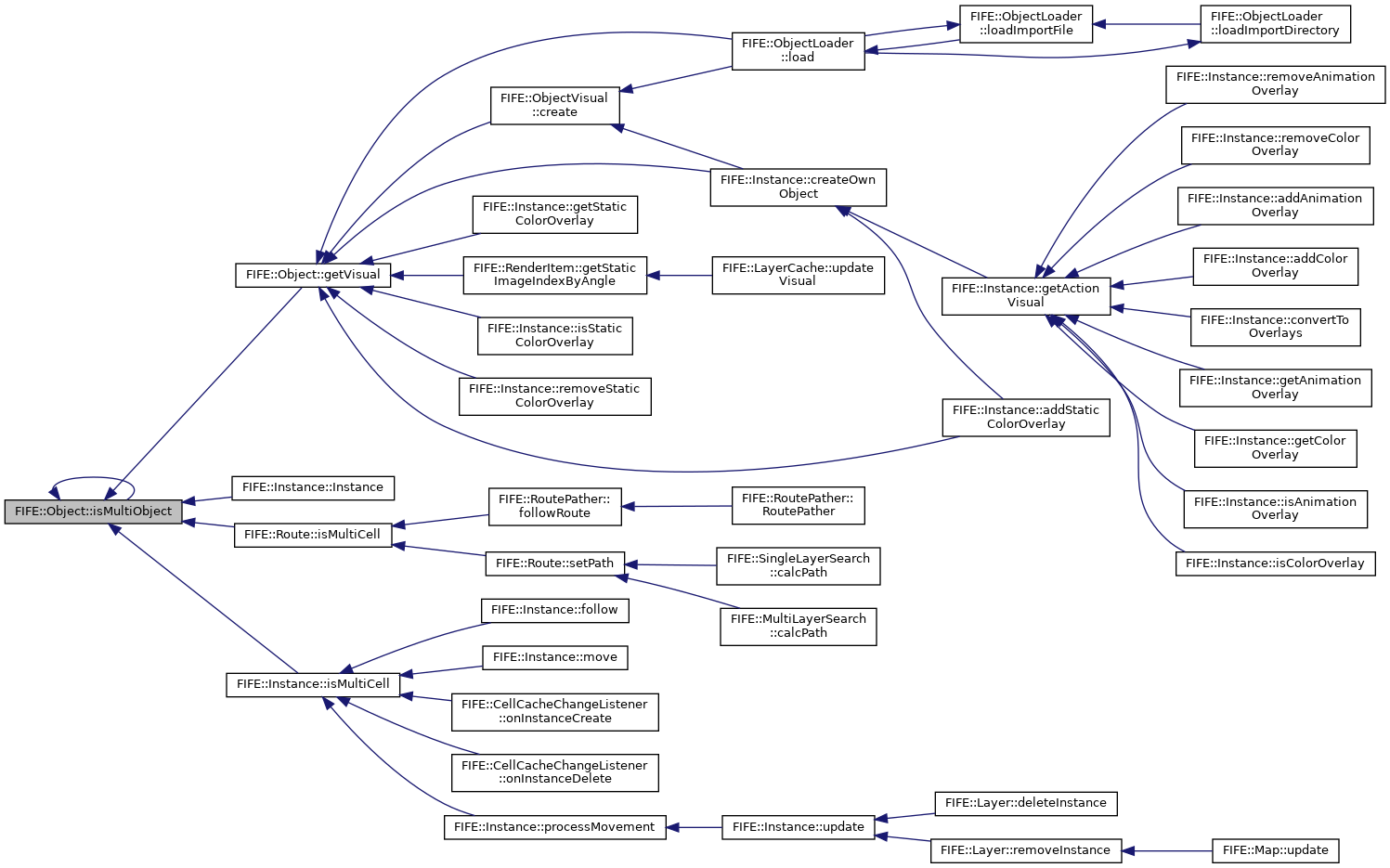

◆ isMultiObject()

bool FIFE::Object::isMultiObject ( ) const

Gets if object uses special cost.

Returns: A boolean, true if the object uses special cost, otherwise false.

Definition at line 346 of file object.cpp.

References isMultiObject(), m_inherited, FIFE::Object::MultiObjectProperty::m_multiPartIds, and m_multiProperty.

Referenced by getVisual(), FIFE::Instance::Instance(), FIFE::Route::isMultiCell(), FIFE::Instance::isMultiCell(), and isMultiObject().

Here is the caller graph for this function:

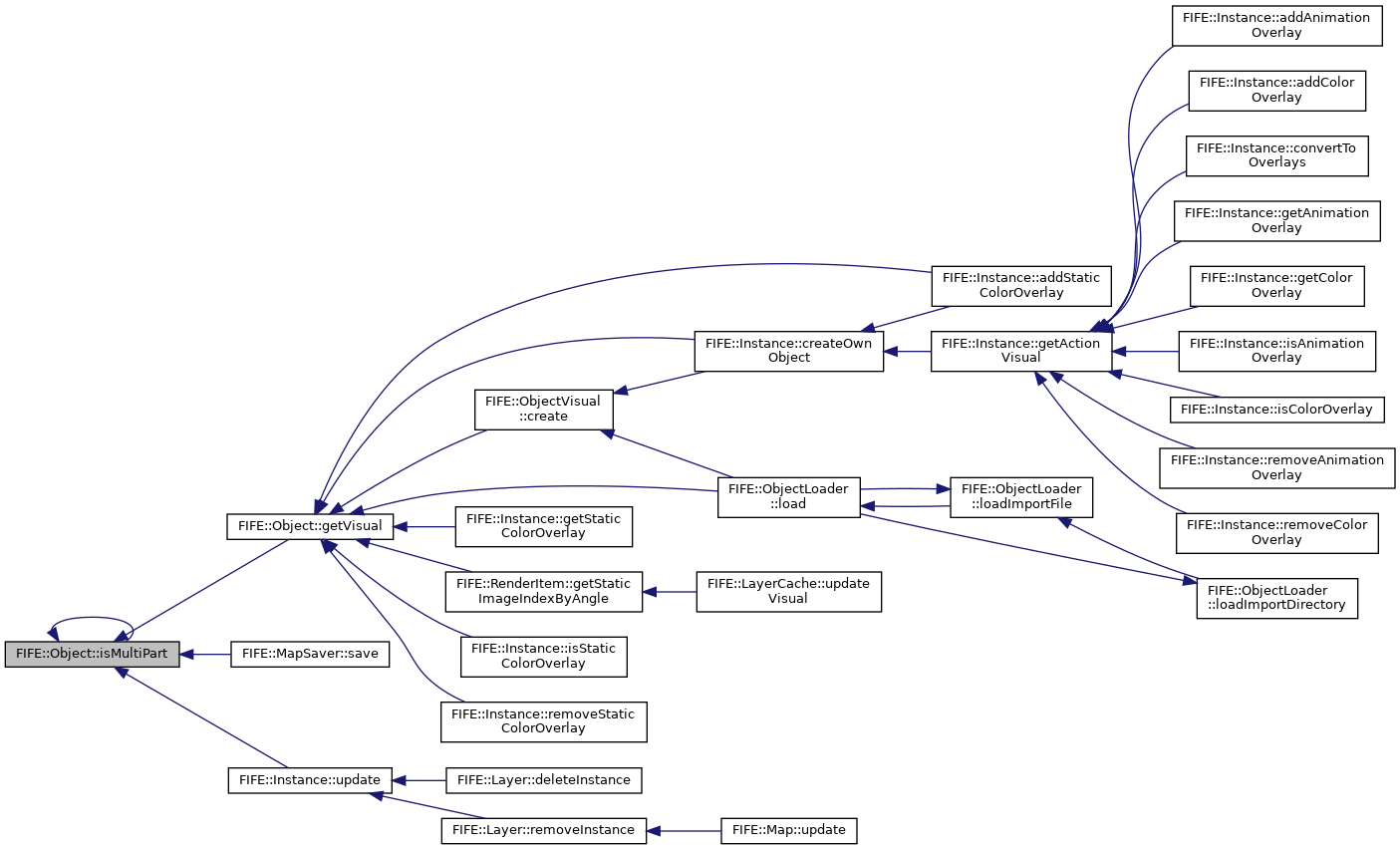

◆ isMultiPart()

bool FIFE::Object::isMultiPart ( ) const

Gets if object is a part of a multi object.

Returns: A boolean, true if the object is a part of a multi object, otherwise false.

Definition at line 393 of file object.cpp.

References isMultiPart(), m_inherited, FIFE::Object::MultiObjectProperty::m_multiPart, and m_multiProperty.

Referenced by getVisual(), isMultiPart(), FIFE::MapSaver::save(), and FIFE::Instance::update().

Here is the caller graph for this function:

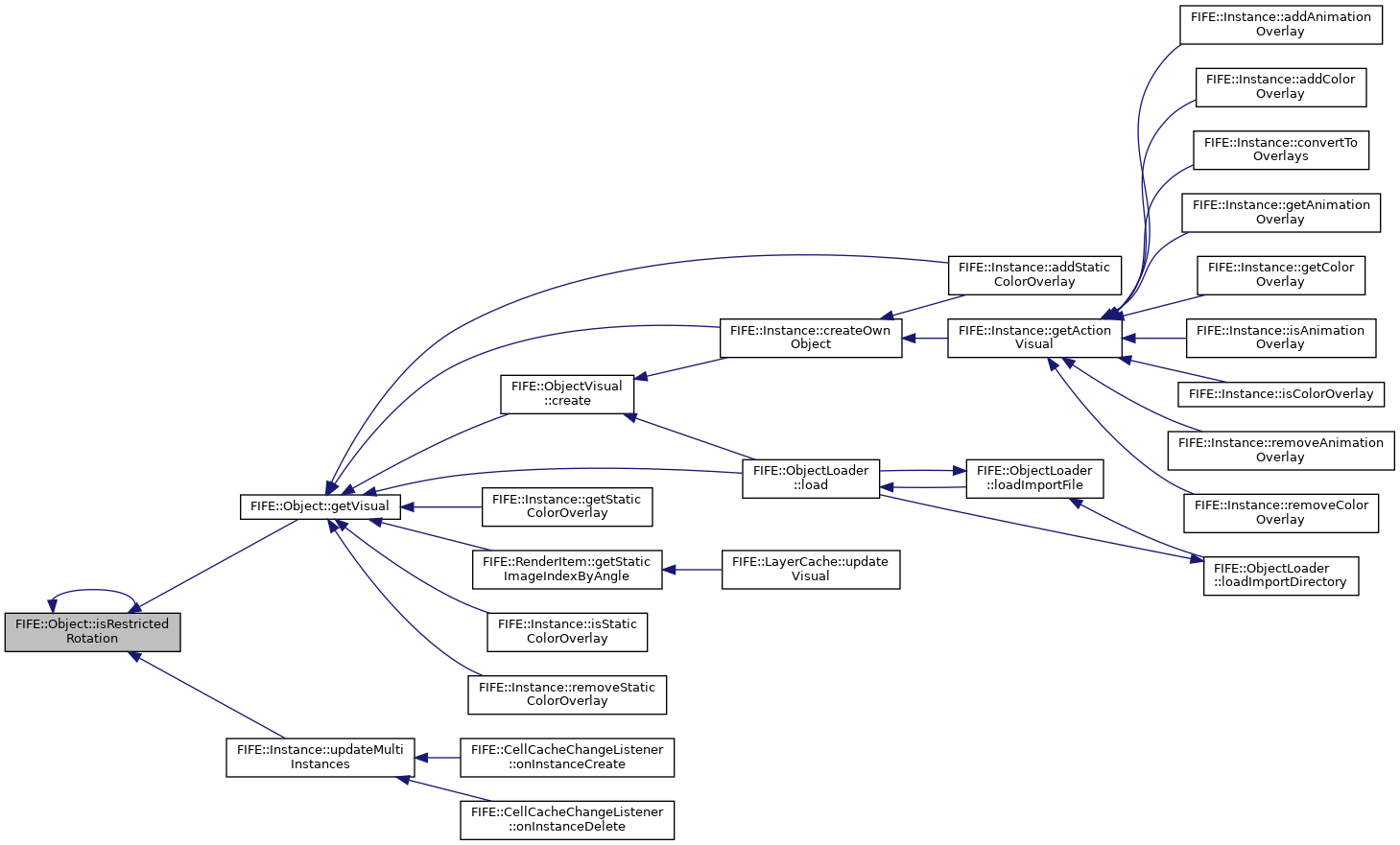

◆ isRestrictedRotation()

bool FIFE::Object::isRestrictedRotation ( ) const

Gets if object uses restricted rotations.

Returns: A boolean, true if the object uses restricted rotations, otherwise false.

Definition at line 532 of file object.cpp.

References isRestrictedRotation(), m_inherited, m_multiProperty, and FIFE::Object::MultiObjectProperty::m_restrictedRotation.

Referenced by getVisual(), isRestrictedRotation(), and FIFE::Instance::updateMultiInstances().

Here is the caller graph for this function:

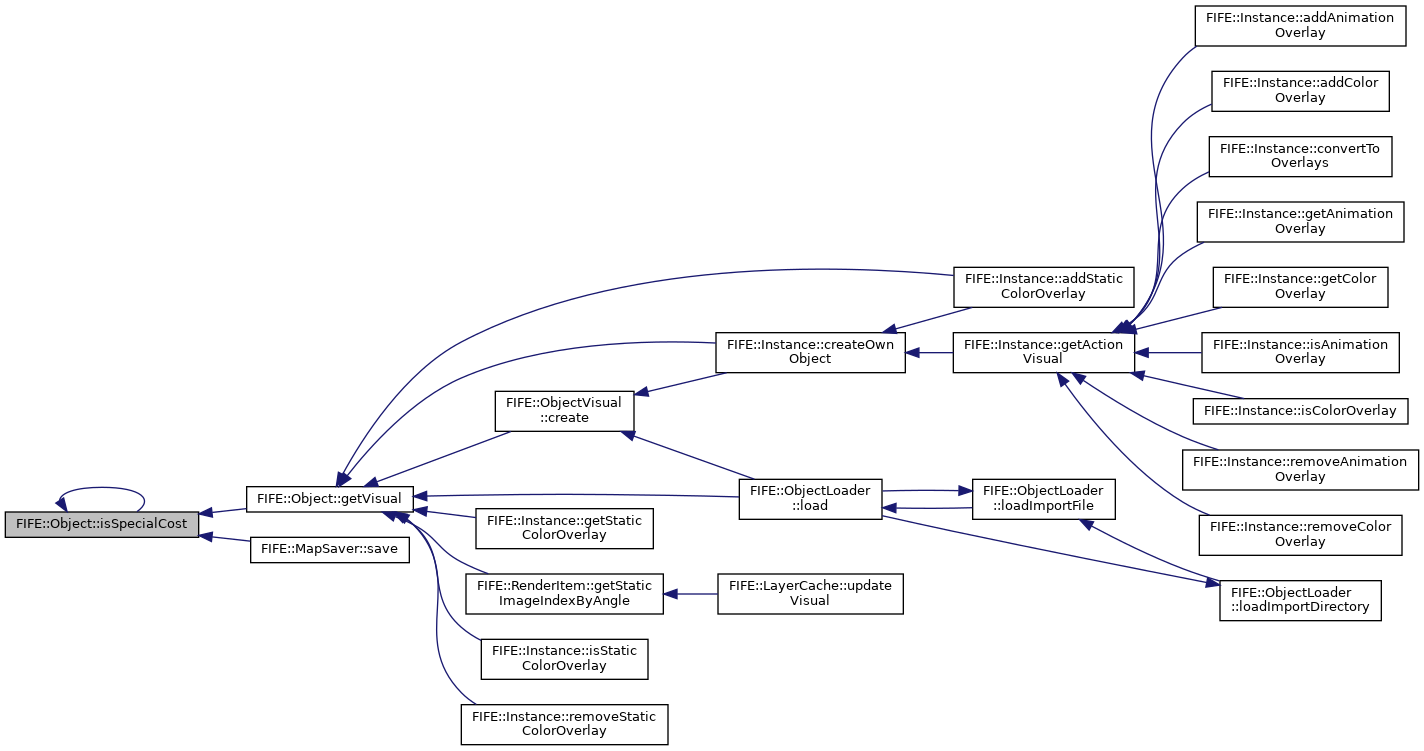

◆ isSpecialCost()

bool FIFE::Object::isSpecialCost ( ) const

Gets if object uses special cost.

Returns: A boolean, true if the object uses special cost, otherwise false.

Definition at line 275 of file object.cpp.

References isSpecialCost(), FIFE::Object::MovableObjectProperty::m_costId, m_inherited, and m_moveProperty.

Referenced by getVisual(), isSpecialCost(), and FIFE::MapSaver::save().

Here is the caller graph for this function:

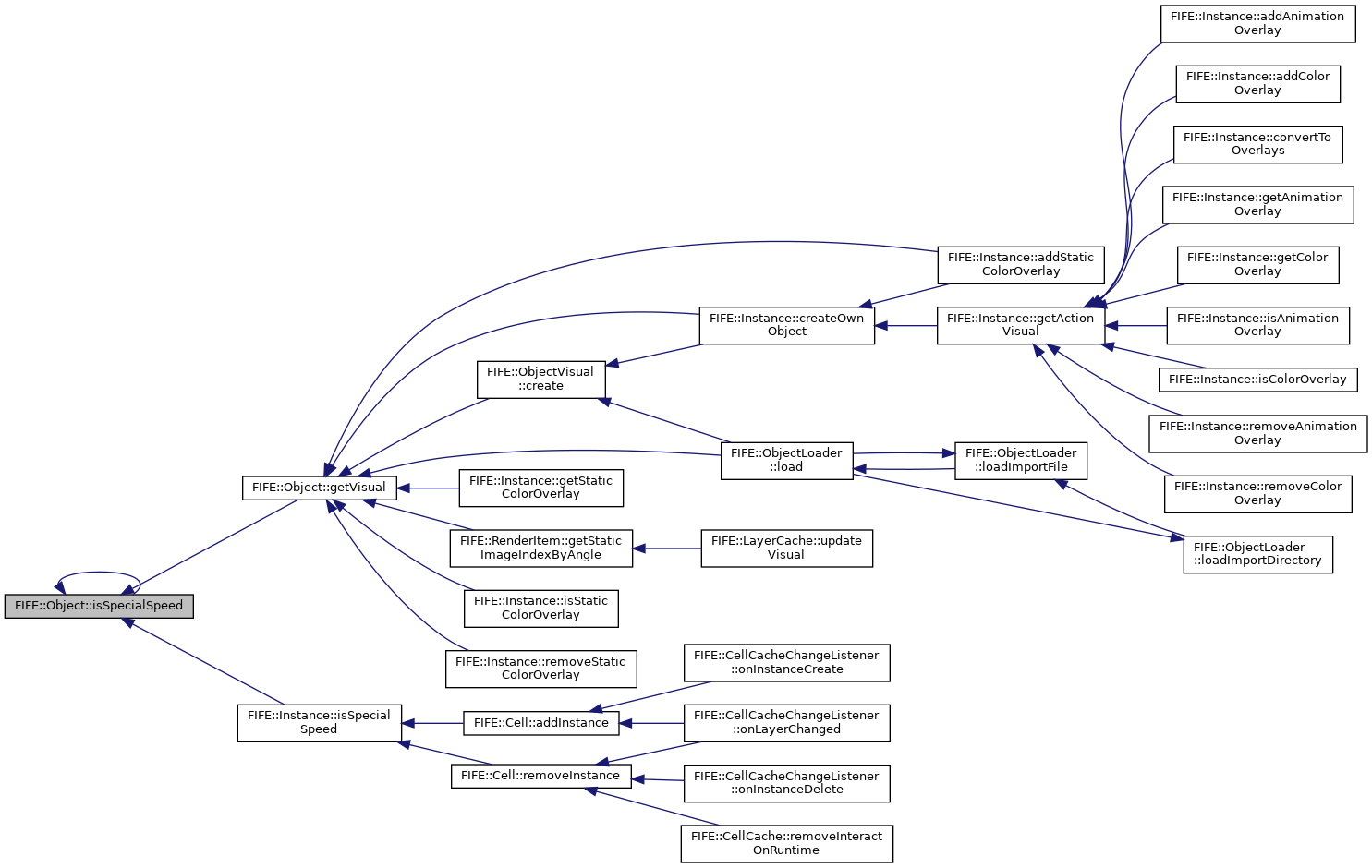

◆ isSpecialSpeed()

bool FIFE::Object::isSpecialSpeed ( ) const

Gets if object uses special speed modifier.

Returns: A boolean, true if the object uses special speed, otherwise false.

Definition at line 319 of file object.cpp.

References FIFE::Math< T >::Equal(), isSpecialSpeed(), m_inherited, m_moveProperty, and FIFE::Object::MovableObjectProperty::m_speed.

Referenced by getVisual(), isSpecialSpeed(), and FIFE::Instance::isSpecialSpeed().

Here is the caller graph for this function:

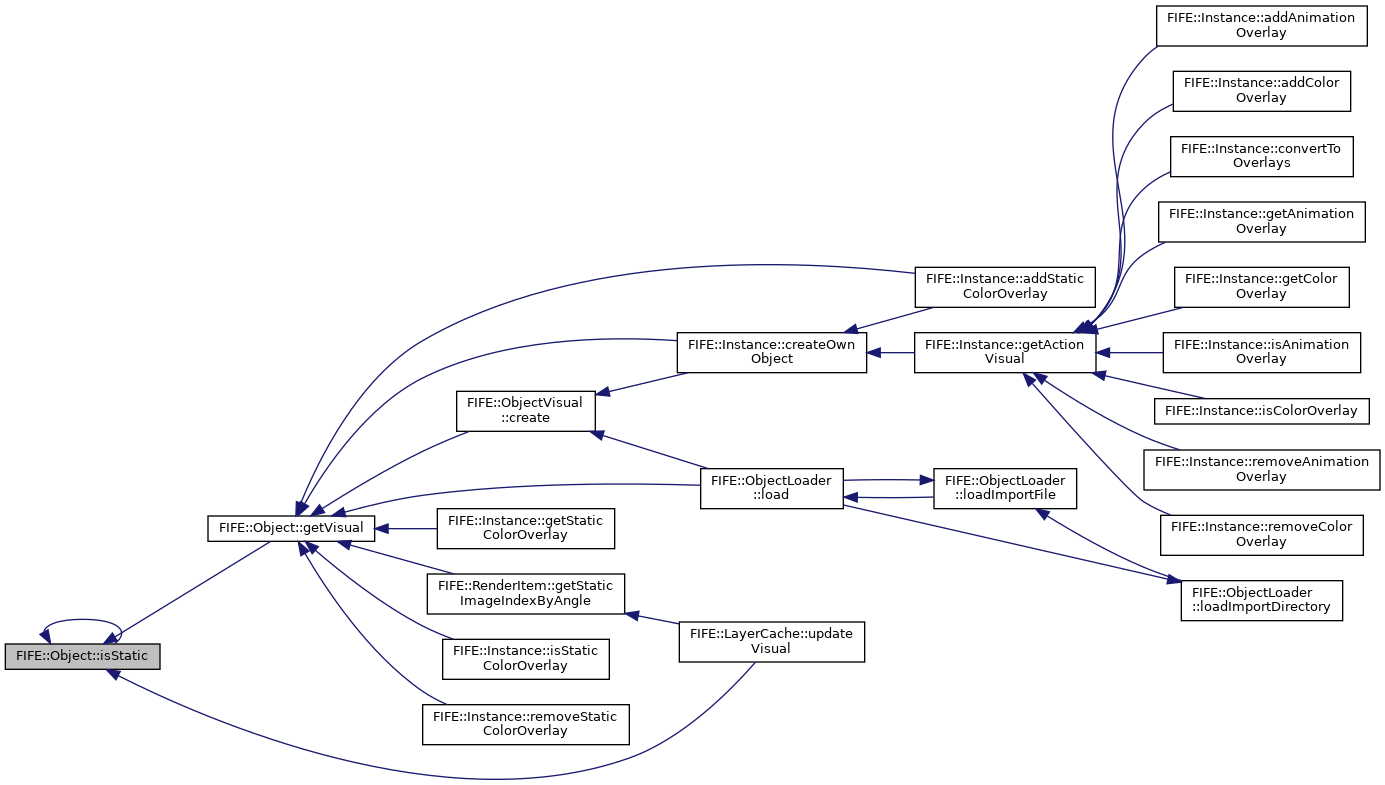

◆ isStatic()

bool FIFE::Object::isStatic ( ) const

Gets if object moves.

Definition at line 240 of file object.cpp.

References isStatic(), m_basicProperty, m_inherited, and FIFE::Object::BasicObjectProperty::m_static.

Referenced by getVisual(), isStatic(), and FIFE::LayerCache::updateVisual().

Here is the caller graph for this function:

◆ operator!=()

bool FIFE::Object::operator!= ( const Object & obj ) const

Compares unequality of two objects.

Definition at line 620 of file object.cpp.

References getId(), getNamespace(), m_id, and m_namespace.

Referenced by getVisual().

Here is the caller graph for this function:

◆ operator==()

bool FIFE::Object::operator== ( const Object & obj ) const

Compares equality of two objects.

Definition at line 616 of file object.cpp.

References getId(), getNamespace(), m_id, and m_namespace.

Referenced by getVisual().

Here is the caller graph for this function:

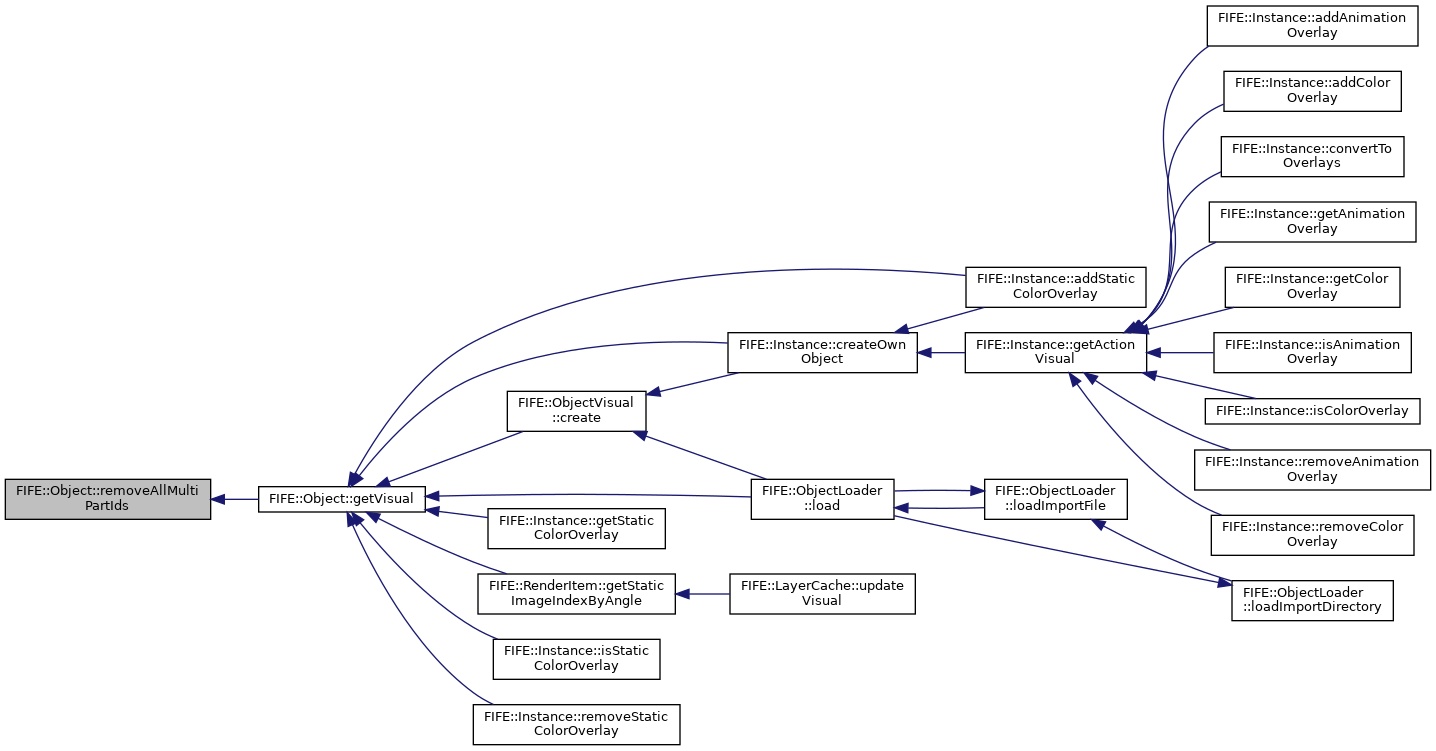

◆ removeAllMultiPartIds()

void FIFE::Object::removeAllMultiPartIds ( )

Removes all multi part identifiers.

Definition at line 386 of file object.cpp.

References FIFE::Object::MultiObjectProperty::m_multiPartIds, and m_multiProperty.

Referenced by getVisual().

Here is the caller graph for this function:

◆ removeMultiPart()

void FIFE::Object::removeMultiPart ( Object * obj )

Removes a multi part object.

Parameters

obj	A pointer to the part object.

Definition at line 427 of file object.cpp.

References FIFE::Object::MultiObjectProperty::m_multiParts, and m_multiProperty.

Referenced by getVisual().

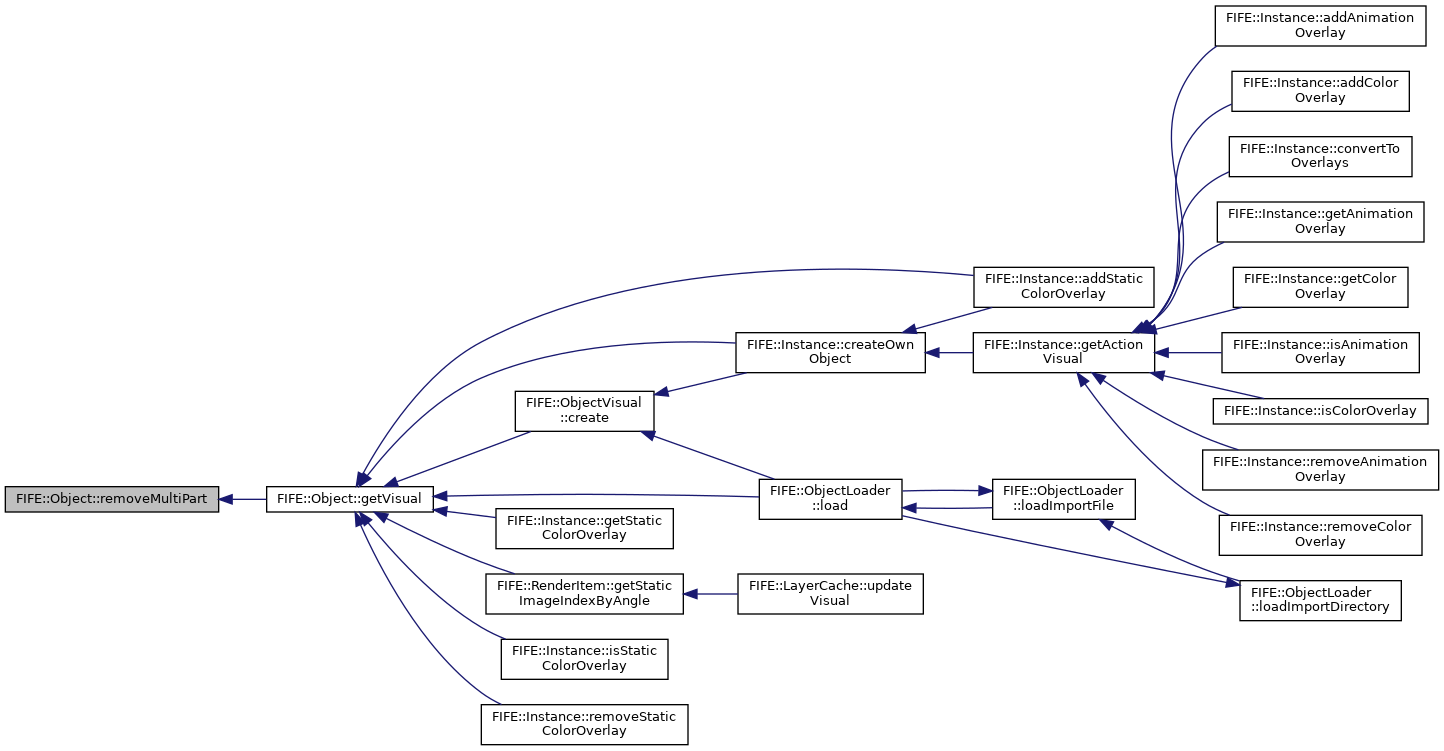

Here is the caller graph for this function:

◆ removeMultiPartId()

void FIFE::Object::removeMultiPartId ( const std::string & partId )

Removes a multi part identifier.

Parameters

partId A const reference to a string that holds the identifier.

Definition at line 373 of file object.cpp.

References FIFE::Object::MultiObjectProperty::m_multiPartIds, and m_multiProperty.

Referenced by getVisual().

Here is the caller graph for this function:

◆ removeMultiParts()

void FIFE::Object::removeMultiParts ( )

Removes all multi part objects.

Definition at line 435 of file object.cpp.

References FIFE::Object::MultiObjectProperty::m_multiParts, and m_multiProperty.

Referenced by getVisual().

Here is the caller graph for this function:

◆ removeWalkableArea()

void FIFE::Object::removeWalkableArea ( const std::string & id )

Removes an area id from walkable areas.

Parameters

id	The area id.

Definition at line 599 of file object.cpp.

References m_moveProperty.

Referenced by getVisual().

Here is the caller graph for this function:

◆ setArea()

void FIFE::Object::setArea ( const std::string & id )

Sets the area id that the instances of this object adds to their cells.

Parameters

id	The area id, default is "".

Definition at line 573 of file object.cpp.

References FIFE::Object::BasicObjectProperty::m_area, and m_basicProperty.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

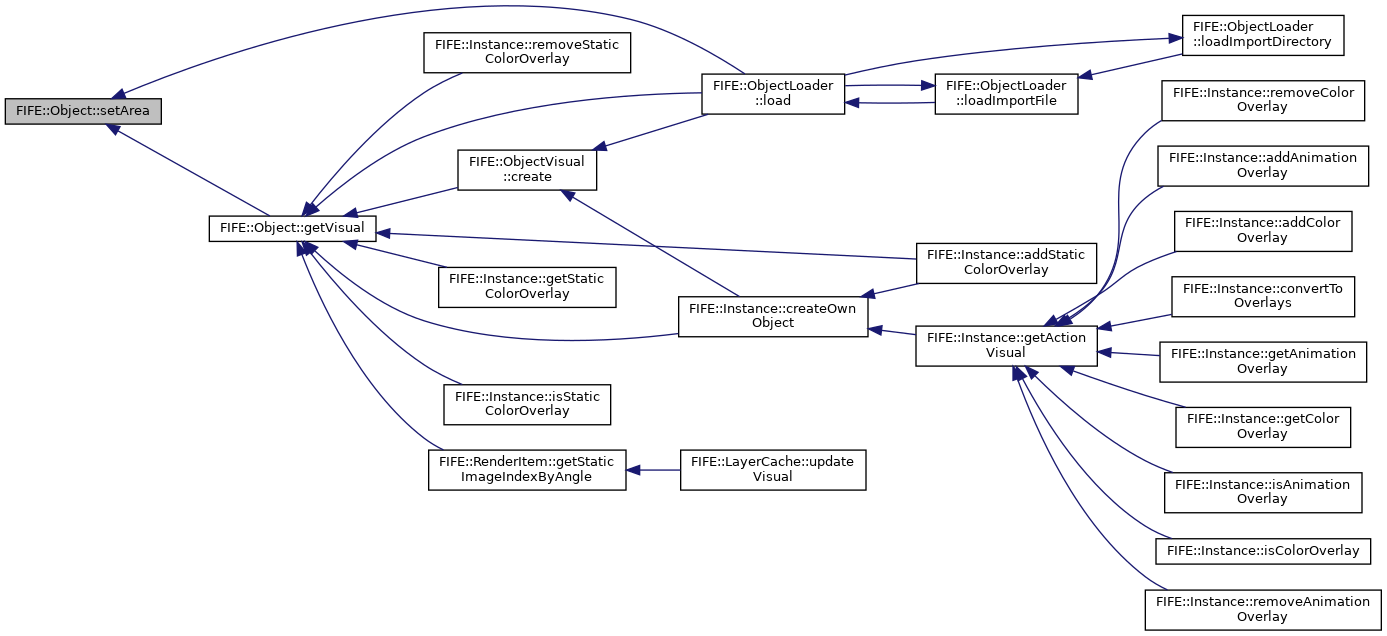

Here is the caller graph for this function:

◆ setBlocking()

void FIFE::Object::setBlocking ( bool blocking )

Sets if object blocks movement.

Definition at line 216 of file object.cpp.

References m_basicProperty, and FIFE::Object::BasicObjectProperty::m_blocking.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

Here is the caller graph for this function:

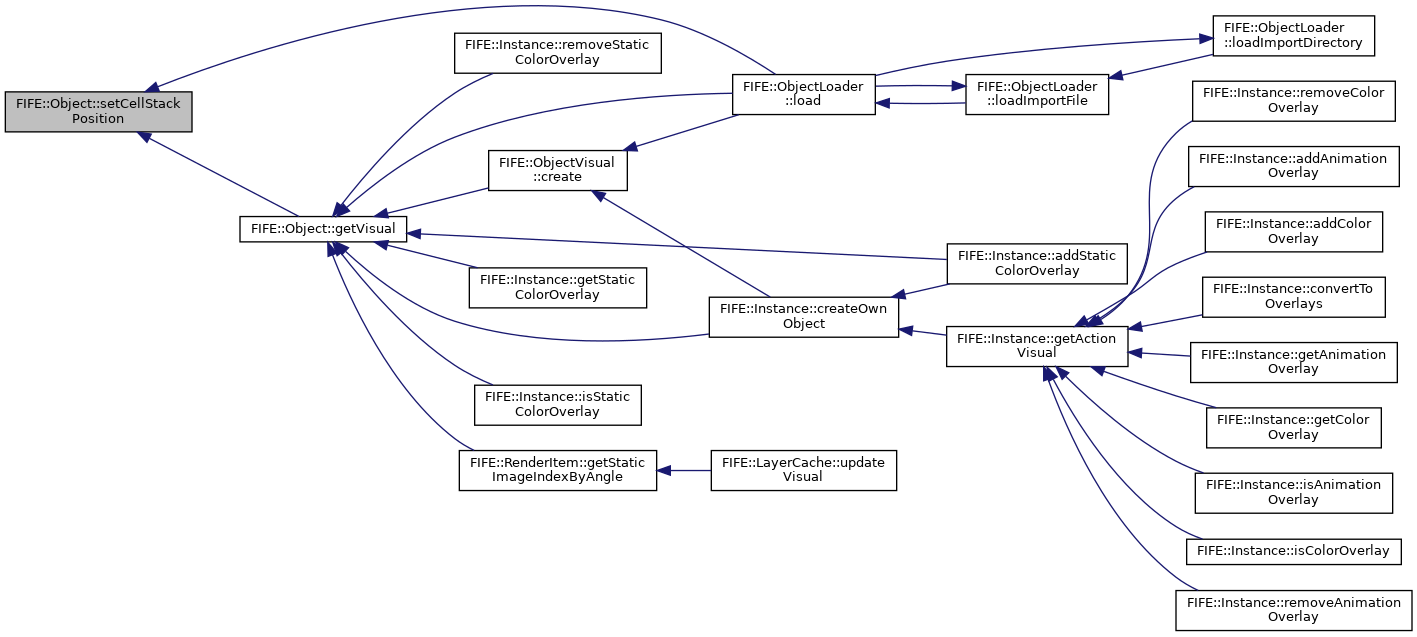

◆ setCellStackPosition()

void FIFE::Object::setCellStackPosition ( uint8_t position )

Sets the cell stack position.

Is used to determine which Instance is on top of a cell.

Parameters

position The stack position on a cell, range 0-255.

Definition at line 258 of file object.cpp.

References m_basicProperty, and FIFE::Object::BasicObjectProperty::m_cellStack.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

Here is the caller graph for this function:

◆ setCost()

void FIFE::Object::setCost ( double cost )

Sets the cost.

Parameters

cost	A double which value is used as cost.

Definition at line 302 of file object.cpp.

References FIFE::Object::MovableObjectProperty::m_cost, and m_moveProperty.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

Here is the caller graph for this function:

◆ setCostId()

void FIFE::Object::setCostId ( const std::string & cost )

Sets the cost id.

Parameters

cost	A const reference to a string which contains the identifier.

Definition at line 285 of file object.cpp.

References FIFE::Object::MovableObjectProperty::m_costId, and m_moveProperty.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

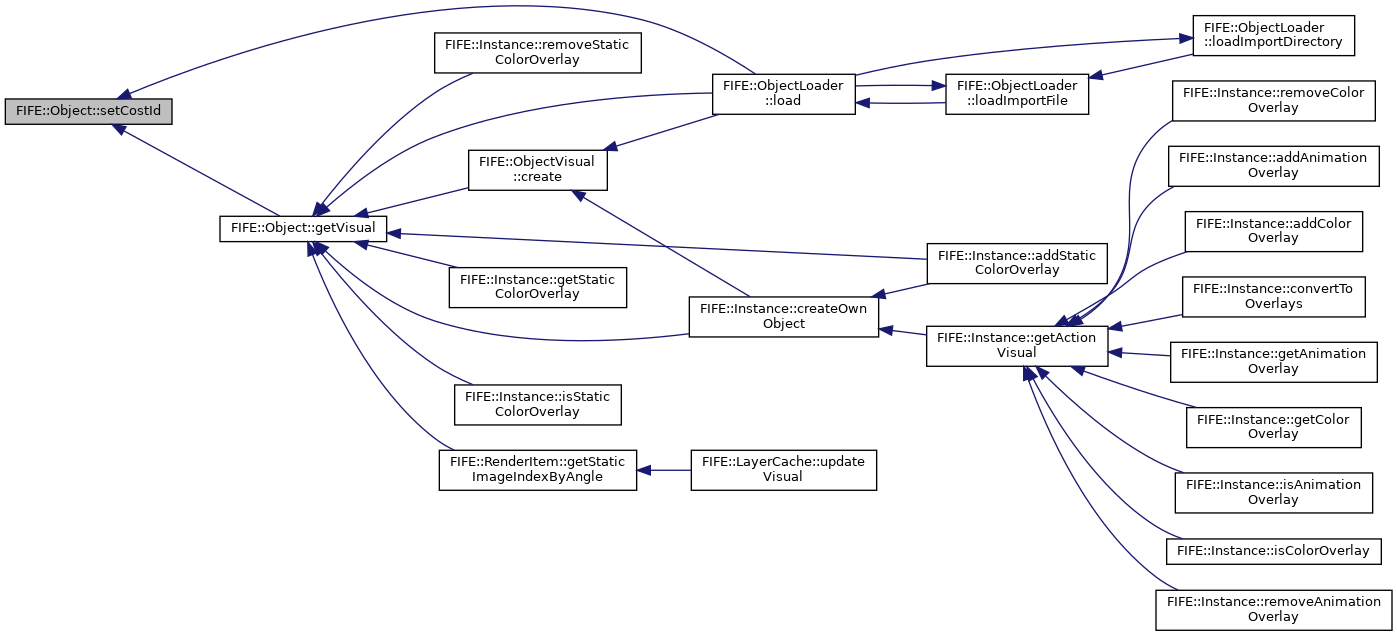

Here is the caller graph for this function:

◆ setDefaultAction()

void FIFE::Object::setDefaultAction ( const std::string & identifier )

Sets default action assigned to this object.

If not available, then default action is not changed.

Definition at line 155 of file object.cpp.

References getAction(), FIFE::Object::BasicObjectProperty::m_actions, m_basicProperty, FIFE::Object::BasicObjectProperty::m_defaultAction, and m_inherited.

Referenced by setId().

Here is the caller graph for this function:

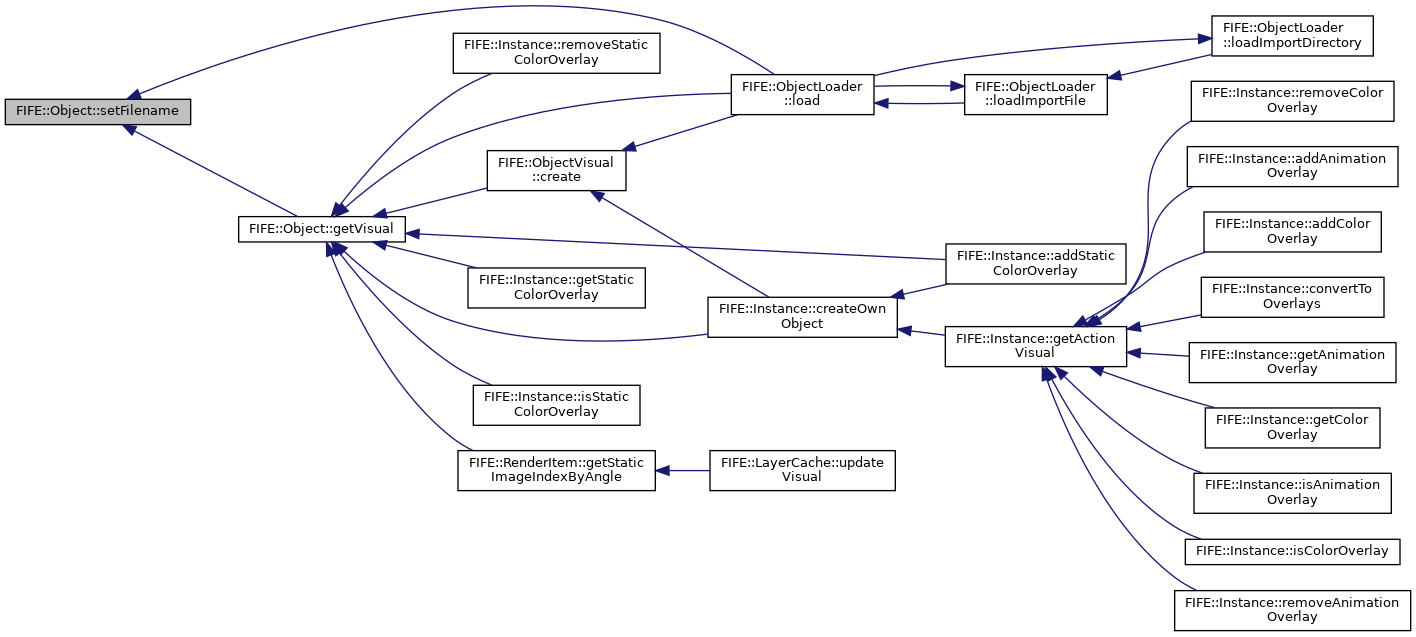

◆ setFilename()

void FIFE::Object::setFilename ( const std::string & file )

Definition at line 250 of file object.cpp.

References m_filename.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

Here is the caller graph for this function:

◆ setId()

void FIFE::Object::setId ( const std::string & id )

inline

Sets the identifier for this object.

Definition at line 73 of file object.h.

References adoptVisual(), createAction(), getAction(), getActionIds(), getDefaultAction(), getInherited(), getPather(), m_id, setDefaultAction(), and setPather().

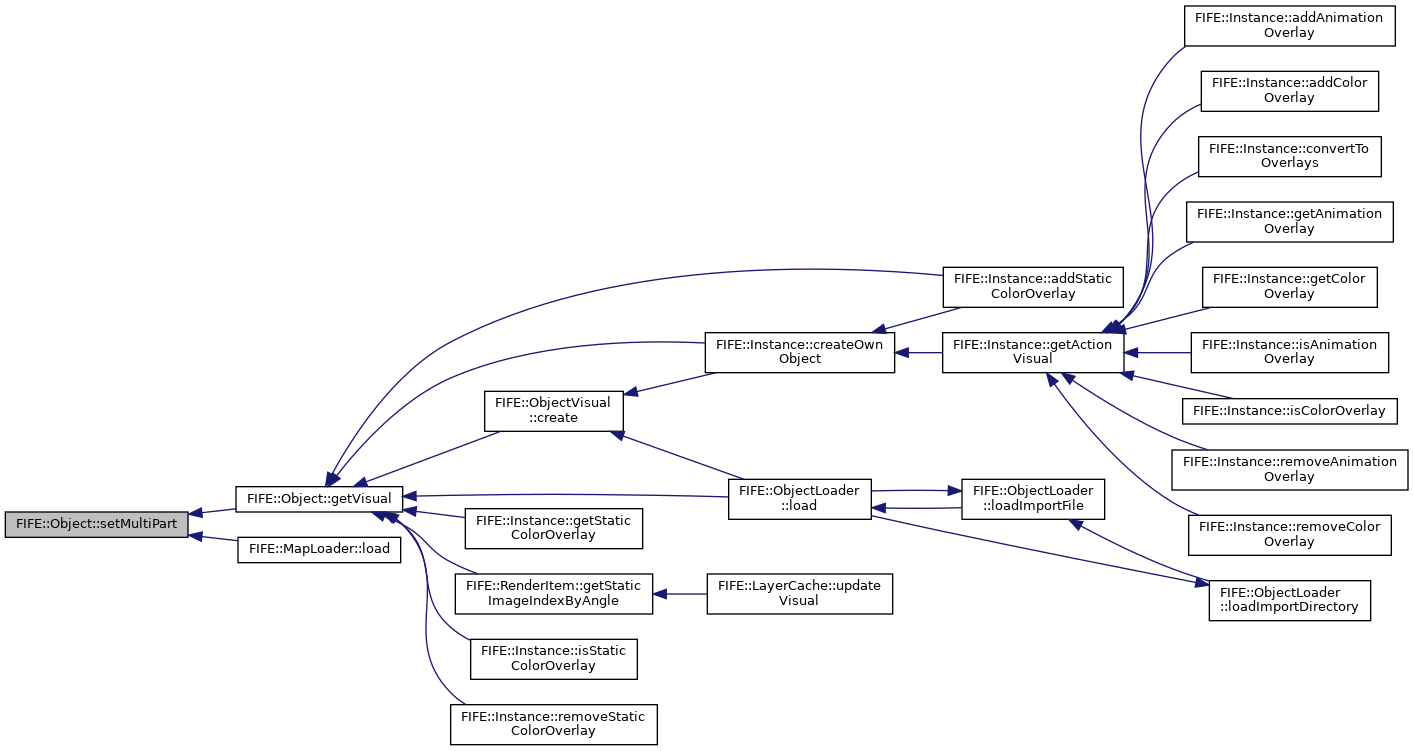

◆ setMultiPart()

void FIFE::Object::setMultiPart ( bool part )

Sets the object as a part of a multi object.

Parameters

part	A boolean, true if the object is a part of a multi object, otherwise false.

Definition at line 403 of file object.cpp.

References FIFE::Object::MultiObjectProperty::m_multiPart, and m_multiProperty.

Referenced by getVisual(), and FIFE::MapLoader::load().

Here is the caller graph for this function:

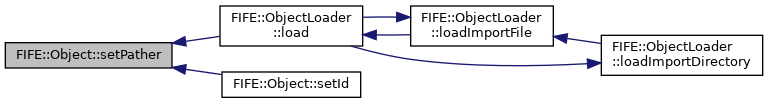

◆ setPather()

void FIFE::Object::setPather ( IPather * pather )

Sets pather used by instances created out of this object.

Definition at line 188 of file object.cpp.

References m_moveProperty, and FIFE::Object::MovableObjectProperty::m_pather.

Referenced by FIFE::ObjectLoader::load(), and setId().

Here is the caller graph for this function:

◆ setRestrictedRotation()

void FIFE::Object::setRestrictedRotation ( bool restrict )

Sets the rotation to restricted.

If this is enabled the multi object uses only rotation values are which based on multi coordinates.

Parameters

restrict A boolean, if true the rotation will be restricted, false for free rotation.

Definition at line 525 of file object.cpp.

References m_multiProperty, and FIFE::Object::MultiObjectProperty::m_restrictedRotation.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

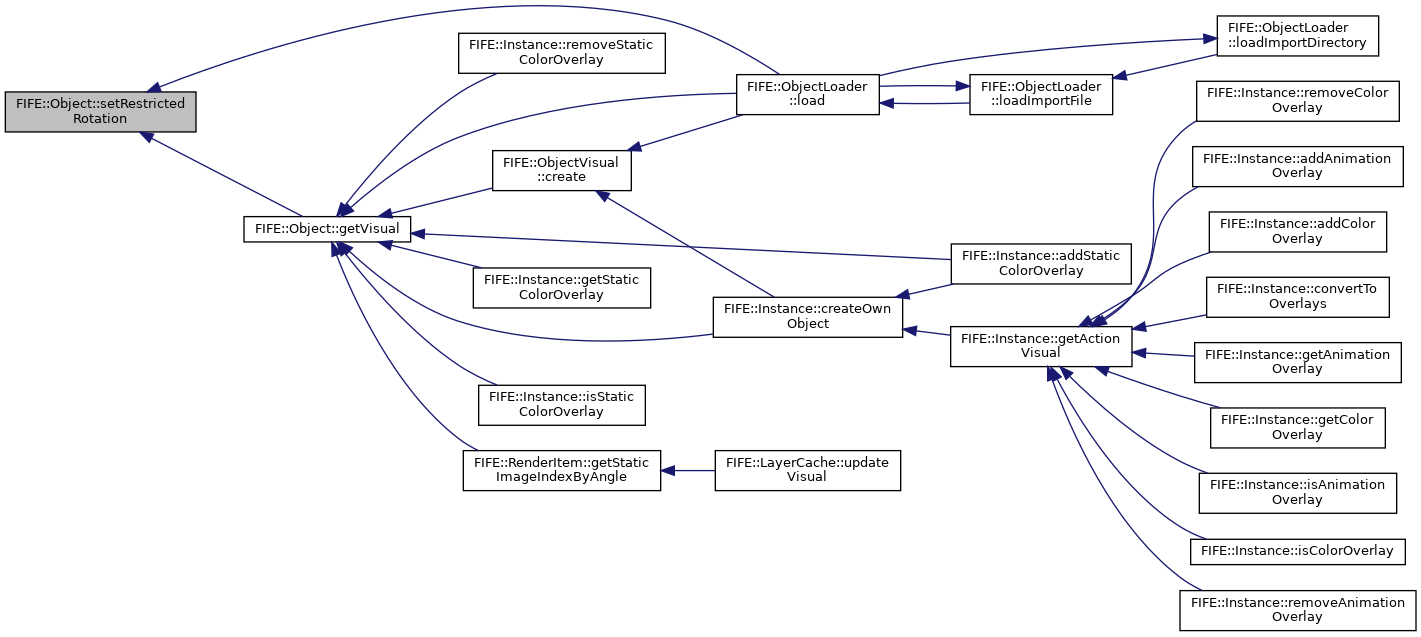

Here is the caller graph for this function:

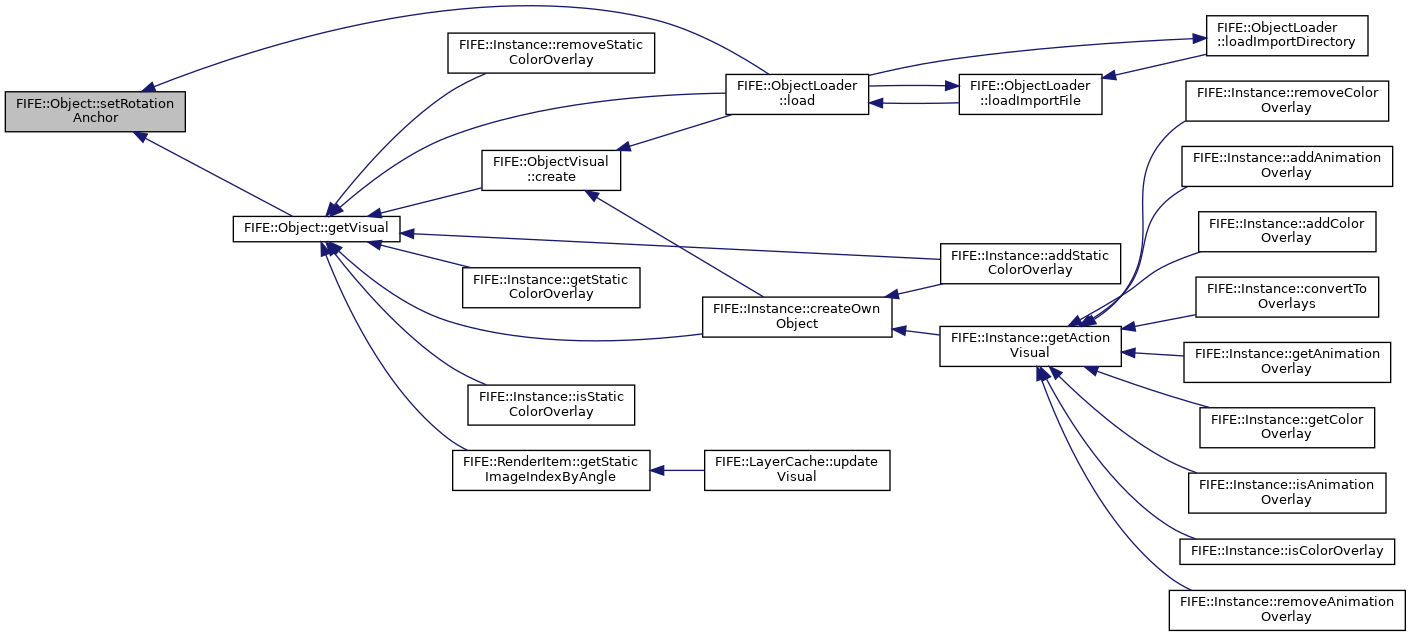

◆ setRotationAnchor()

void FIFE::Object::setRotationAnchor ( const ExactModelCoordinate & anchor )

Sets the rotation anchor for this multi object.

Is used to rotate the images from multi part objects around this relative point, default is 0.0, 0.0 the center of the multi object.

Parameters

anchor A const reference to a ExactModelCoordinate that holds the anchor coordinate.

Definition at line 508 of file object.cpp.

References m_multiProperty, and FIFE::Object::MultiObjectProperty::m_rotationAnchor.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

Here is the caller graph for this function:

◆ setSpeed()

void FIFE::Object::setSpeed ( double cost )

Sets the speed modifier.

Parameters

cost	A double which value is used as speed multiplier.

Definition at line 329 of file object.cpp.

References m_moveProperty, and FIFE::Object::MovableObjectProperty::m_speed.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

Here is the caller graph for this function:

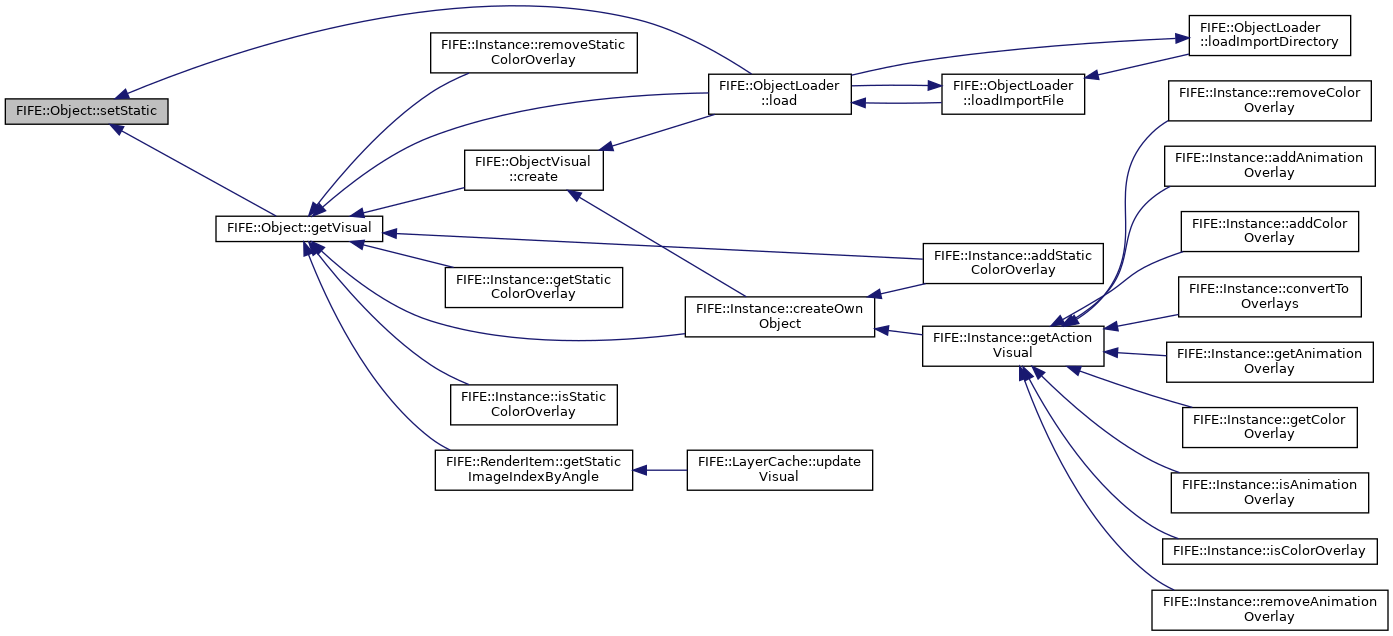

◆ setStatic()

void FIFE::Object::setStatic ( bool stat )

Set to true, if object is such that it doesn't move.

Definition at line 233 of file object.cpp.

References m_basicProperty, and FIFE::Object::BasicObjectProperty::m_static.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

Here is the caller graph for this function:

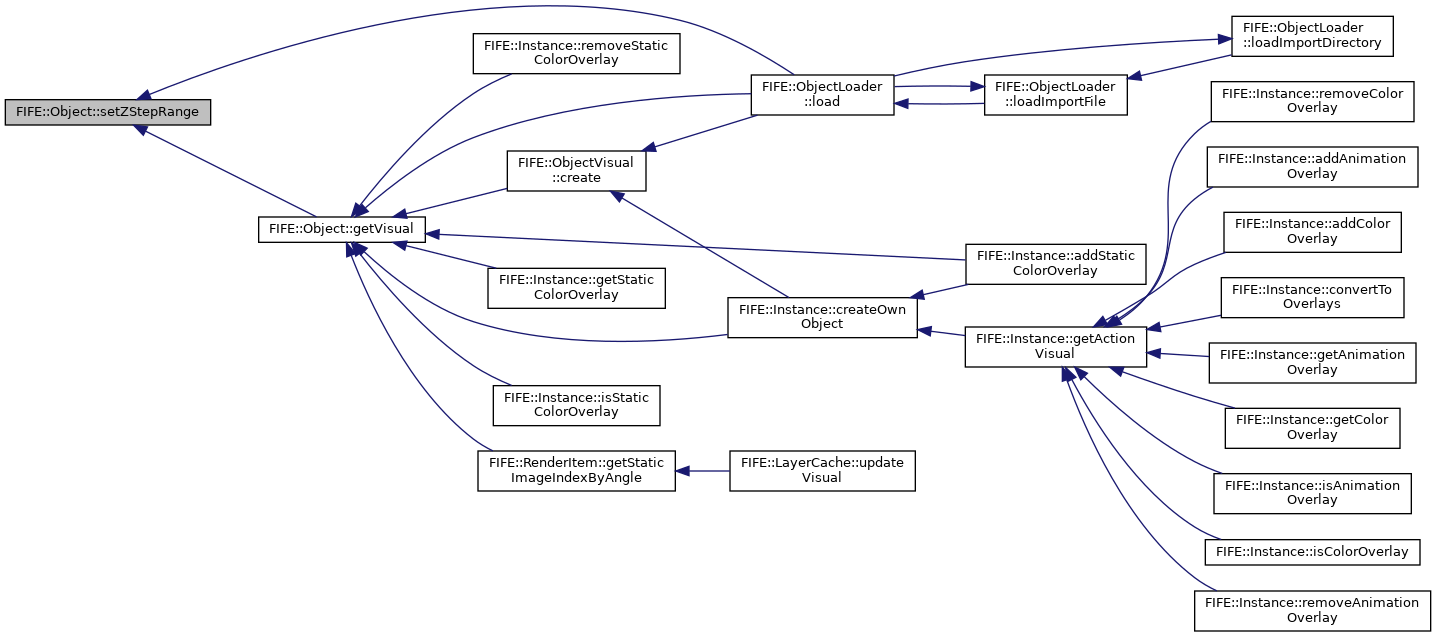

◆ setZStepRange()

void FIFE::Object::setZStepRange ( int32_t zRange )

Sets z-step range for object.

0 means it can not climb, with a value of 1 it can climb a z-height of 1 and so on.

Parameters

zRange The z-step range as int.

Definition at line 556 of file object.cpp.

References m_moveProperty, and FIFE::Object::MovableObjectProperty::m_zRange.

Referenced by getVisual(), and FIFE::ObjectLoader::load().

Here is the caller graph for this function:

Member Data Documentation

◆ m_basicProperty

BasicObjectProperty* FIFE::Object::m_basicProperty

private

Definition at line 451 of file object.h.

Referenced by createAction(), getAction(), getActionIds(), getArea(), getCellStackPosition(), getDefaultAction(), isBlocking(), isStatic(), setArea(), setBlocking(), setCellStackPosition(), setDefaultAction(), setStatic(), and ~Object().

◆ m_filename

std::string FIFE::Object::m_filename

private

filename

Definition at line 352 of file object.h.

Referenced by getFilename(), and setFilename().

◆ m_id

std::string FIFE::Object::m_id

private

identifier

Definition at line 346 of file object.h.

Referenced by getId(), operator!=(), operator==(), and setId().

◆ m_inherited

Object* FIFE::Object::m_inherited

private

pointer to inherited object

Definition at line 355 of file object.h.

Referenced by getAction(), getArea(), getCellStackPosition(), getCost(), getCostId(), getDefaultAction(), getInherited(), getMultiObjectCoordinates(), getMultiPartCoordinates(), getMultiPartIds(), getMultiParts(), getPather(), getRestrictedRotation(), getRotationAnchor(), getSpeed(), getWalkableAreas(), getZStepRange(), isBlocking(), isMultiObject(), isMultiPart(), isRestrictedRotation(), isSpecialCost(), isSpecialSpeed(), isStatic(), and setDefaultAction().

◆ m_moveProperty

MovableObjectProperty* FIFE::Object::m_moveProperty

private

Definition at line 452 of file object.h.

Referenced by addWalkableArea(), getCost(), getCostId(), getPather(), getSpeed(), getWalkableAreas(), getZStepRange(), isSpecialCost(), isSpecialSpeed(), removeWalkableArea(), setCost(), setCostId(), setPather(), setSpeed(), setZStepRange(), and ~Object().

◆ m_multiProperty

MultiObjectProperty* FIFE::Object::m_multiProperty

private

◆ m_namespace

std::string FIFE::Object::m_namespace

private

namespace

Definition at line 349 of file object.h.

Referenced by getNamespace(), operator!=(), and operator==().

◆ m_visual

IVisual* FIFE::Object::m_visual

private

pointer to object visual

Definition at line 358 of file object.h.

Referenced by adoptVisual(), getVisual(), and ~Object().

The documentation for this class was generated from the following files:

engine/core/model/metamodel/object.h
engine/core/model/metamodel/object.cpp

Classes

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Object()

◆ ~Object()

Member Function Documentation

◆ addMultiPart()

◆ addMultiPartCoordinate()

◆ addMultiPartId()

◆ addWalkableArea()

◆ adoptVisual()

◆ createAction()

◆ getAction()

◆ getActionIds()

◆ getArea()

◆ getCellStackPosition()

◆ getCost()

◆ getCostId()

◆ getDefaultAction()

◆ getFilename()

◆ getId()

◆ getInherited()

◆ getMultiObjectCoordinates()

◆ getMultiPartCoordinates() [1/2]

◆ getMultiPartCoordinates() [2/2]

◆ getMultiPartIds()

◆ getMultiParts()

◆ getNamespace()

◆ getPather()

◆ getRestrictedRotation()

◆ getRotationAnchor()

◆ getSpeed()

◆ getVisual()

◆ getWalkableAreas()

◆ getZStepRange()

◆ isBlocking()

◆ isMultiObject()

◆ isMultiPart()

◆ isRestrictedRotation()

◆ isSpecialCost()

◆ isSpecialSpeed()

◆ isStatic()

◆ operator!=()

◆ operator==()

◆ removeAllMultiPartIds()

◆ removeMultiPart()

◆ removeMultiPartId()

◆ removeMultiParts()

◆ removeWalkableArea()

◆ setArea()

◆ setBlocking()

◆ setCellStackPosition()

◆ setCost()

◆ setCostId()

◆ setDefaultAction()

◆ setFilename()

◆ setId()

◆ setMultiPart()

◆ setPather()

◆ setRestrictedRotation()

◆ setRotationAnchor()

◆ setSpeed()

◆ setStatic()

◆ setZStepRange()

Member Data Documentation

◆ m_basicProperty

◆ m_filename

◆ m_id

◆ m_inherited

◆ m_moveProperty

◆ m_multiProperty

◆ m_namespace

◆ m_visual
