CellSelectionRenderer renders a frame around selected cells. More...

#include <cellselectionrenderer.h>

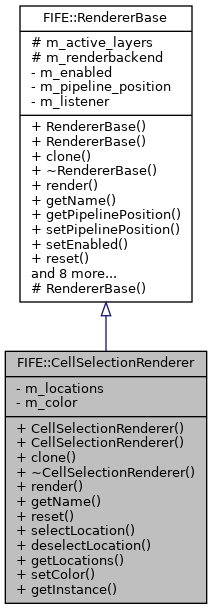

Inheritance diagram for FIFE::CellSelectionRenderer:

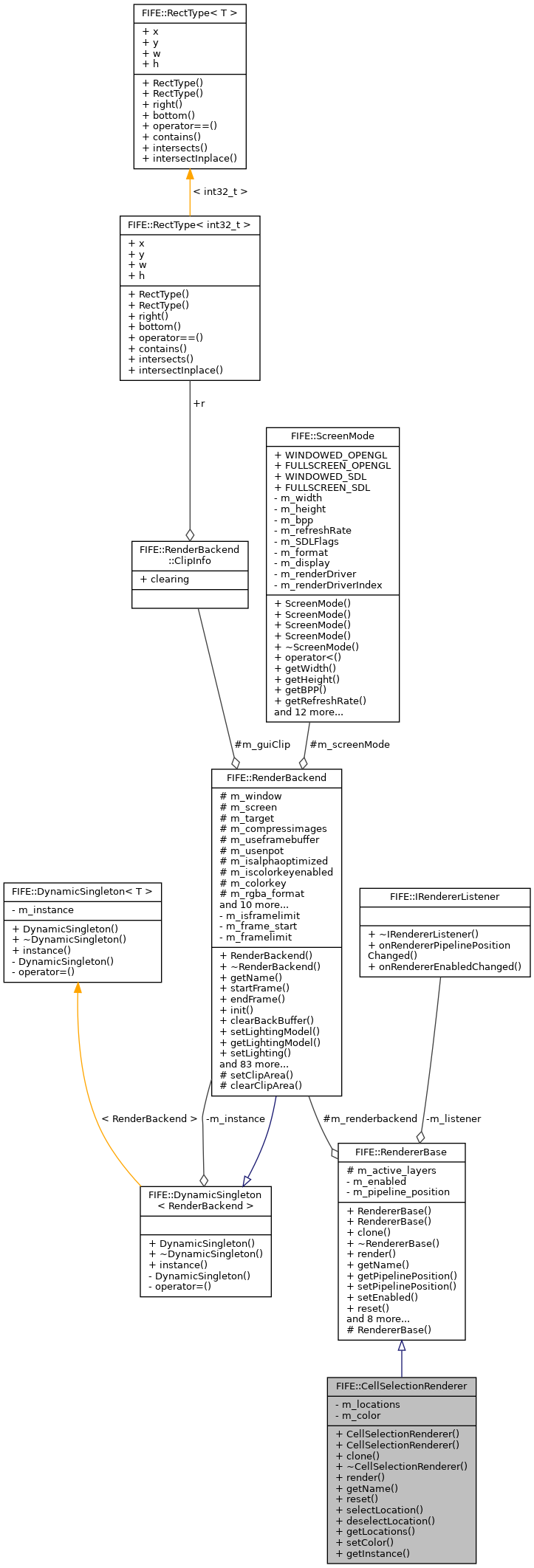

Collaboration diagram for FIFE::CellSelectionRenderer:

Public Member Functions
	CellSelectionRenderer (RenderBackend *renderbackend, int32_t position)
	Constructor. More...

	CellSelectionRenderer (const CellSelectionRenderer &old)
	Copy Constructor. More...

RendererBase *	clone ()
	Makes copy of this renderer. More...

virtual	~CellSelectionRenderer ()
	Destructor. More...

void	render (Camera cam, Layer layer, RenderList &instances)
	This method is called by the view to ask renderer to draw its rendering aspect based on given parameters. More...

std::string	getName ()
	Returns the renderer name. More...

void	reset ()
	Deselects all locations. More...

void	selectLocation (const Location *loc)
	Selects given location on map. More...

void	deselectLocation (const Location *loc)
	Deselects given location on map. More...

const std::vector< Location >	getLocations () const
	Returns selected locations. More...

void	setColor (uint8_t r, uint8_t g, uint8_t b)
	Changes the used color. More...

Public Member Functions inherited from FIFE::RendererBase
	RendererBase (RenderBackend *renderbackend, int32_t position)
	Constructor. More...

	RendererBase (const RendererBase &old)
	Copy Constructor. More...

virtual	~RendererBase ()
	Destructor. More...

int32_t	getPipelinePosition () const
	Gets renderer position in the rendering pipeline. More...

void	setPipelinePosition (int32_t position)
	Sets renderer position in the rendering pipeline Pipeline position defines in which order view calls the renderers when update occurs Note that renderers are called once per rendered layer, thus to update the whole screen, renderer might receive multiple calls. More...

virtual void	setEnabled (bool enabled)
	Enables renderer. More...

bool	isEnabled () const
	Is renderer enabled. More...

void	setRendererListener (IRendererListener *listener)
	Sets listener for renderer. More...

void	addActiveLayer (Layer *layer)
	Adds active layer to renderer. More...

void	removeActiveLayer (Layer *layer)
	Removes active layer from renderer. More...

void	clearActiveLayers ()
	Clears all active layers from renderer. More...

void	activateAllLayers (Map *elevation)
	Activates all layers from given elevation. More...

bool	isActivedLayer (Layer *layer)
	Returns if given layer is currently activated. More...

std::list< Layer * >	getActiveLayers () const
	Returns list of activated layer. More...

Static Public Member Functions
static CellSelectionRenderer *	getInstance (IRendererContainer *cnt)
	Gets instance for interface access. More...

Private Attributes
std::vector< Location >	m_locations
	selected locations More...

SDL_Color	m_color
	currently used color More...

Additional Inherited Members
Protected Member Functions inherited from FIFE::RendererBase
	RendererBase ()

Protected Attributes inherited from FIFE::RendererBase
std::list< Layer * >	m_active_layers

RenderBackend *	m_renderbackend

Detailed Description

CellSelectionRenderer renders a frame around selected cells.

Definition at line 41 of file cellselectionrenderer.h.

Constructor & Destructor Documentation

◆ CellSelectionRenderer() [1/2]

FIFE::CellSelectionRenderer::CellSelectionRenderer	(	RenderBackend *	renderbackend,
		int32_t	position
	)

Constructor.

Parameters

renderbackend	The renderbackend to use.
position	The position for this renderer in rendering pipeline. @ see setPipelinePosition

Definition at line 48 of file cellselectionrenderer.cpp.

References m_color, and FIFE::RendererBase::setEnabled().

Referenced by clone().

Here is the caller graph for this function:

◆ CellSelectionRenderer() [2/2]

FIFE::CellSelectionRenderer::CellSelectionRenderer ( const CellSelectionRenderer & old )

Copy Constructor.

Definition at line 56 of file cellselectionrenderer.cpp.

References FIFE::RendererBase::setEnabled().

◆ ~CellSelectionRenderer()

FIFE::CellSelectionRenderer::~CellSelectionRenderer ( )

virtual

Destructor.

Definition at line 66 of file cellselectionrenderer.cpp.

Member Function Documentation

◆ clone()

RendererBase * FIFE::CellSelectionRenderer::clone ( )

virtual

Makes copy of this renderer.

Implements FIFE::RendererBase.

Definition at line 62 of file cellselectionrenderer.cpp.

References CellSelectionRenderer().

◆ deselectLocation()

void FIFE::CellSelectionRenderer::deselectLocation ( const Location * loc )

Deselects given location on map.

Parameters

loc	The location.

Definition at line 90 of file cellselectionrenderer.cpp.

References FIFE::Location::getLayerCoordinates(), and m_locations.

Referenced by getName().

Here is the caller graph for this function:

◆ getInstance()

CellSelectionRenderer * FIFE::CellSelectionRenderer::getInstance ( IRendererContainer * cnt )

static

Gets instance for interface access.

Definition at line 69 of file cellselectionrenderer.cpp.

References FIFE::IRendererContainer::getRenderer().

Referenced by getName().

Here is the caller graph for this function:

◆ getLocations()

const std::vector<Location> FIFE::CellSelectionRenderer::getLocations ( ) const

inline

Returns selected locations.

Returns: A vector that contains all selected locations.

Definition at line 102 of file cellselectionrenderer.h.

References m_locations, and setColor().

◆ getName()

std::string FIFE::CellSelectionRenderer::getName ( )

inlinevirtual

Returns the renderer name.

Returns: The name as string.

Implements FIFE::RendererBase.

Definition at line 76 of file cellselectionrenderer.h.

References deselectLocation(), getInstance(), reset(), and selectLocation().

◆ render()

void FIFE::CellSelectionRenderer::render	(	Camera *	cam,
		Layer *	layer,
		RenderList &	instances
	)

virtual

This method is called by the view to ask renderer to draw its rendering aspect based on given parameters.

Parameters

cam	Camera view to draw
layer	Current layer to be rendered
instances	Instances on the current layer

Implements FIFE::RendererBase.

Definition at line 102 of file cellselectionrenderer.cpp.

References FIFE::_log, FIFE::RenderBackend::drawLine(), FL_WARN, FIFE::Layer::getCellGrid(), FIFE::Location::getLayer(), FIFE::Location::getLayerCoordinates(), FIFE::CellGrid::getVertices(), m_color, m_locations, FIFE::RendererBase::m_renderbackend, FIFE::CellGrid::toMapCoordinates(), FIFE::Camera::toScreenCoordinates(), FIFE::PointType2D< T >::x, FIFE::PointType3D< T >::x, FIFE::PointType2D< T >::y, and FIFE::PointType3D< T >::y.

◆ reset()

void FIFE::CellSelectionRenderer::reset ( )

virtual

Deselects all locations.

Reimplemented from FIFE::RendererBase.

Definition at line 73 of file cellselectionrenderer.cpp.

References m_locations.

Referenced by getName().

Here is the caller graph for this function:

◆ selectLocation()

void FIFE::CellSelectionRenderer::selectLocation ( const Location * loc )

Selects given location on map.

Parameters

loc	The location.

Definition at line 77 of file cellselectionrenderer.cpp.

References FIFE::Location::getLayerCoordinates(), and m_locations.

Referenced by getName().

Here is the caller graph for this function:

◆ setColor()

void FIFE::CellSelectionRenderer::setColor	(	uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Changes the used color.

Parameters

r	The value for red, range 0-255.
g	The value for green, range 0-255.
b	The value for blue, range 0-255.

Definition at line 139 of file cellselectionrenderer.cpp.

References m_color.

Referenced by getLocations().

Here is the caller graph for this function:

Member Data Documentation

◆ m_color

SDL_Color FIFE::CellSelectionRenderer::m_color

private

currently used color

Definition at line 117 of file cellselectionrenderer.h.

Referenced by CellSelectionRenderer(), render(), and setColor().

◆ m_locations

std::vector<Location> FIFE::CellSelectionRenderer::m_locations

private

selected locations

Definition at line 114 of file cellselectionrenderer.h.

Referenced by deselectLocation(), getLocations(), render(), reset(), and selectLocation().

The documentation for this class was generated from the following files:

engine/core/view/renderers/cellselectionrenderer.h
engine/core/view/renderers/cellselectionrenderer.cpp
